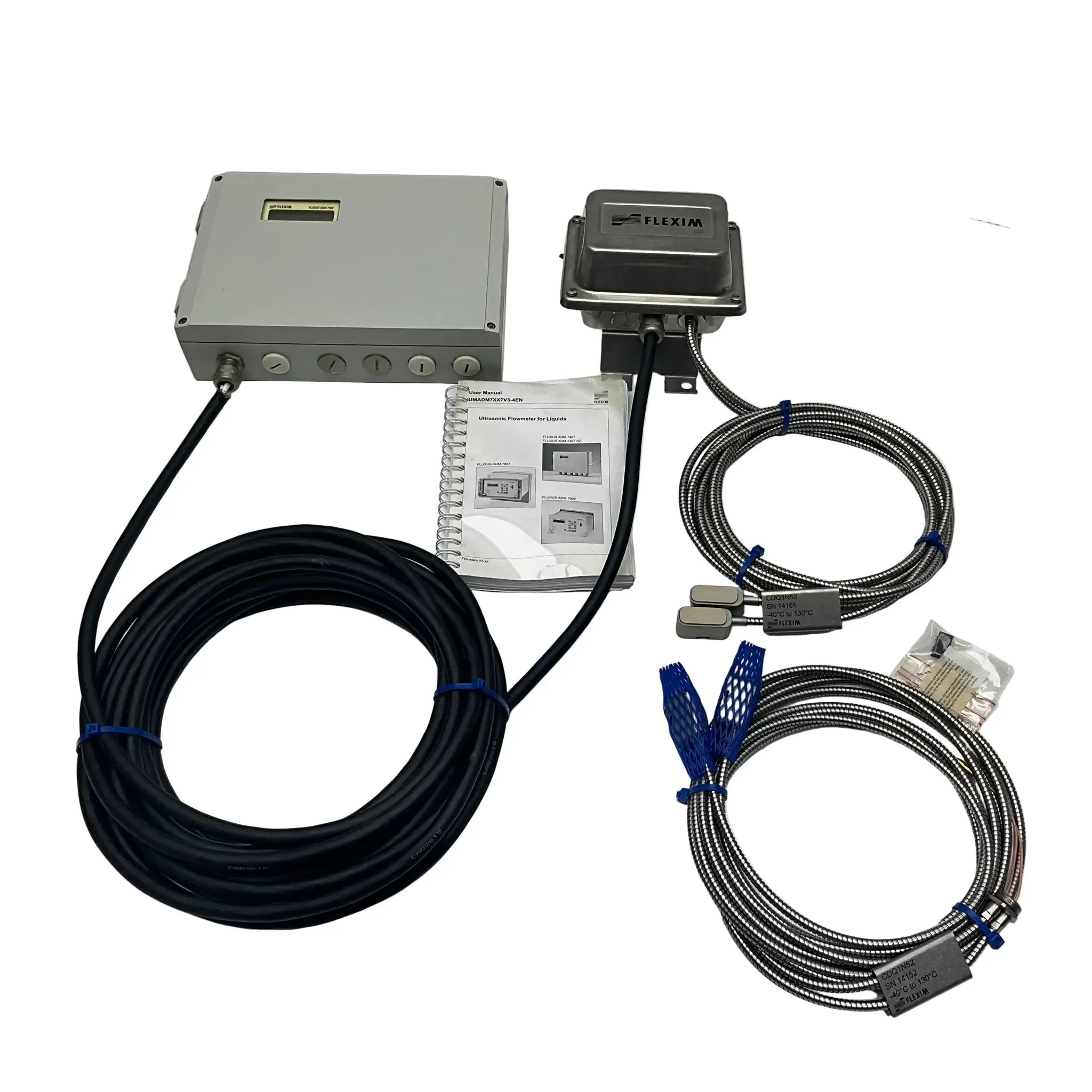

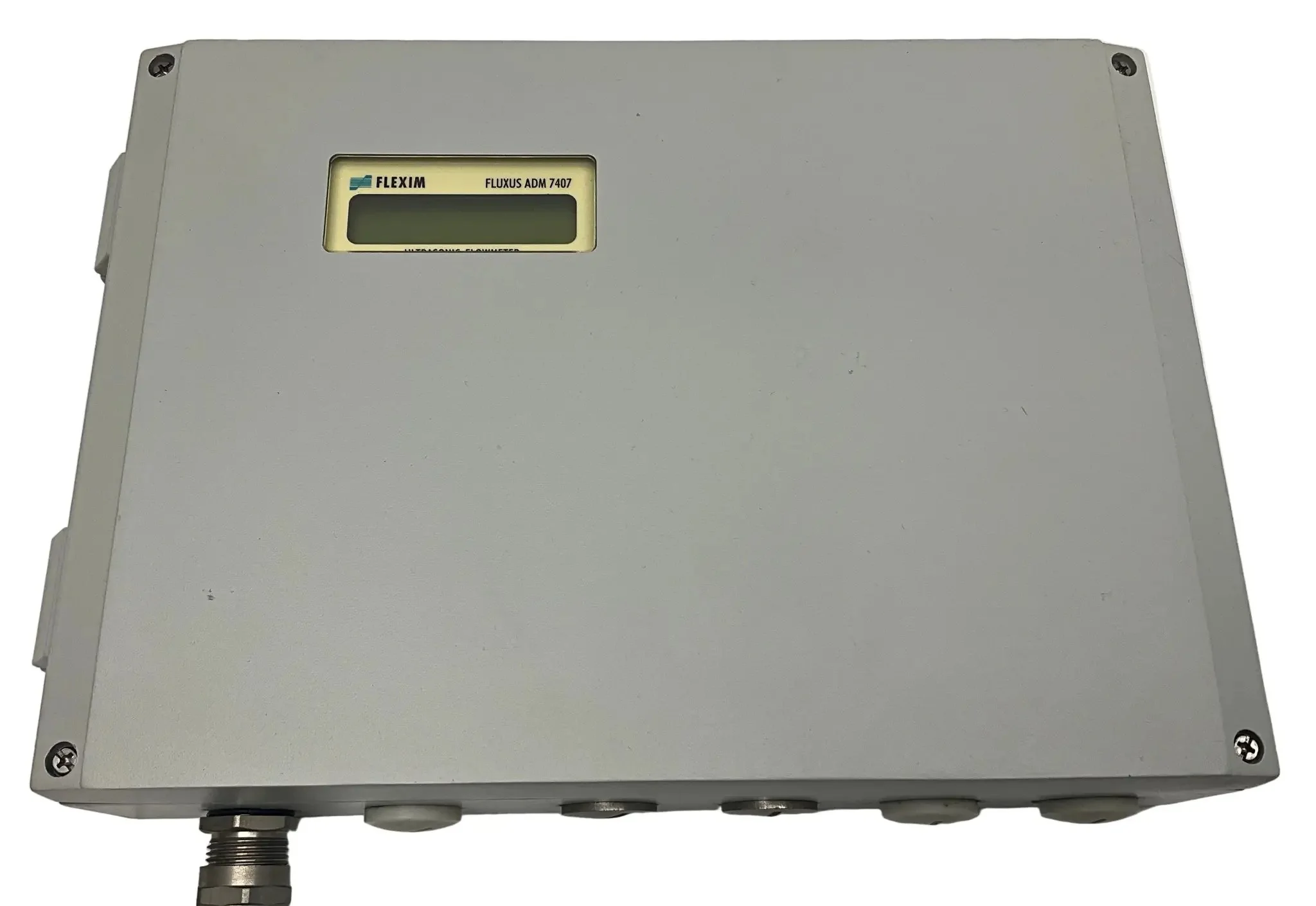

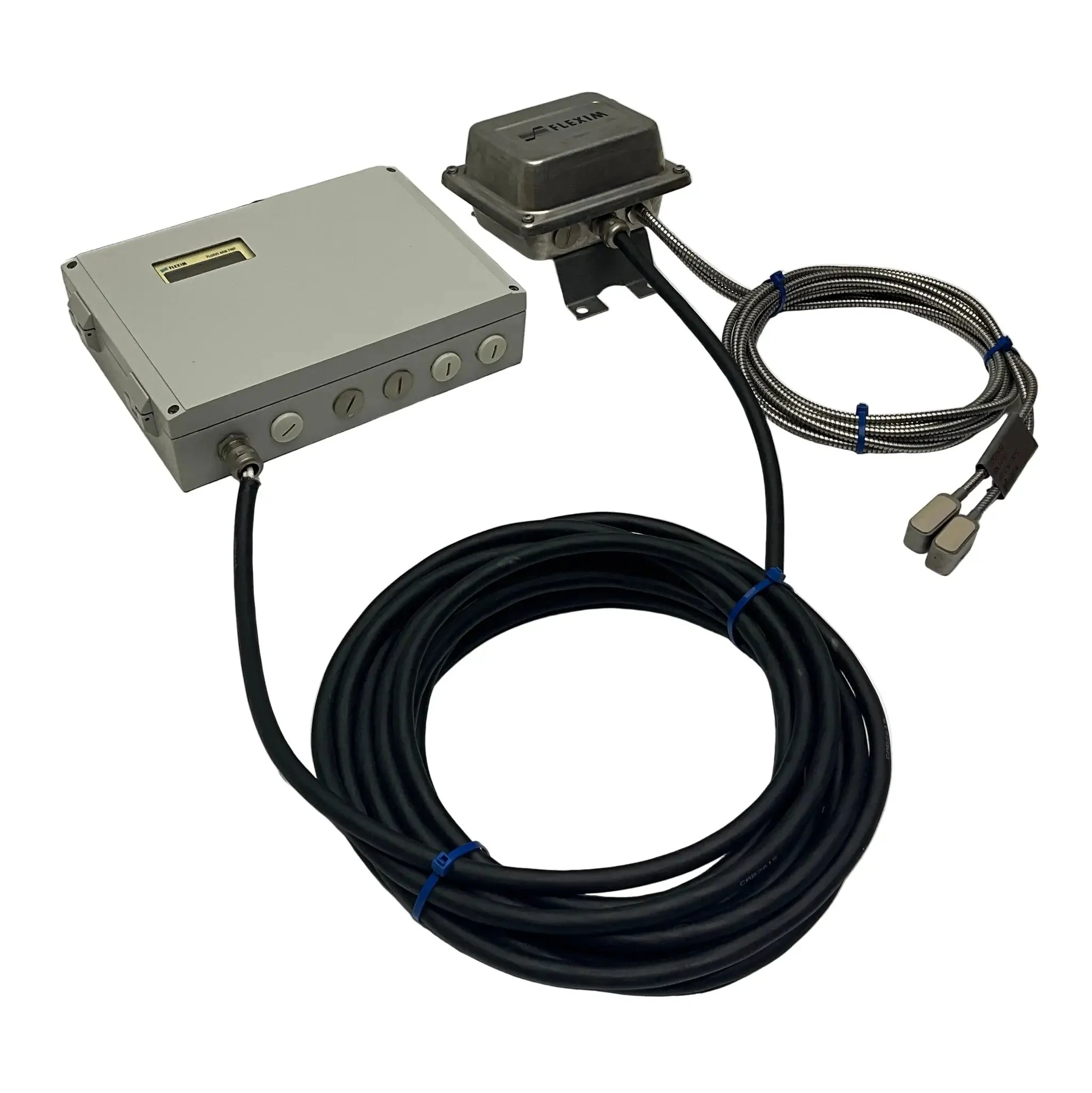

Flexim Fluxus ADM 7407 Ultrasonic Flowmeter Package
Brand: Flexim
Model: Fluxus ADM 7407
Type: Ultrasonic Flowmeter for Liquids
Part Number: ADM 7407
Technical Specs:
Measuring Principle: Ultrasonic transit time difference (correlation principle), automatic NoiseTrek selection for high particulate flows.
Measuring Uncertainty: ±1% of reading ±0.01 m/s
Repeatability: 0.15% of reading ±0.01 m/s
Flow Velocity Range: 0.01 to 25 m/s
Pipe Size Range: 6 mm to 1600 mm
Media: Liquids (clean, dirty, aggressive, with solids or gas bubbles).
Media Temperature: -40 to 130 °C
Process Pressure: Up to 250 bar
Power Supply: 100-230 V AC, 50/60 Hz
Power Consumption: 25 VA
Outputs: 4-20 mA
Inputs: Temperature
Enclosure Rating: IP66 (NEMA 4X)
Operating Temperature: -20 to 60 °C
Humidity: 0 to 99% RH.
Display: Backlit LCD
Mounting: Wall or rack
Additional Features: Bi-directional flow, heat quantity calculation, automatic transducer recognition
Certifications: ATEX/IECEx Zone 2, FM Class I/Div 2
Dimensions: 300 x 200 x 70 mm
Weight: 3.5 kg
Country of Origin: Germany
HS Code: 9026.10

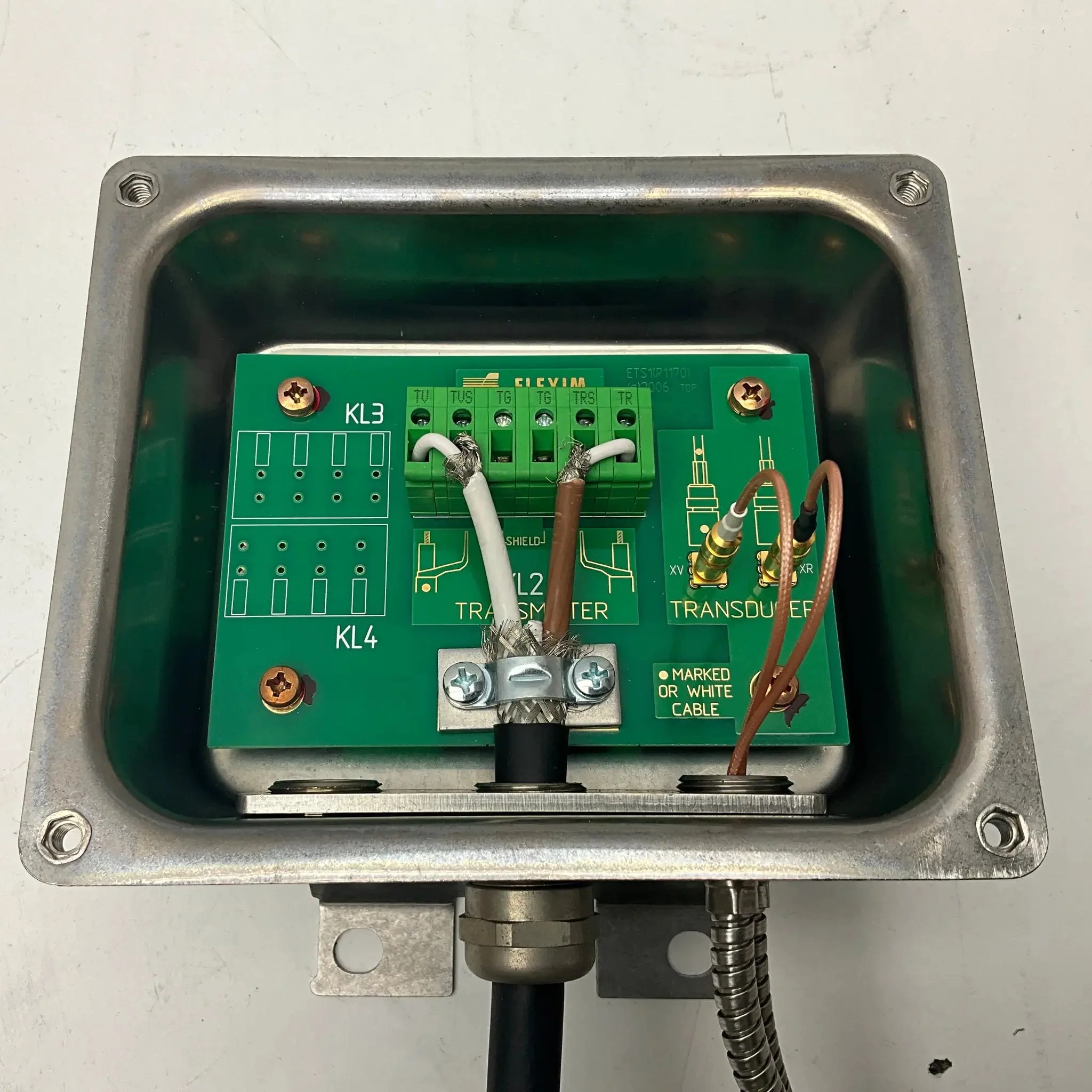

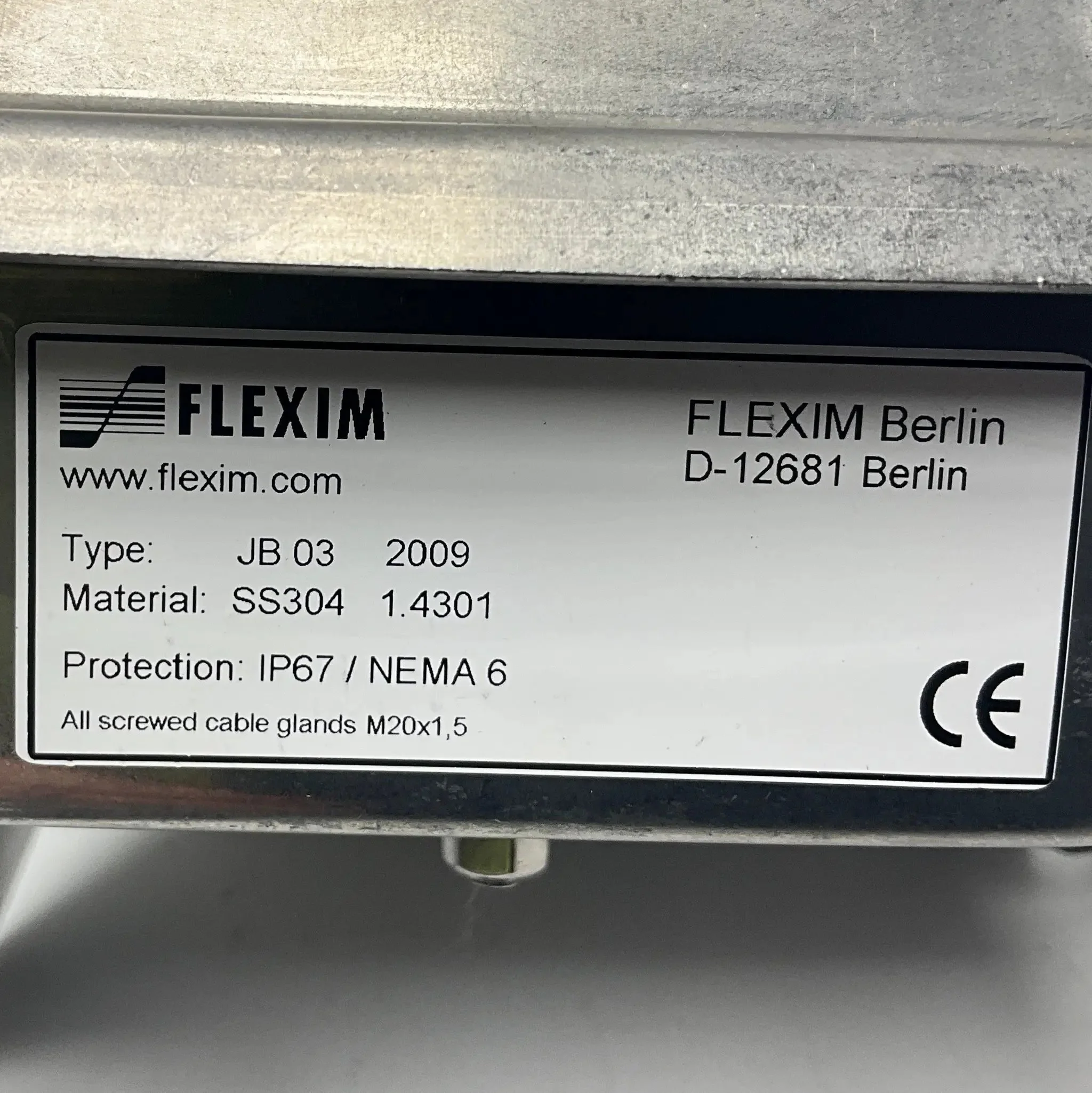

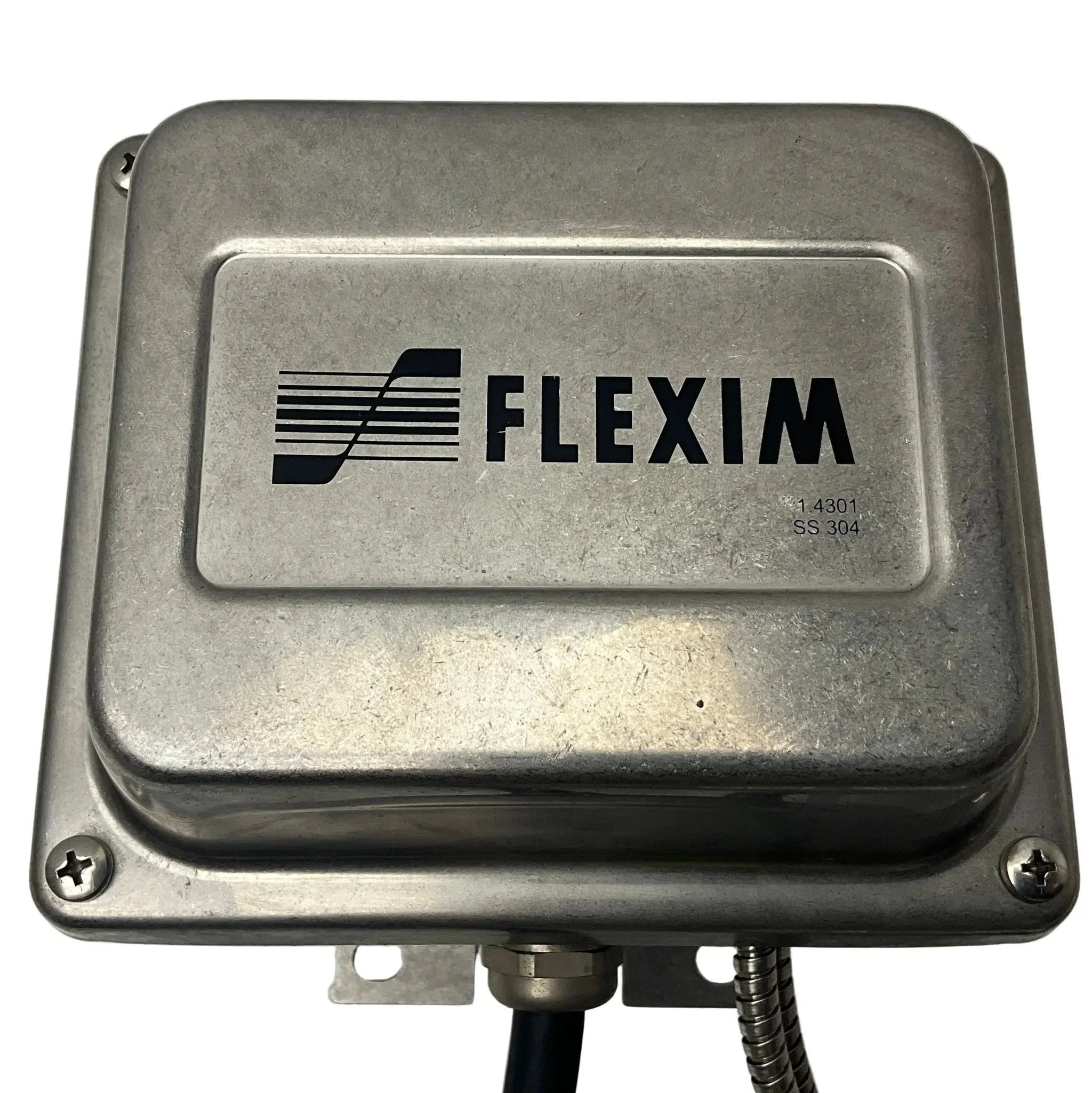

Brand: Flexim
Model: JB 03
Type: Junction Box with KL2 Transmitter & Trandsucer Connection
Part Number: JB 03
Technical Specs:
Function: Junction box for connecting and extending transducer cables in ultrasonic flowmeters (e.g., Fluxus series).
Cable Compatibility: For temperature RTD cables (Pt100/Pt1000, 4-wire).
Enclosure Rating: IP65.
Material: Stainless steel (SS 304)
Cable Entry: 3 x M20 x
Operating Temperature: -20 to 60 °C
Dimensions: 200 x 170 x 130 mm
Weight: 1 kg
Country of Origin: Germany
HS Code: 8536.90.

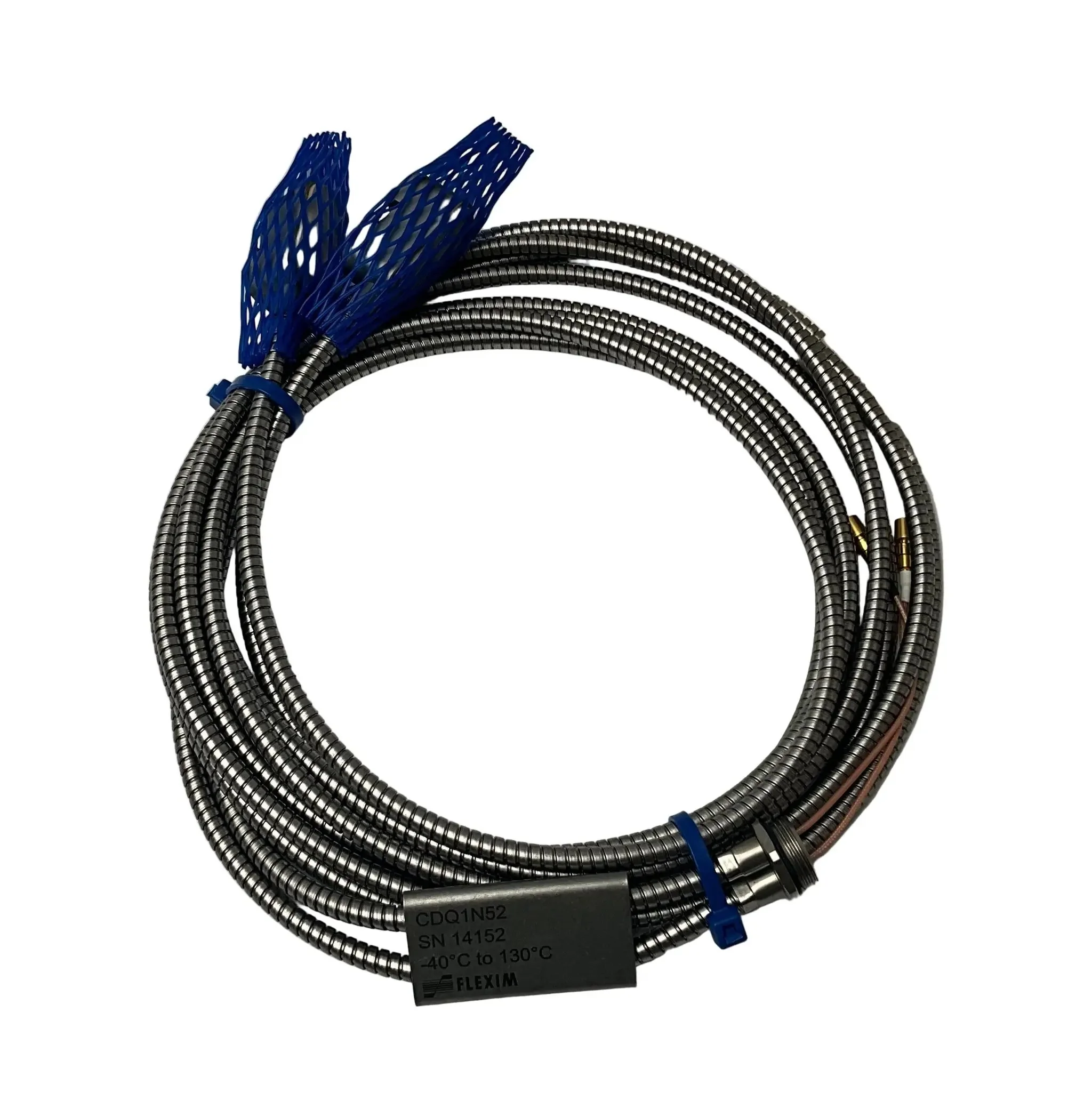

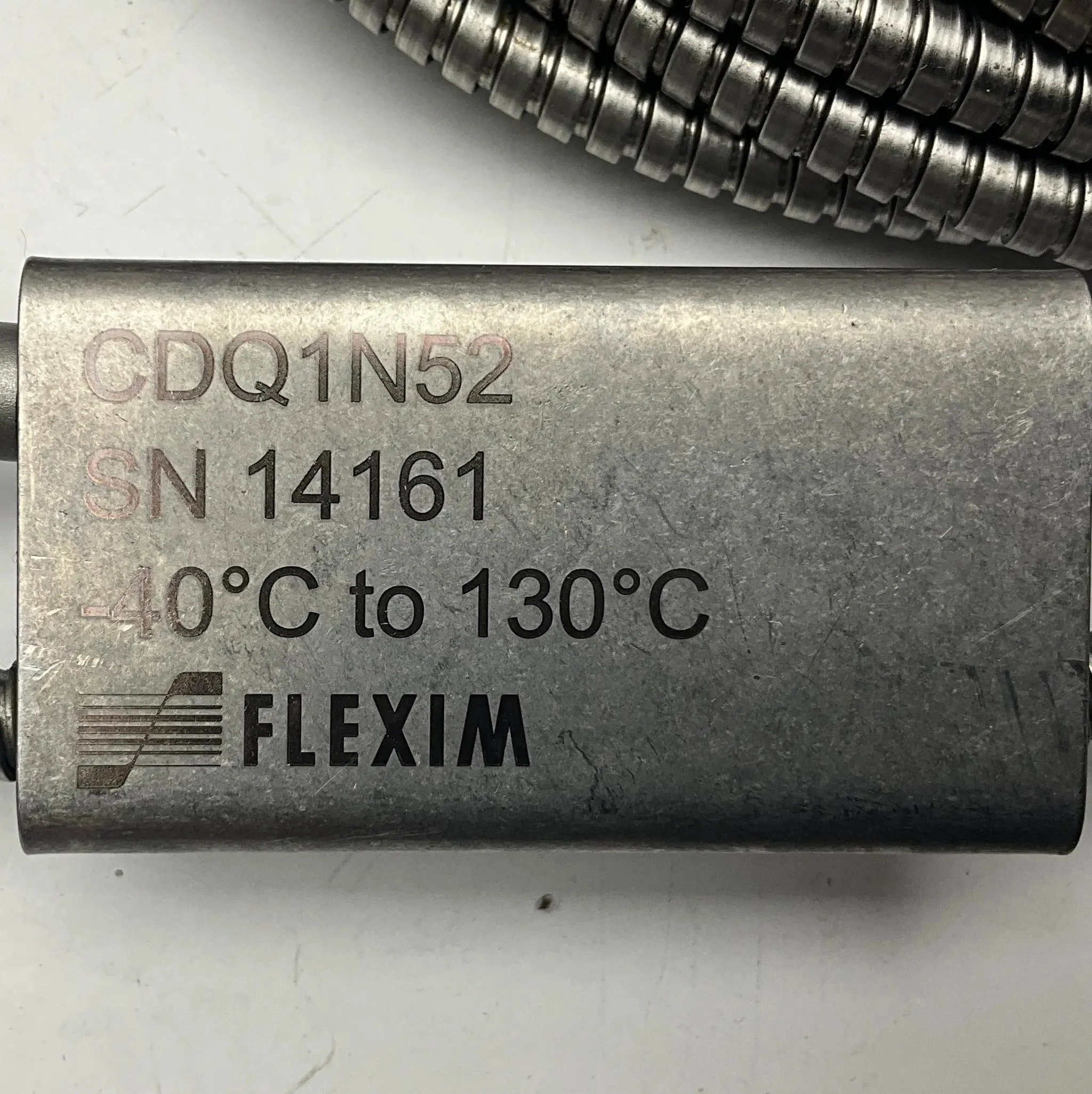

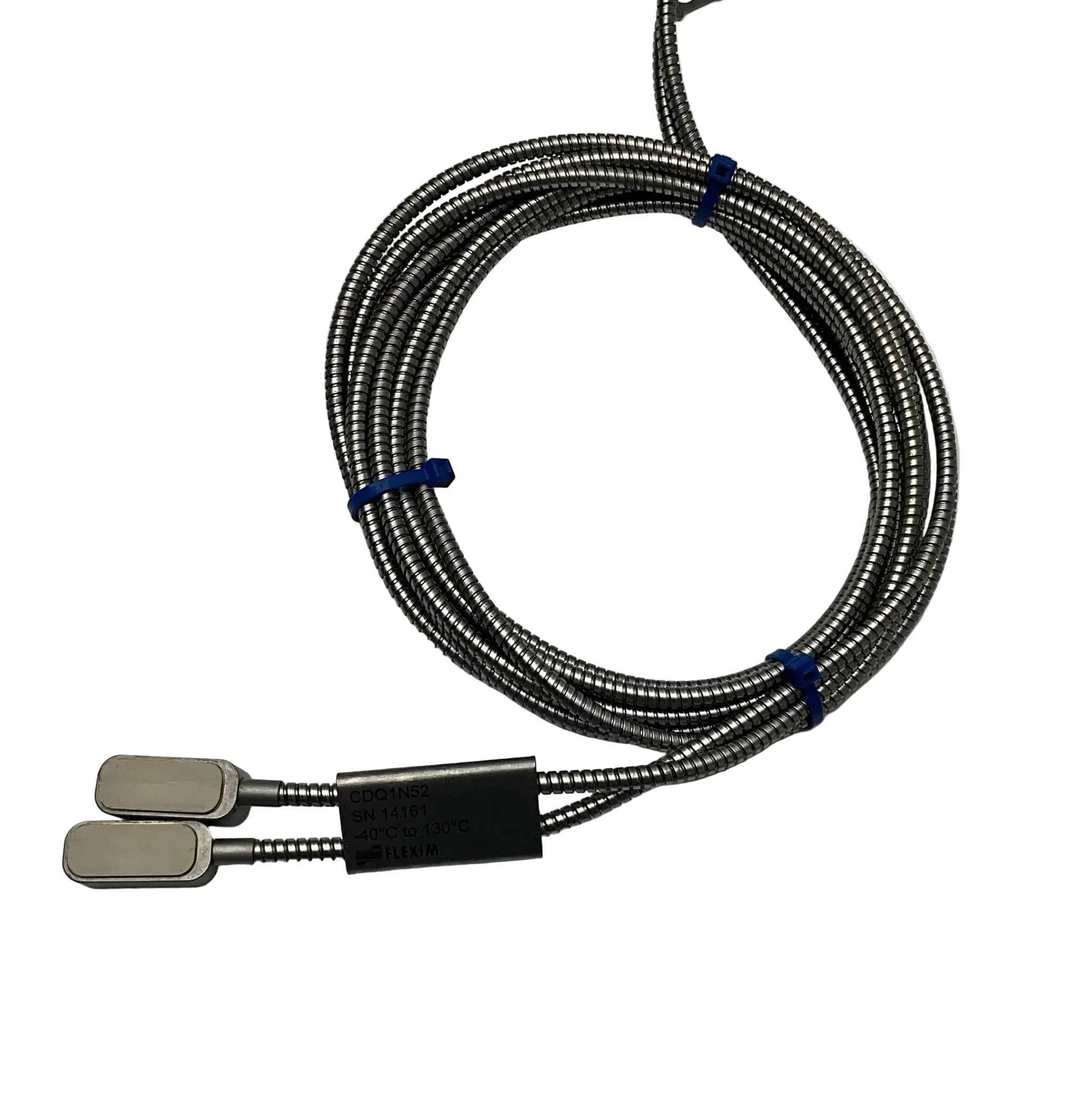

Brand: Flexim
Model: CDQ1N52
Type: Clamp-On Ultrasonic Transducers x 2 (1 New)
Part Number: CDQ1N52
Technical Specs:
Function: Shear wave clamp-on transducer for liquid flow measurement in Fluxus series flowmeters
Pipe Size Range: 12 to 63 mm internal diameter.
Frequency: 1 MHz
Media: Liquids (clean, dirty, aggressive).
Media Temperature: -40 to 130 °C
Process Pressure: Up to 250 bar.
Mounting: Clamp-on
Cable Length: 3 m
Additional Features: ATEX Zone 0 (intrinsic safety) for hazardous areas.
Dimensions: 3 m
Weight: 800 g
Country of Origin: Germany
HS Code: 9026.10
Original: $1,727.83
-70%$1,727.83
$518.35
