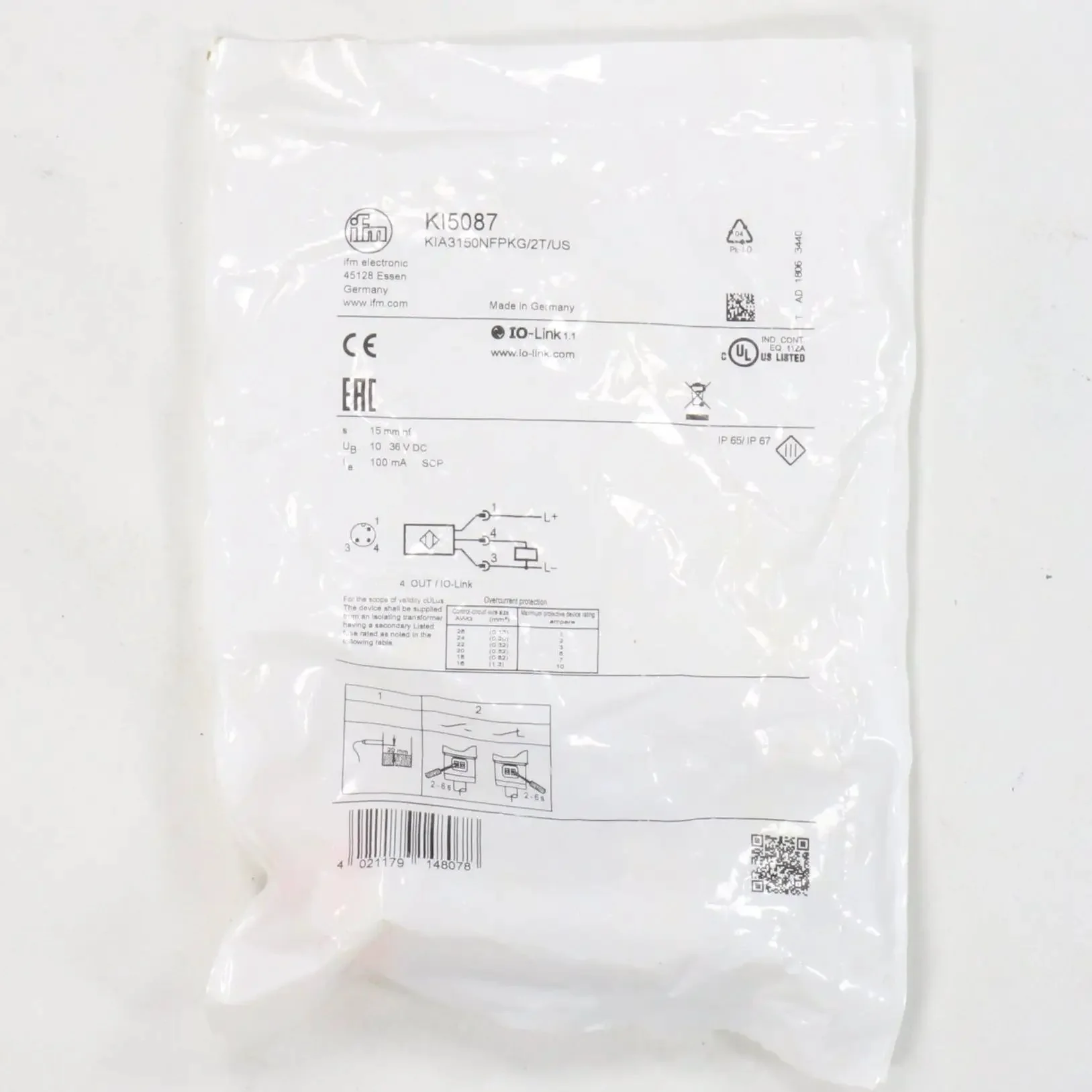

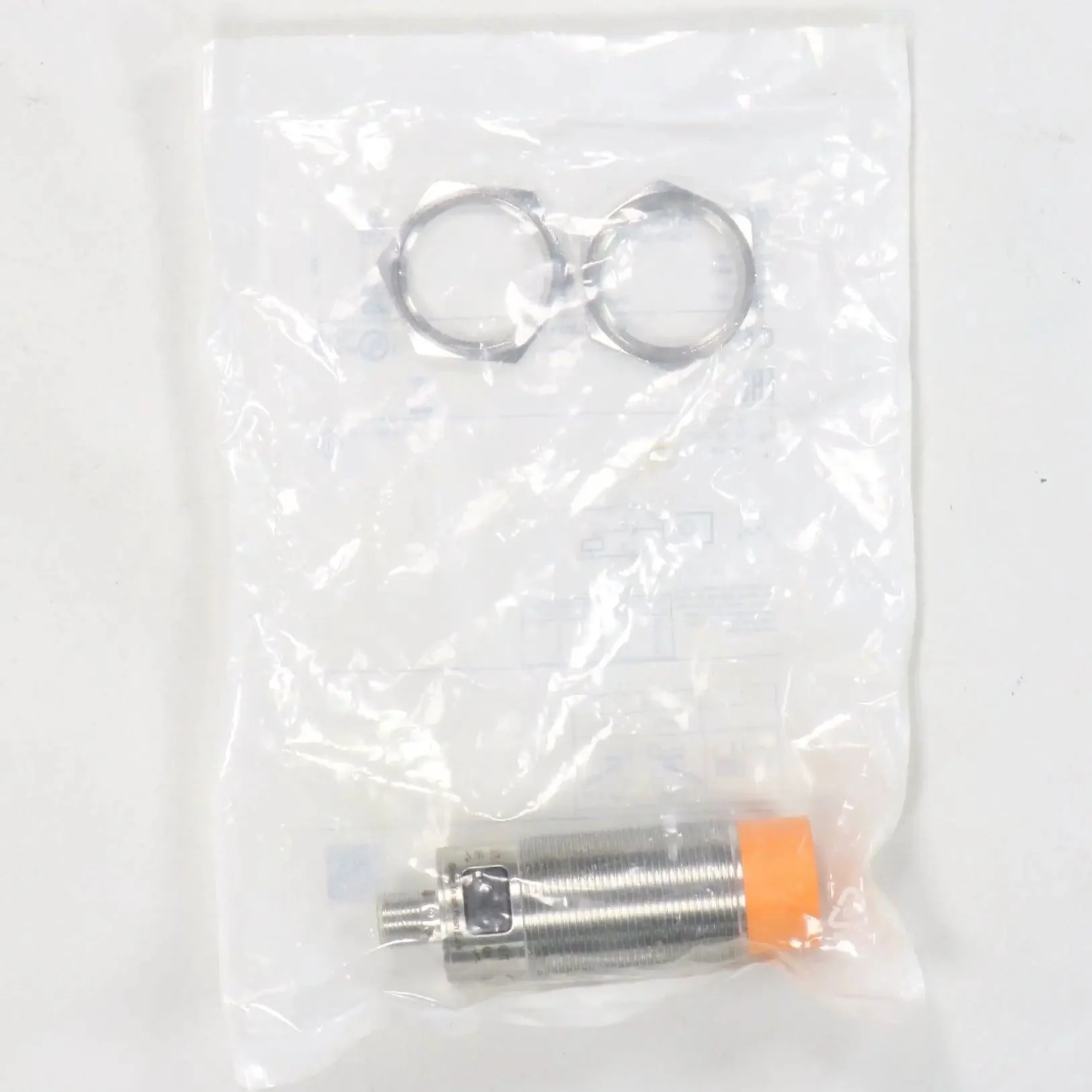

IFM Electronic KI5087 Capacitive Proximity Sensor

- Brand: IFM Electronic

- Model: KI5087

- Type: Capacitive Proximity Sensor

- Part number: KIA3150NFPKG/2T/US

- Technical specifications:
- Sensing range: 15 mm
- Housing: M30 threaded cylindrical
- Output: PNP
- Switching frequency: 10 Hz
- Voltage supply: 10–36 V DC
- Current consumption: <20 mA
- IO-Link: IO-Link interface
- Teach-in: 2-point teach-in
- Protection rating: IP65 / IP67
- Operating temperature: -25°C to +80°C
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Connection: M12 connector
- LED indicators: Power ON, switching status, and teach-in mode
- Additional features: Background suppression; insensitive to deposits on sensing face; high EMC immunity; IO-Link for predictive maintenance and easy setup; suitable for non-metallic media detection
- Standards: Compliant with IEC/EN 60947-5-2; CE, UL, cULus approvals; IO-Link certified

Weight: 150 g

Dimensions: 90 x 30 mm

Country of origin: Germany

HS code: 8536.50
