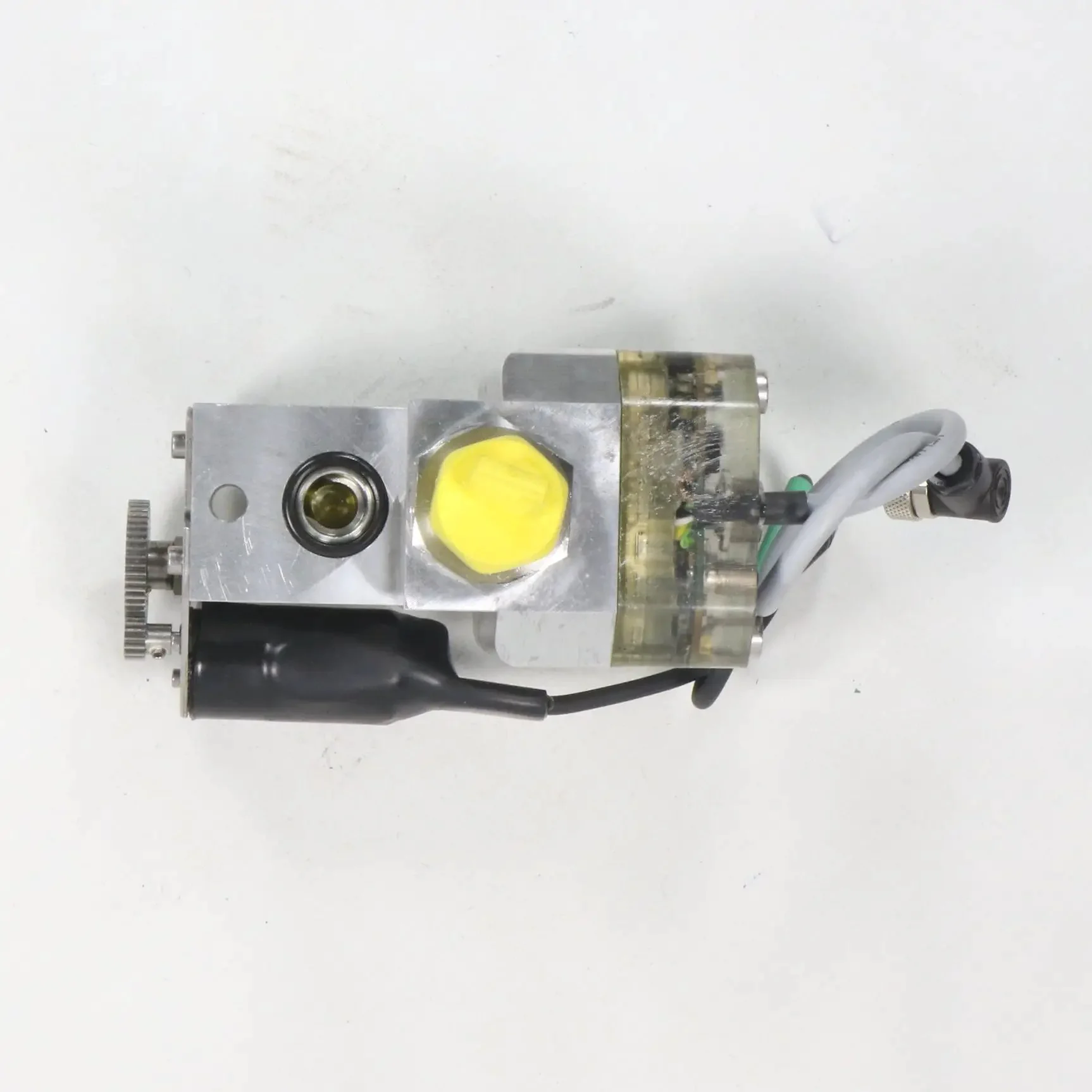

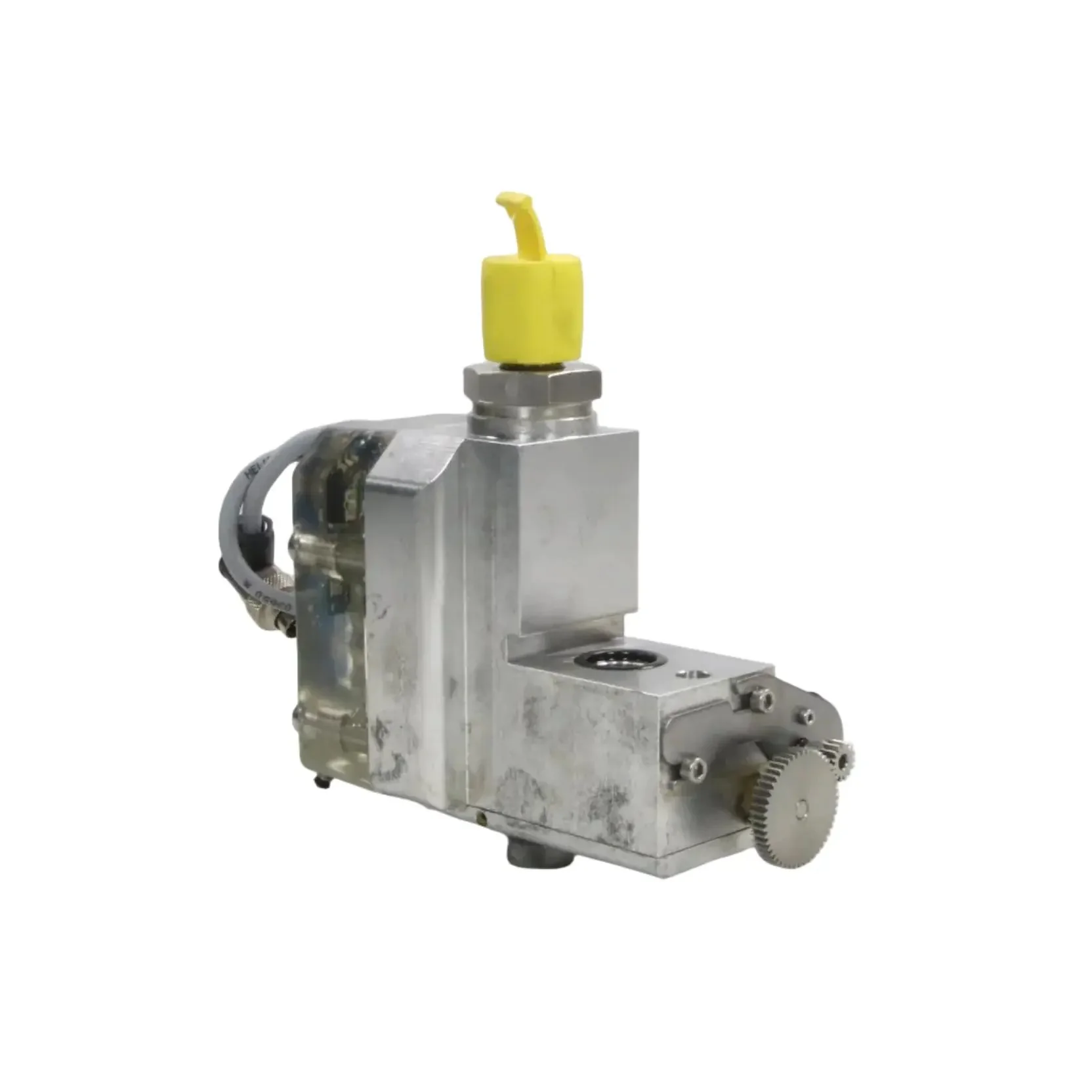

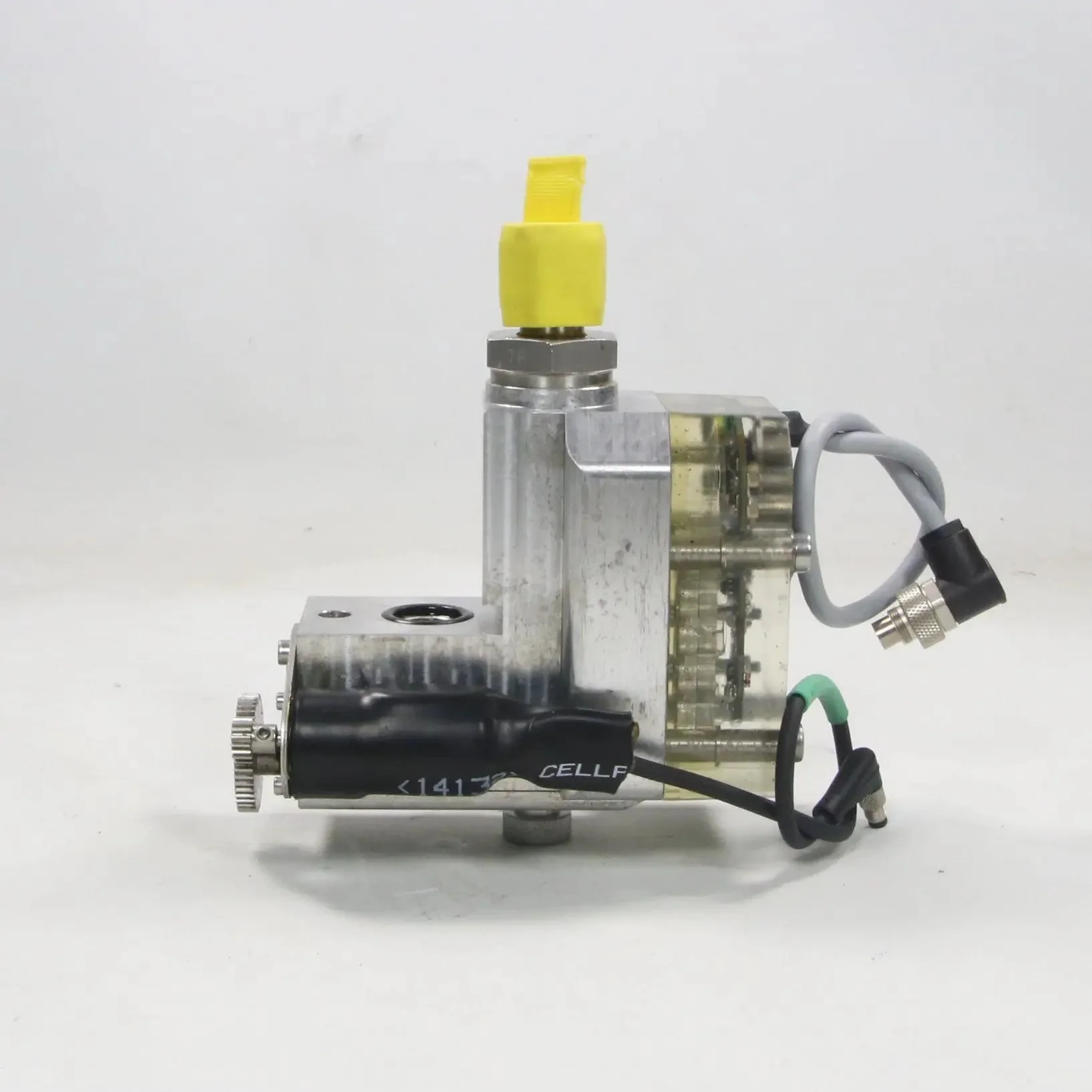

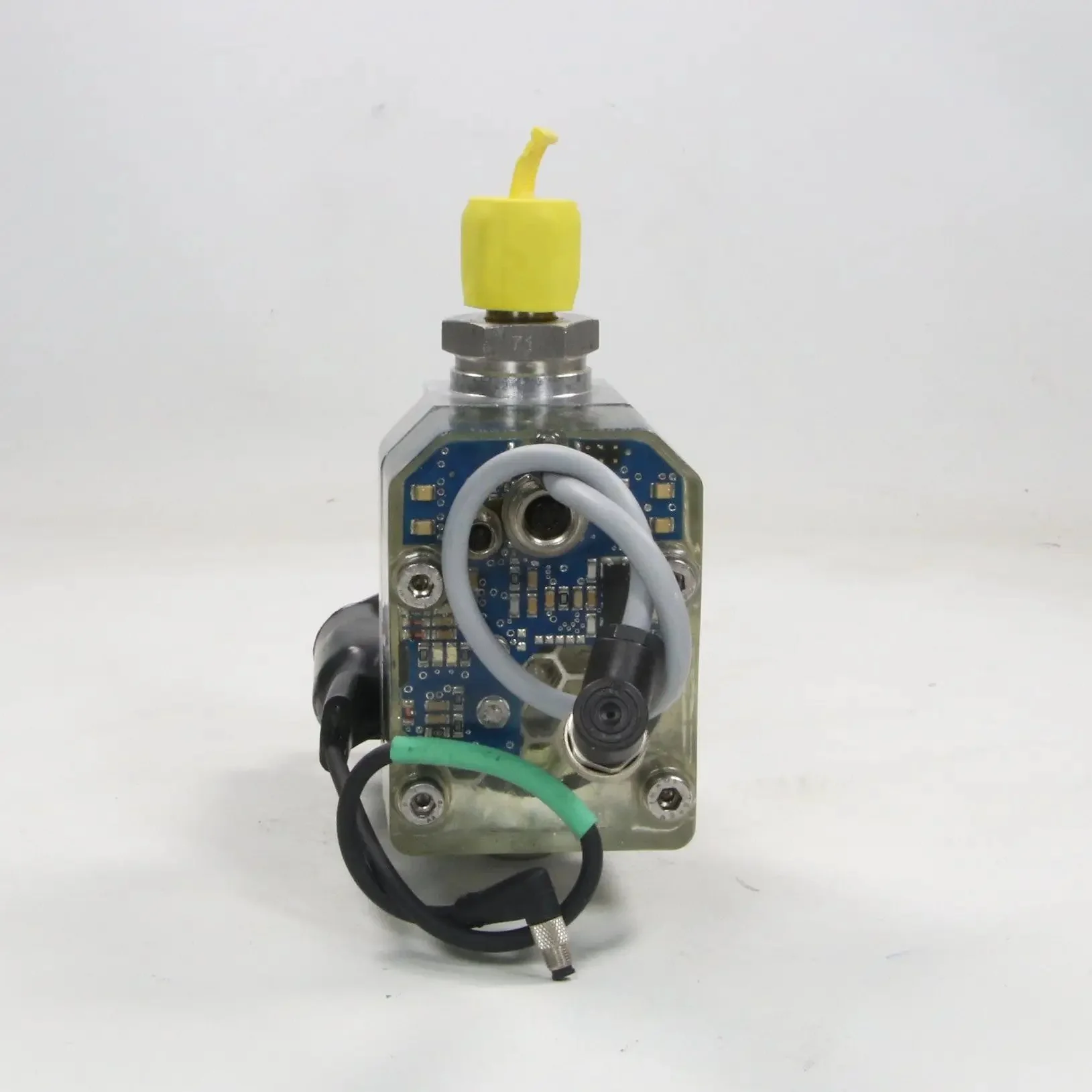

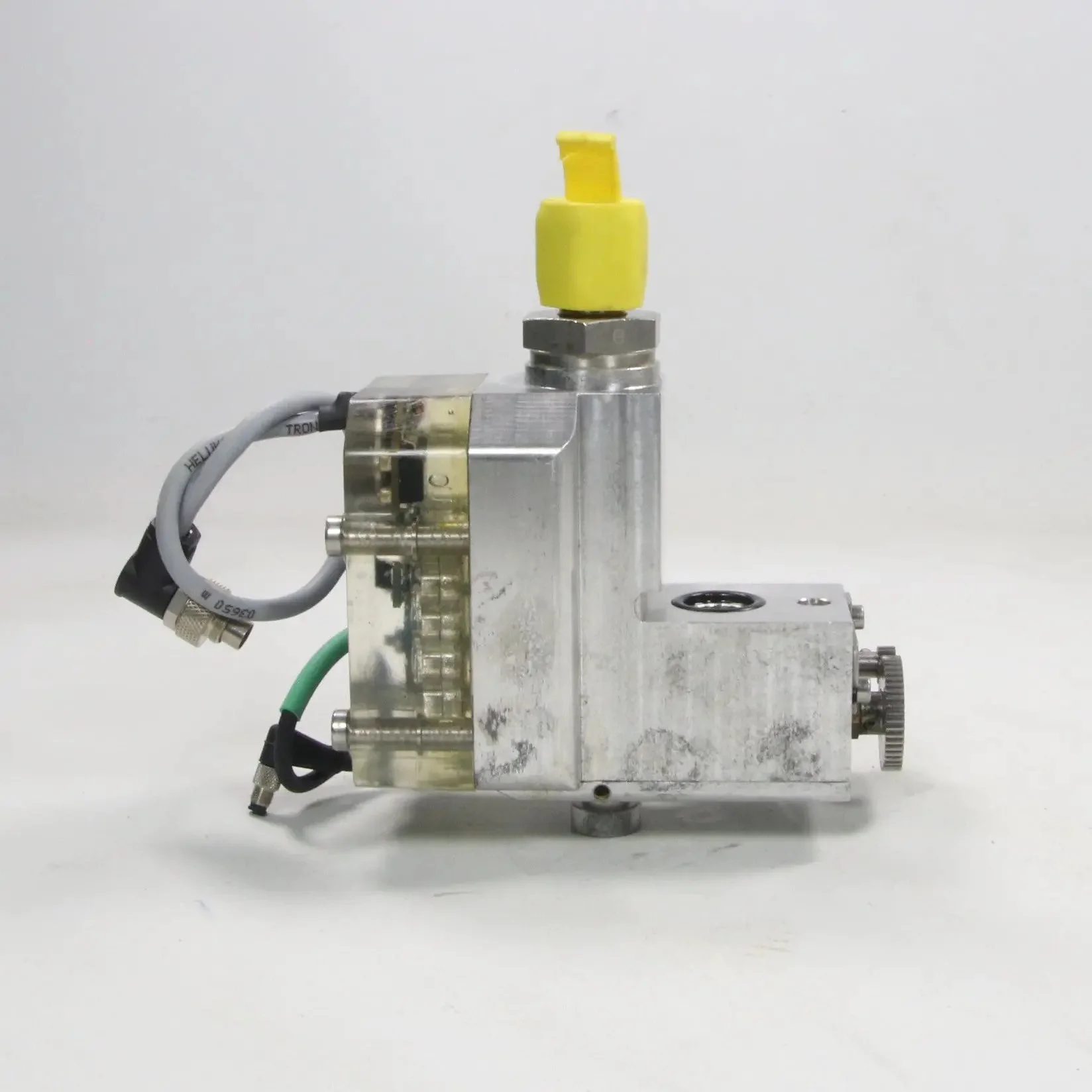

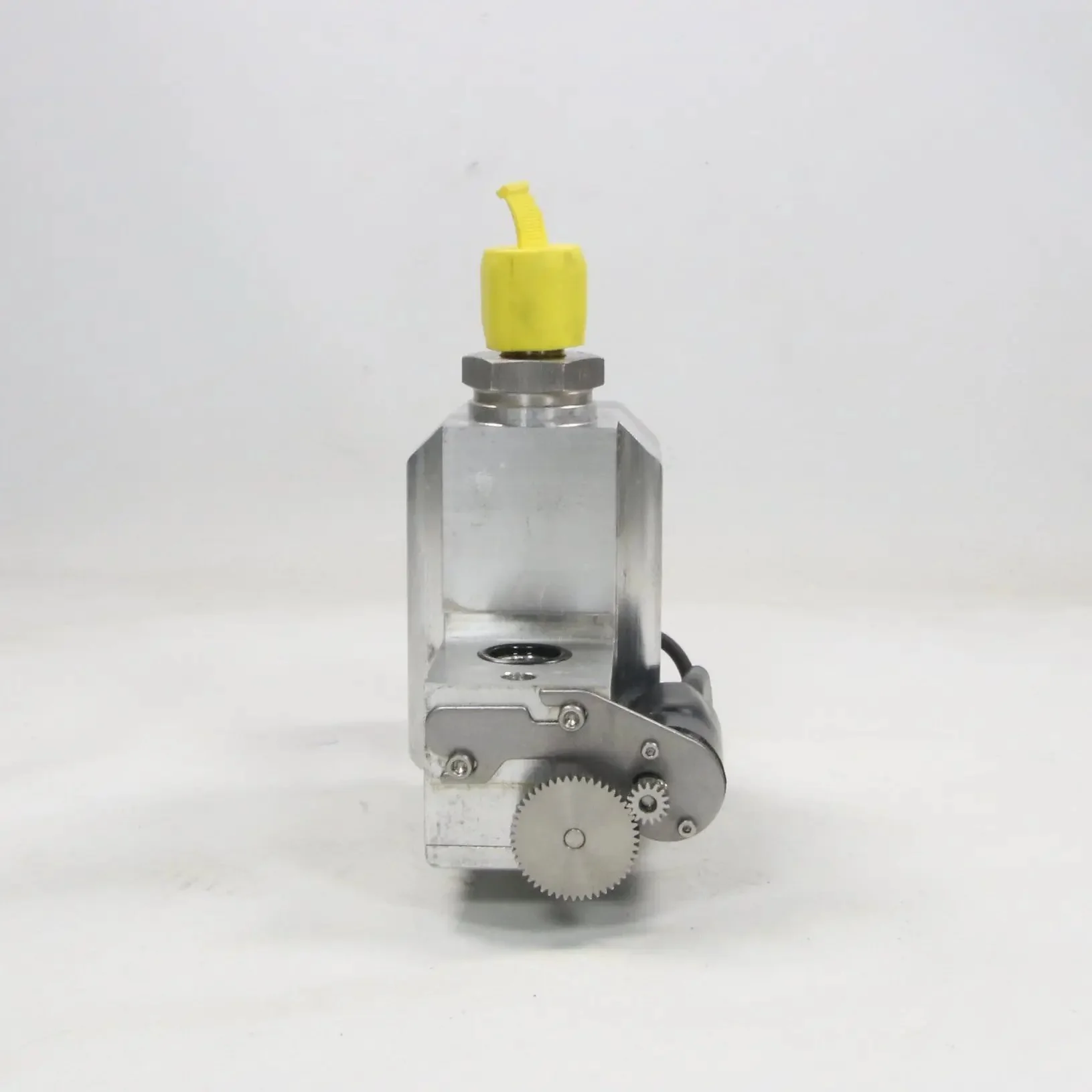

FlexoFlow Q4 FC 020 Intelligent Flow Rate Controller

- Brand: FlexoFlow (FlexoFlow GmbH)

- Model: Q4 FC 020 (part of the Q4 series)

- Type: Intelligent Flow Rate Controller

- Part number: Q4 FC 020

Technical specifications:
- Flow range: 0.07–4 l/min
- Accuracy: ±1.5% FS or better
- Connection G 1/2"
- Medium: Oil or Water
- Operating pressure: 25 bar
- Output: FlexoFlow terminal - Digital I/O, Profibus or Profinet
- Supply voltage: via FlexoBus (12V DC)
- Media temperature: -10°C to +80°C or higher
- Protection: IP67
- Additional features: Intelligent regulation; alarm outputs; compact all-in-one design; suitable for process control, or dosing
- Standards: Compliant with relevant EN/IEC for flow controllers; CE marked

Weight: 1.0 kg

Dimensions: 140 x 70 x 170 mm

Country of origin: Germany

HS code: 9032.89
