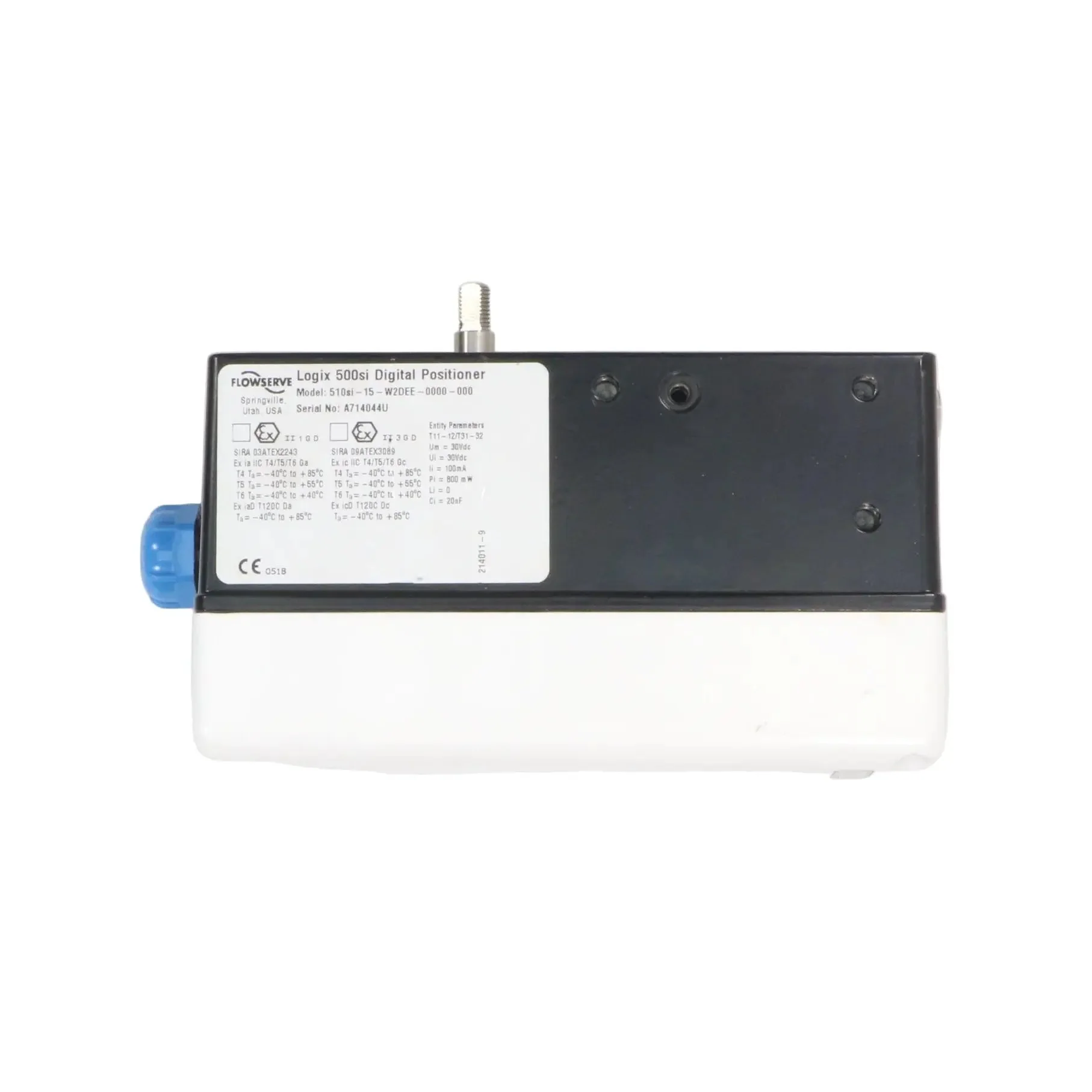

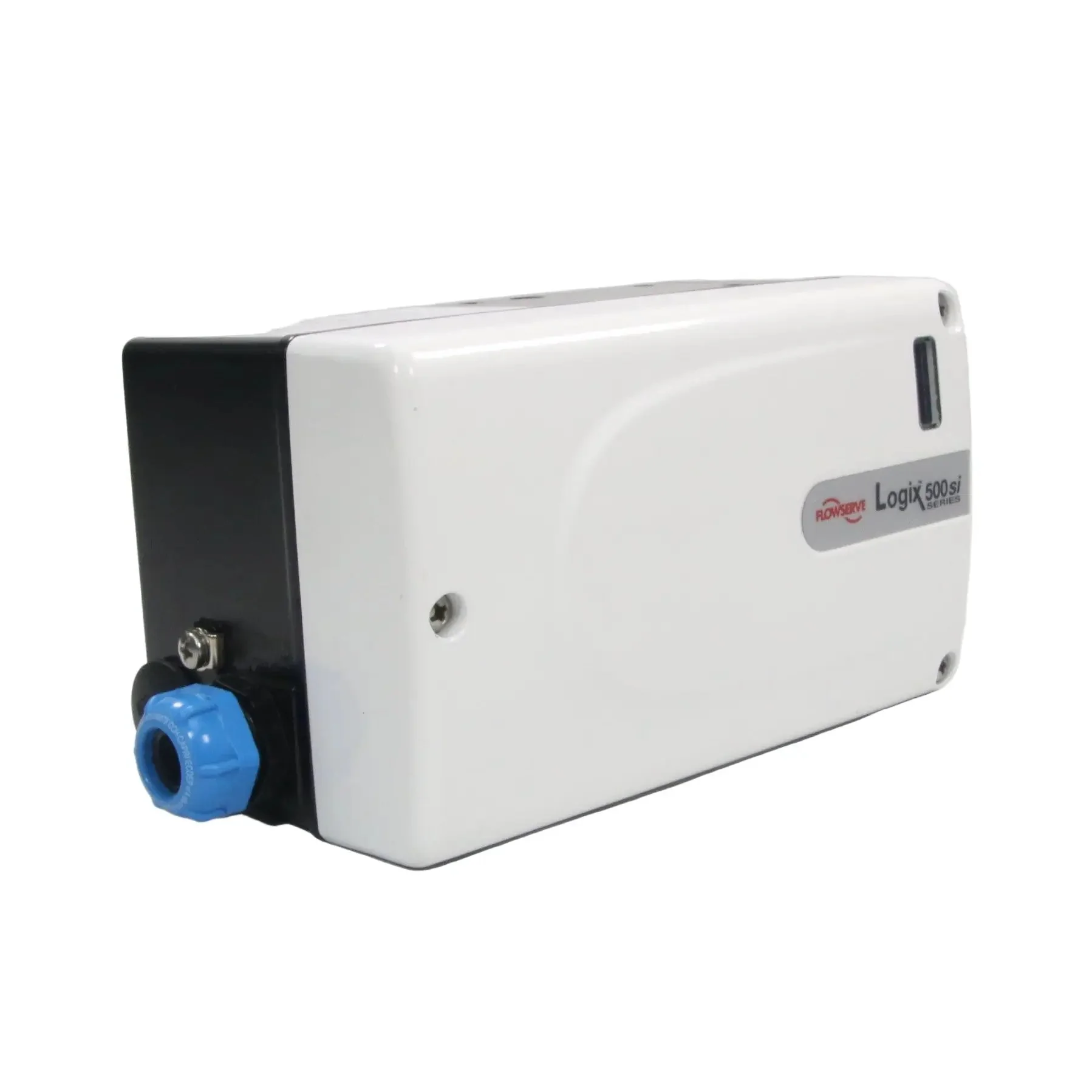

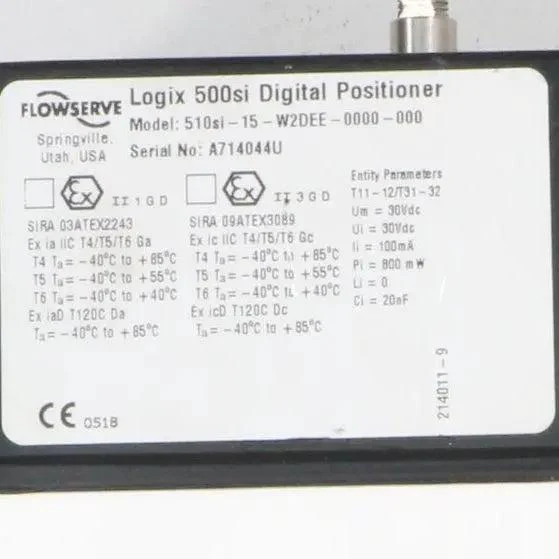

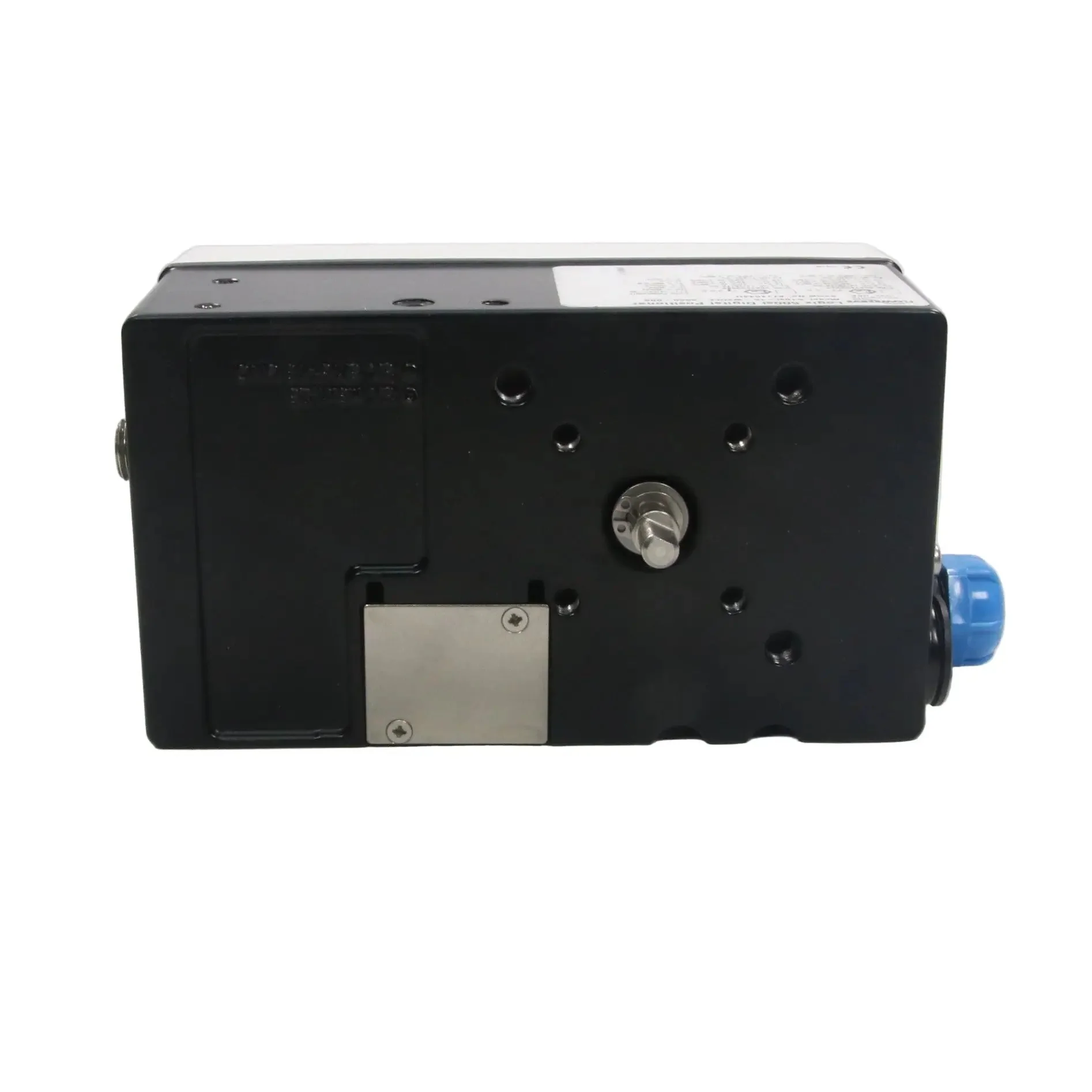

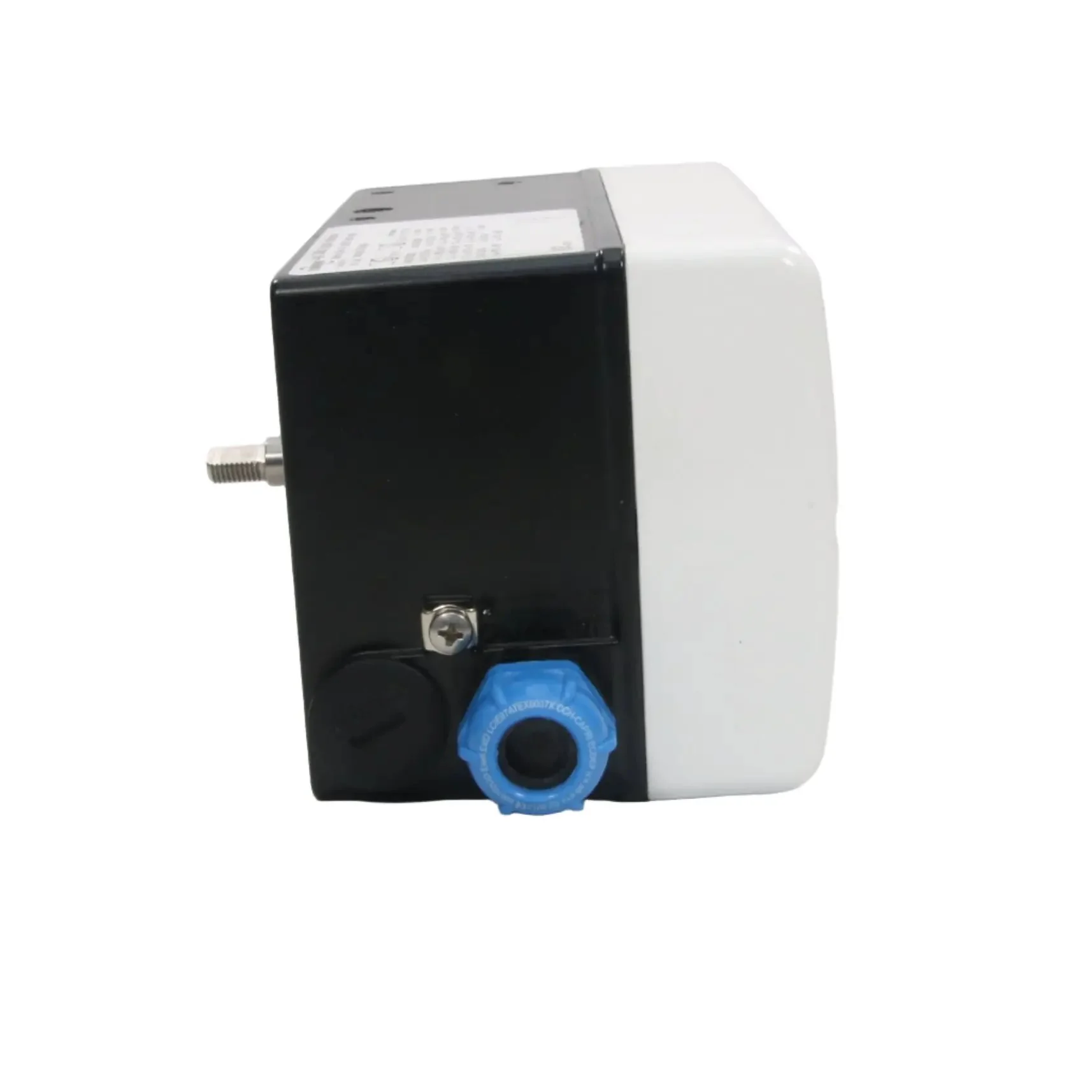

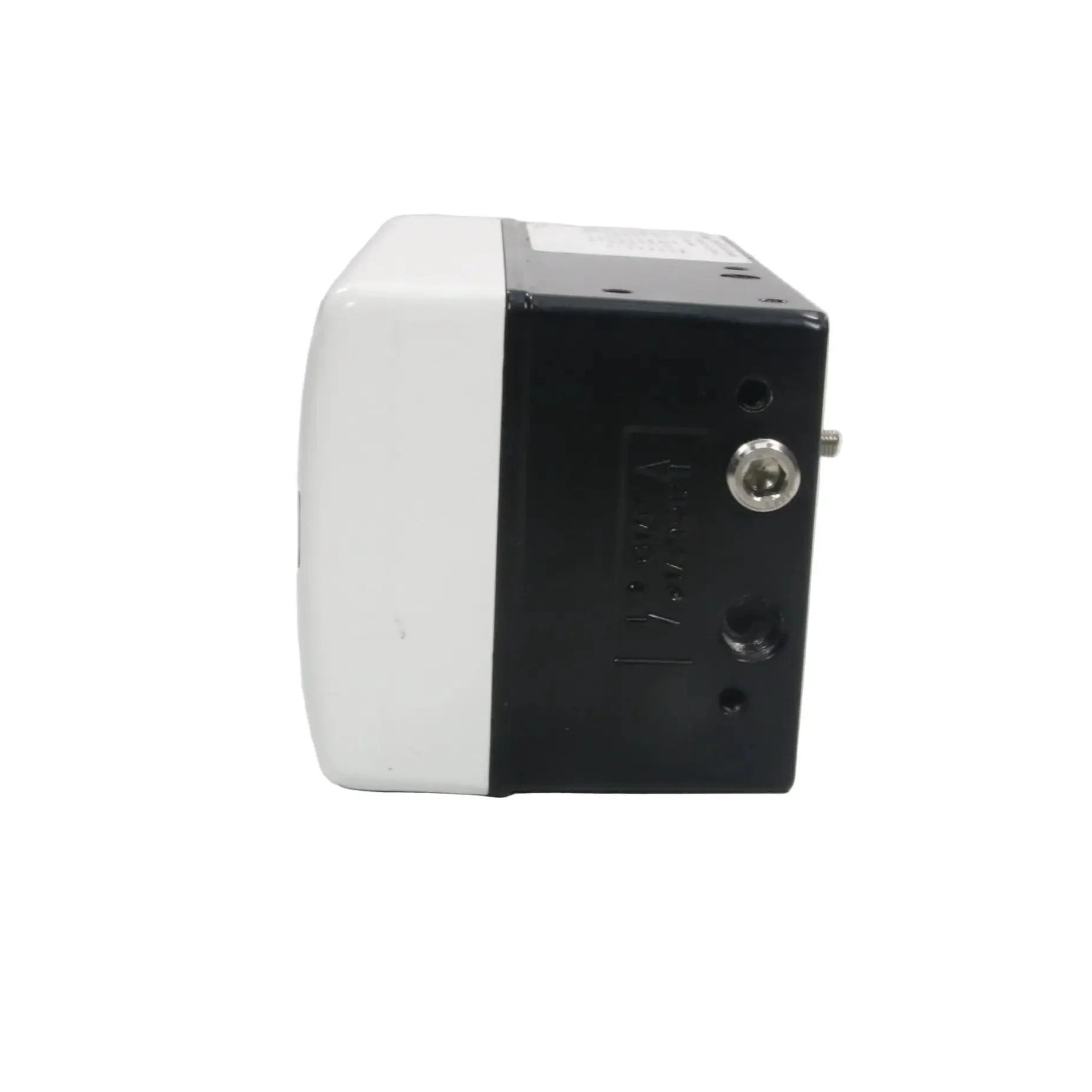

Flowserve Logix 500si Digital Valve Positioner
- Brand: Flowserve
- Model: Logix 510si-15-W2DEE-0000-000
- Type: Digital Valve Positioner
- Technical Specifications:
- Function: Digital valve positioner for precise control of linear and rotary actuators
- Input Signal: 4-20 mA / HART
- Supply Pressure: 1.4 bar to 6 bar
- Air Consumption: <0.38 Nm³/h at 1.4 bar
- Enclosure Rating: IP66 / NEMA 4X
- Operating Temperature: -40°C to +80°C
- Communication: HART protocol, optional Foundation Fieldbus
- Diagnostics: Travel calibration, predictive maintenance, partial stroke testing
- Features: Non-contact position sensor, graphical LCD display, auto-tune, easy calibration, suitable for hazardous areas
- Certifications: ATEX, IECEx, FM, CSA
- Dimensions: 250 mm x 250 mm x 145 mm
-Weight: 1.5 kg
- Country of Origin: USA
-HS Code: 848180
Original: $973.34
-70%$973.34
$292.00
Description
- Brand: Flowserve
- Model: Logix 510si-15-W2DEE-0000-000
- Type: Digital Valve Positioner
- Technical Specifications:
- Function: Digital valve positioner for precise control of linear and rotary actuators
- Input Signal: 4-20 mA / HART
- Supply Pressure: 1.4 bar to 6 bar
- Air Consumption: <0.38 Nm³/h at 1.4 bar
- Enclosure Rating: IP66 / NEMA 4X
- Operating Temperature: -40°C to +80°C
- Communication: HART protocol, optional Foundation Fieldbus
- Diagnostics: Travel calibration, predictive maintenance, partial stroke testing
- Features: Non-contact position sensor, graphical LCD display, auto-tune, easy calibration, suitable for hazardous areas
- Certifications: ATEX, IECEx, FM, CSA
- Dimensions: 250 mm x 250 mm x 145 mm
-Weight: 1.5 kg
- Country of Origin: USA
-HS Code: 848180
