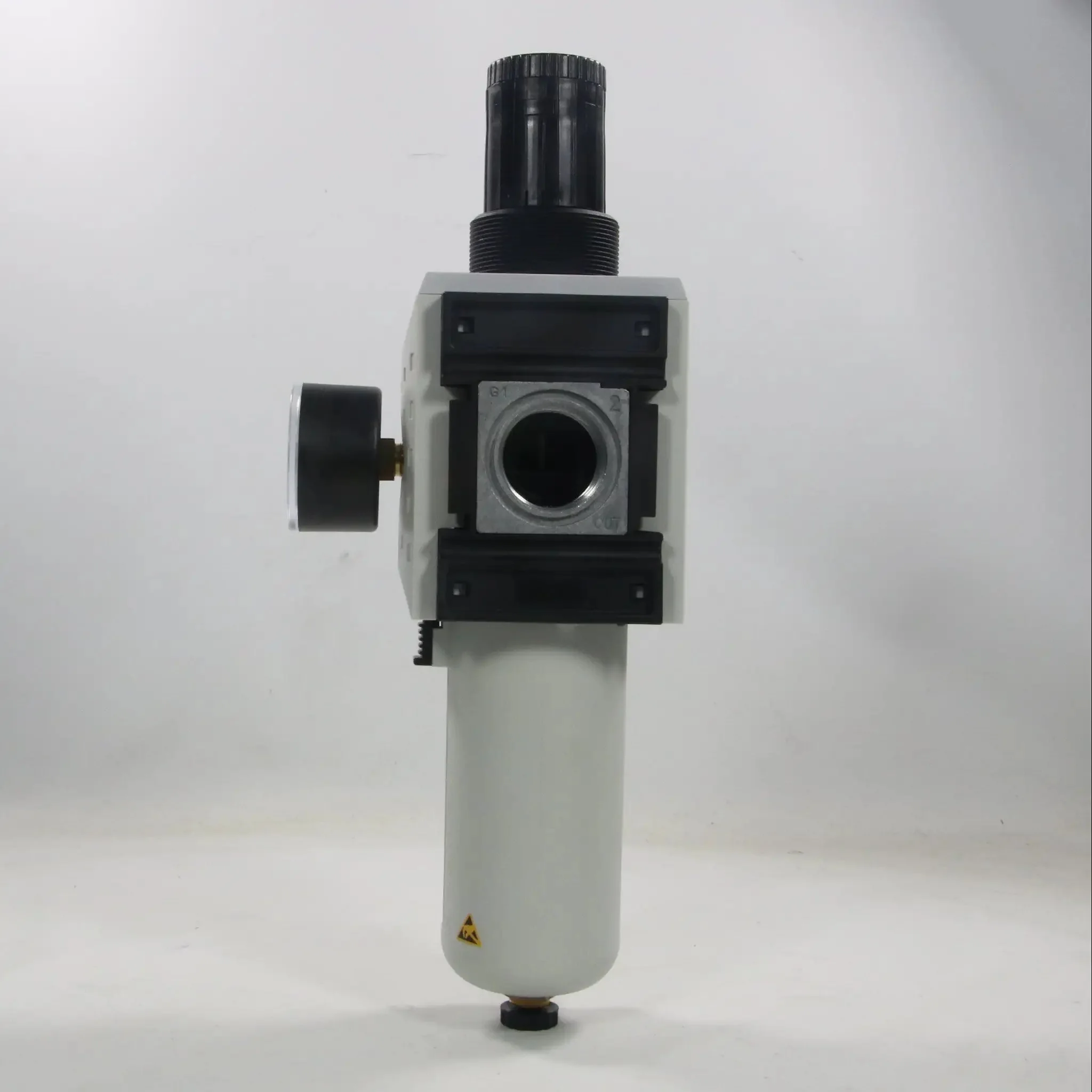

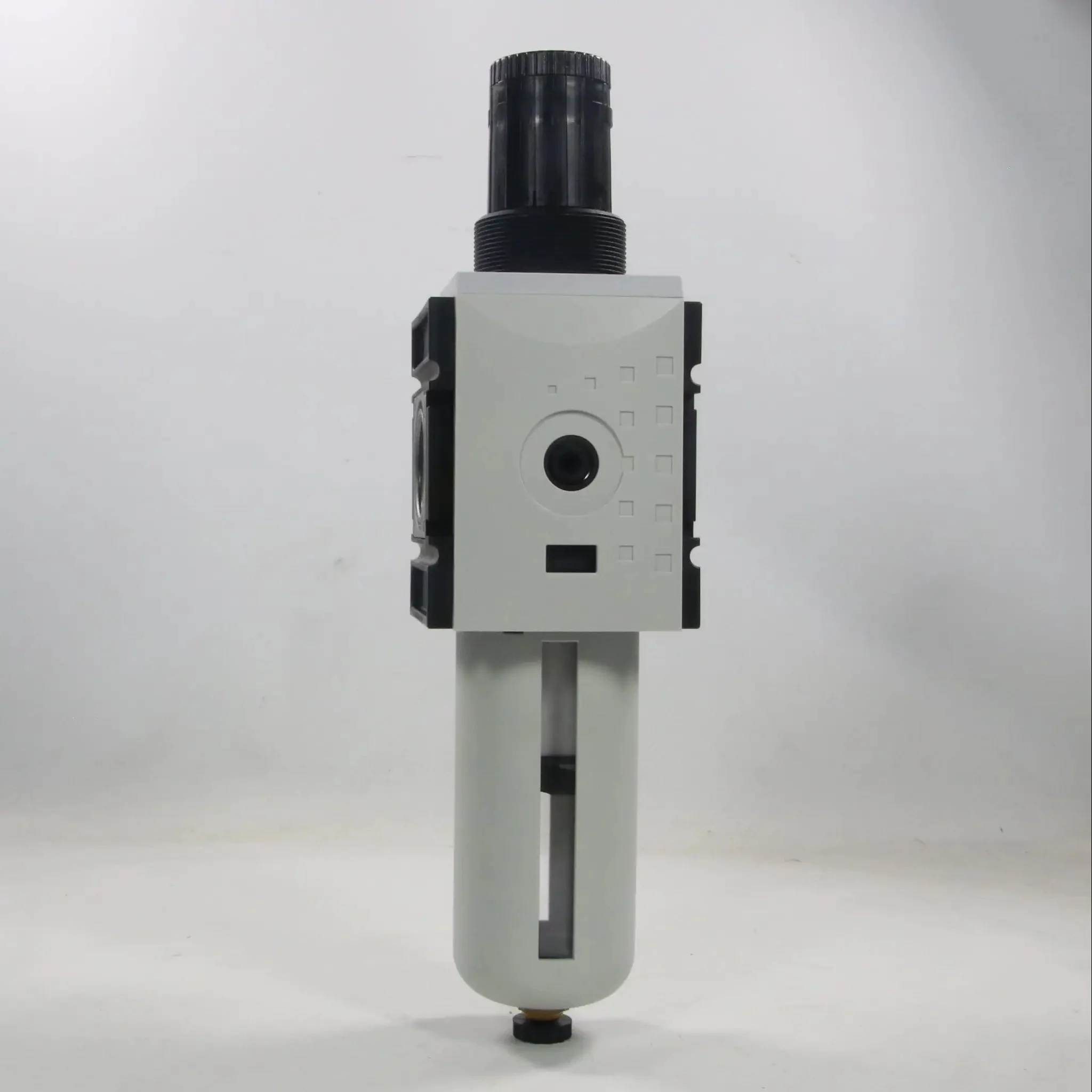

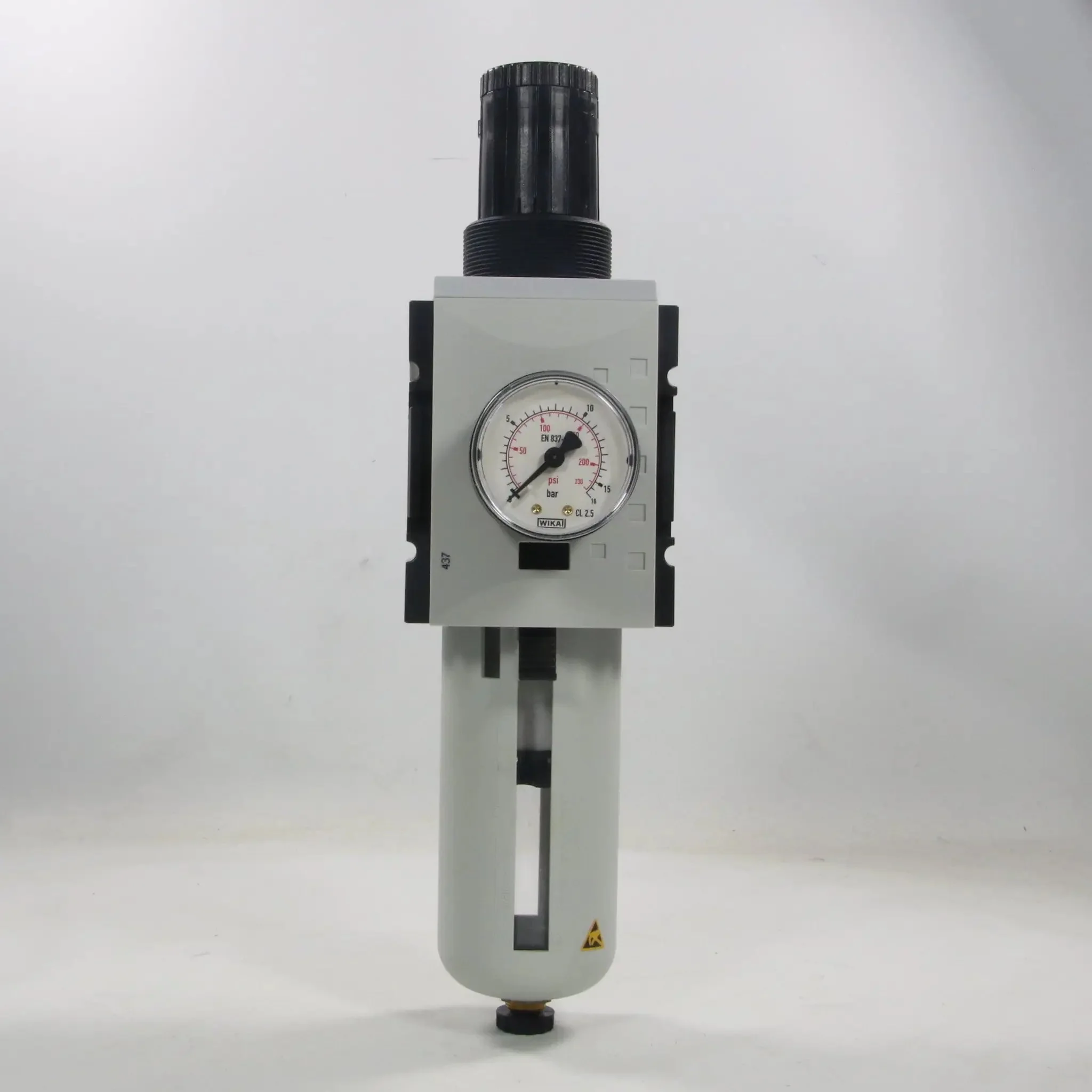

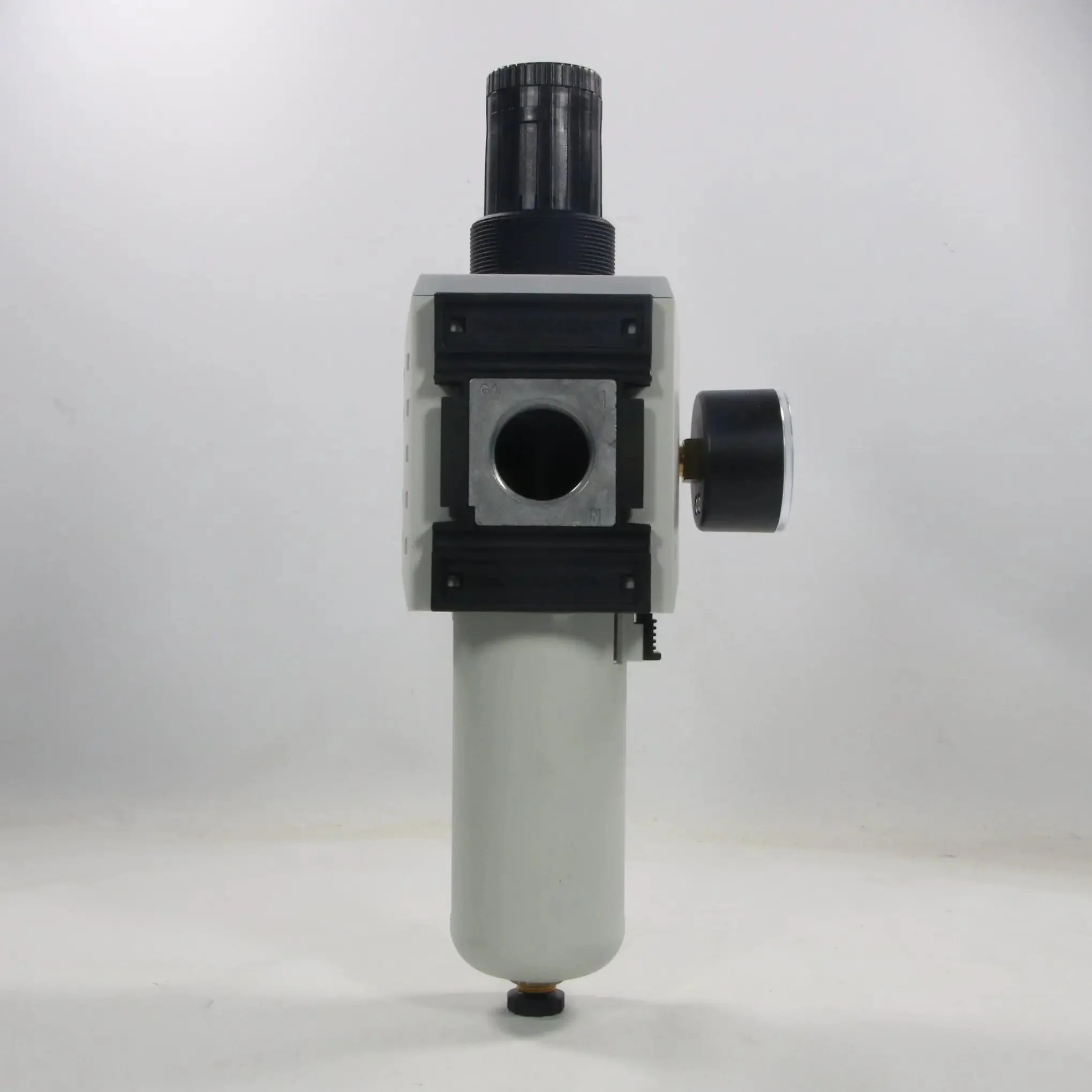

Knocks Fluid-Technik Futura FR10-10 F Filter Regulator

- Brand: Knocks Fluid-Technik

- Model: FUTURA FR10-10F

- Type: Filter Regulator

- Part number: EB2400877

- Technical specifications:
- Port size: G1 (1" BSPP female threads)
- Filtration: 5 microns
- Pressure regulation range: 0.5–10 bar
- Max. inlet pressure: 16 bar
- Flow rate: Approx. 13,000 l/min
- Bowl: Polycarbonate bowl with inspection window
- Gauge: Included
- Temperature range: -10°C to +50°C
- Materials: Body: PA 66 GF60, Condensate container: Polycarbonate, Seals: NBR
- Drain: Semi-automatic condensate drain
- Mounting: Inline or modular
- Additional features: High flow capacity; lockable adjustment knob; robust PC bowl; low hysteresis; suitable for clean, controlled air supply to positioners, actuators, solenoid valves, or instrumentation
- Standards: Compliant with ISO 8573 and relevant EN/ISO for pneumatic preparation; CE, RoHS compliant

Weight: 1.2 kg

Dimensions:

Country of origin: Germany

HS code: 8481.80
