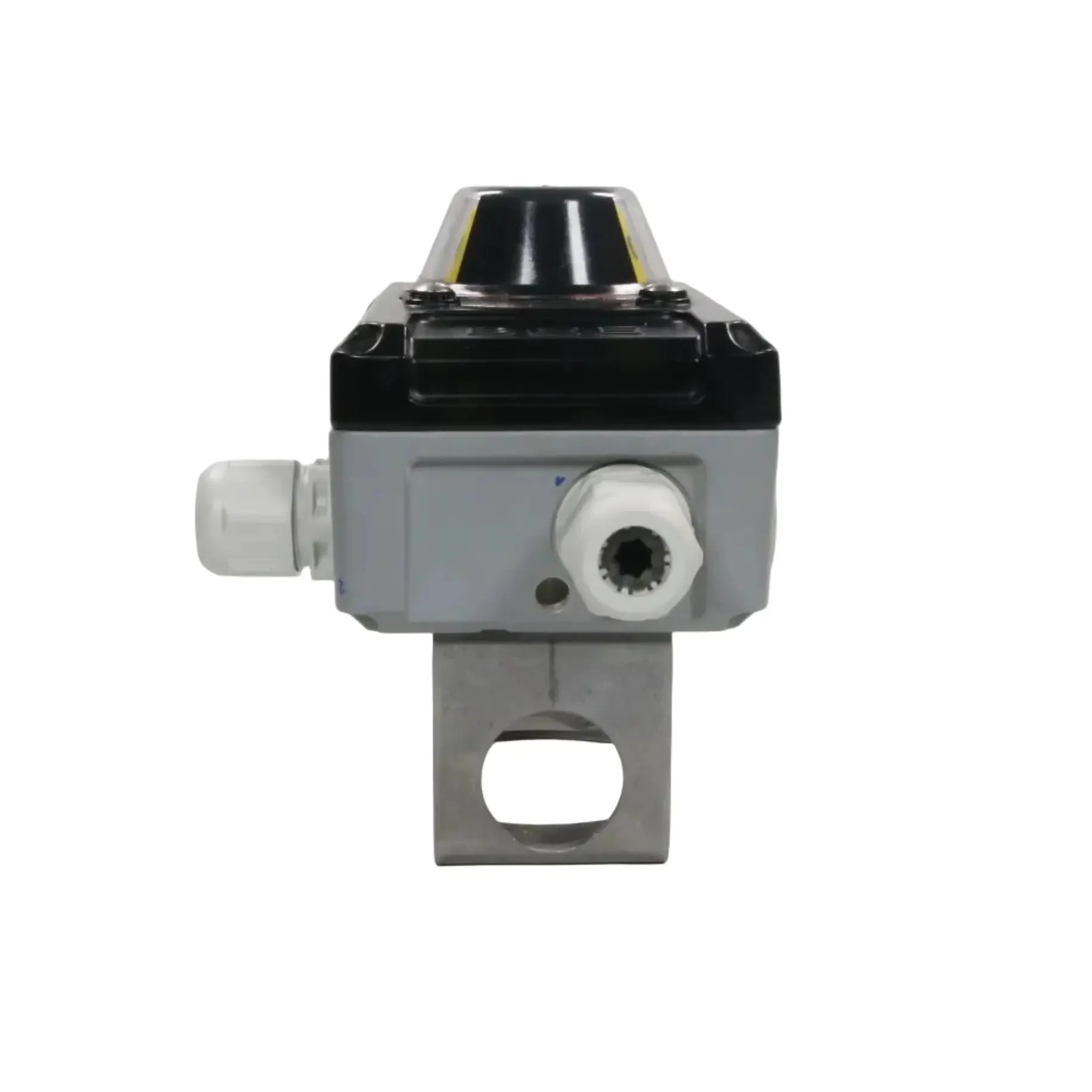

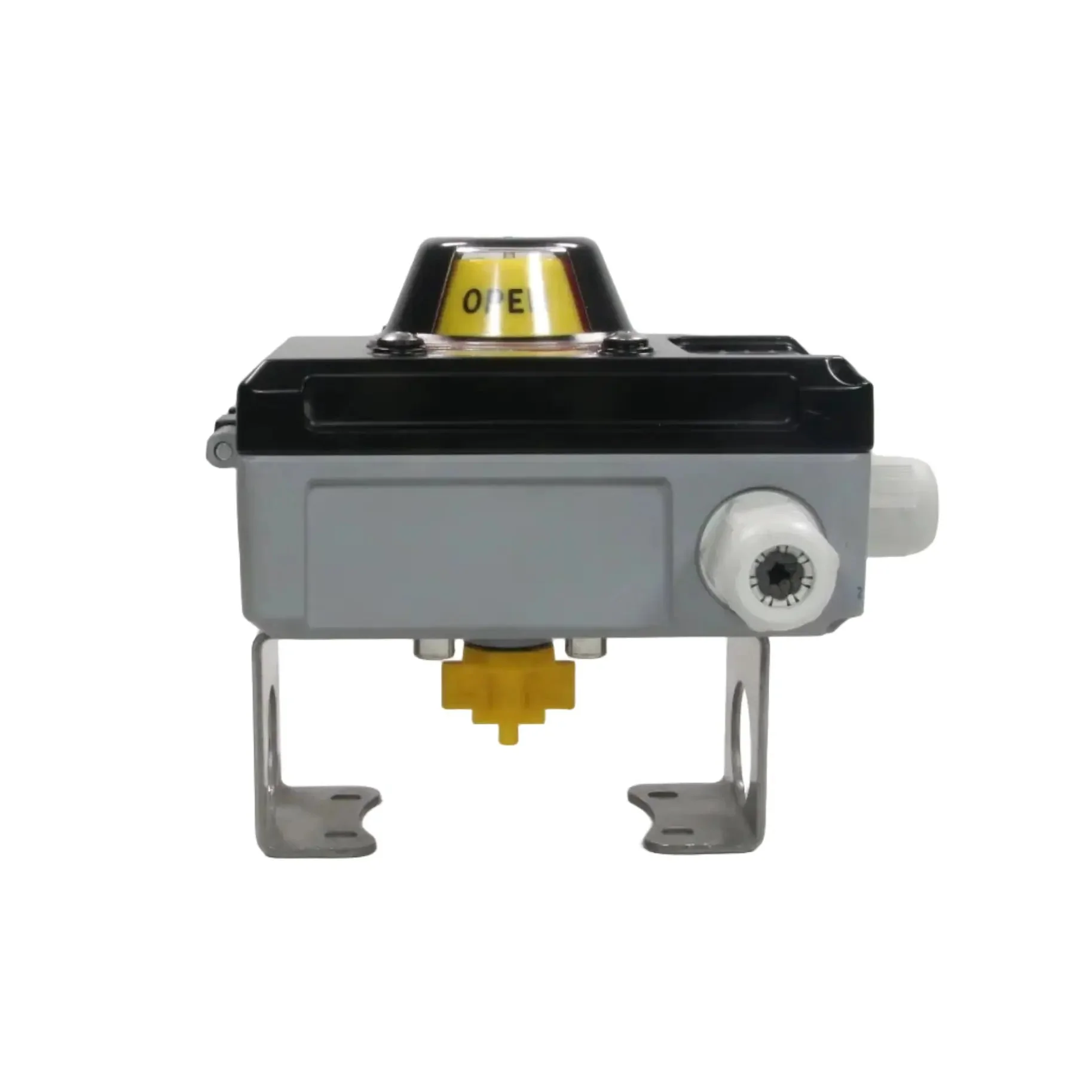

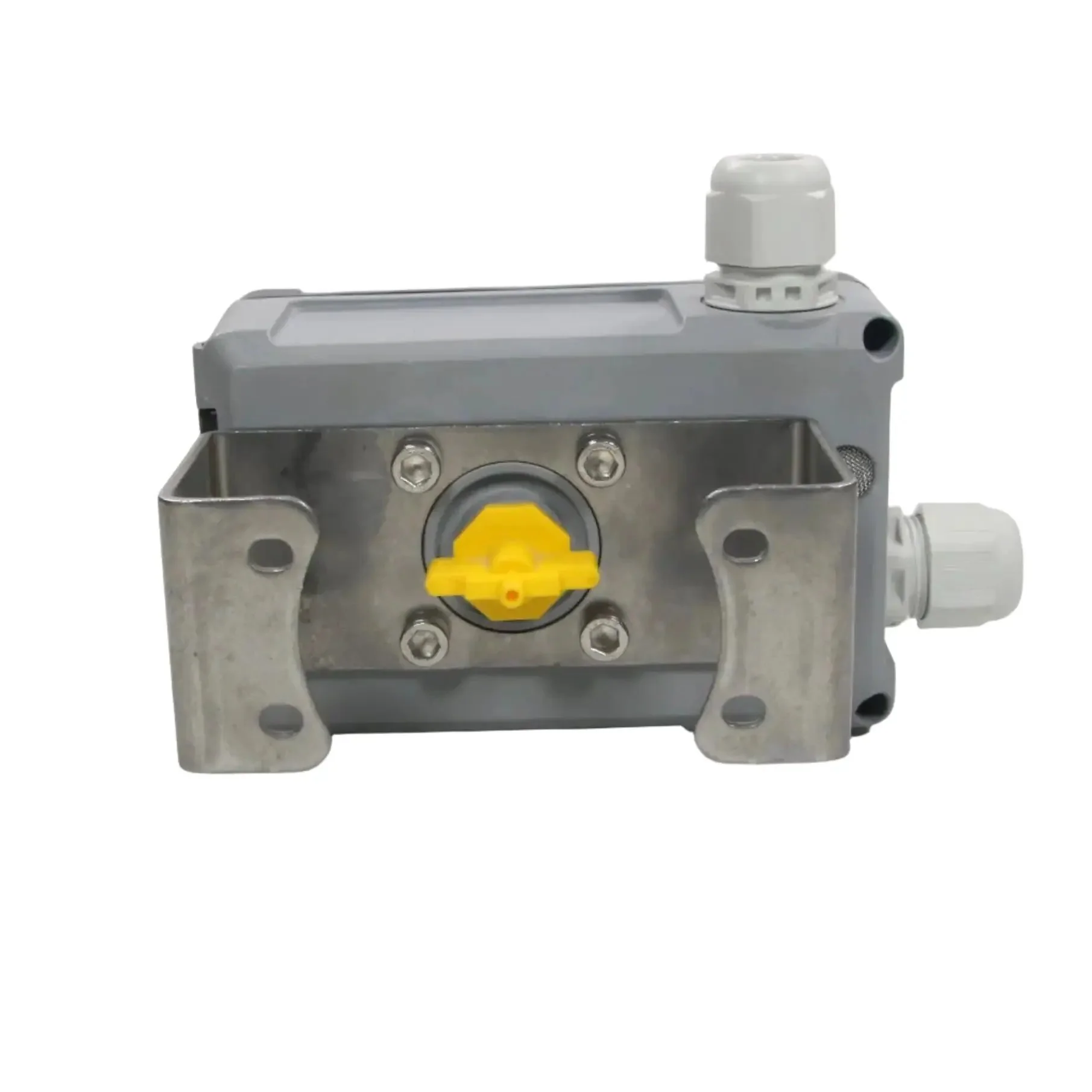

G. Bee GmbH END00241 Limit Switch Box

- Brand: G. Bee GmbH
- Model: END00241
- Type: Limit Switch Box (Valve Position Indicator / Switch Box)
- Technical Specifications:
  - Function: Visual and electrical position feedback for quarter-turn actuators (ball valves, butterfly valves)
  - Enclosure Material: Die-cast aluminum with powder coating
  - Protection Rating: IP67
  - Switches: 2 x mechanical micro switches, PNP NO
  - Voltage range: 10.....30 V DC
  - Visual Indicator: 3D dome indicator (red/yellow)
  - Shaft: NAMUR standard stainless steel shaft
  - Sensor: Pepperl+Fuchs NBN3-F25F-E8-P
  - Cable Entries: 2 x M20 x 1.5 + 1 x M20 plug
  - Switching Range: 0...90 degrees
  - Certifications: CE, optional ATEX/IECEx for hazardous areas
  - Features: Adjustable cams, captive cover bolts, corrosion-resistant coating, suitable for outdoor/indoor use
- Dimension: 180 x 140 x 150 mm
- Weight: 1 kg
- Country of origin: Germany
- HS code: 853650
