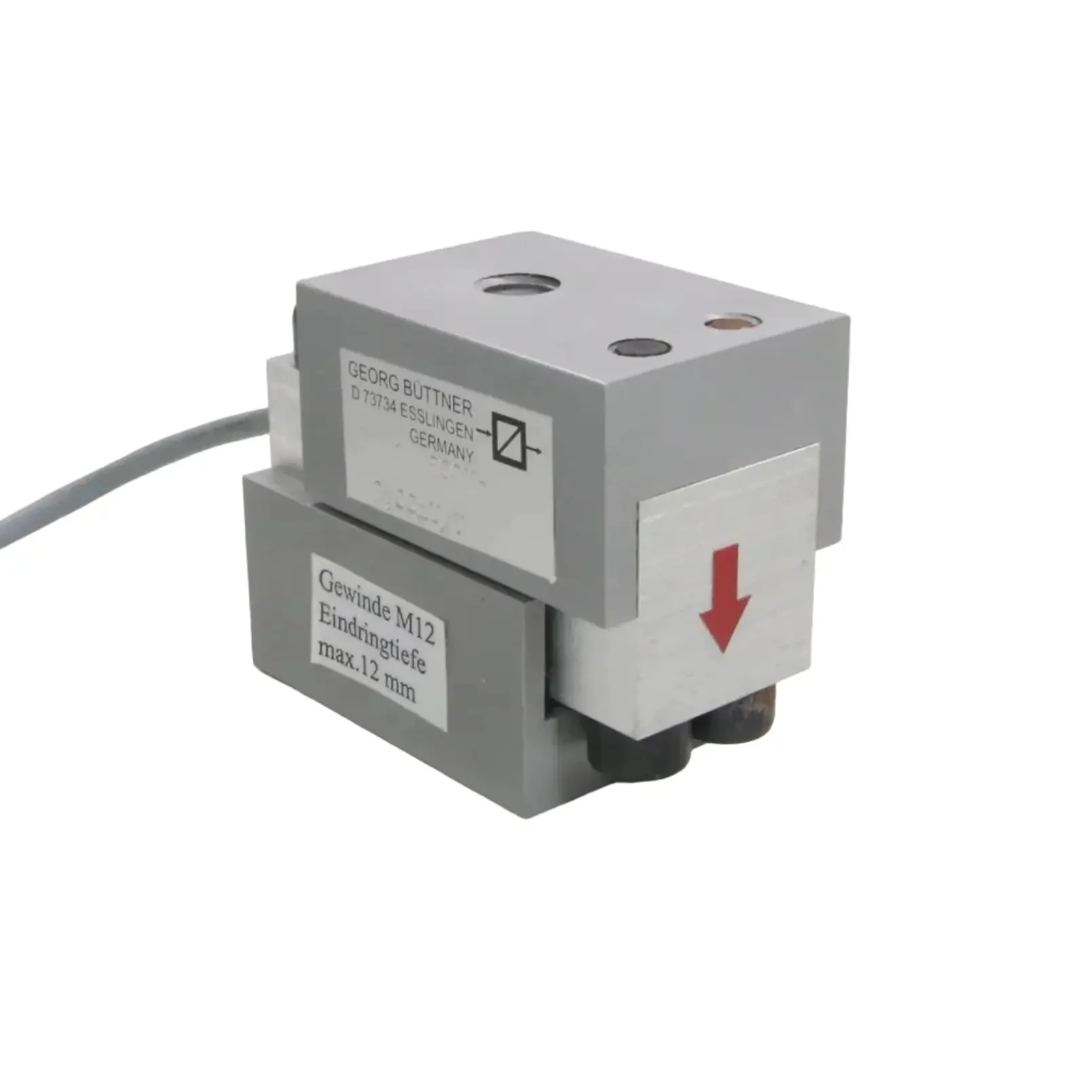

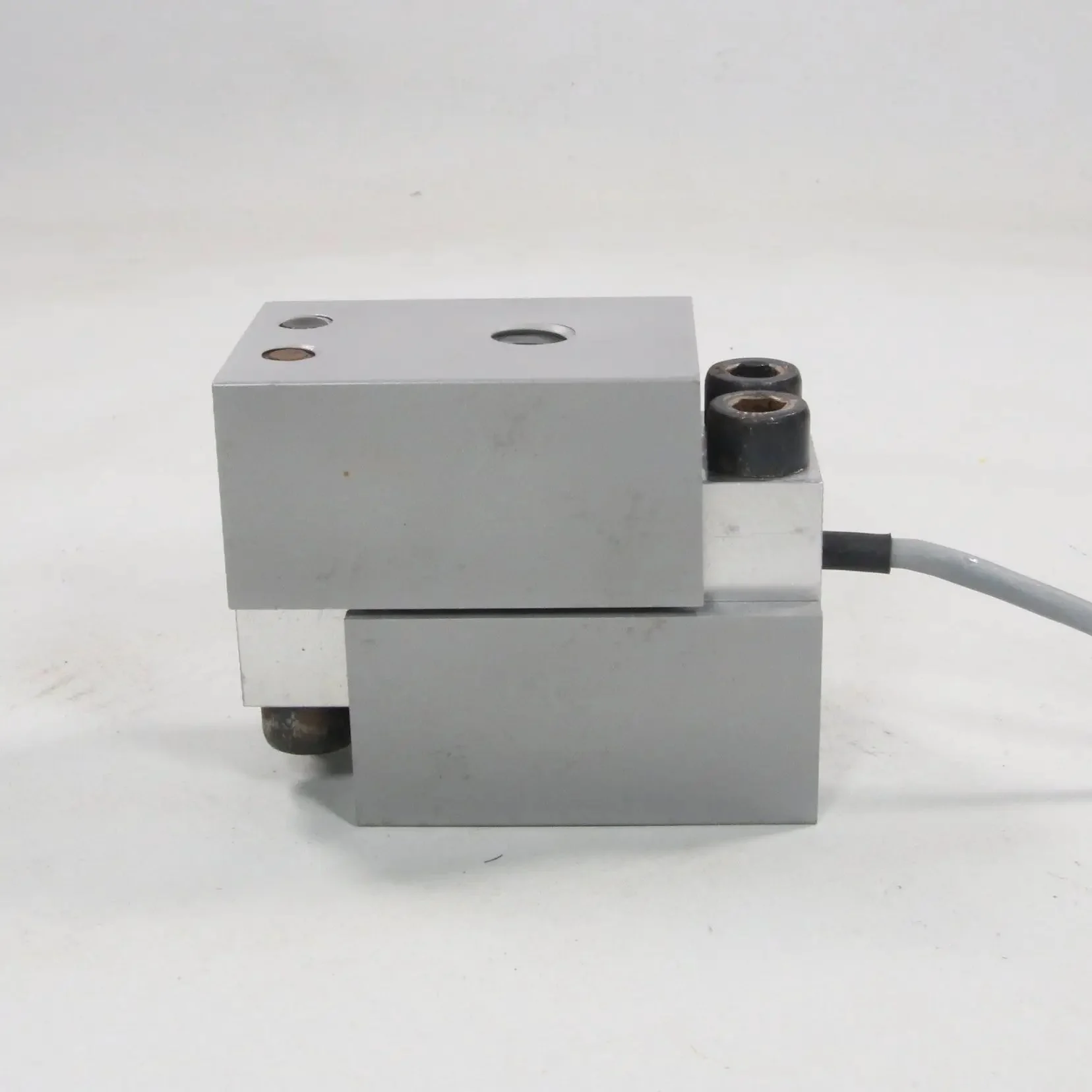

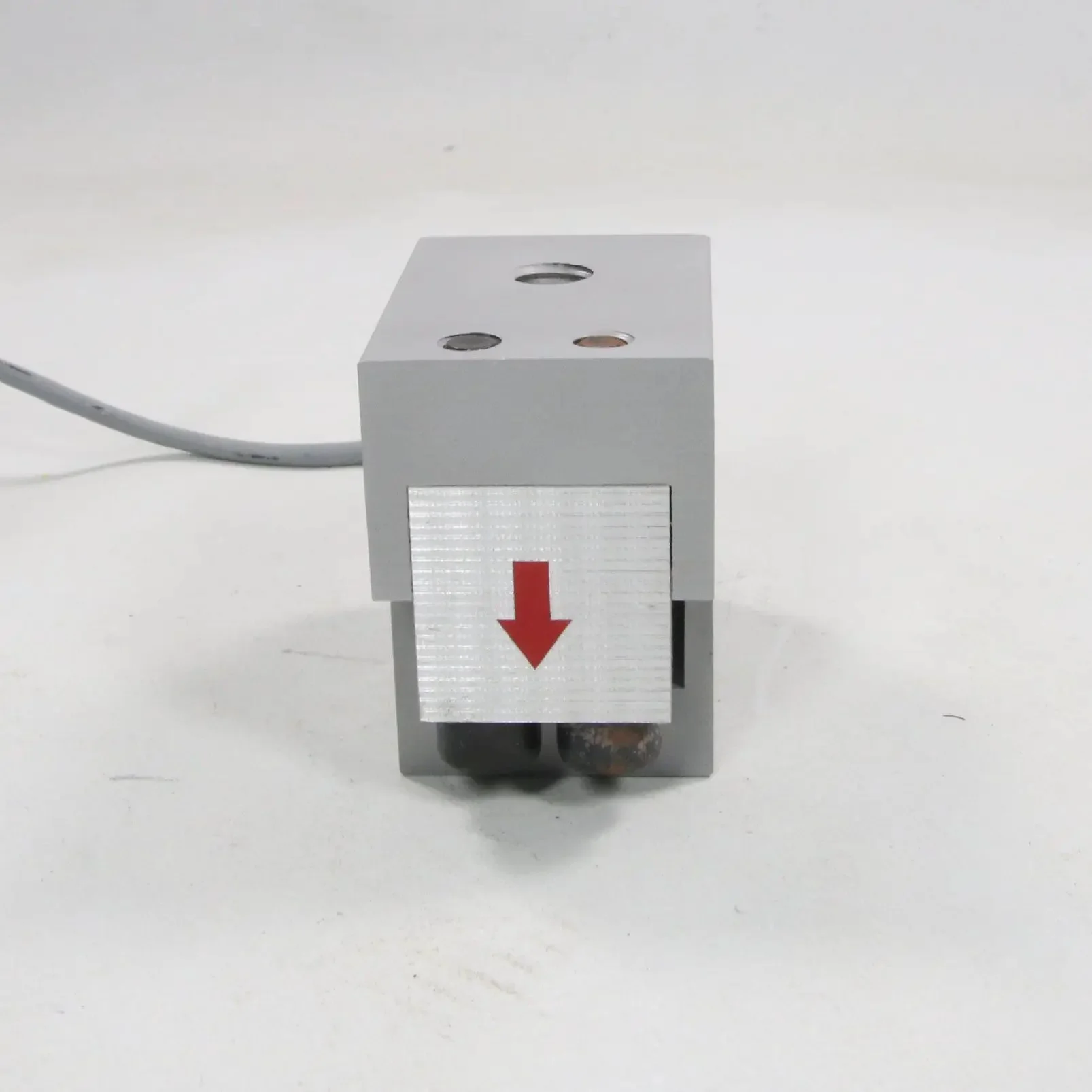

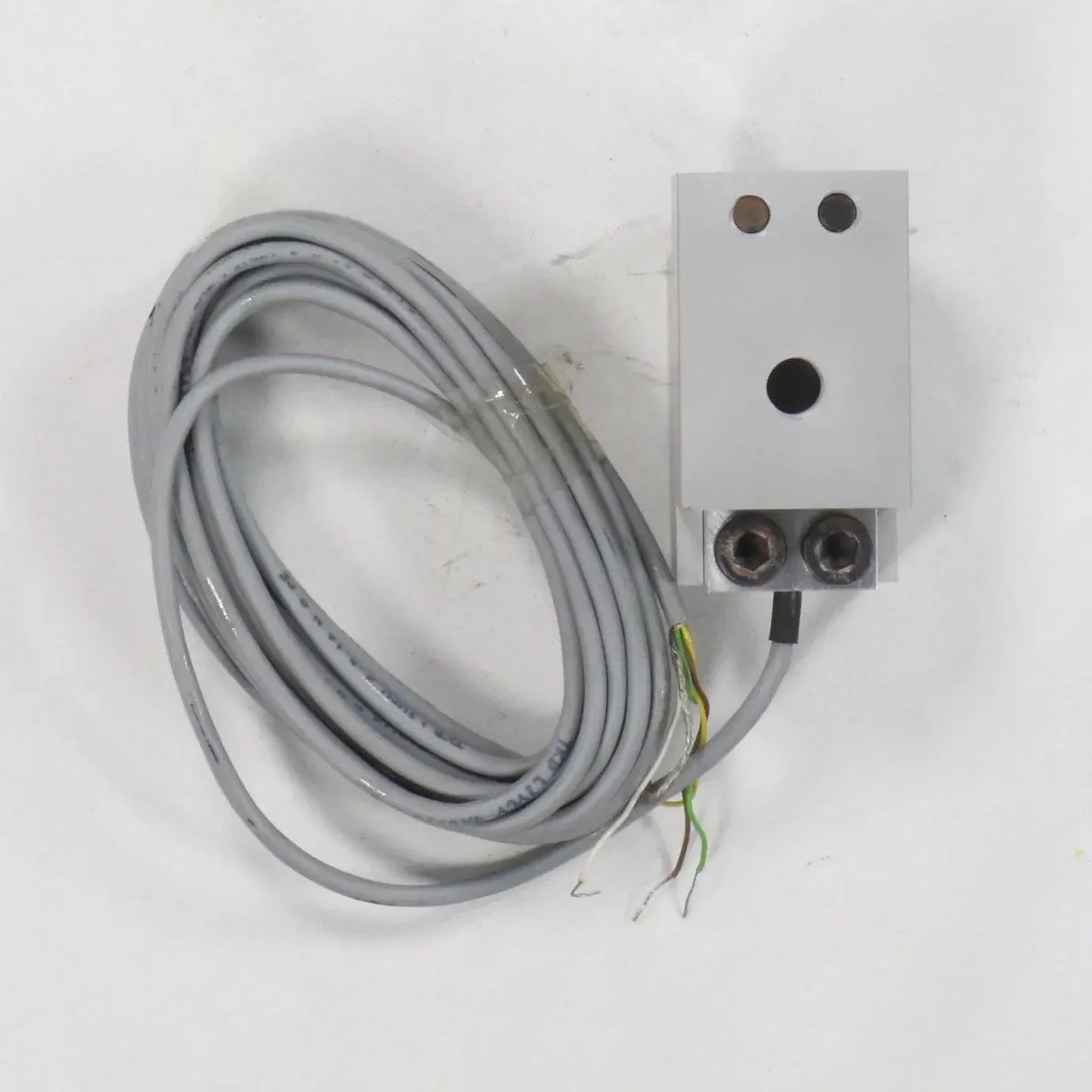

Georg Buttner B41 S-Type Load Cell

- Brand: Georg Büttner GmbH & Co. KG

- Model: B41

- Type: S-Type Load Cell / Force Transducer

- Part number: 27353

Technical specifications:
- Rated capacity: 500 kg
- Accuracy class: Typically C3
- Output sensitivity: 2.00 mV/V
- Supply voltage: 5–12 V DC
- Input resistance: 350 Ω
- Output resistance: 350 Ω
- Zero balance: ±1% FS
- Temperature compensation: -10°C to +40°C
- Material: Aluminium alloy
- Protection class: IP65
- Cable: Shielded cable
- Additional features: Compact S-shape for easy tension/compression mounting; low profile; high overload protection; suitable for static/dynamic measurements
- Standards: OIML R60 compliant; EMC tested; RoHS compliant

Weight: 600 g

Dimensions: 75 x 40 x 60 mm

Country of origin: Germany

HS code: 9031.80
