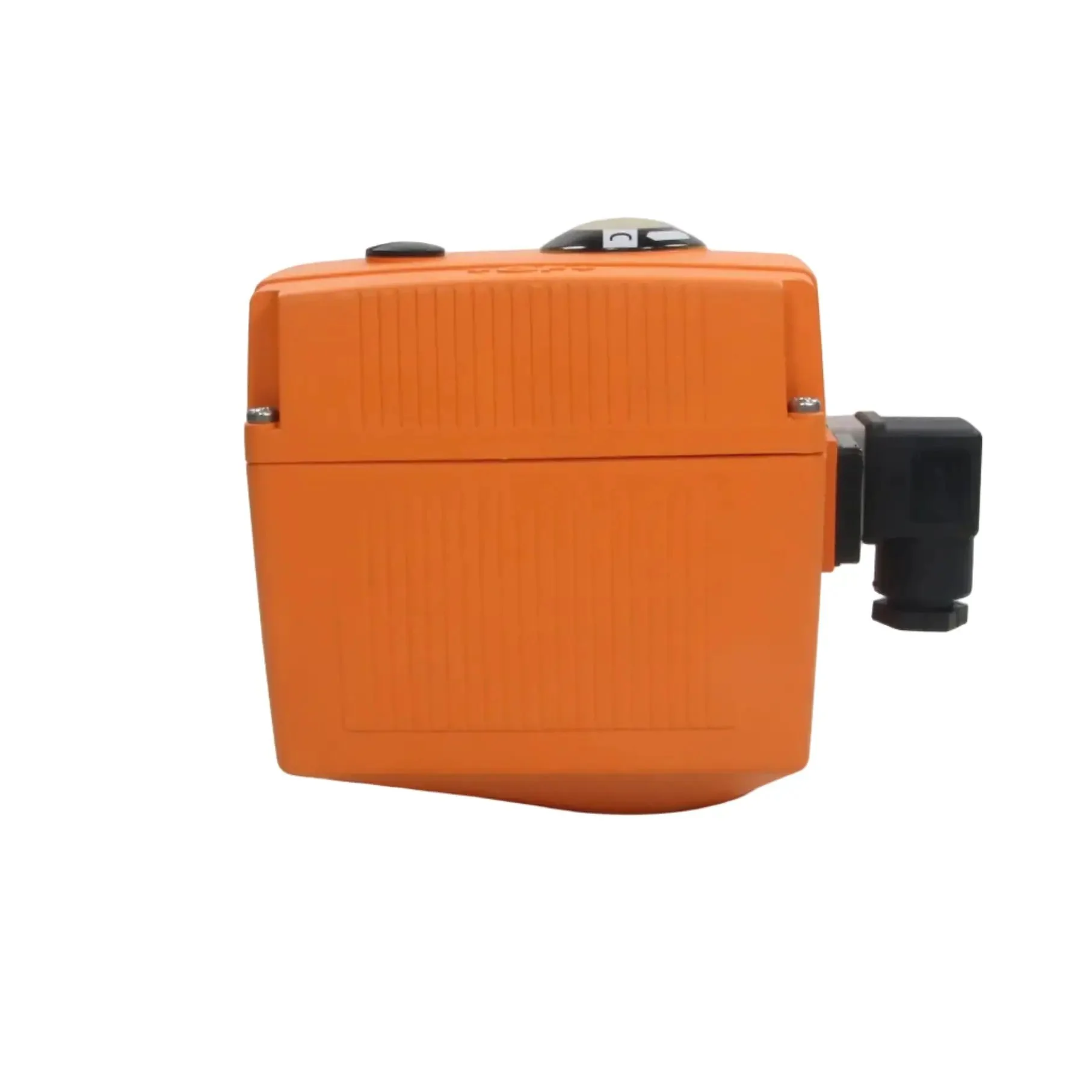

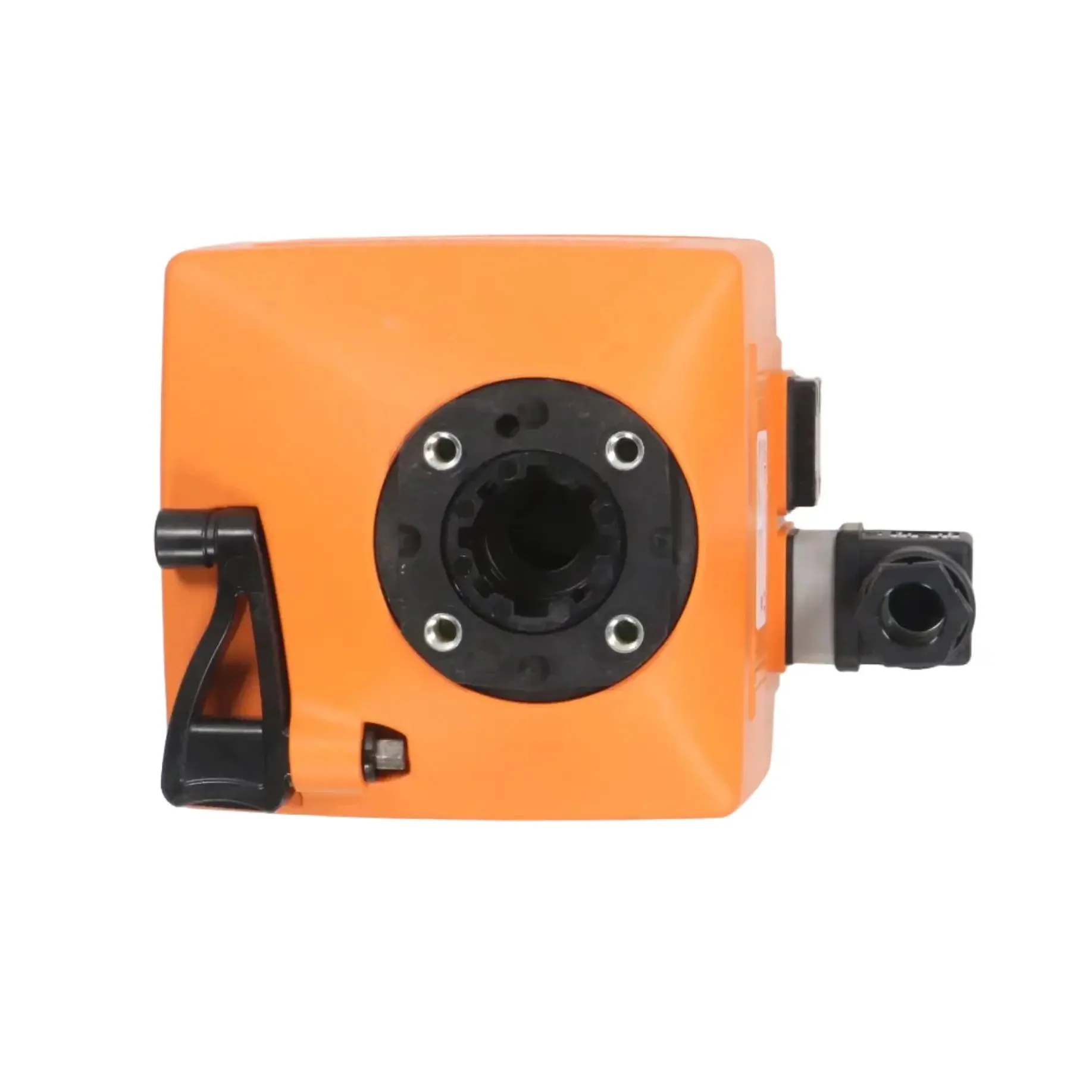

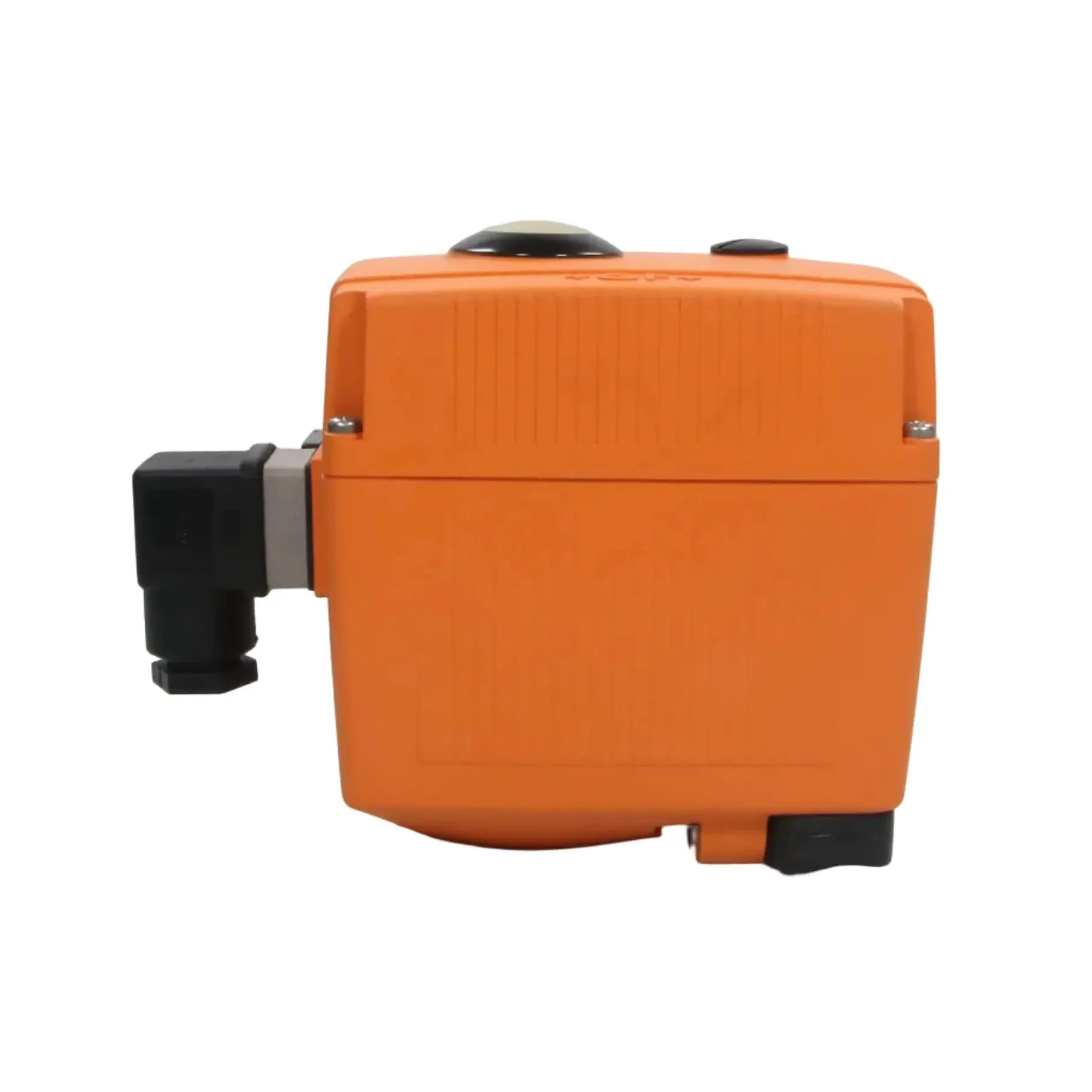

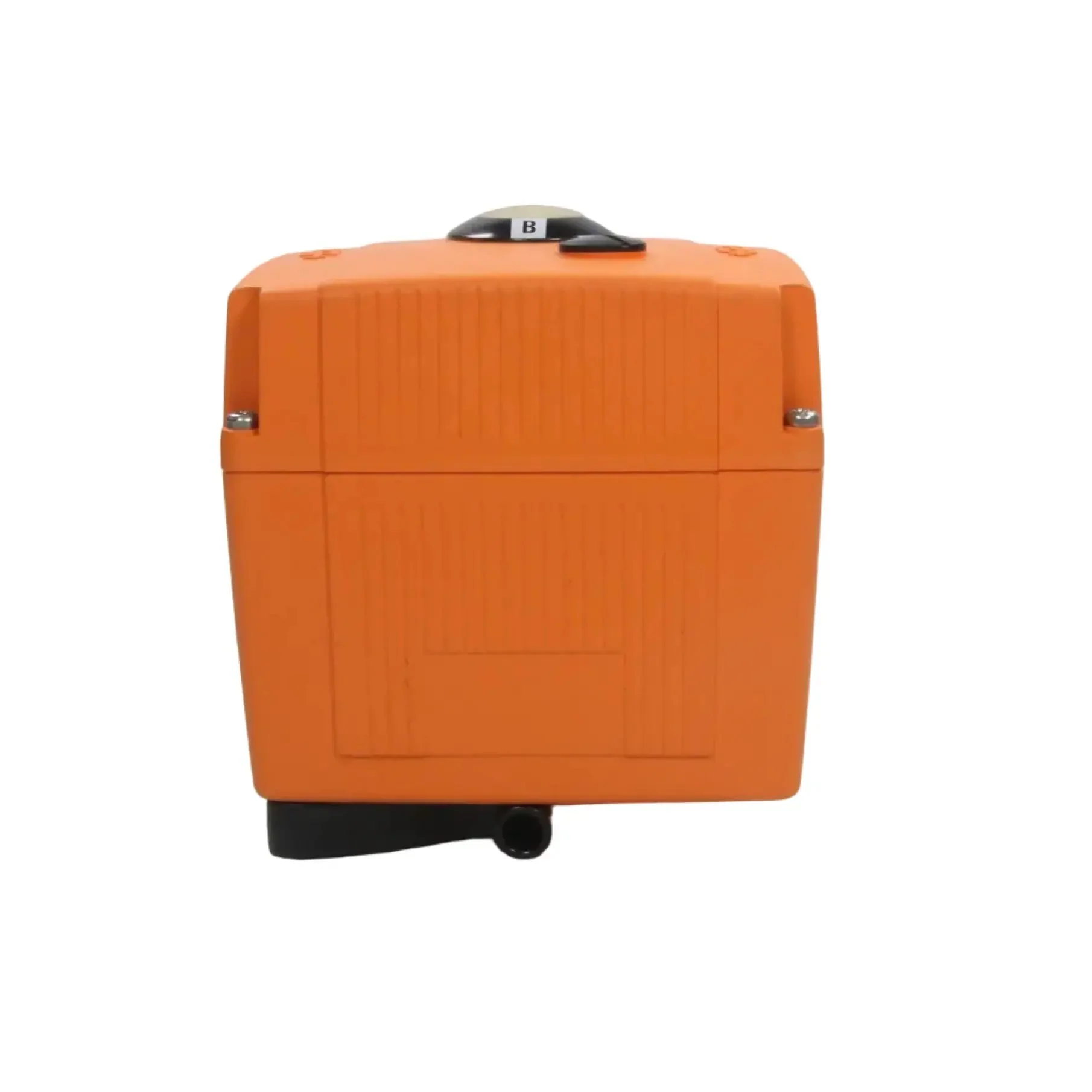

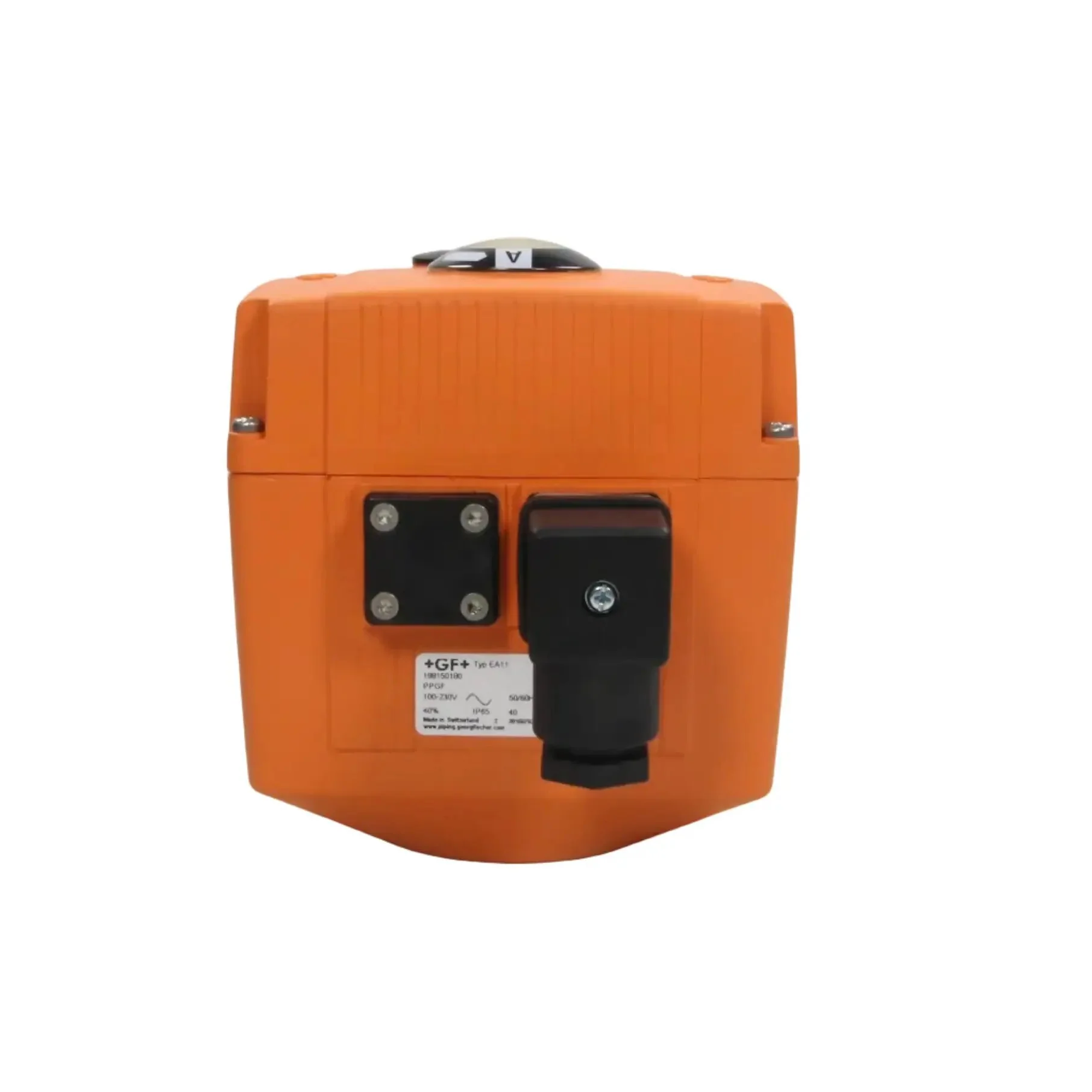

Georg Fischer +GF+ EA11 Electric Actuator

- Brand: Georg Fischer (+GF+)
- Model: EA11
- Type: Electric Actuator
- Part Number: 198150180
- All tech specs
  - Function: Quarter-turn electric actuator for ball valves, butterfly valves and other rotary valve types
  - Torque: 100 Nm
  - Operating Time: 15 s/90°
  - Voltage: 100–230 V AC, 50/60 Hz
  - Power Consumption: Max. 50 VA
  - Duty Cycle: S4 40%
  - Control: On/Off (open/close)
  - Feedback: 2 auxiliary switches
  - Position Indicator: Visual position indicator
  - Manual Override: Handwheel with clutch (disengages motor when used)
  - End Position Detection: Mechanical limit switches + electronic
  - Protection Rating: IP65
  - Ambient Temperature: –10 °C to +50 °C
  - Enclosure Material: Polypropylene (PP) glass-fibre reinforced
  - Housing Colour: Orange
  - Mounting: ISO 5211 F05/F07 (standard), direct mounting on GF valves
  - Features: Self-locking gear, corrosion-resistant, emergency manual override, compact lightweight design

- Discontinued
- Dimensions: 180 × 140 × 120 mm
- weight: 2.0 kg
- Country of origin: Switzerland
- HS code: 850110
