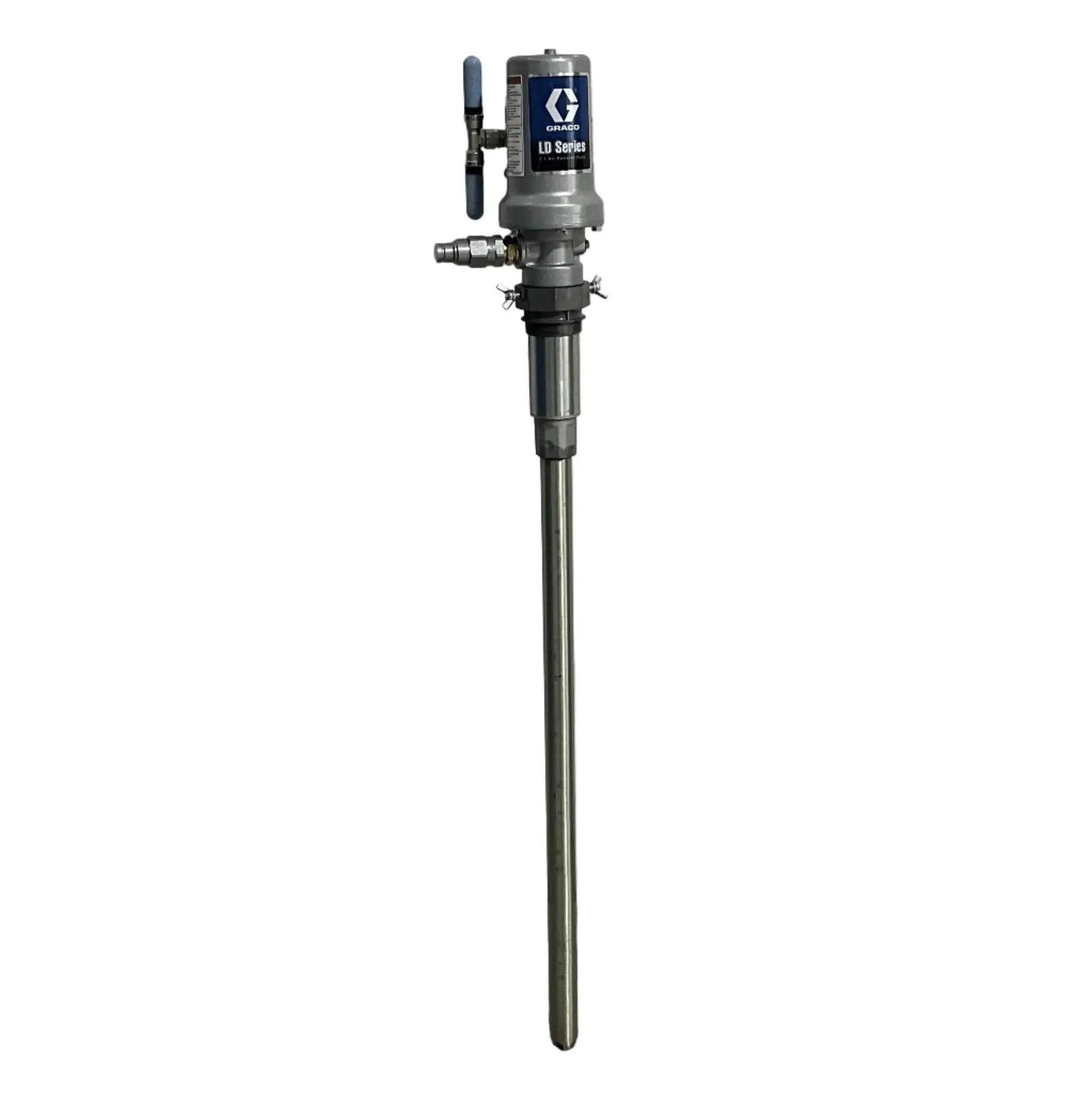

Graco 24G577 3:1 Air Powered Pump

Brand: Graco
Model: LD Series 3:1 Universal Oil Pump
Type: Air Powered Pump

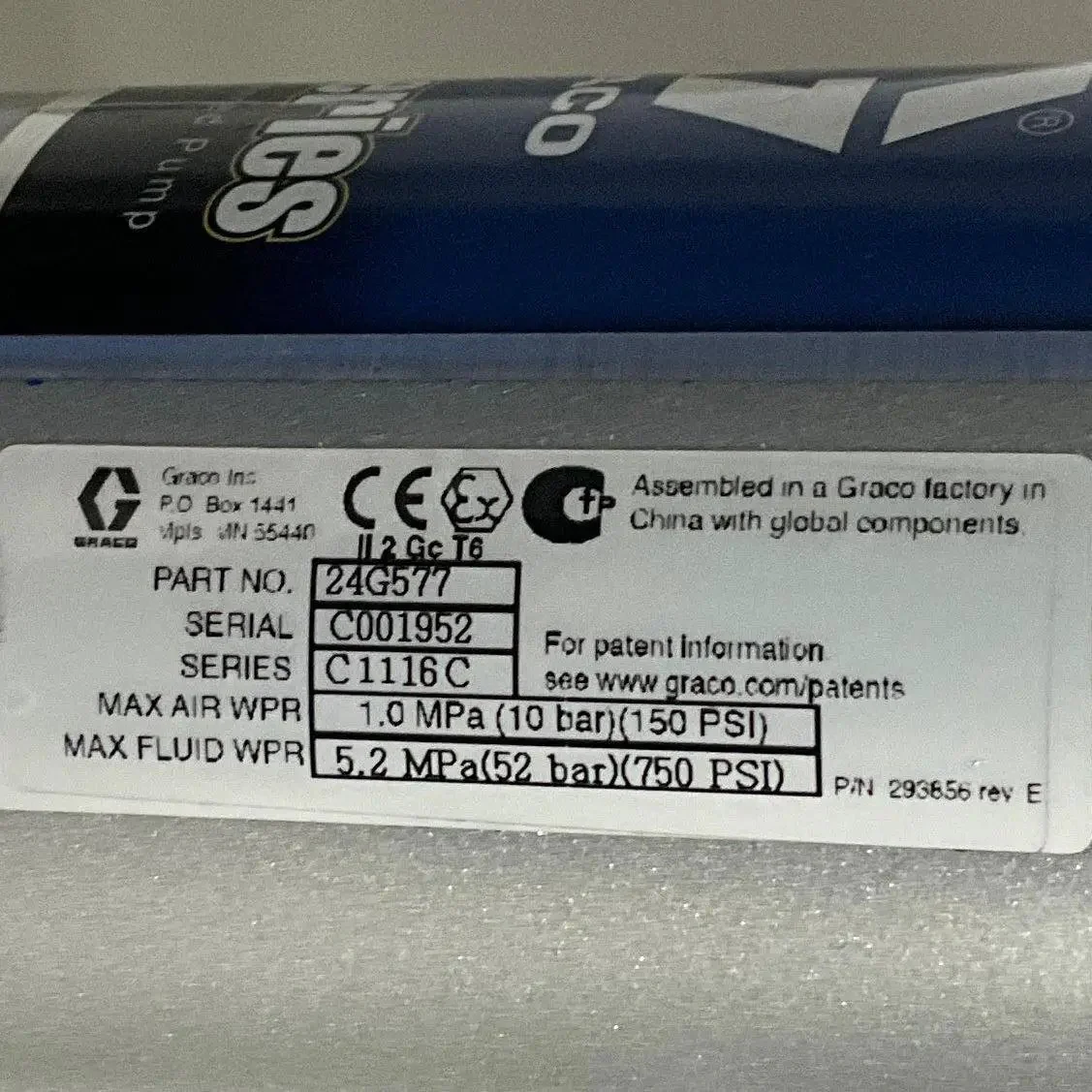

Part Number: 24G577

Technical Specs:
- Ratio: 3:1
- Maximum Fluid Working Pressure: 52 bar
- Free Flow Rate: 29.5 L/min
- Maximum Air Inlet Pressure: 10.3 bar
- Maximum Air Consumption: 17.2 m³/min
- Cycle Rate: 75 cycles per minute
- Wetted Parts: Aluminum, Stainless steel, PTFE, Acetal
- Air Inlet: 1/4”
- Fluid Inlet: 1”
- Fluid Outlet: 1/2”
- Air Exhaust: 3/8”
- Sound Data: 80 dB(A) at 50 psi
- Maximum Operating Temperature: 49°C
- Additional Features:
  - Includes bung adapter for BSPP threads

* Demo Model

Dimensions: 1140 x 200 x 200 mm - Submerged pipe length = 870 mm

Weight: 6.0 kg

Country of Origin: United States

HS Code: 8413.60
