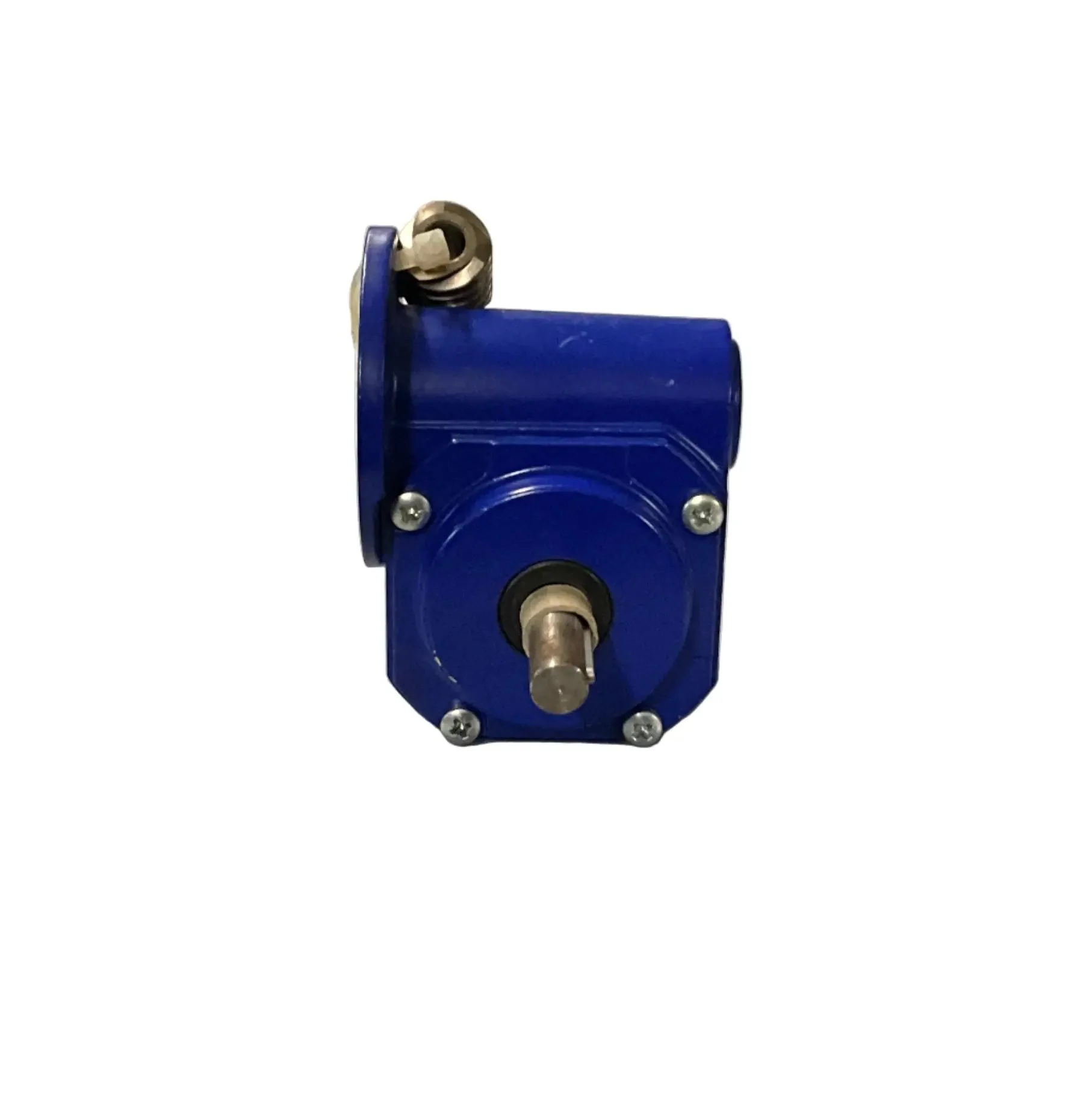

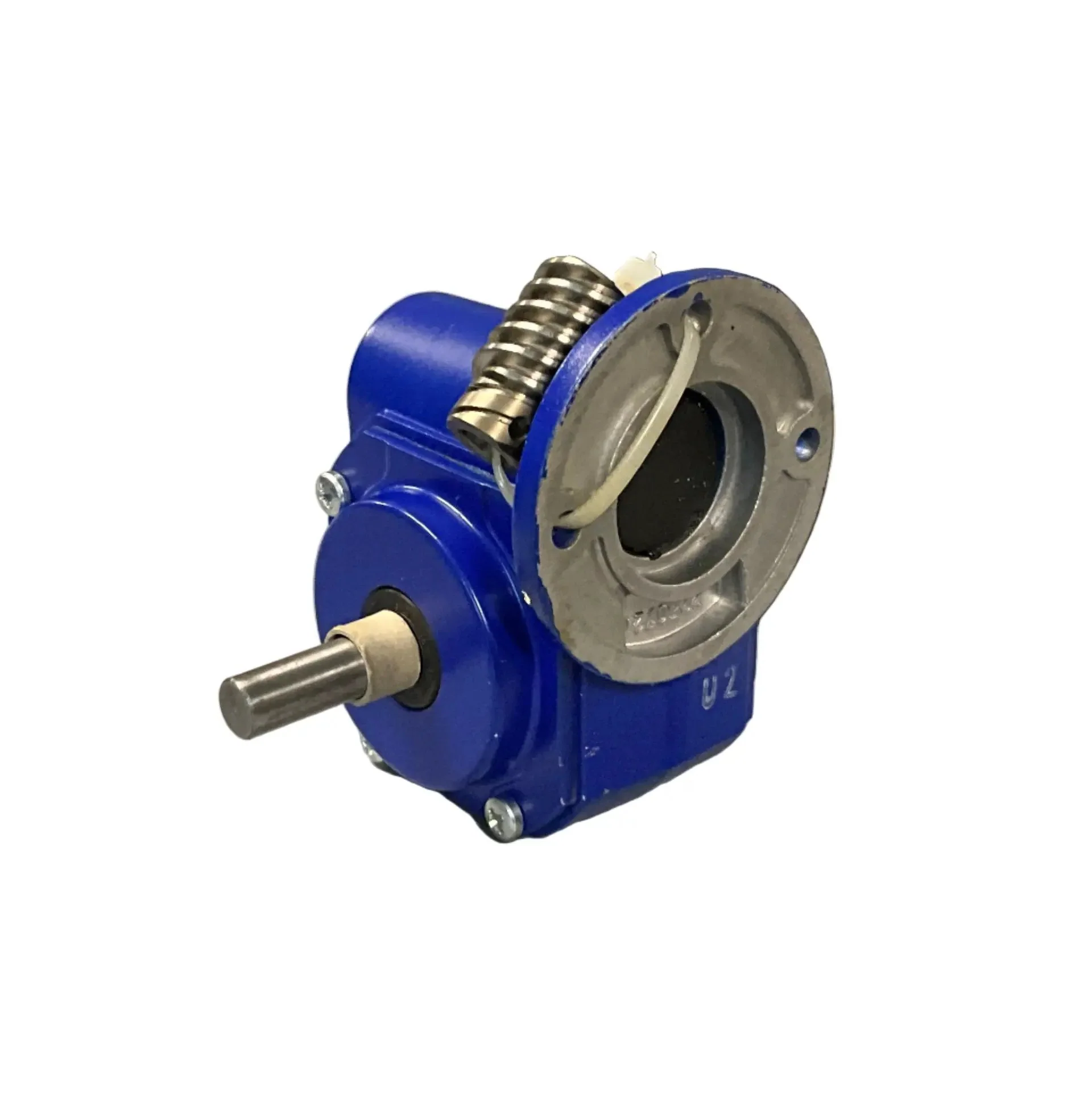

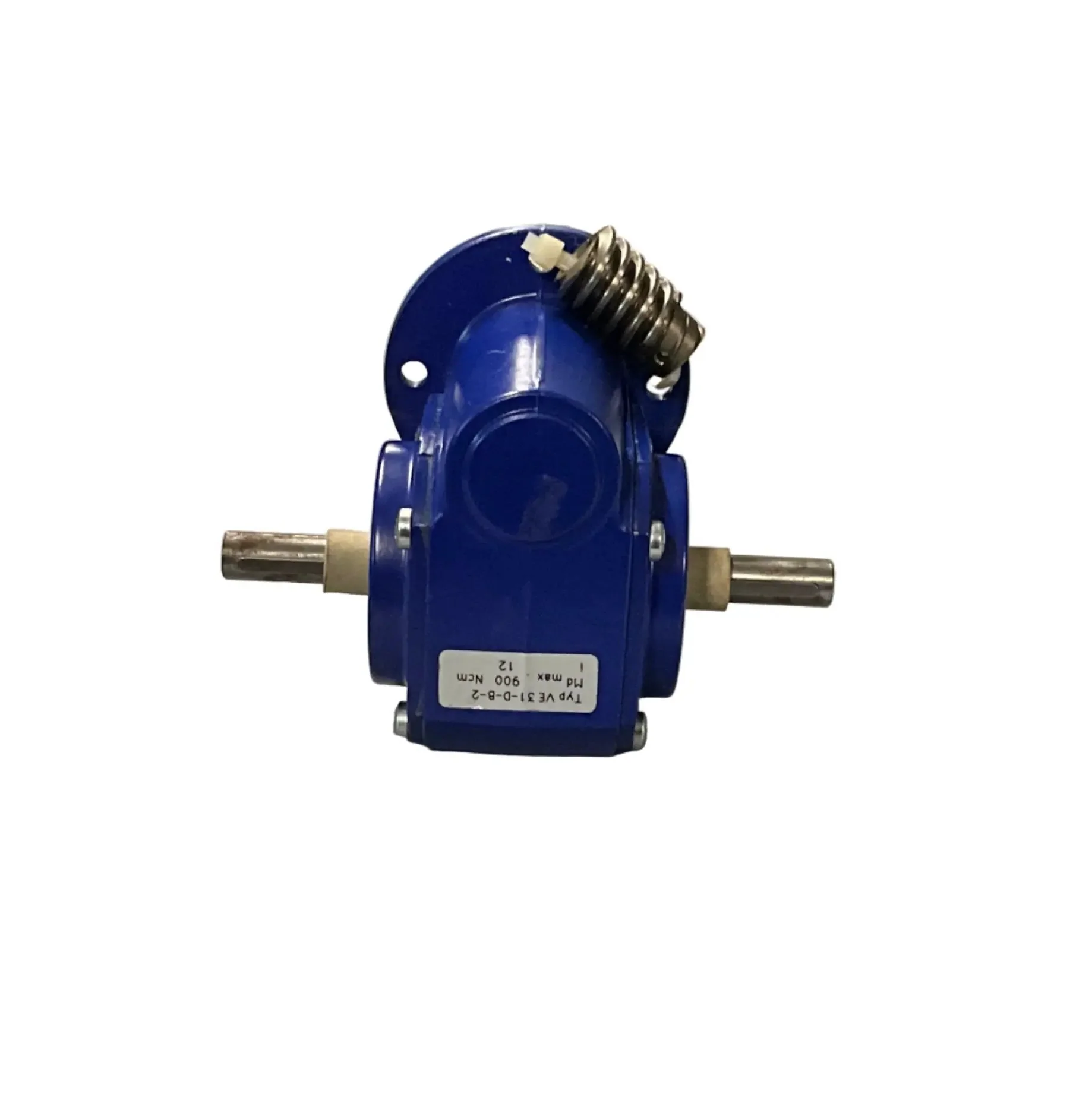

Groschopp VE31-D-B-2 Worm Gear Reducer

Brand: Groschopp
Model: VE31-D-B-2
Type: Worm Gear Reducer
Part Number: 2250721

Technical Specs:
- Gearbox Type: Single-stage worm gear reducer
- Gear Ratio: 12:1

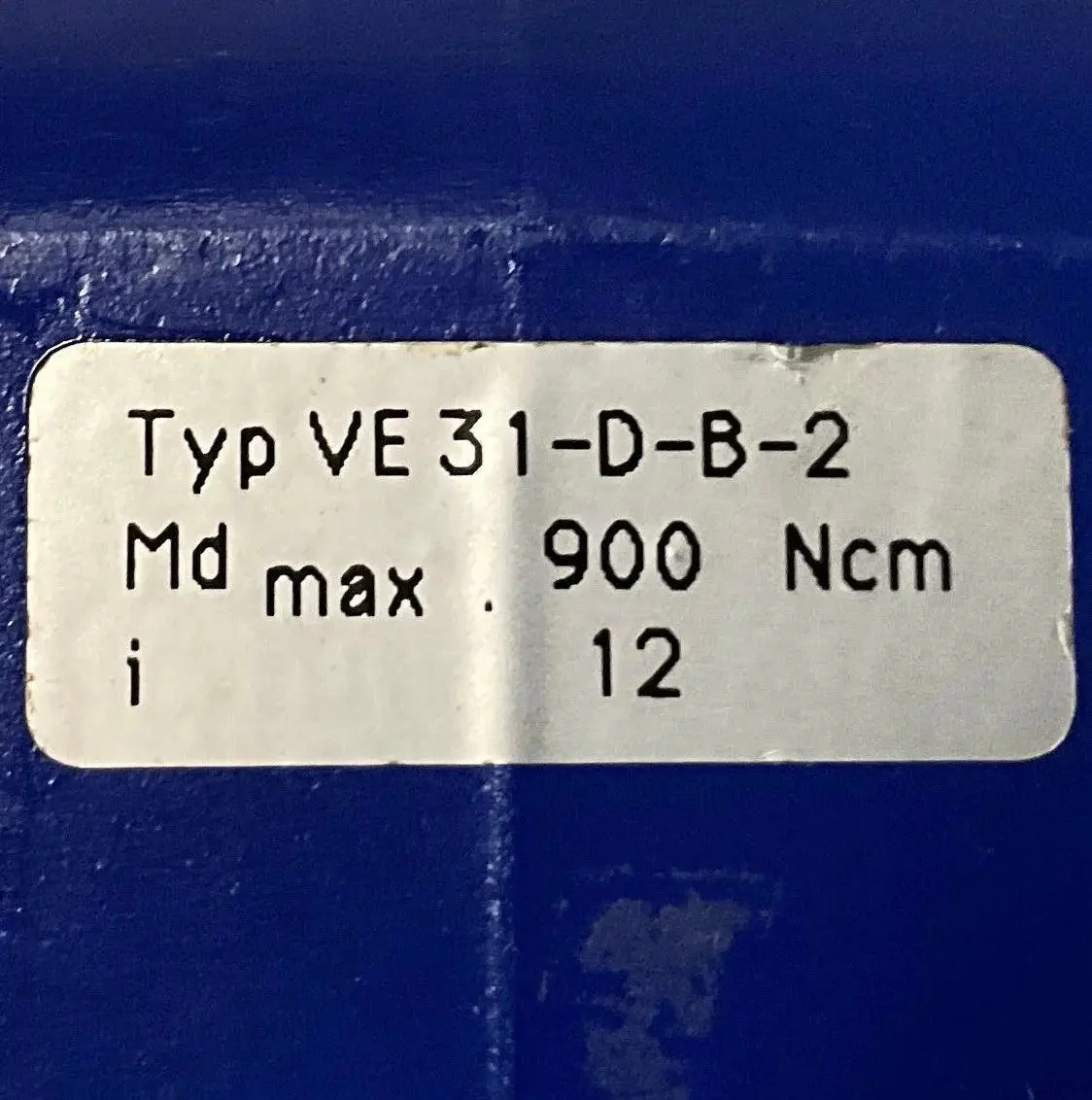

- Nominal Torque: Up to 25 Nm (900Ncm)
- Drive Shaft: 10 mm diameter
- Housing Material: Aluminum
- Lubrication: Standard mineral grease
- Efficiency: Good efficiency for worm gears
- Operating Mode: S1
- Enclosure Rating: IP54
- Operating Temperature Range: -20°C to 60°C
- Mounting Options: Bearing covers, no feet or flanges (D-B-2 configuration)
- Additional Features:
  - Modular design
  - Low noise operation
  - Compatible with Groschopp motors (e.g., PM1 85-40, IGK 80-40, WK 1695001)
- Certifications: CE compliant

Dimensions: 100 x 80 x 60 mm

Weight: 850g

Country of Origin: Germany

HS Code: 8483.40
