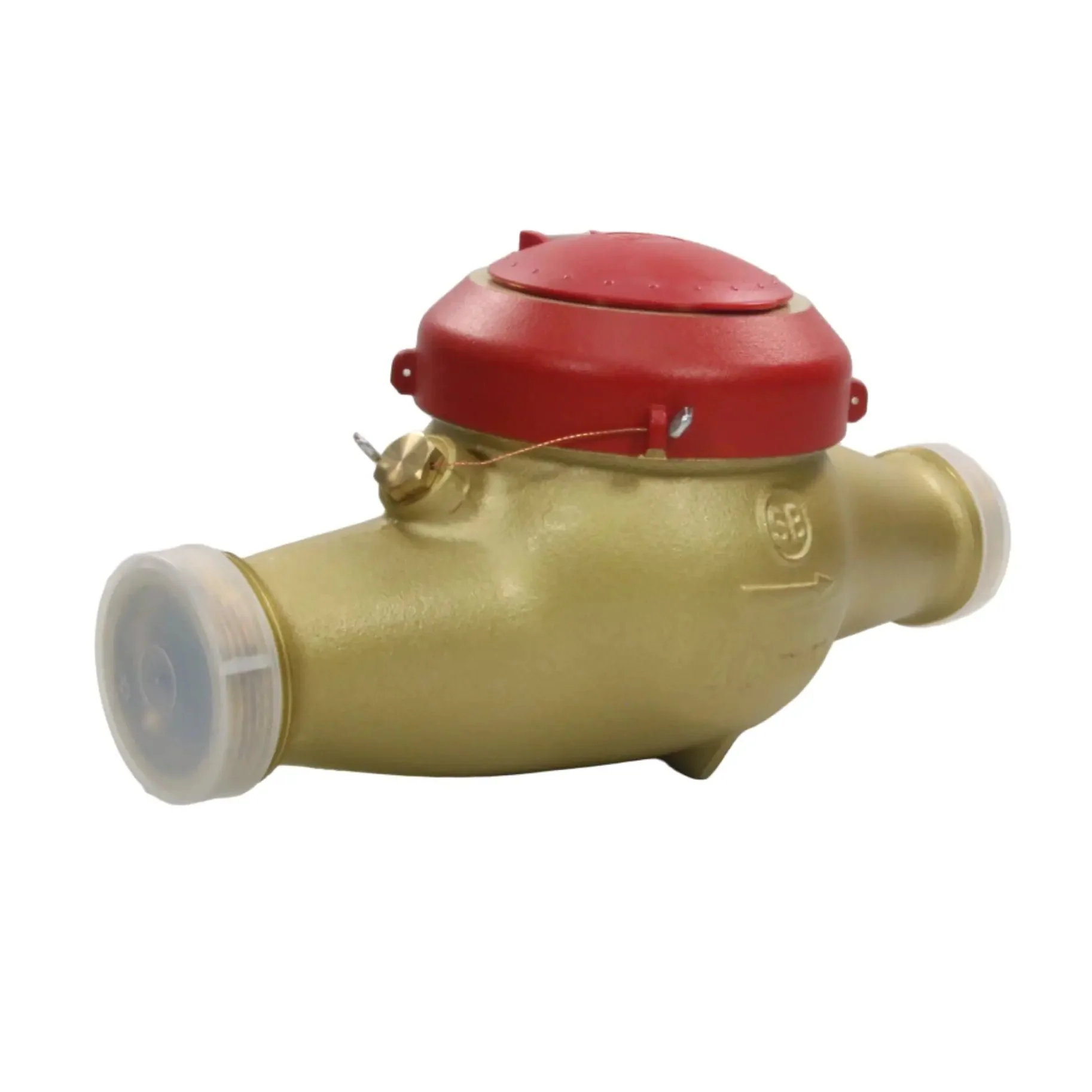

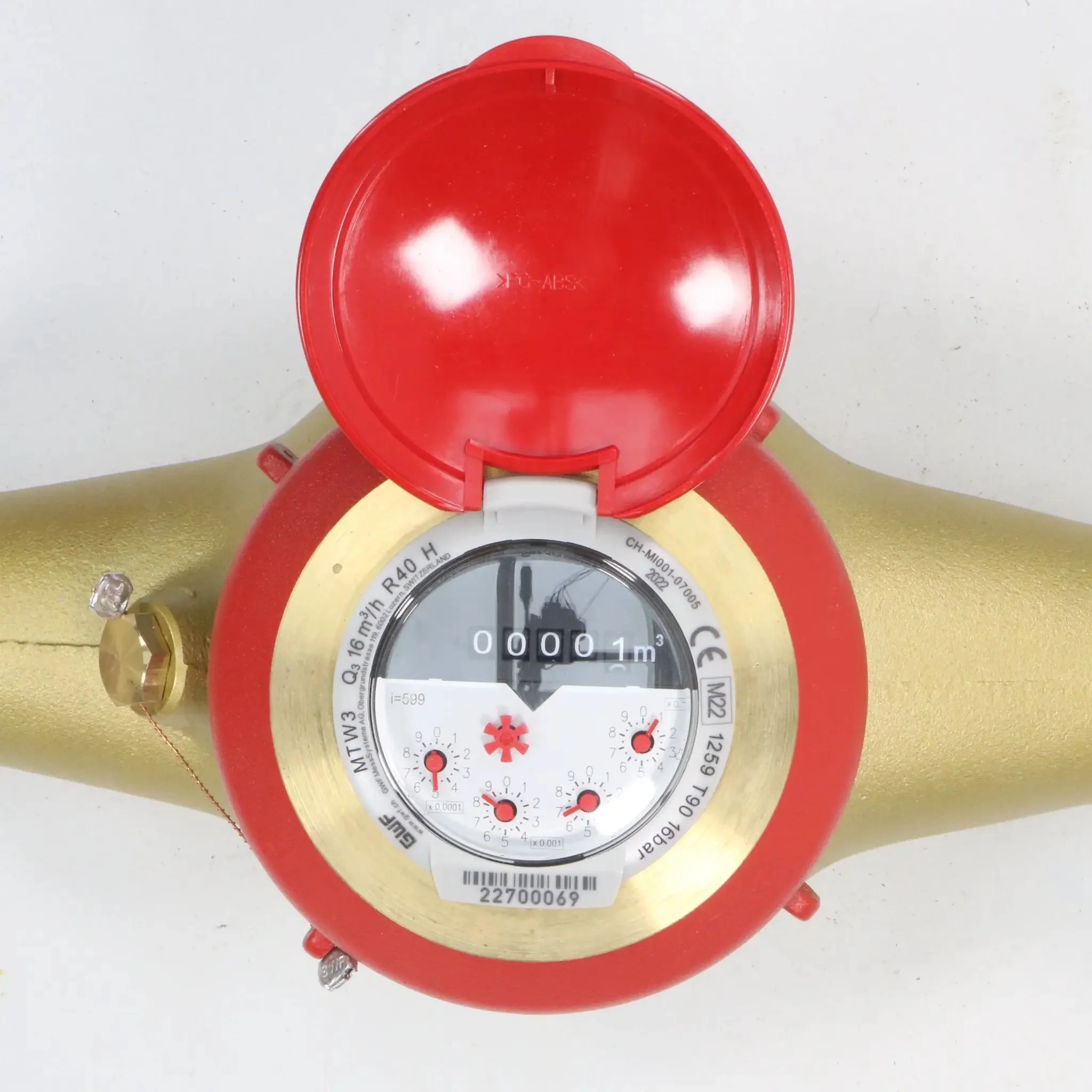

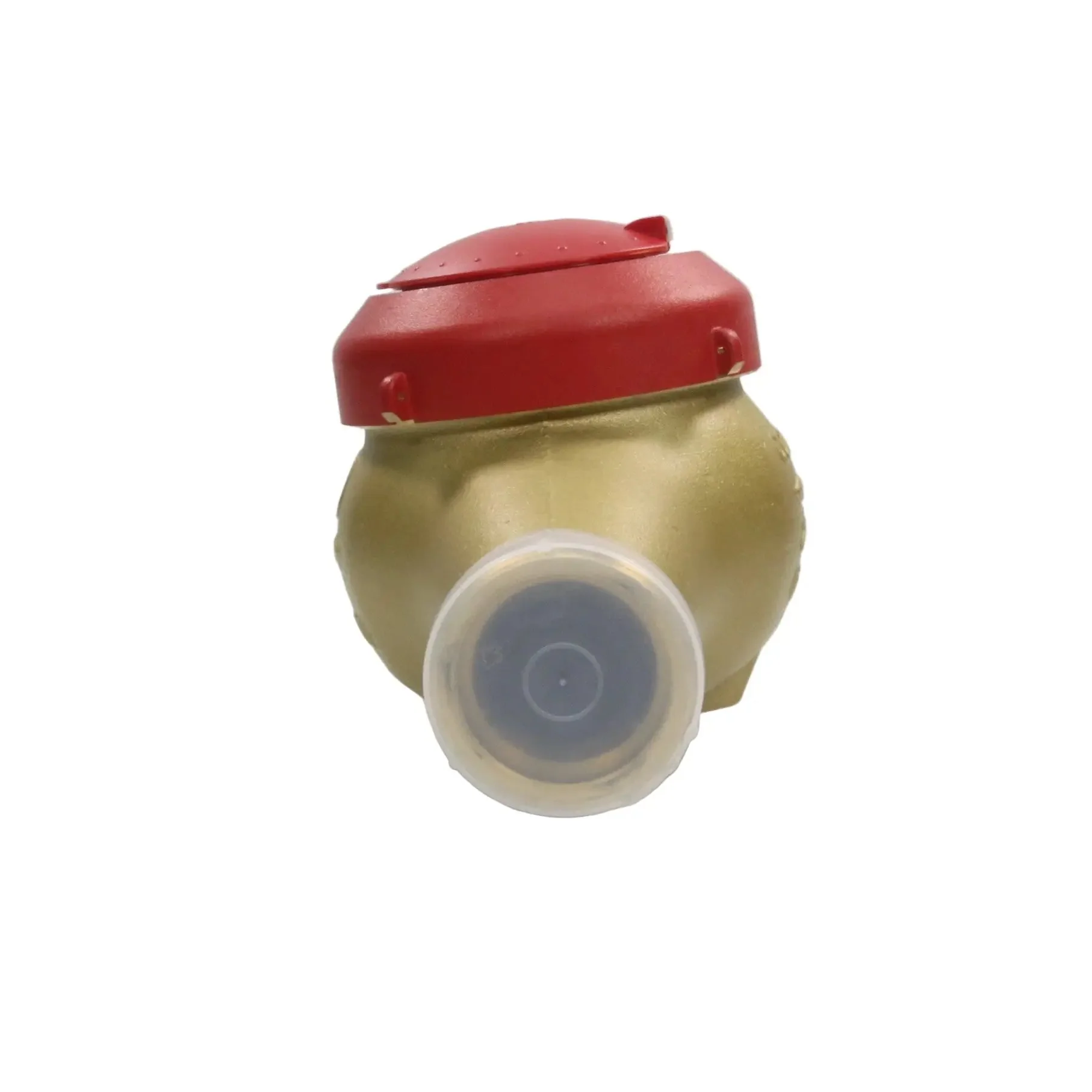

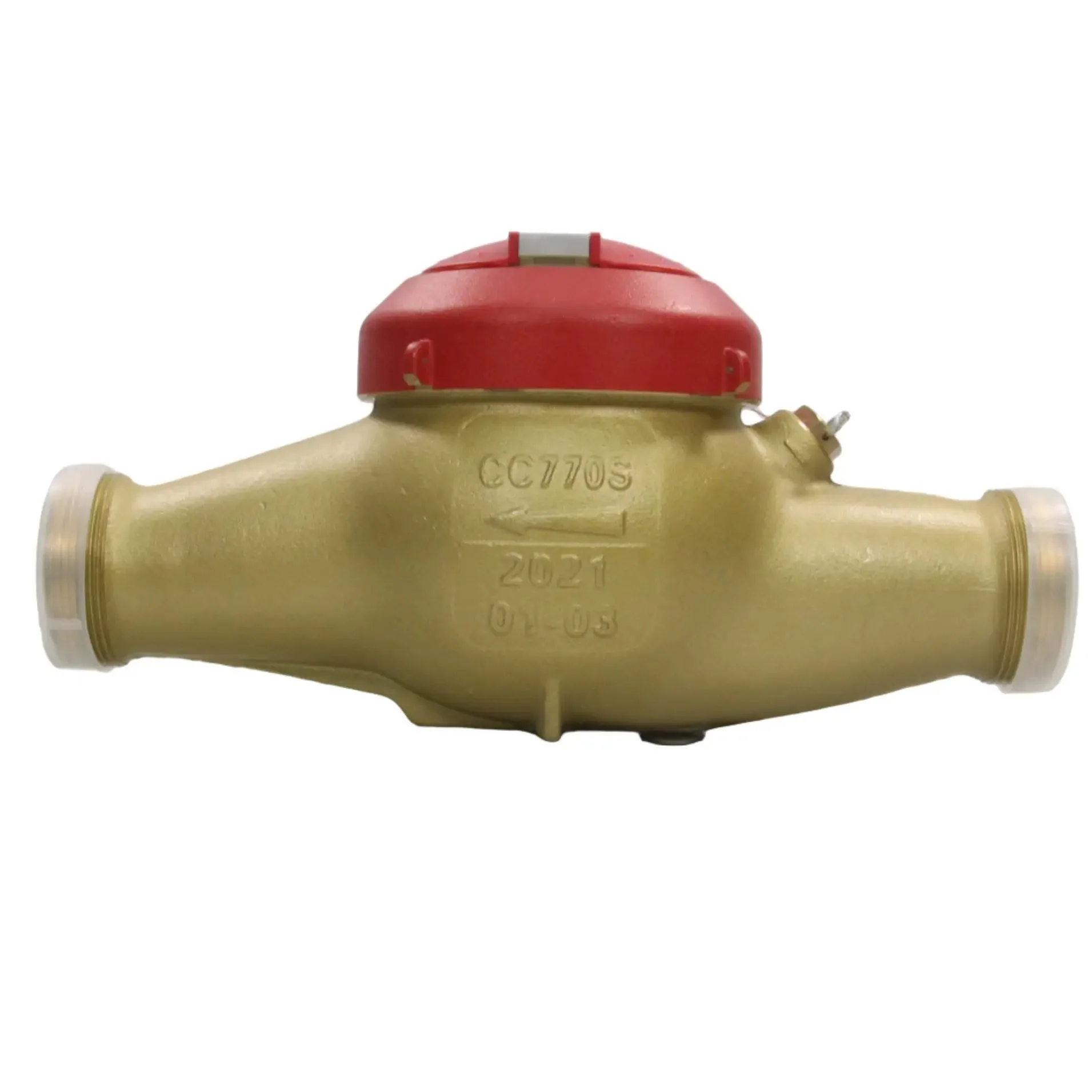

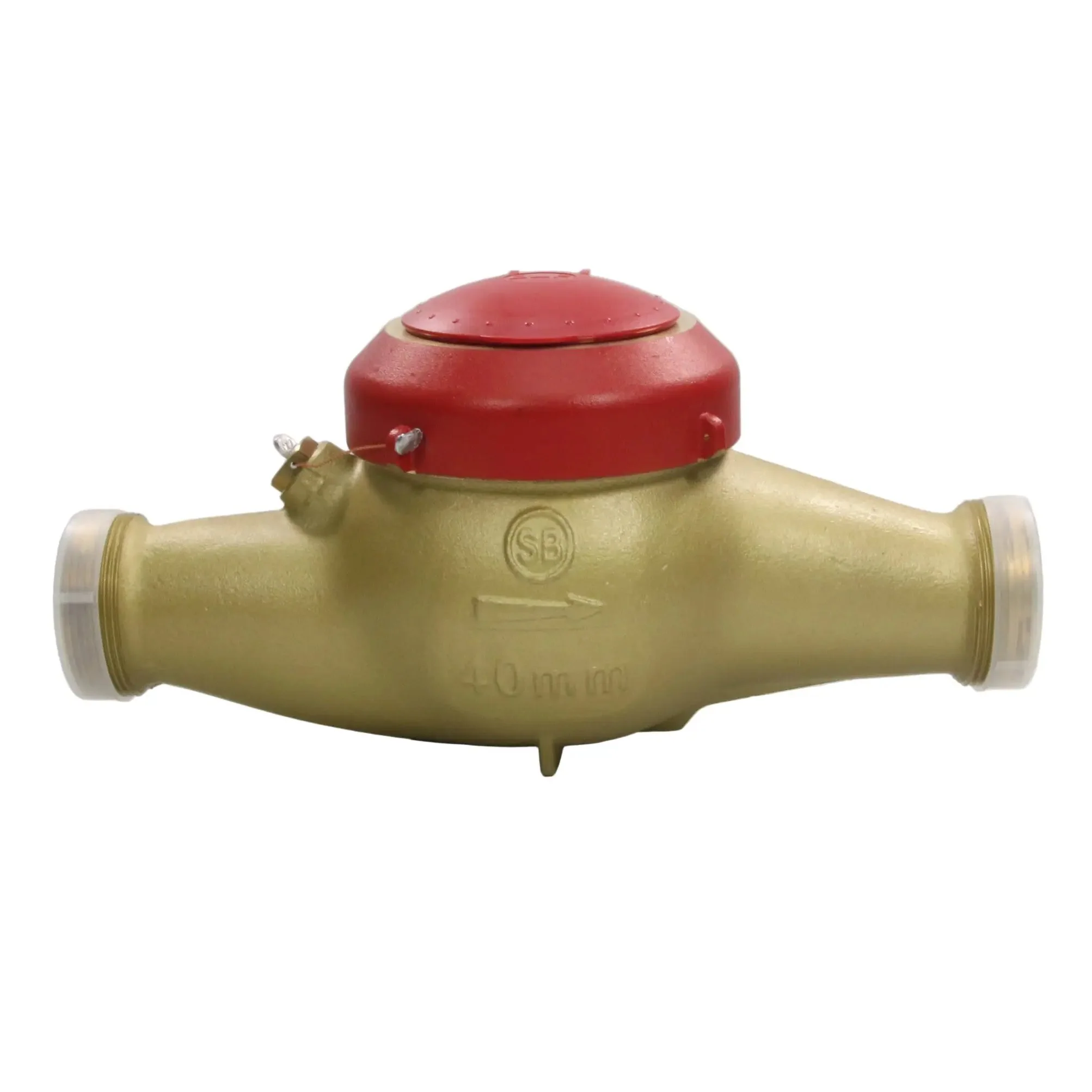

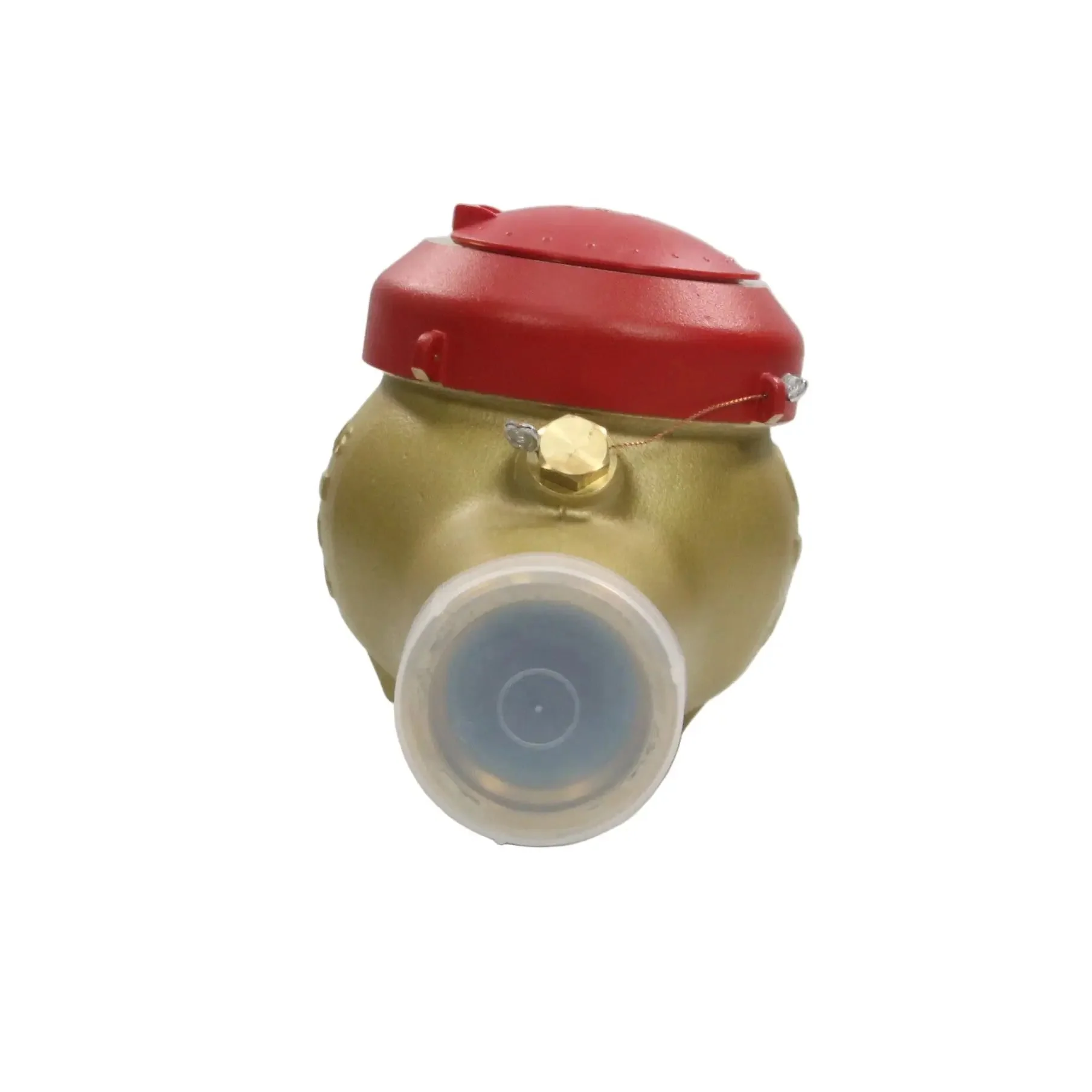

GWF MTW3 Multijet Water Meter
Brand: GWF
- Model: MTW3
- Type: Multijet Water Meter (Warm Water)
- Technical Specifications:
- Function: Measures hot water flow using multijet technology for accurate reading, with integrated Coder interface for remote data transmission
- Flow Range: 2.5 - 16 m³/h
- Temperature Range: 0.1°C to 90°C (for warm water)
- Pressure Rating: PN16
- Accuracy Class: MID R 100
- Material: Brass body, composite impeller
- Interface: Coder LPWAN radio module for remote reading (LoRaWAN, wM-Bus), optional M-Bus or pulse output
- Protection Rating: IP68
- Standards: MID certified (Directive 2014/32/EU), OIML R49, EN 14154
- Features: Anti-fraud protection, bidirectional flow measurement, low pressure loss, compact design
- Weight: 5.4 kg
- Dimensions: DN40 (40 mm) 320 x 150 x 140 mm
- Country of Origin: Switzerland
- HS Code: 9026.10
Original: $305.25
-70%$305.25
$91.58
Description
Brand: GWF
- Model: MTW3
- Type: Multijet Water Meter (Warm Water)
- Technical Specifications:
- Function: Measures hot water flow using multijet technology for accurate reading, with integrated Coder interface for remote data transmission
- Flow Range: 2.5 - 16 m³/h
- Temperature Range: 0.1°C to 90°C (for warm water)
- Pressure Rating: PN16
- Accuracy Class: MID R 100
- Material: Brass body, composite impeller
- Interface: Coder LPWAN radio module for remote reading (LoRaWAN, wM-Bus), optional M-Bus or pulse output
- Protection Rating: IP68
- Standards: MID certified (Directive 2014/32/EU), OIML R49, EN 14154
- Features: Anti-fraud protection, bidirectional flow measurement, low pressure loss, compact design
- Weight: 5.4 kg
- Dimensions: DN40 (40 mm) 320 x 150 x 140 mm
- Country of Origin: Switzerland
- HS Code: 9026.10
