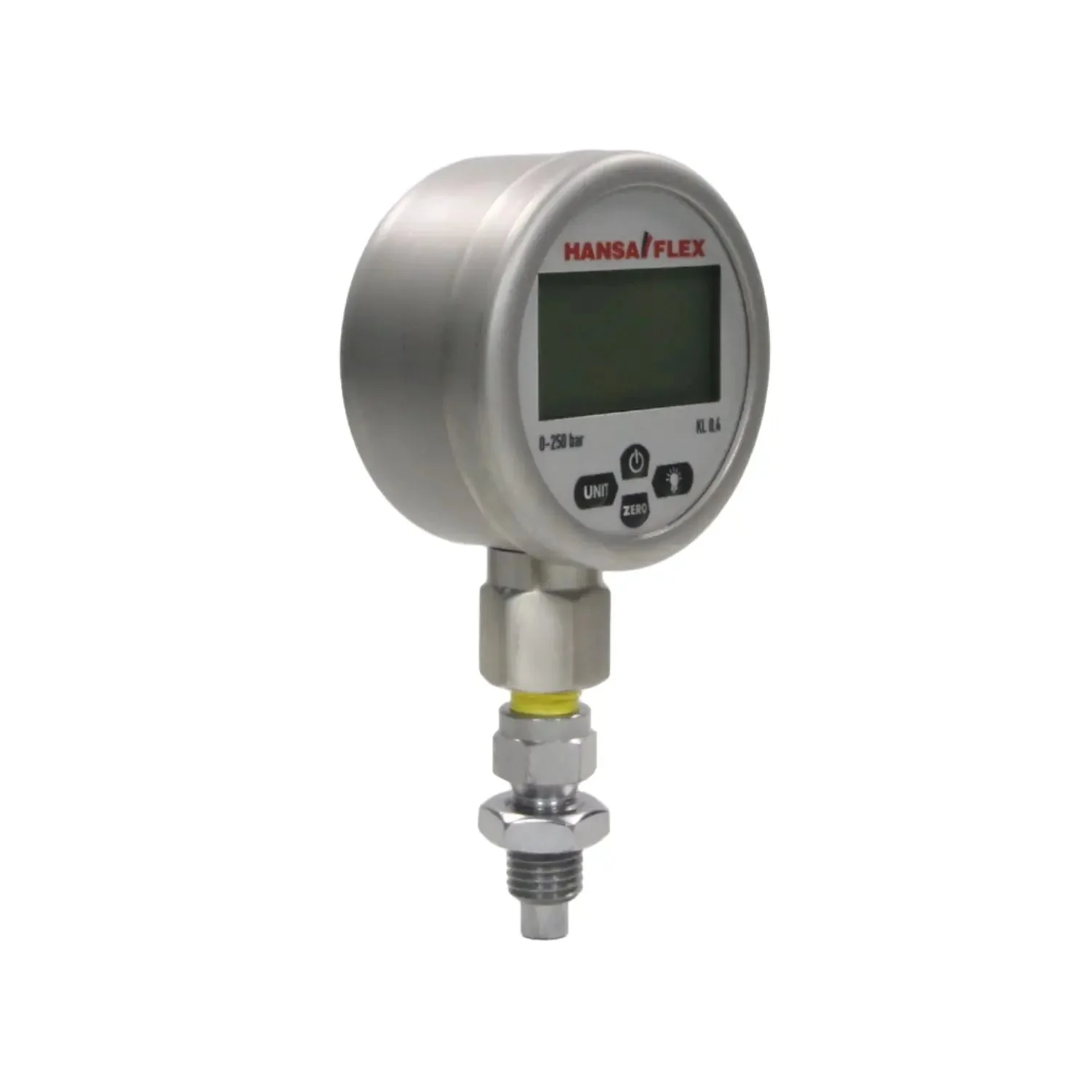

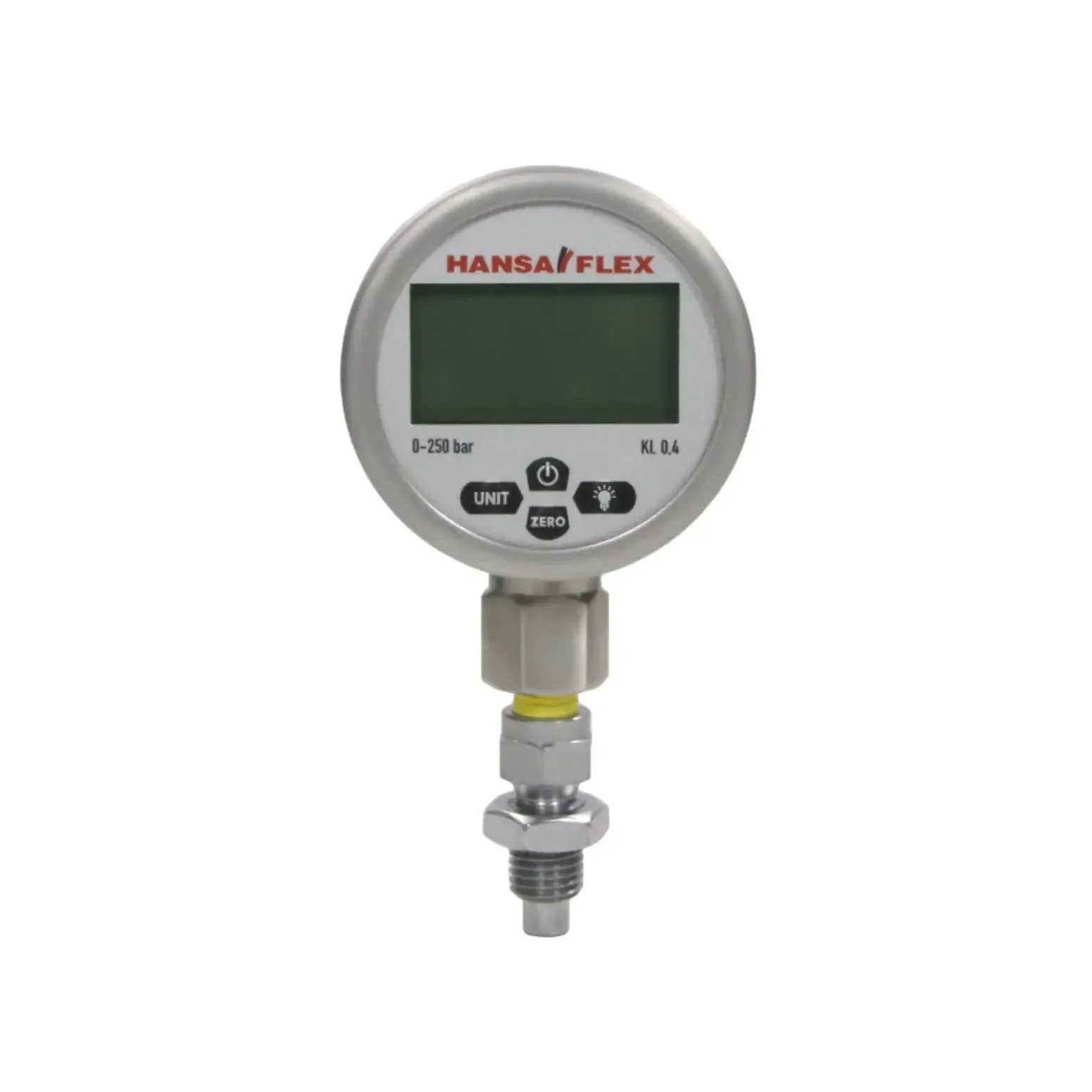

Hansaflex DMM 80-250 Digital Pressure Gauge
- Brand: Hansaflex
- Model: DMM 80-250
- Type: Digital Pressure Gauge (Portable/Manometer)
- Technical Specifications:
- Measuring Range: 0 – 250 bar
- Accuracy: ±0.4 % FSO BFSL
- Resolution: 0.1 bar
- Overload Capacity: 2 × FS (500 bar)
- Quality Class: 0.4
- Pressure Connection: G¼" male with 60° internal cone for Hansaflex hose fittings
- Media Compatibility: Hydraulic oil, water, air, gases (non-aggressive)
- Temperature Range (Media): -20°C to +80°C
- Display: 4½-digit LCD, 12 mm height, rotatable 330°
- Functions: Zero point correction, min/max memory, peak hold, auto-off (15 min), bar/psi/kPa/MPa switchable
- Power Supply: 2 × 1.5 V AA batteries
- Protection Rating: IP67
- Housing: Stainless steel with rubber protective cover
- Features: Tare function, backlight, fast response time (< 1 ms)
- Dimensions: 300 x 260 x 150 mm
- Weight: 1.8 kg
- Country of Origin: Germany
- HS Code: 902620
Original: $287.97
-70%$287.97
$86.39
Description
- Brand: Hansaflex
- Model: DMM 80-250
- Type: Digital Pressure Gauge (Portable/Manometer)
- Technical Specifications:
- Measuring Range: 0 – 250 bar
- Accuracy: ±0.4 % FSO BFSL
- Resolution: 0.1 bar
- Overload Capacity: 2 × FS (500 bar)
- Quality Class: 0.4
- Pressure Connection: G¼" male with 60° internal cone for Hansaflex hose fittings
- Media Compatibility: Hydraulic oil, water, air, gases (non-aggressive)
- Temperature Range (Media): -20°C to +80°C
- Display: 4½-digit LCD, 12 mm height, rotatable 330°
- Functions: Zero point correction, min/max memory, peak hold, auto-off (15 min), bar/psi/kPa/MPa switchable
- Power Supply: 2 × 1.5 V AA batteries
- Protection Rating: IP67
- Housing: Stainless steel with rubber protective cover
- Features: Tare function, backlight, fast response time (< 1 ms)
- Dimensions: 300 x 260 x 150 mm
- Weight: 1.8 kg
- Country of Origin: Germany
- HS Code: 902620
