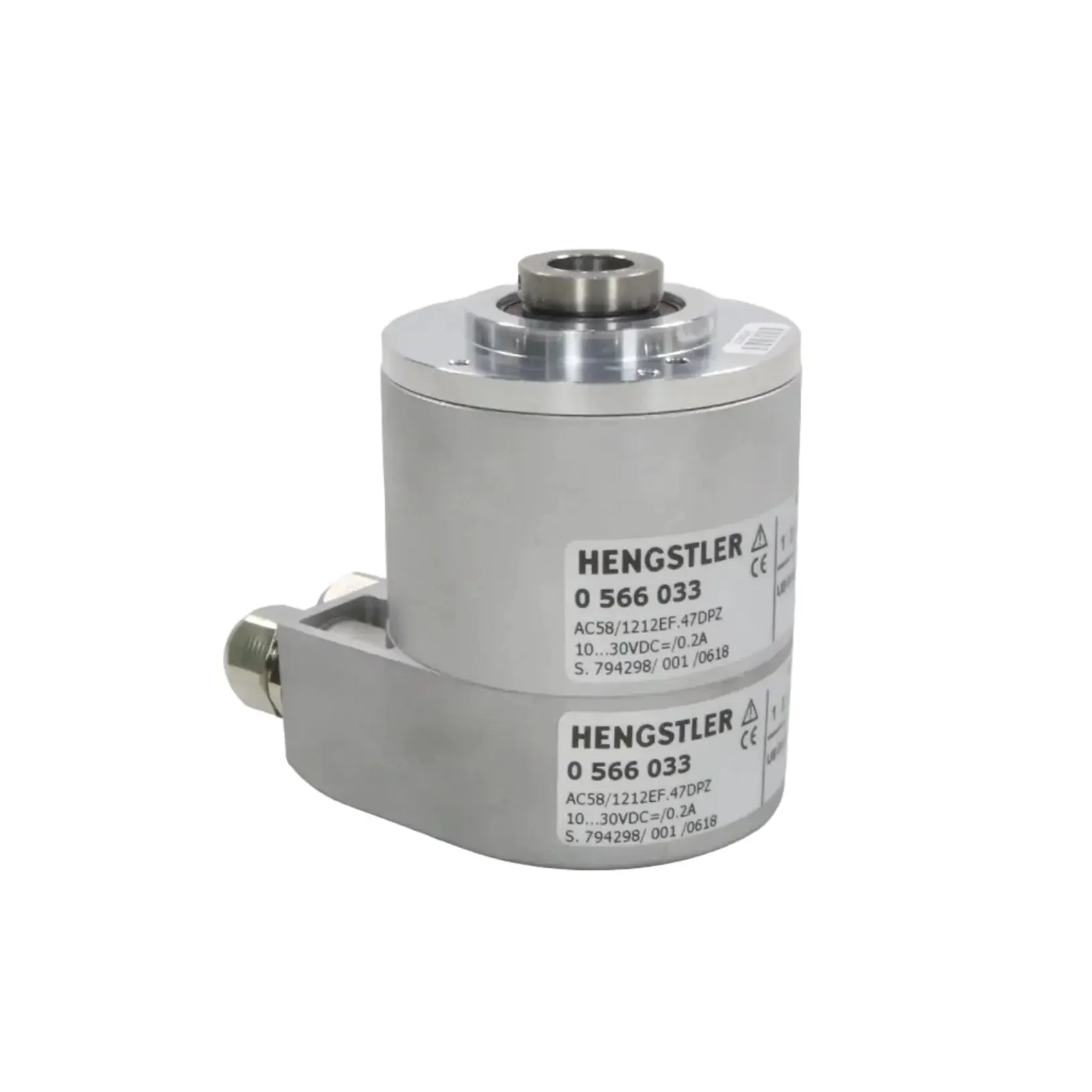

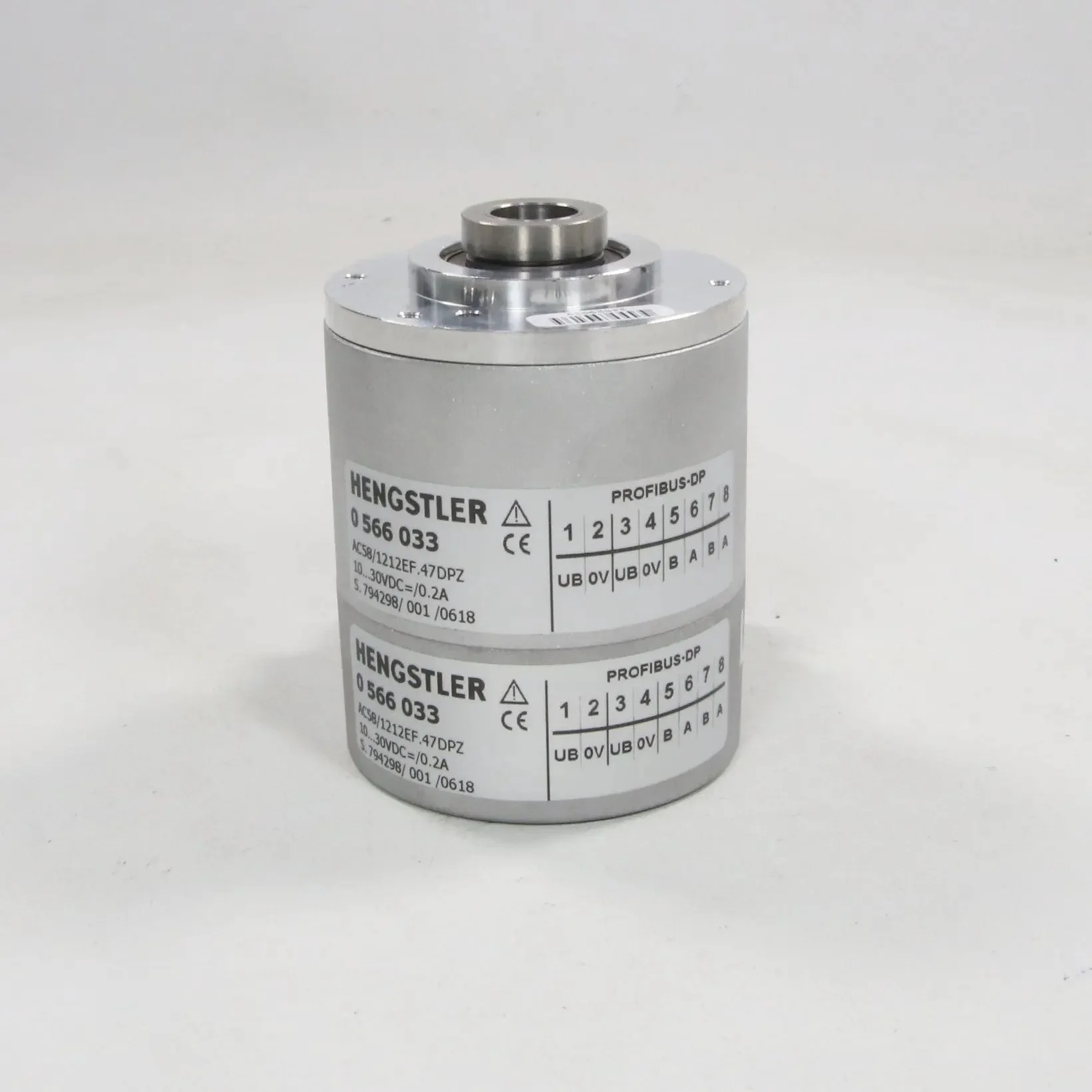

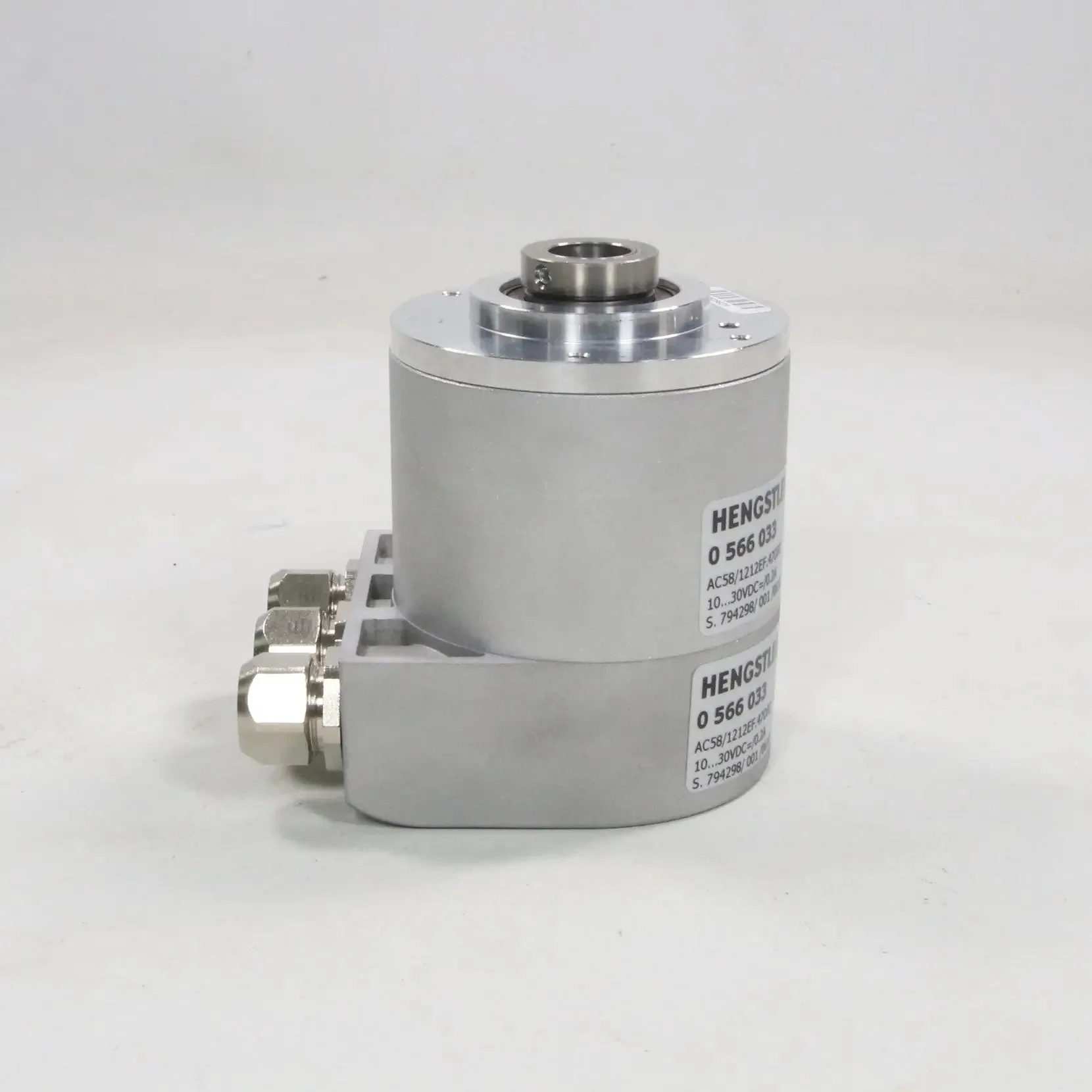

Hengstler AC58/1212EF.47DPZ Absolute Multi-Turn Rotary Encoder

- Brand: Hengstler (Hengstler GmbH)

- Model: AC58/1212EF.47DPZ

- Type: Absolute Multi-Turn Rotary Encoder

- Part number: 0566033

Technical specifications:
- Resolution: 12 Bit single-turn + 12 Bit multi-turn

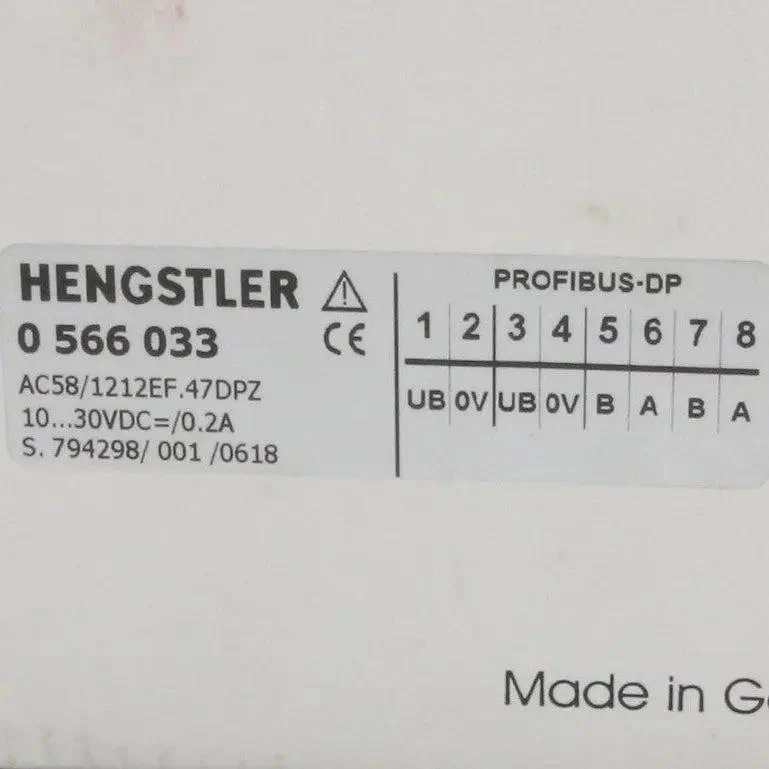

- Interface: Profibus DP
- Supply voltage: 10–30 V DC
- Shaft / Mounting: Hubshaft 12 mm
- Protection rating: IP64
- Operating temperature: -40°C to +85°C
- Shock resistance: Up to 1000 m/s² (6 ms)
- Vibration resistance: Up to 100 m/s² (10–500 Hz)
- Max. speed: 12,000 rpm (Short term)
- Material: Housing aluminium
- Connection: Cable
- Additional features: High EMC compatibility; compact housing; reliable optical sensing; suitable for extreme conditions; optional advanced diagnostics; broad industrial interfaces in AC58 family
- Standards: Compliant with IEC/EN for industrial encoders; CE marked; RoHS compliant

Weight: 500 g

Dimensions: 150 x 115 x 80 mm

Country of origin: Germany

HS code: 9031.80
