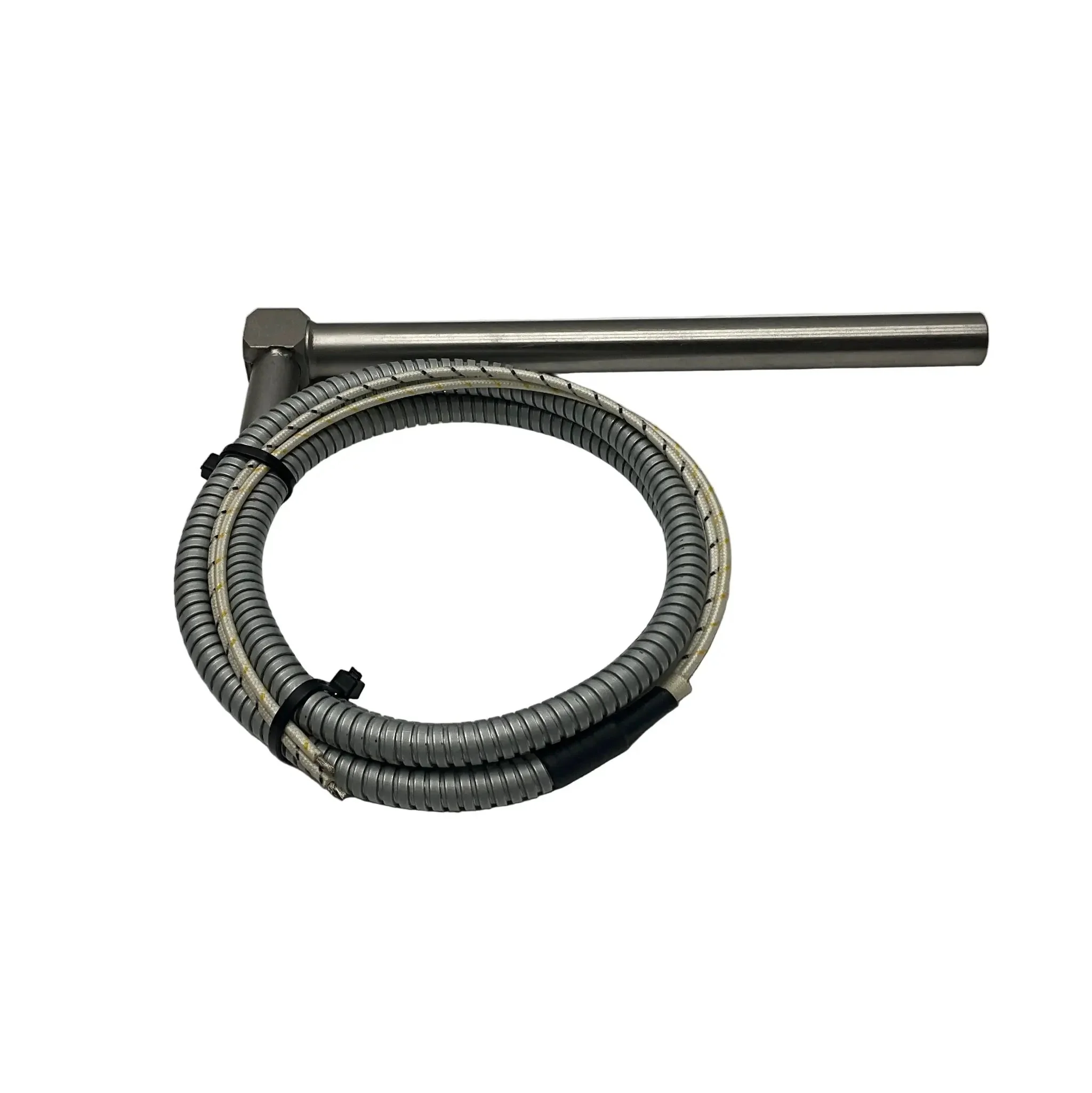

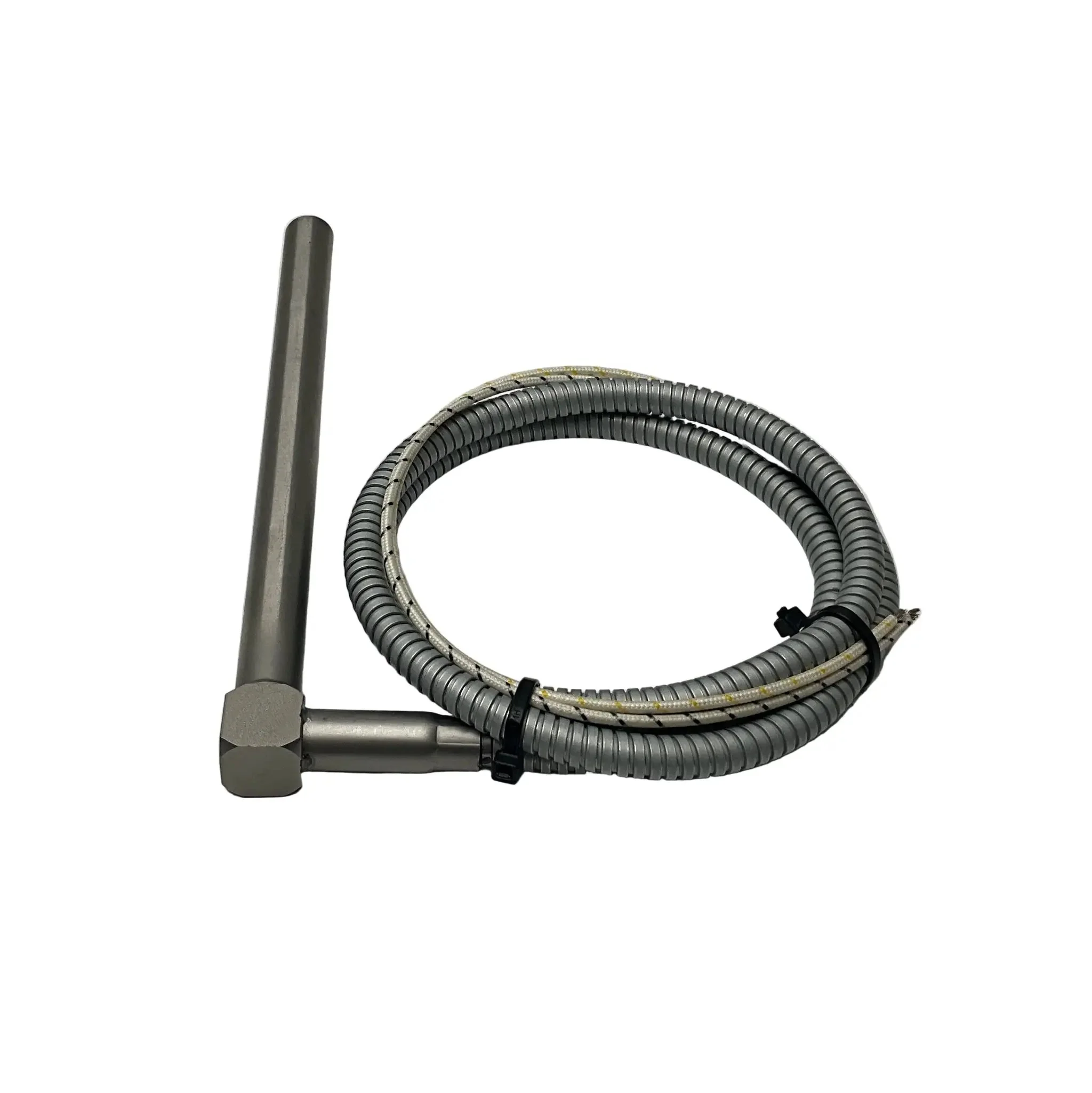

Hotset Hotrod F03 Angled Cartridge Heater

Brand: Hotset
Model: Hotrod F03 (90° angled cartridge heater)
Type: High-density cartridge heater with right-angle exit
Part Number: 144175

Technical Specs:
- Diameter: 16 mm
- Heated Length: 200 mm
- Total Length: 220 mm (including cold section and bend)
- Wattage: 800 W
- Voltage: 380 V AC
- Power Density: 10 W/cm²
- Lead Type: 90° angled nickel core wire with glass-silk insulation and outer stainless steel braid
- Lead Length: 1000 mm
- Connection: Free wire ends
- Max. Surface Temperature: 750 °C
- Internal Thermocouple: none

- Dimensions: 220 x 180 x 30 mm

- Weight: 330 g

- Country of Origin: Germany

- HS Code: 8516.80
