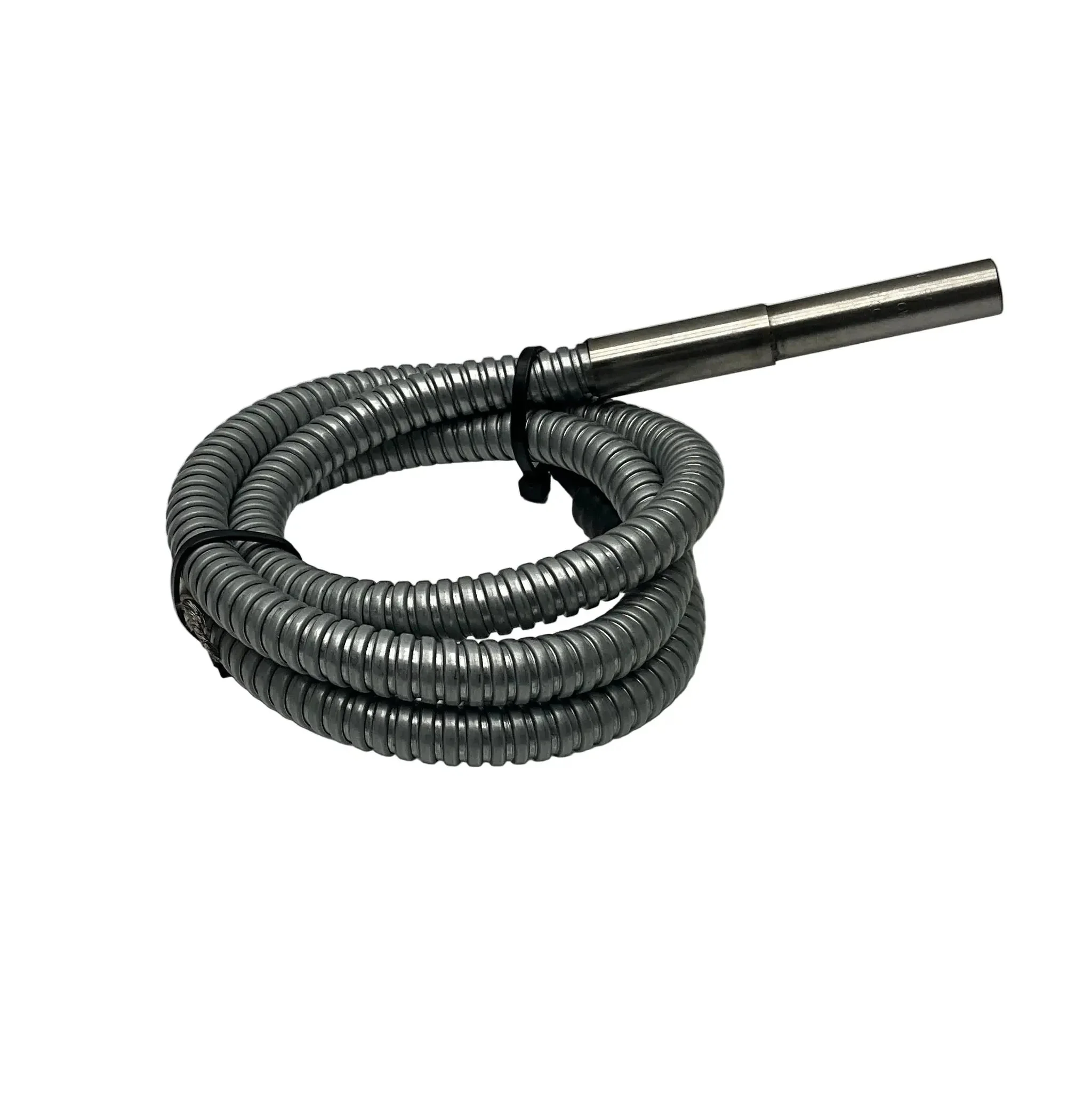

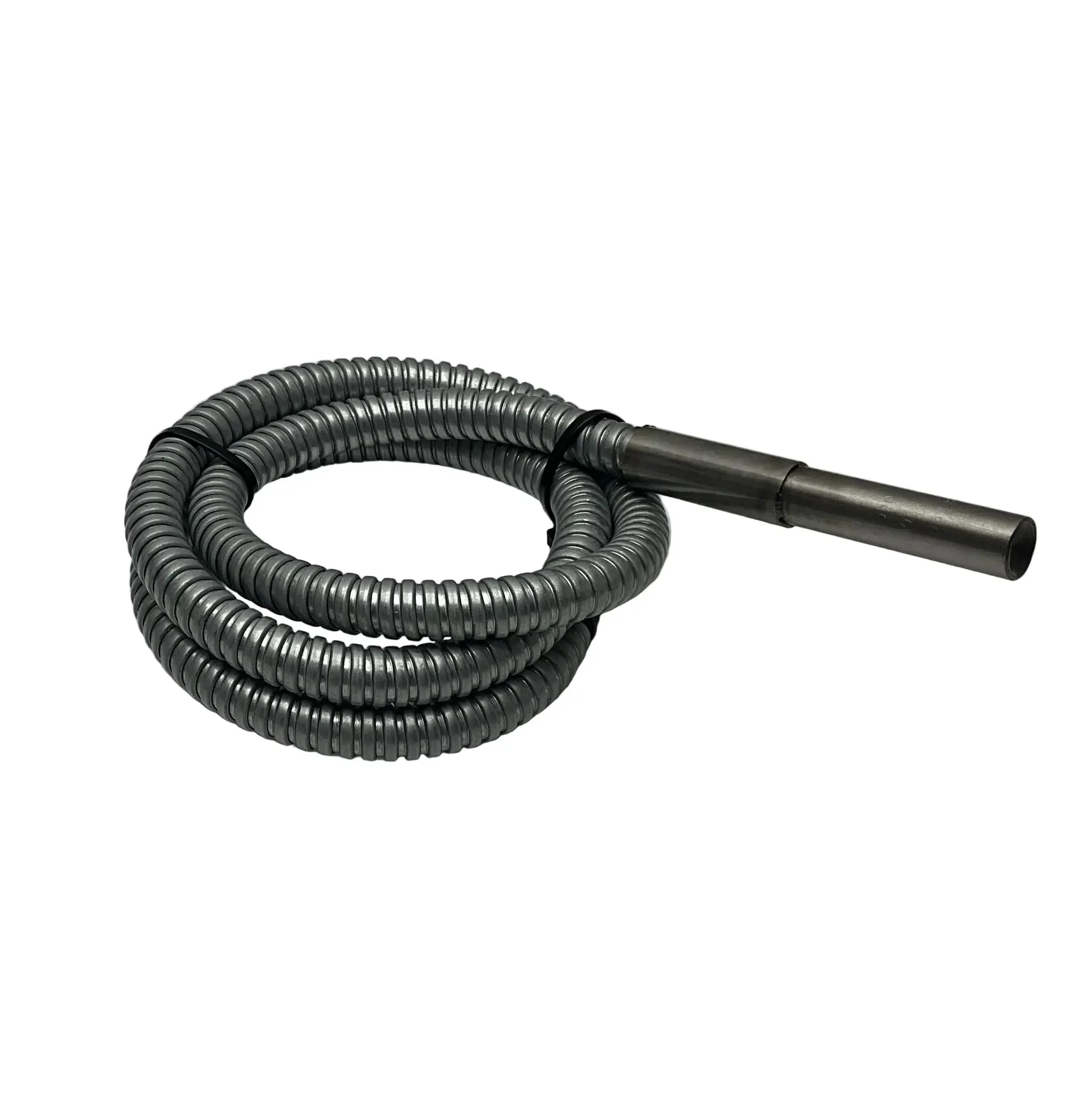

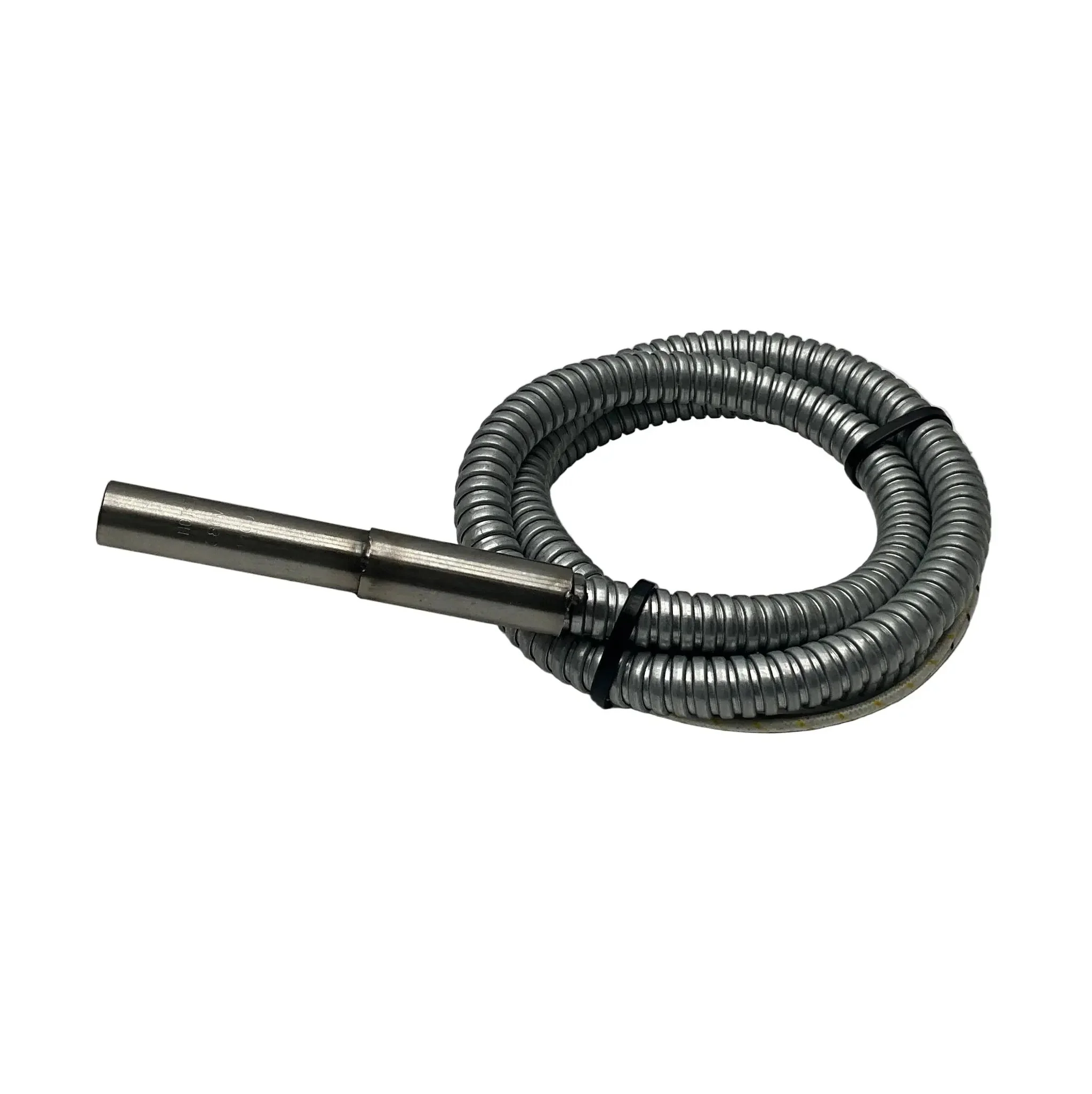

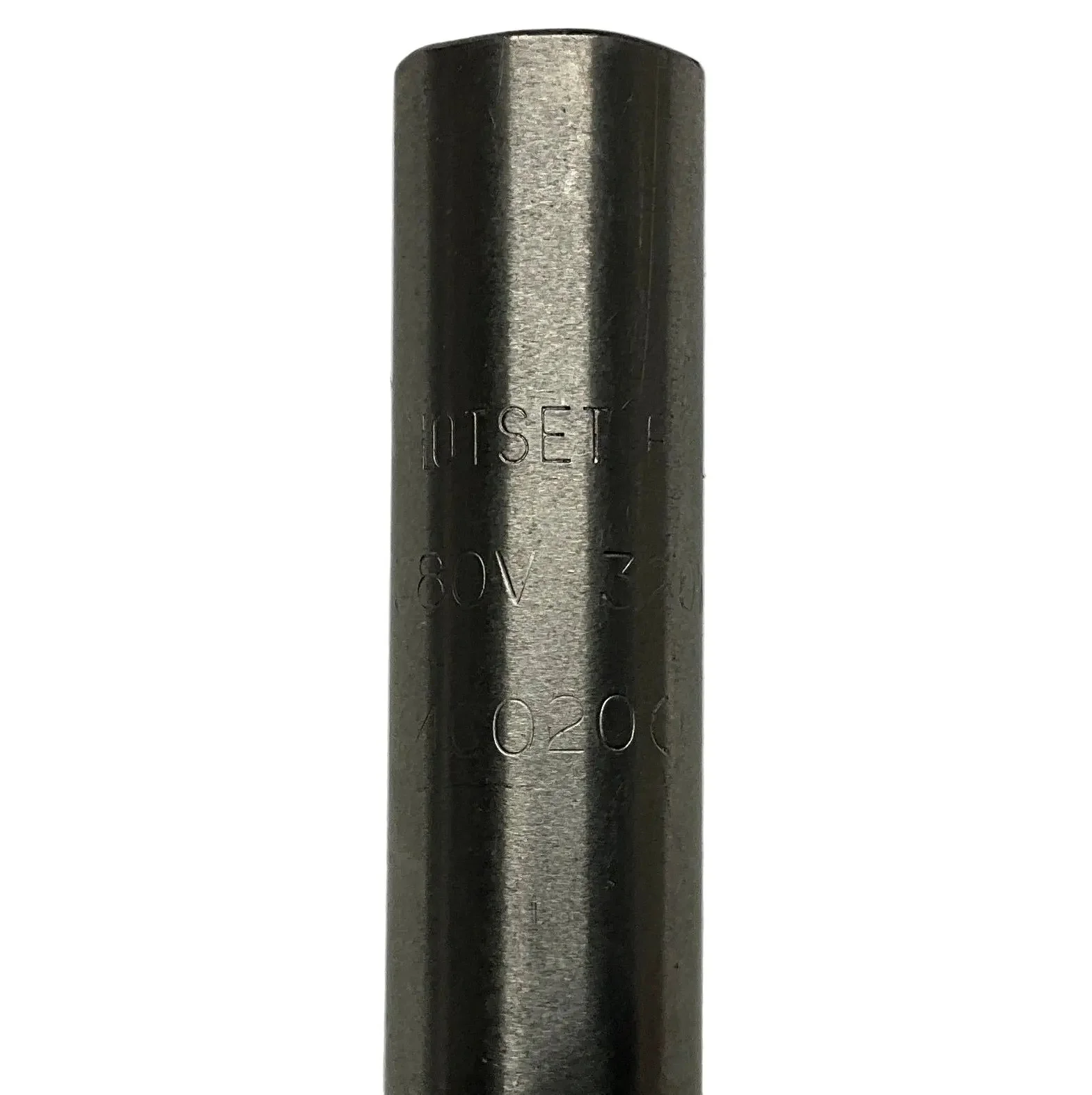

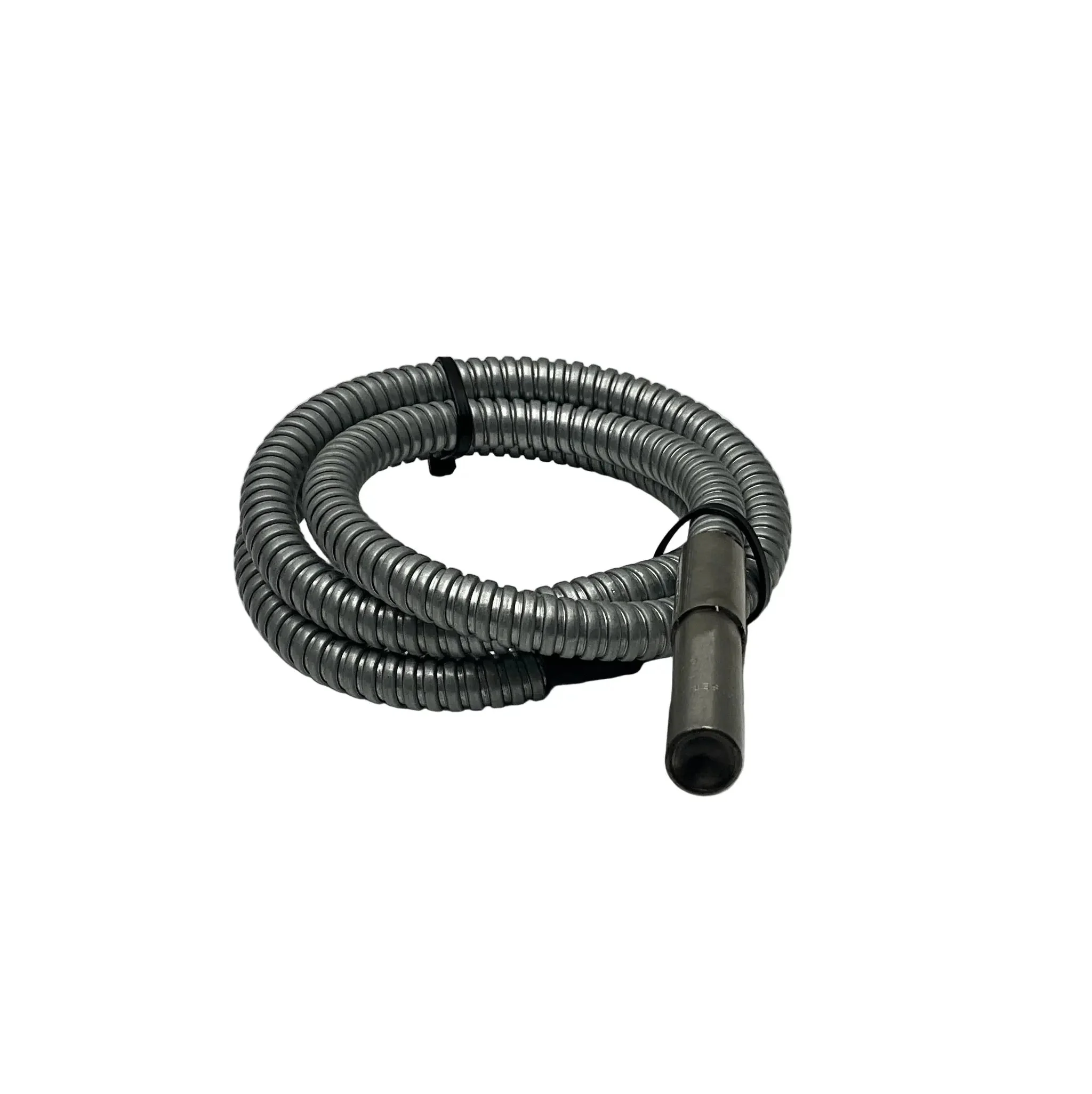

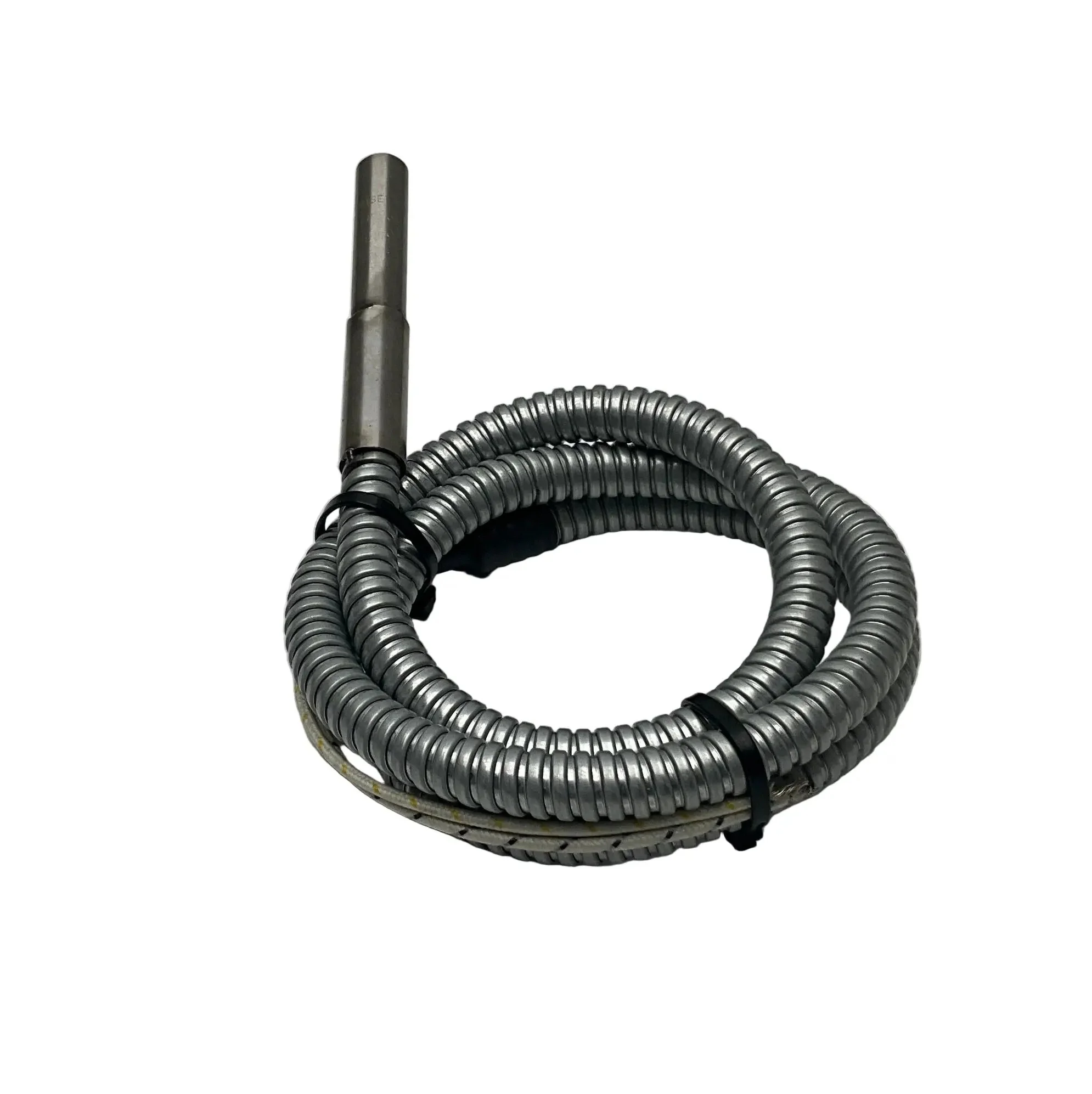

Hotset Hotrod E03 Cartridge Heater

Brand: Hotset
Model: Hotrod E03
Type: High-density cartridge heater
Part Number: 140020

Technical Specs:
- Diameter: 12.5 mm
- Heated Length: 50 mm
- Total Length: 90 mm
- Wattage: 320 W
- Voltage: 380 V AC
- Power Density: approx. 10 W/cm²
- Lead Exit: Nickel core wire with glass-silk insulation + outer stainless steel braid
- Lead Length: 1000 mm (standard)
- Connection: Free wire ends (no plug)
- Max. Surface Temperature: 750 °C
- Internal Thermocouple: none
- Dimensions: 200 x 140 x 80 mm

- Weight:  200 g

- Country of Origin: Germany

- HS Code: 8516.80
