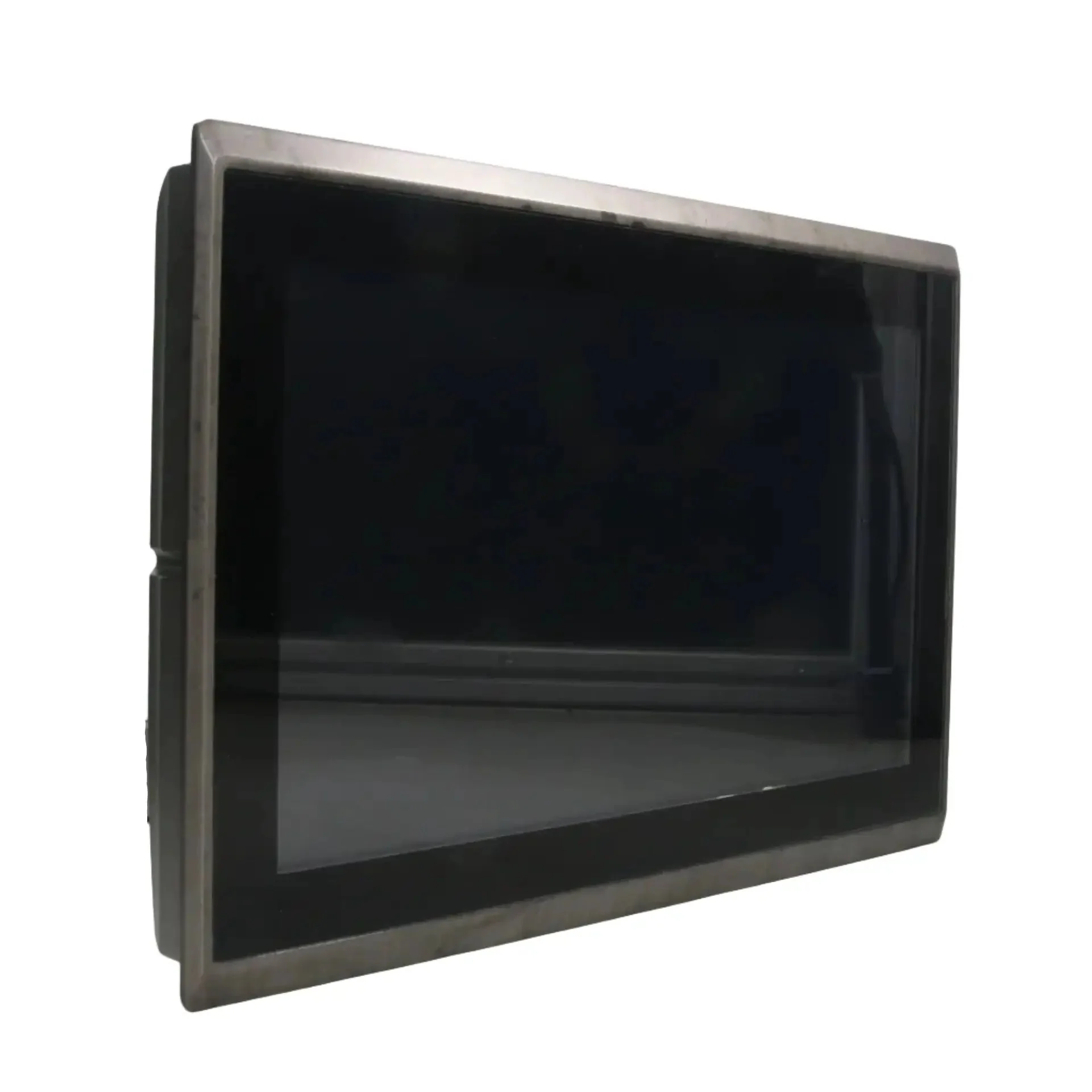

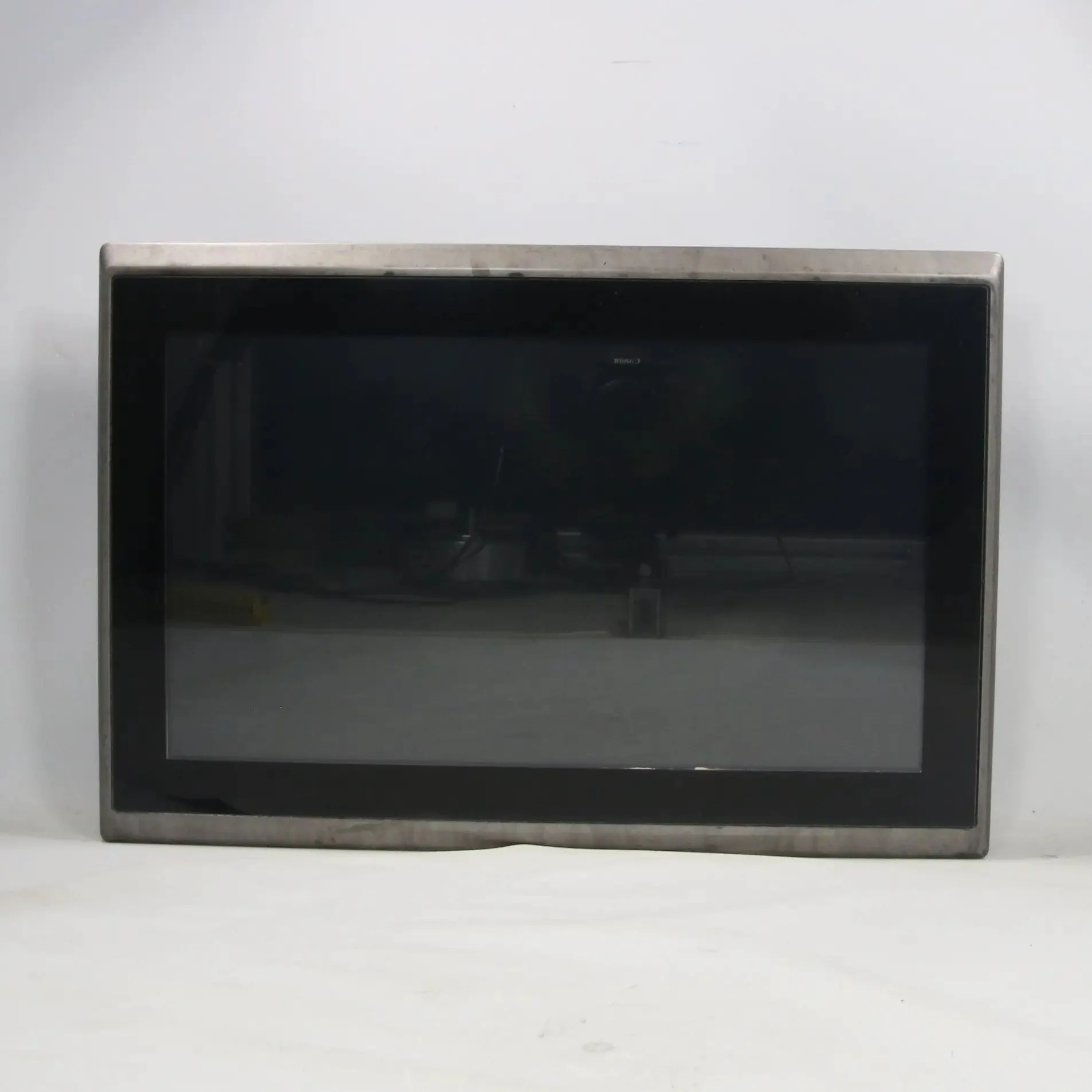

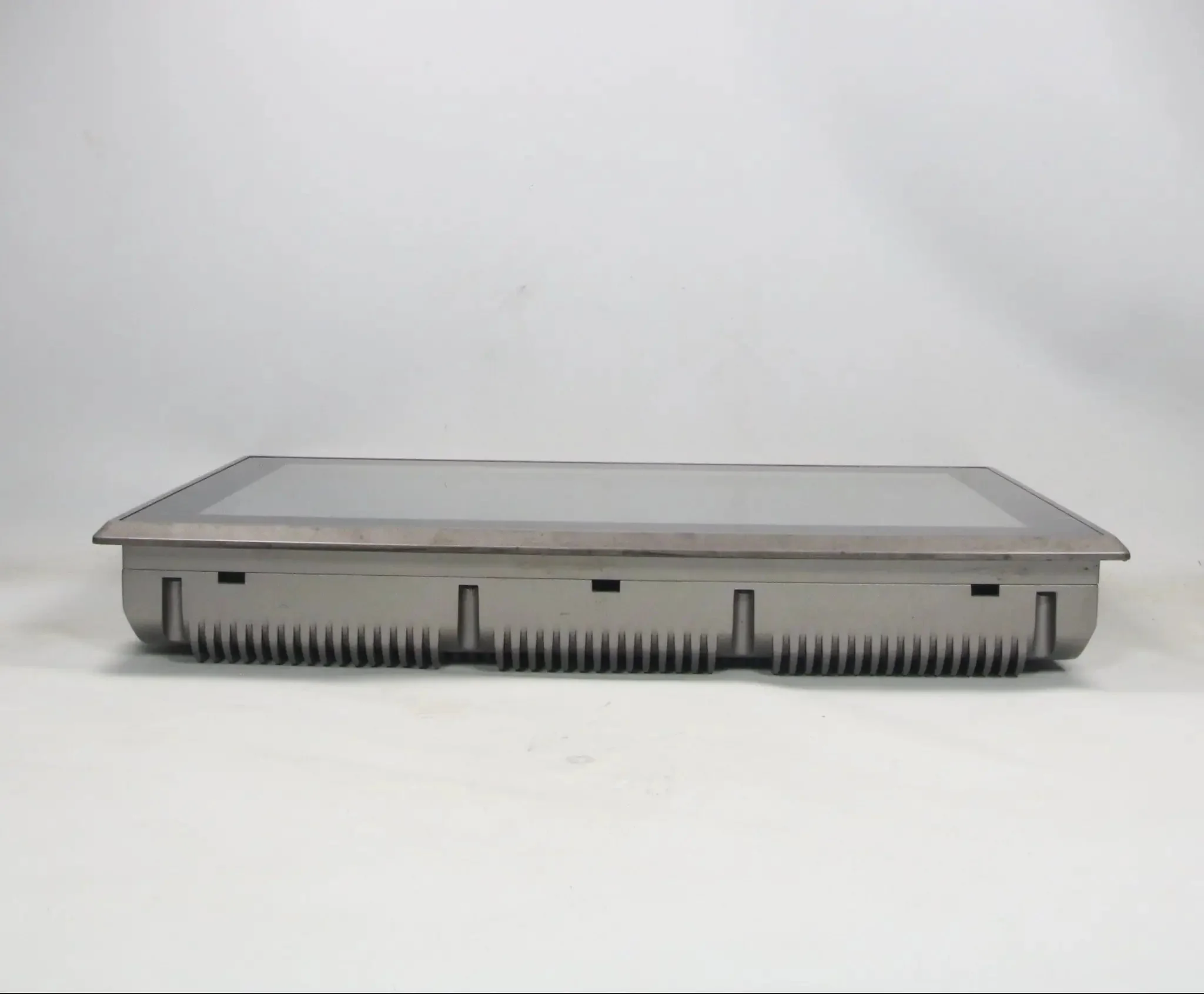

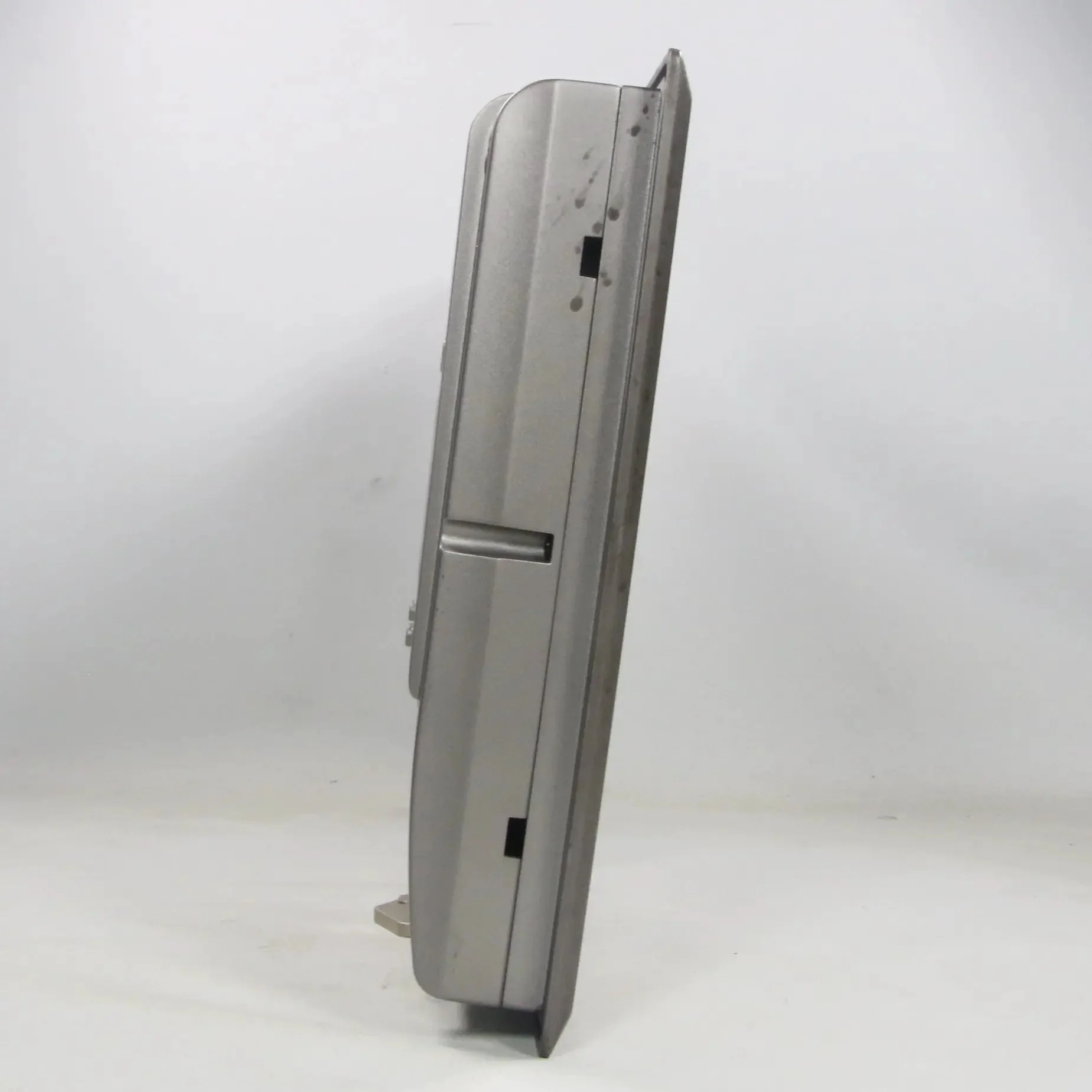

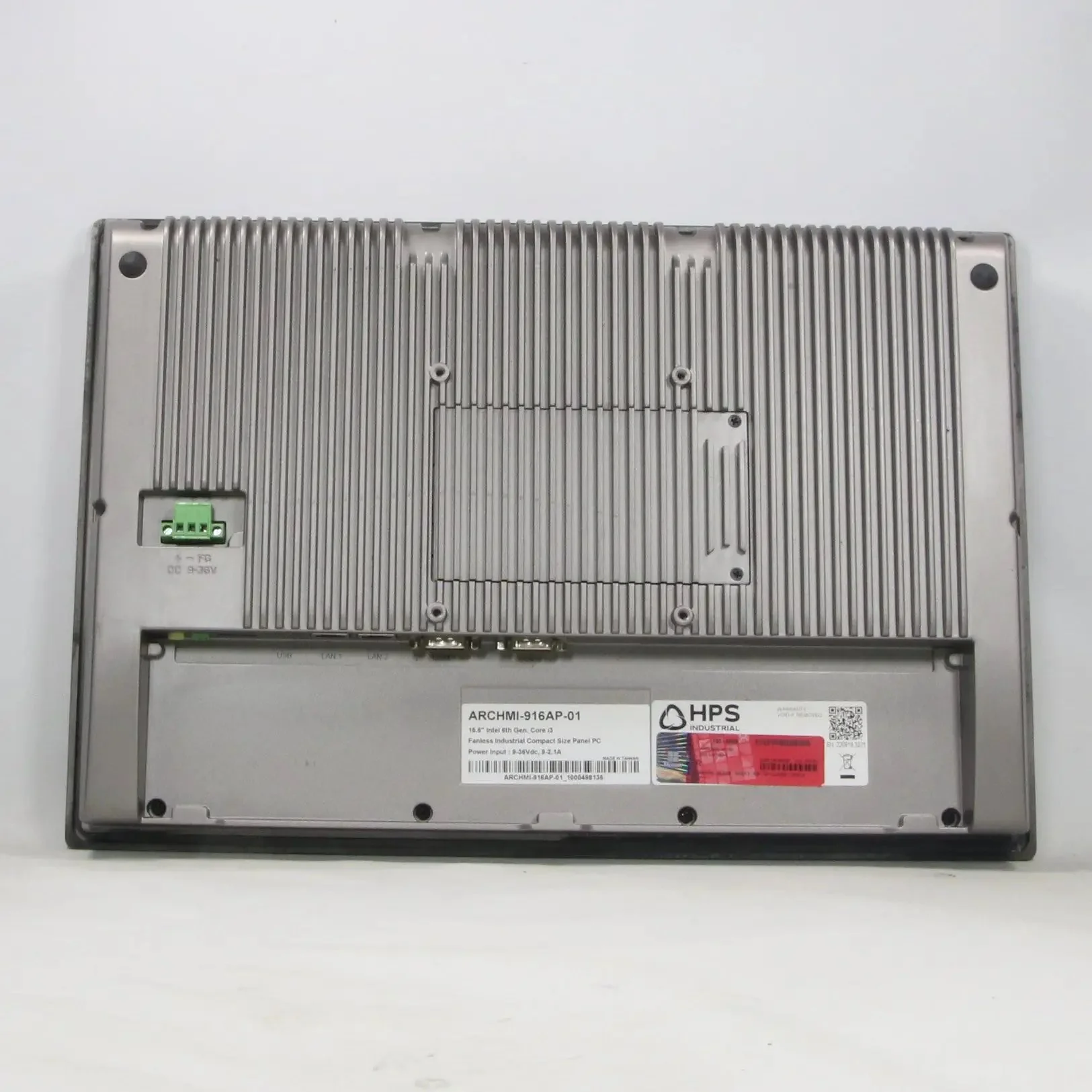

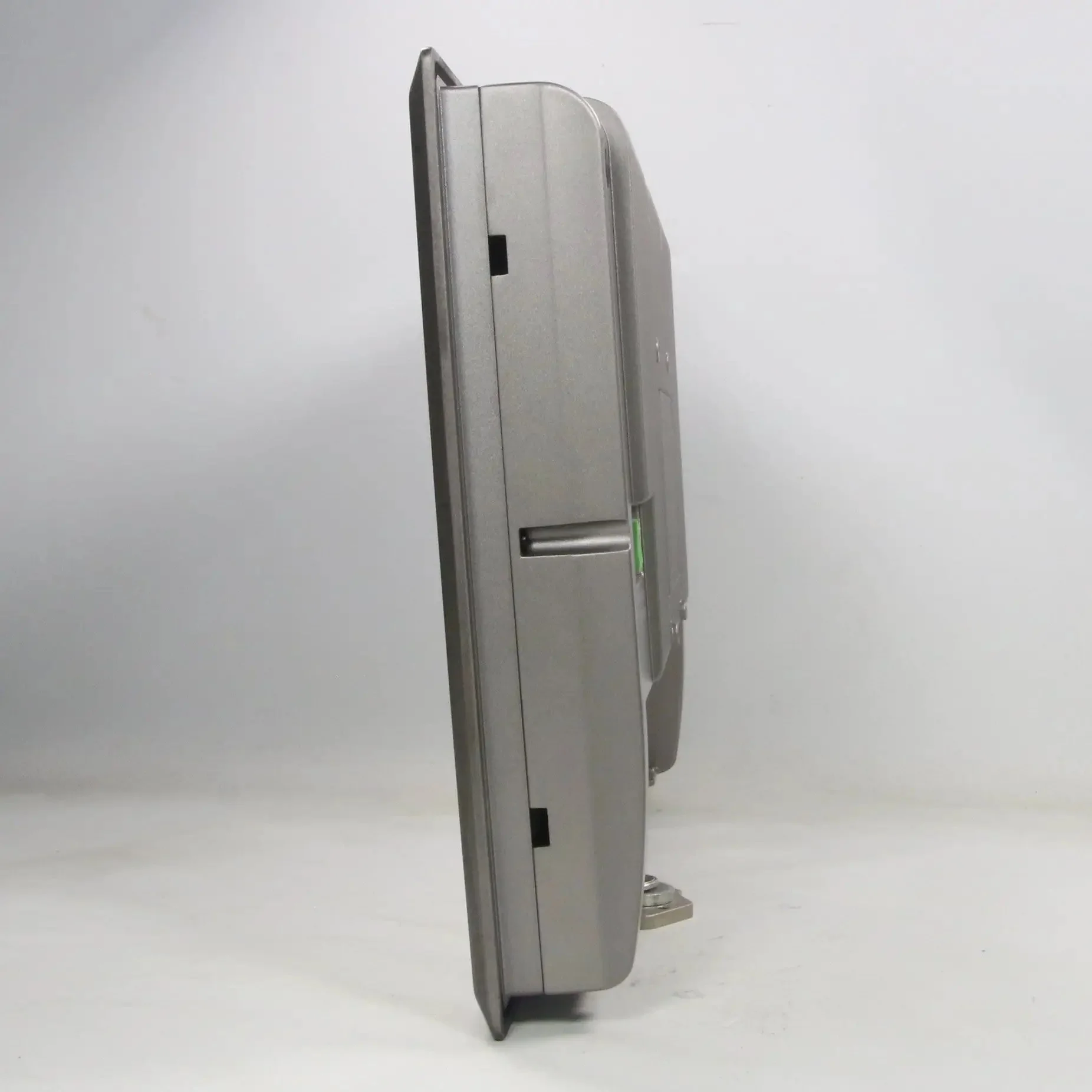

HPS Industrial ARCHMI-916AP-01 Fanless Industrial Panel PC

- Brand: HPS Industrial (Aplex Technology)

- Model: ARCHMI-916AP-01

- Type: Fanless Industrial Panel PC / HMI

- Part number: ARCHMI-916AP-01_1000498135

- Technical specifications:
- Display: 15.6" TFT LCD (WXGA resolution 1366 x 768 pixels)
- Brightness: Standard
- Processor: Intel 6th Generation Core i3-6100U
- Memory: 4GB DDR4
- Operating system: Windows 10 Pro

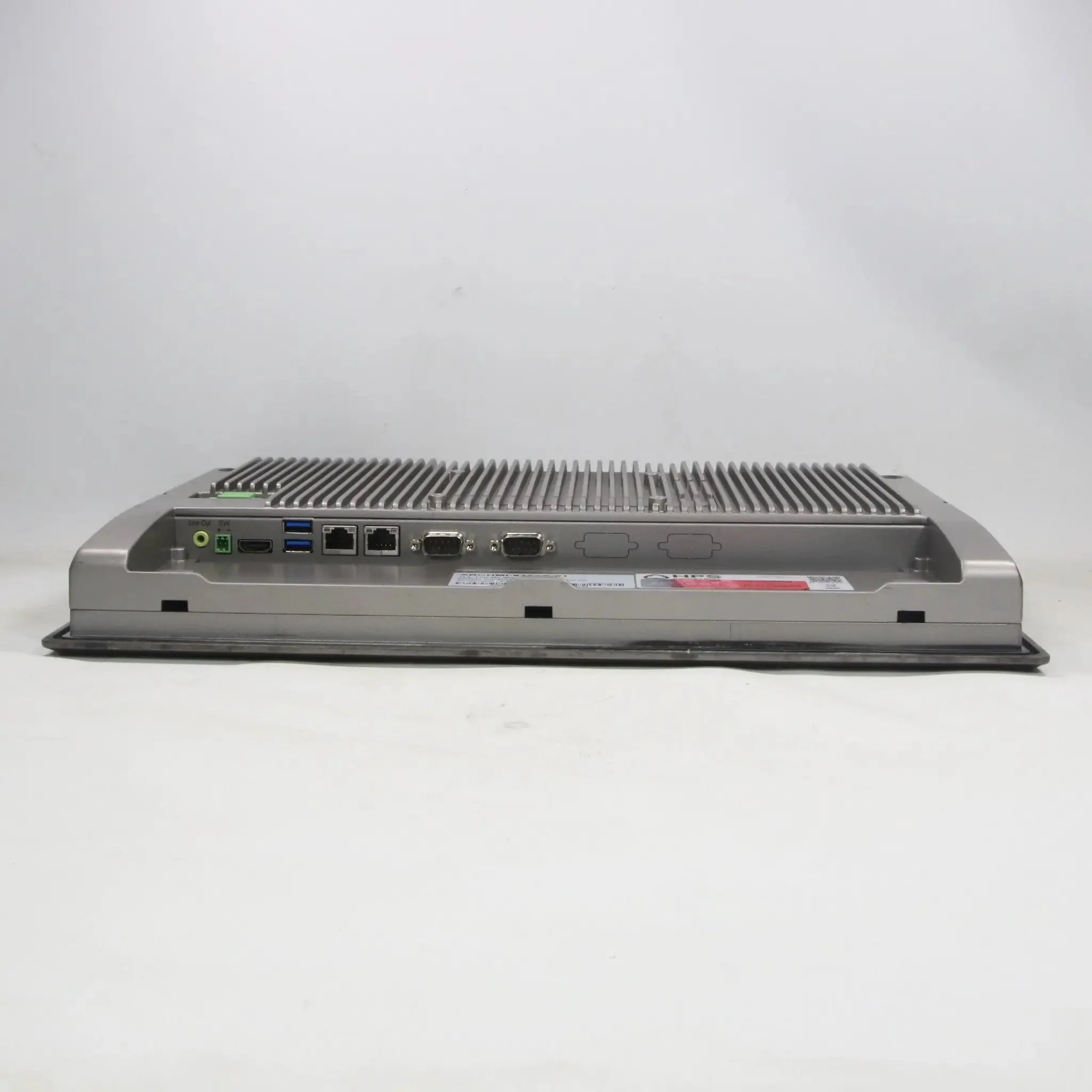

- I/O ports: 2 x USB 2.0, 2 x COM (RS-232/422/485), 2 x GbE LAN, HDMI display output
- Power input: 9–36 V DC wide range
- Fanless design: Passive cooling via aluminum die-casting chassis
- Mounting: Panel mount
- Operating temperature: -10°C to +60°C
- Protection: IP66 front panel
- Additional features: Fanless for silent 24/7 operation; rugged aluminum housing; projected capacitive touch; wide DC input; suitable for factory automation, HMI, kiosks, or harsh industrial environments
- Standards: CE, FCC, RoHS compliant; shock/vibration resistant

Weight: 4.5 kg

Dimensions: 280 x 41 x 80 mm

Country of origin: Taiwan

HS code: 8471.41
