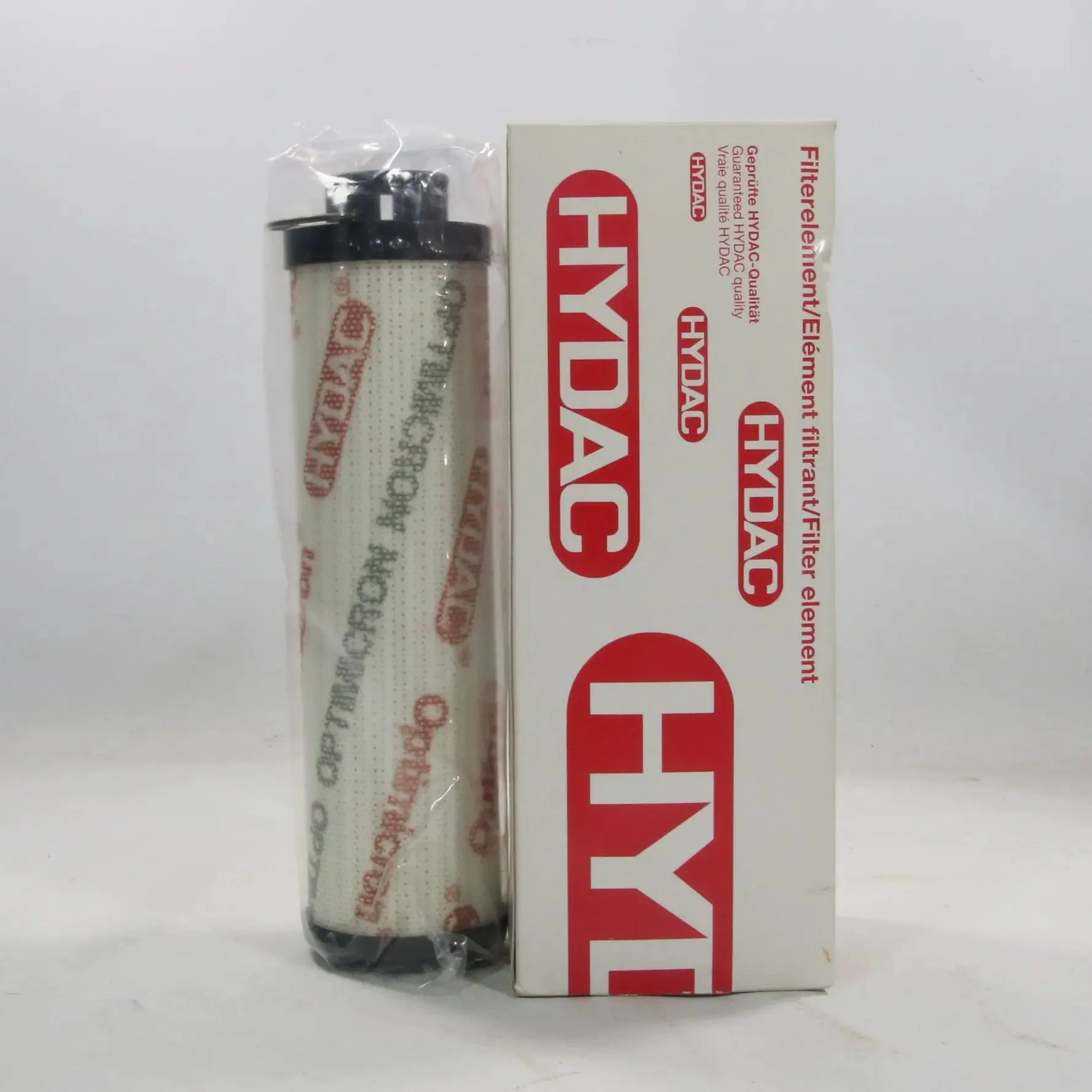

Hydac 0165 R 010 0N Filter Element

- Brand: HYDAC

- Model: 0165 R 010 BN4HC

- Type: Hydraulic Filter Element / Return-Line Filter Insert

- Part number: 1262969

- Technical specifications:
- Filter media: Betamicron 4HC
- Filtration rating: 10 µm absolute
- Max. differential pressure: 25 bar
- Collapse pressure: 21 bar
- Flow direction: Out-to-in
- Temperature range: -30°C to +100°C
- Seal material: NBR
- Bypass valve: None
- Compatibility: HYDAC RFM series return-line filters; fits standard HYDAC 0165 R elements
- Additional features: High dirt-holding capacity; low pressure drop; excellent flow fatigue stability; suitable for hydraulic oils, lubricants, and other mineral oil-based fluids; easy replacement during maintenance
- Standards: Compliant with ISO 16889 (multi-pass test); ISO 2941 (collapse pressure); ISO 2942 (fabrication integrity); RoHS compliant

Weight: 400 g

Dimensions: 240 x 90 x 90 mm (box)

Country of origin: Germany

HS code: 8421.99
