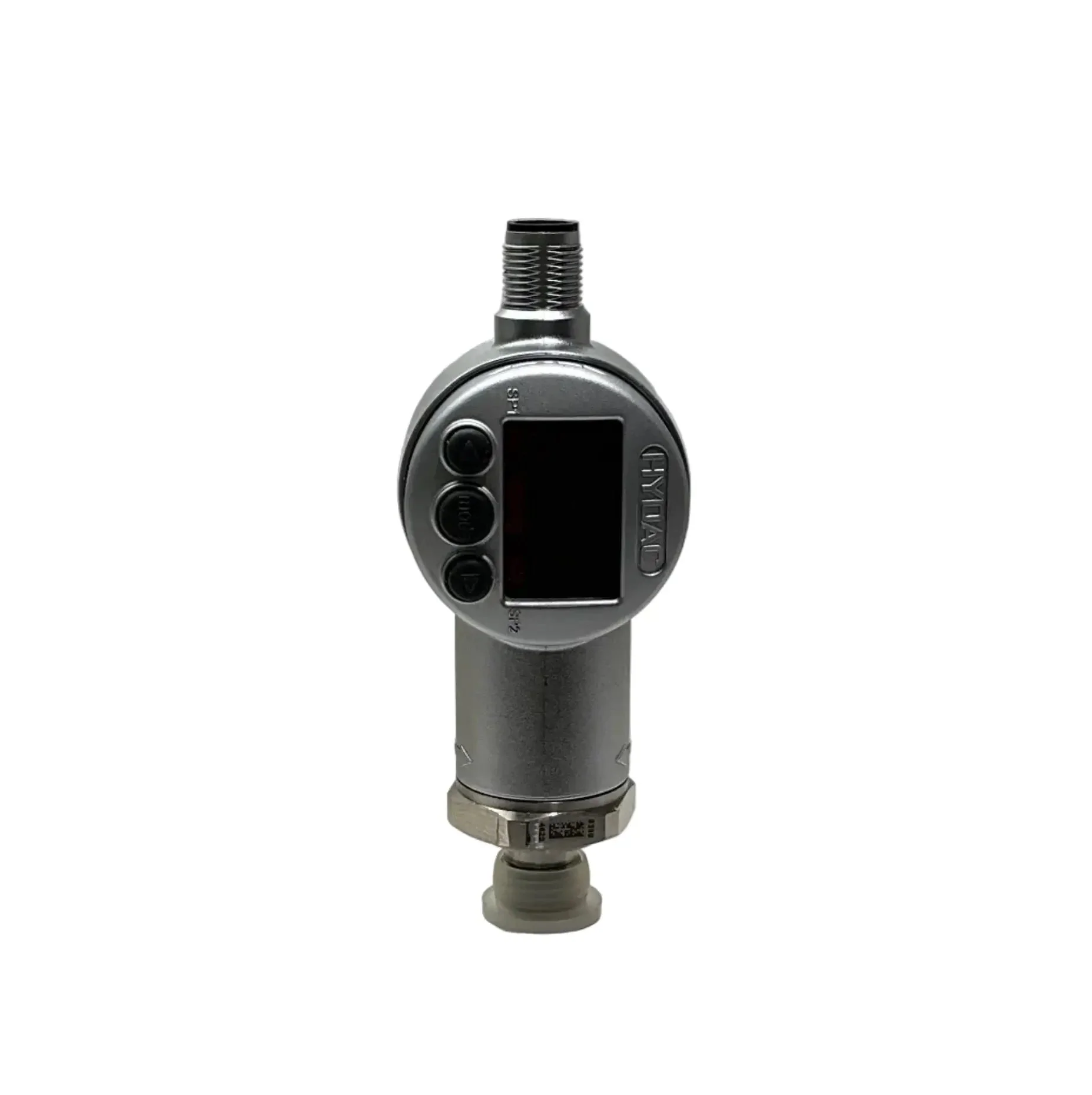

Hydac EDS 3000 Electronic Pressure Switch
- Brand: HYDAC
- Model: EDS 3000
- Type: Electronic Pressure Switch

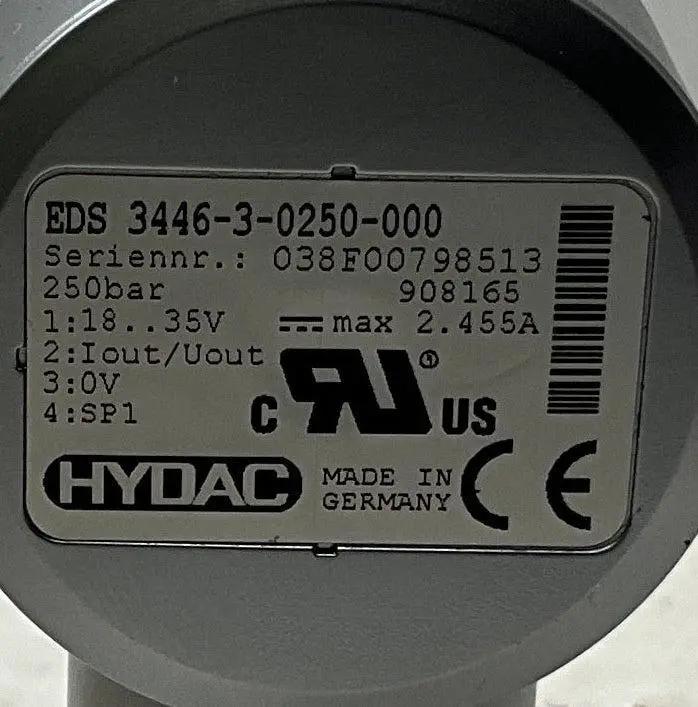

- Part Number: 3446-3-0250-000
- Technical Specs:
- Measuring Principle: Piezoresistive pressure sensor
- Measuring Range: 0 to 250 bar – gauge pressure
- Overpressure Safety: 1.5 × full scale
- Burst Pressure: 4 × full scale
- Accuracy: ≤ ±0.5 % FS (BFSL)
- Repeatability: ≤ ±0.1 % FS
- Temperature Influence: ≤ ±0.2 % FS / 10 K (zero point), ≤ ±0.2 % FS / 10 K (measuring range)
- Process Temperature Range: -40 °C to +125 °C
- Ambient Temperature Range: -25 °C to +80 °C
- Supply Voltage: 15–35 V DC
- Output Signal: 2 × PNP switching outputs
- Switching Current: Max 500 mA per output
- Switching Accuracy: ≤ ±0.5 % FS
- Switching Hysteresis: Adjustable
- Response Time: ≤ 10 ms
- Display: 3-digit LED display
- Electrical Connection: M12 × 1 connector, 4-pin
- Process Connection: G 1/4 A (male thread)
- Wetted Parts: Stainless steel 1.4571 (316Ti)
- Housing Material: Stainless steel / PA6.6
- Protection Class: IP65
- Additional Features:
- Two independent switching points with adjustable hysteresis
- Adjustable switching delay and reset delay
- Menu-guided programming via 3 push buttons
- Integrated LED display for current pressure and switching status
- Robust design for harsh environments
- Certifications: CE, RoHS
Dimensions: 120 x 40 x 40 mm
Weight: 150 g
Country of Origin: Germany
HS Code: 9026.20
