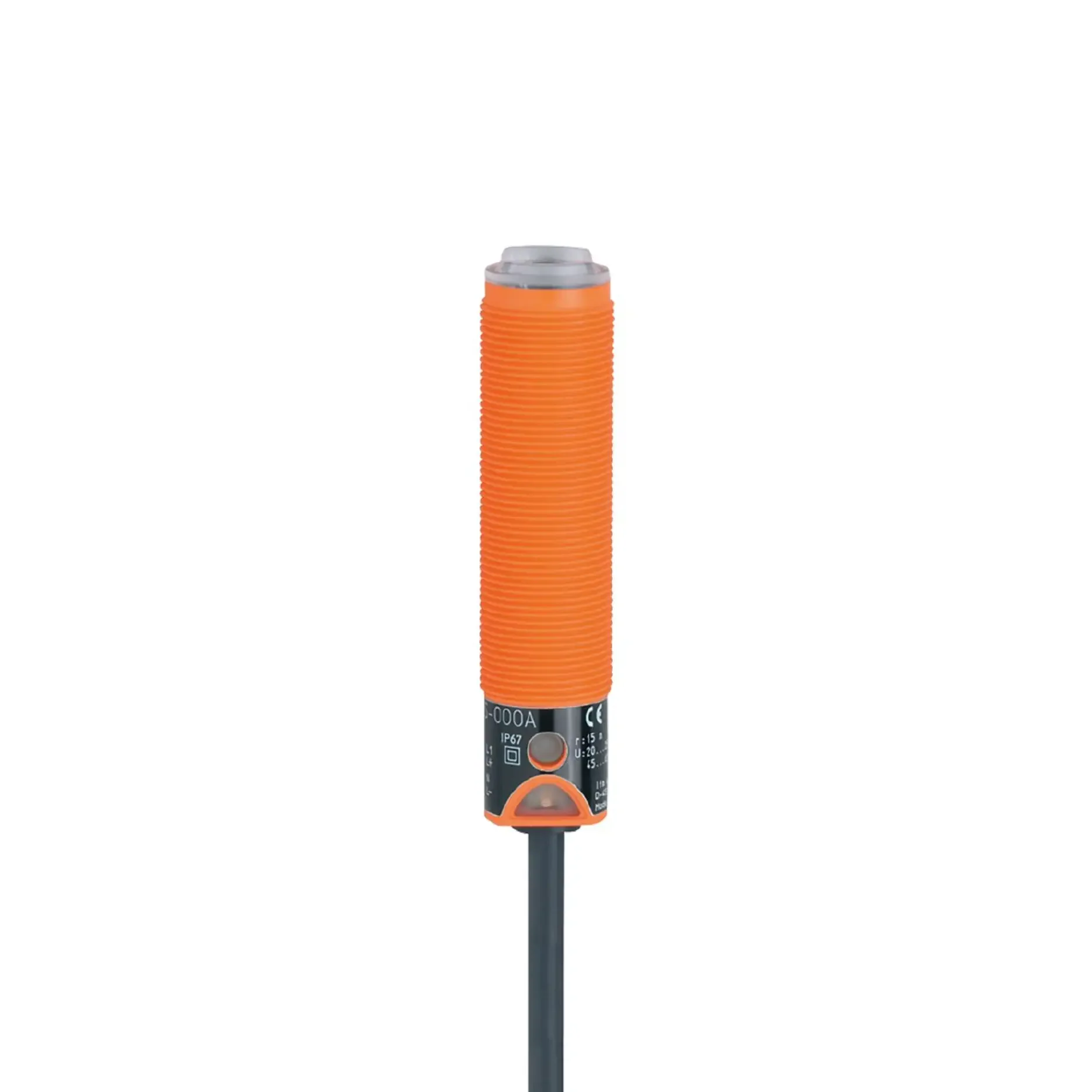

IFM Electronic 0G0034 Photoelectric Sensor

- Brand: IFM Electronic

- Model: 0G0034

- Type: Photoelectric Sensor

- Part number: 0GT-HB0A

Technical specifications:
- Sensing range: 1–600 mm
- Light source: Infrared light (880 nm)
- Output function: Light switching
- Switching frequency: 25 Hz
- Supply voltage: 10–30 V DC
- Current consumption: ≤30 mA
- Load current: 180 mA
- Connection: PVC cable
- Housing: Cylindrical screw thread, PBT, M18 x 1
- Degree of protection: IP67
- Operating temperature: -25°C to +80°C
- LED indicators: Red, flashing red
- Additional features: High EMC immunity
- Standards: Compliant with IEC/EN 60947-5-2; CE marked

Weight: 200 g

Dimensions: 150 x 125 x 30 mm (box)

Country of origin: Germany

HS code: 8536.50
