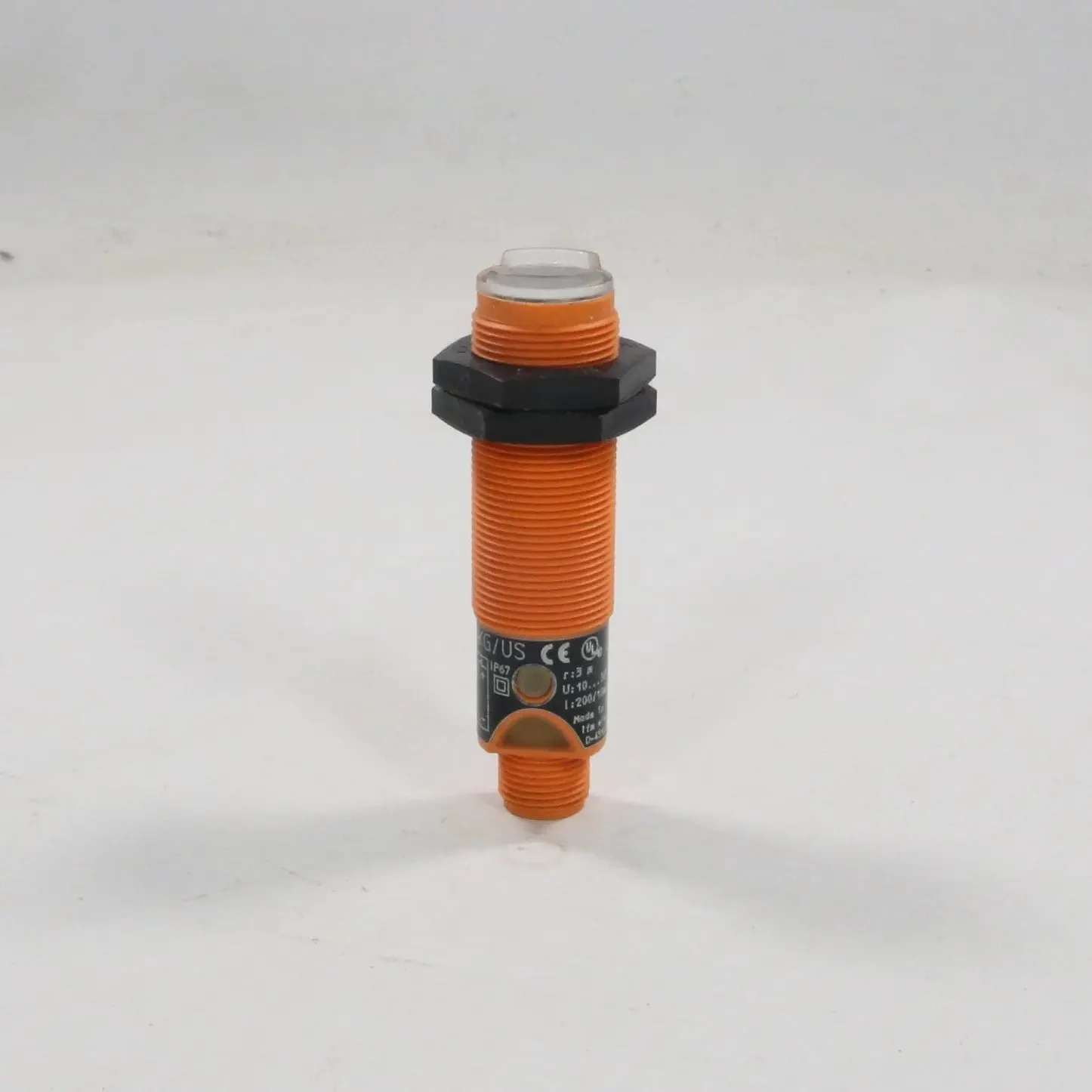

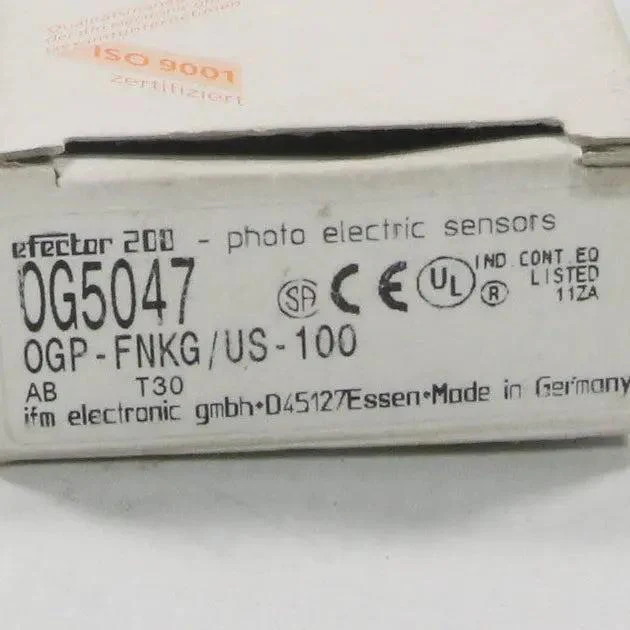

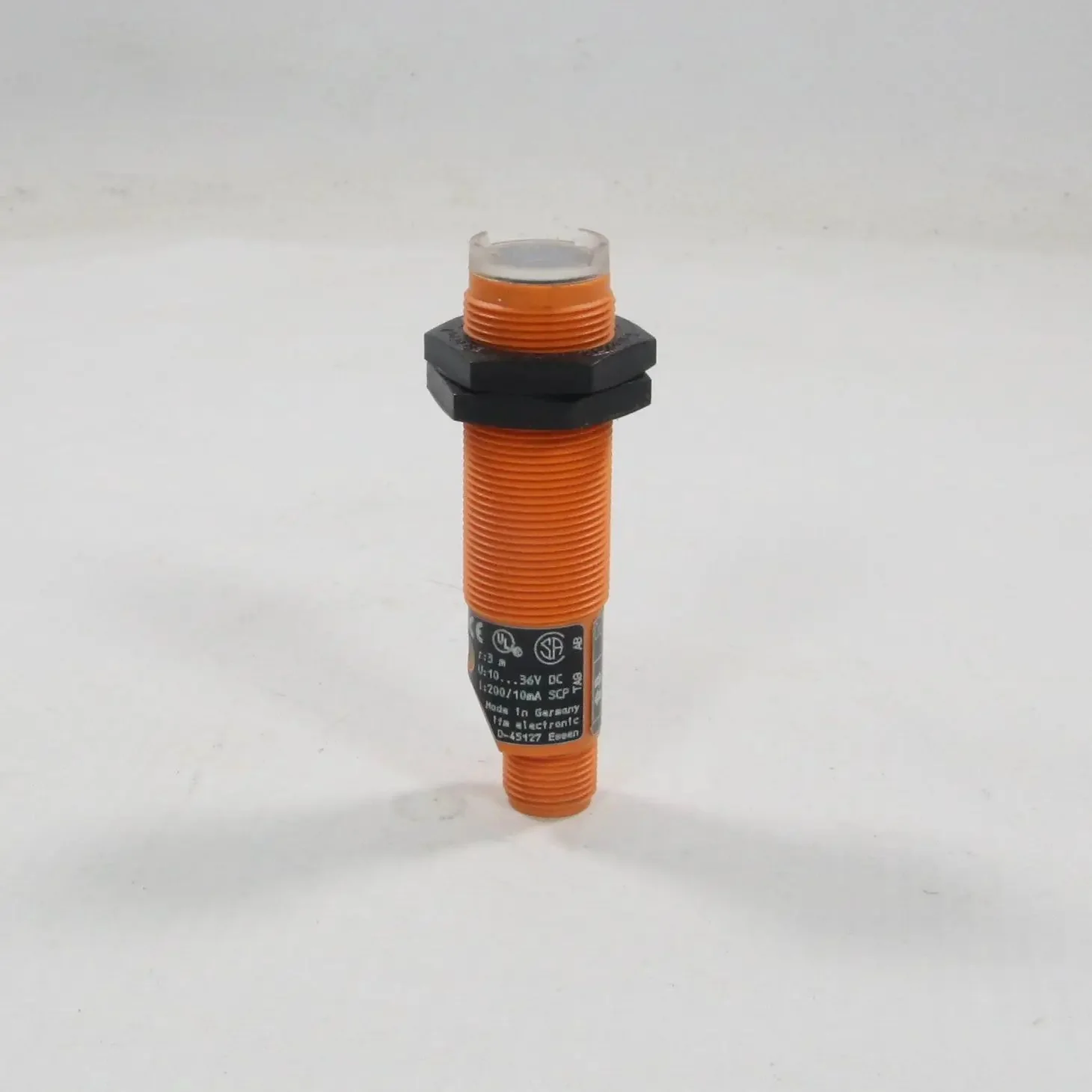

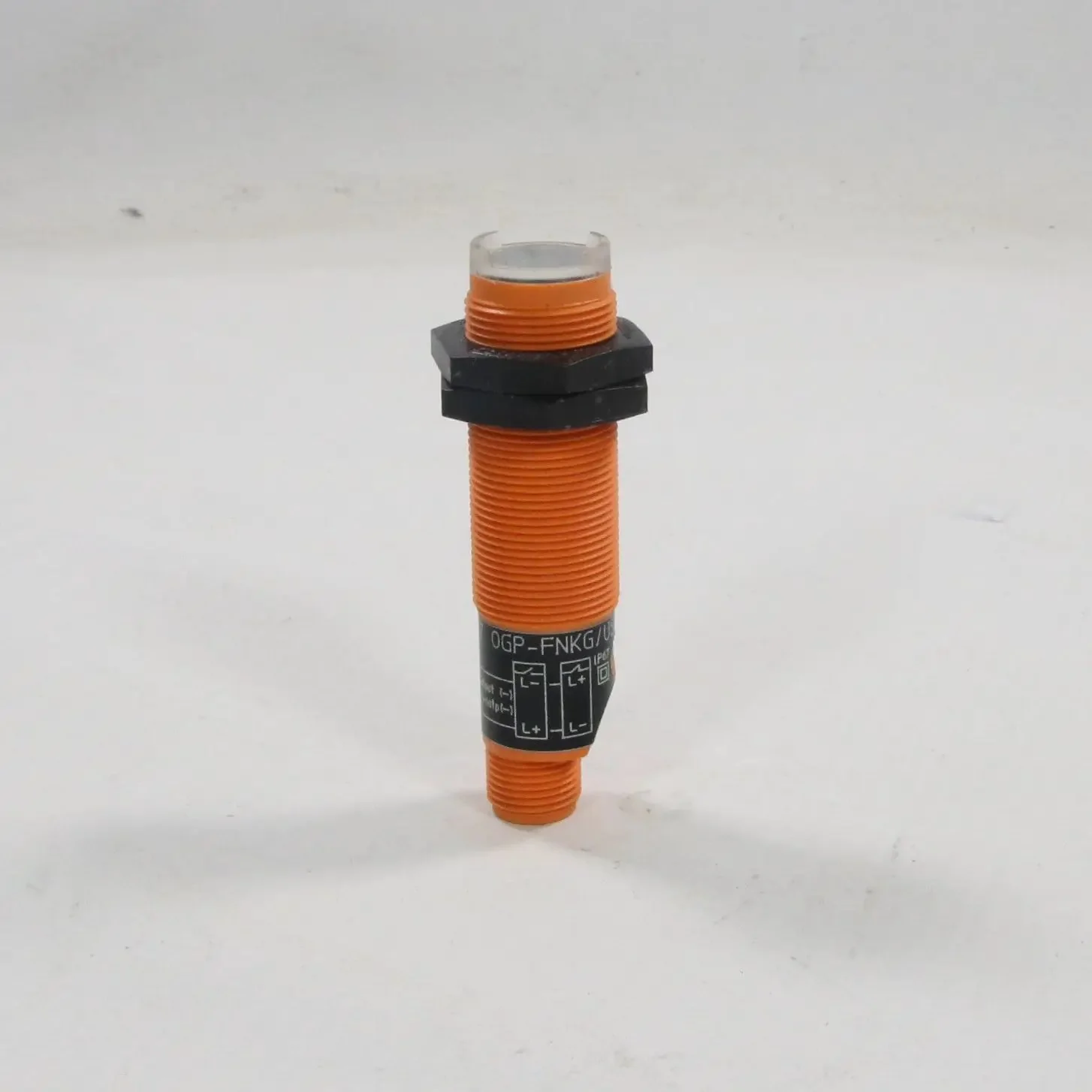

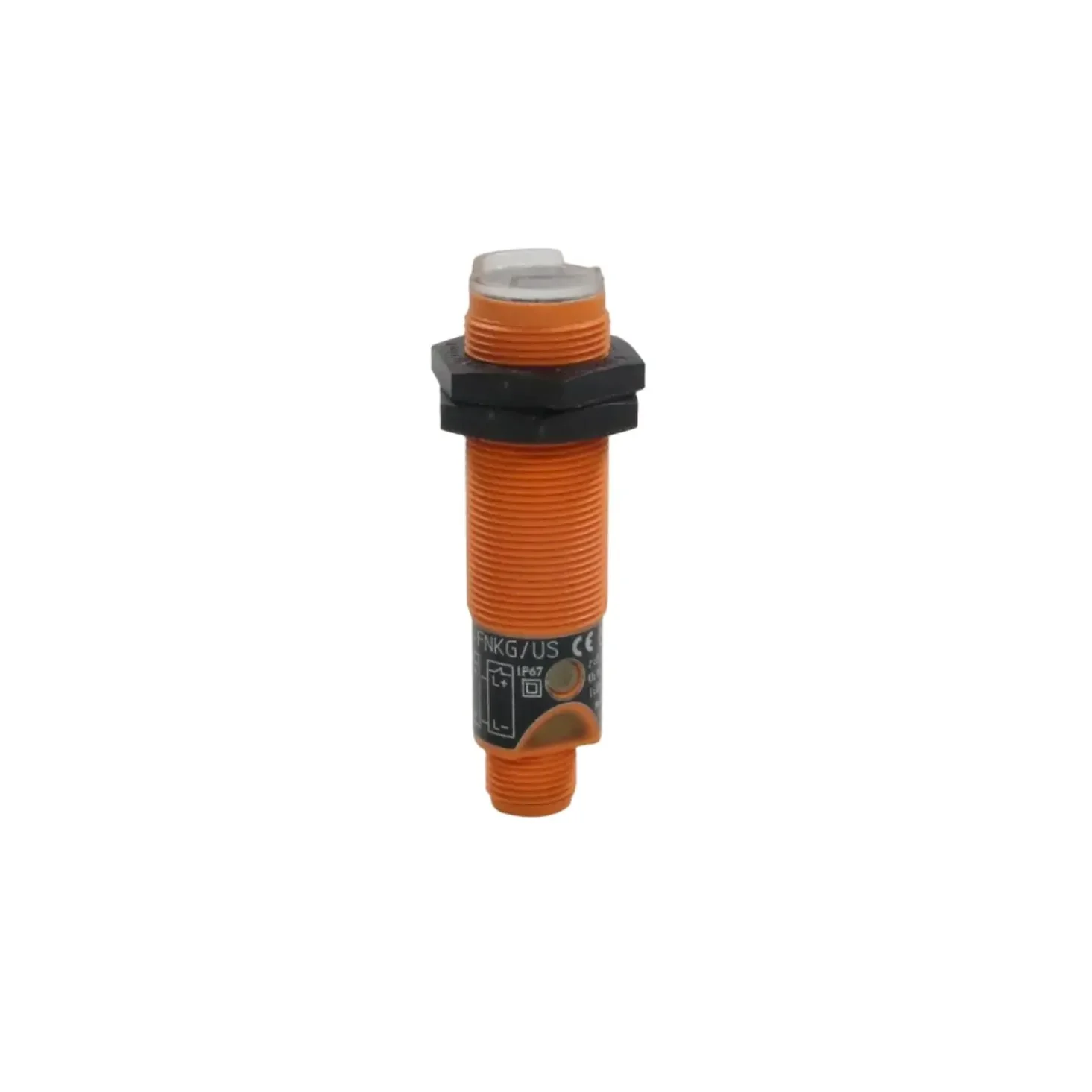

IFM Electronic 0G5047 Photoelectric Sensor

- Brand: IFM Electronic

- Model: 0G5047

- Type: Photoelectric Sensor

- Part number: 0GP-FNKG/US-100

- Technical specifications:
- Sensing principle: Reflector photocell
- Sensing range: Adjustable
- Light source: Red light LED (660 nm)
- Output: NPN
- Switching frequency: 500 Hz
- Supply voltage: 10–30 V DC
- Current consumption: ≤30 mA
- Load current: ≤200 mA

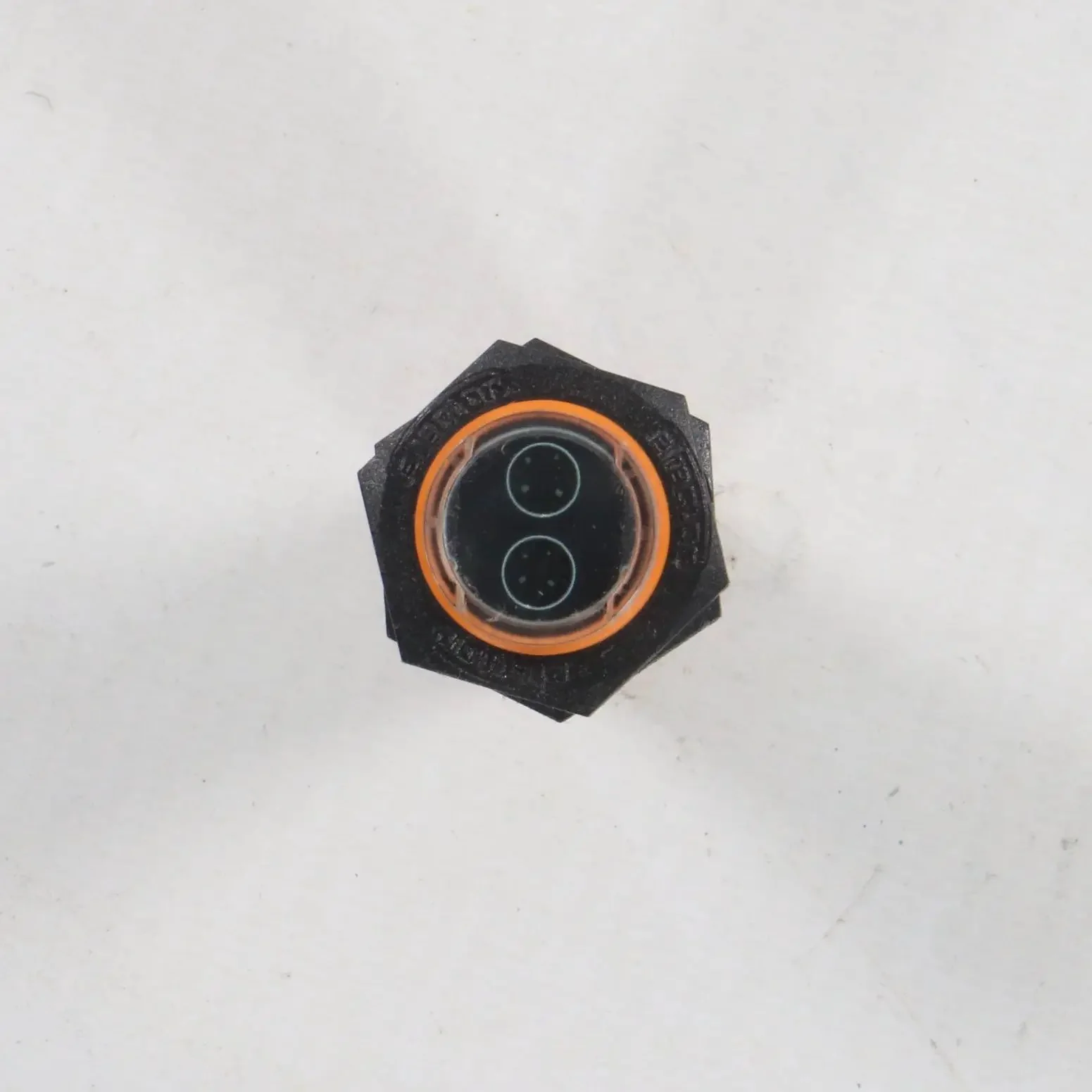

- Connection: M12 connector
- Housing: Cylindrical screw thread
- Degree of protection: IP67
- Operating temperature: -25°C to +60°C
- LED indicators: Power ON (green); switching status (yellow); function (red)
- Adjustment: Potentiometer for sensing range and background suppression
- Additional features: Background suppression; high EMC immunity; short-circuit/overload/reverse polarity protection; visible red light spot for alignment
- Standards: Compliant with IEC/EN 60947-5-2; CE marked

Status: Discontinued

Weight: 75 g

Dimensions: M18 x 75 mm

Country of origin: Germany

HS code: 8536.50
