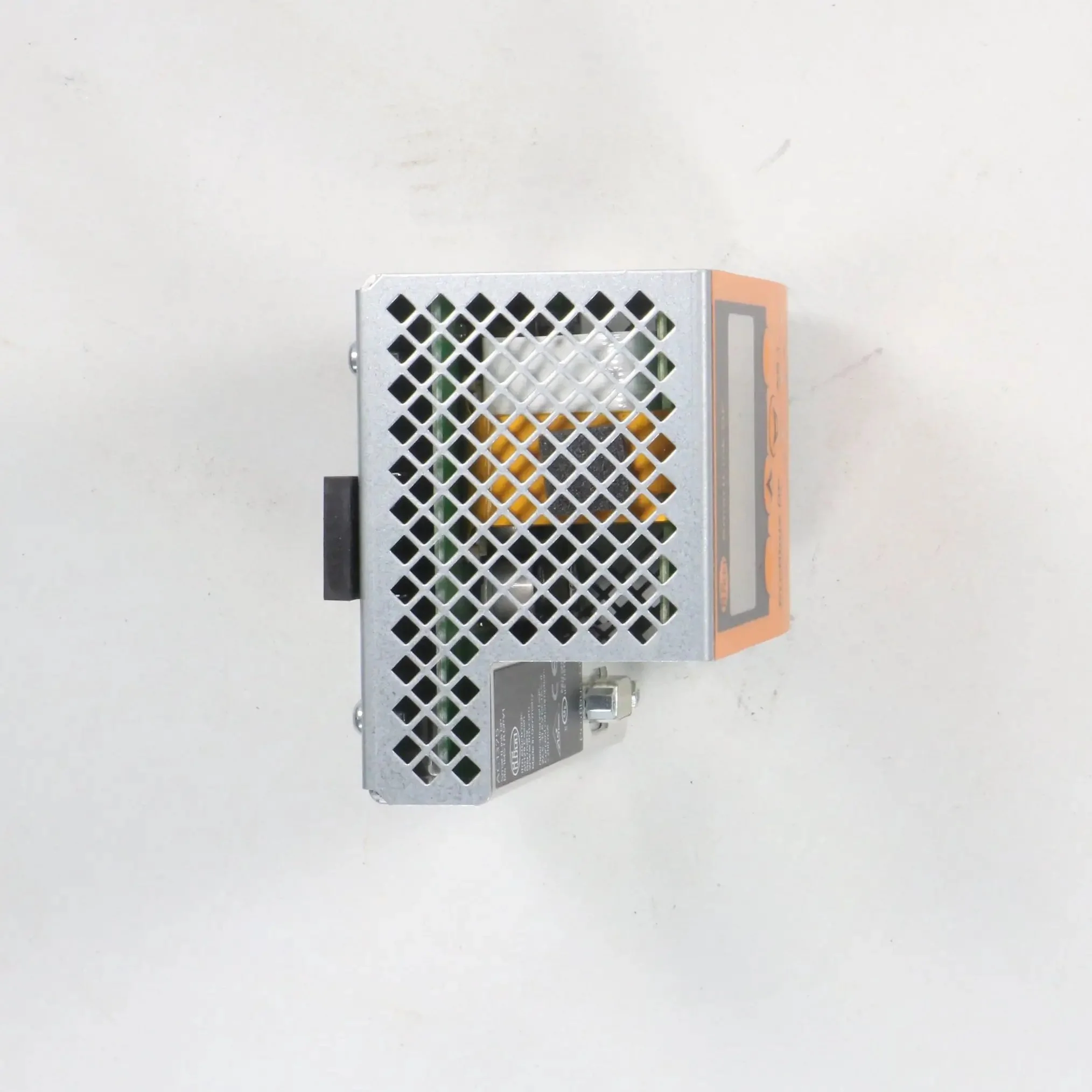

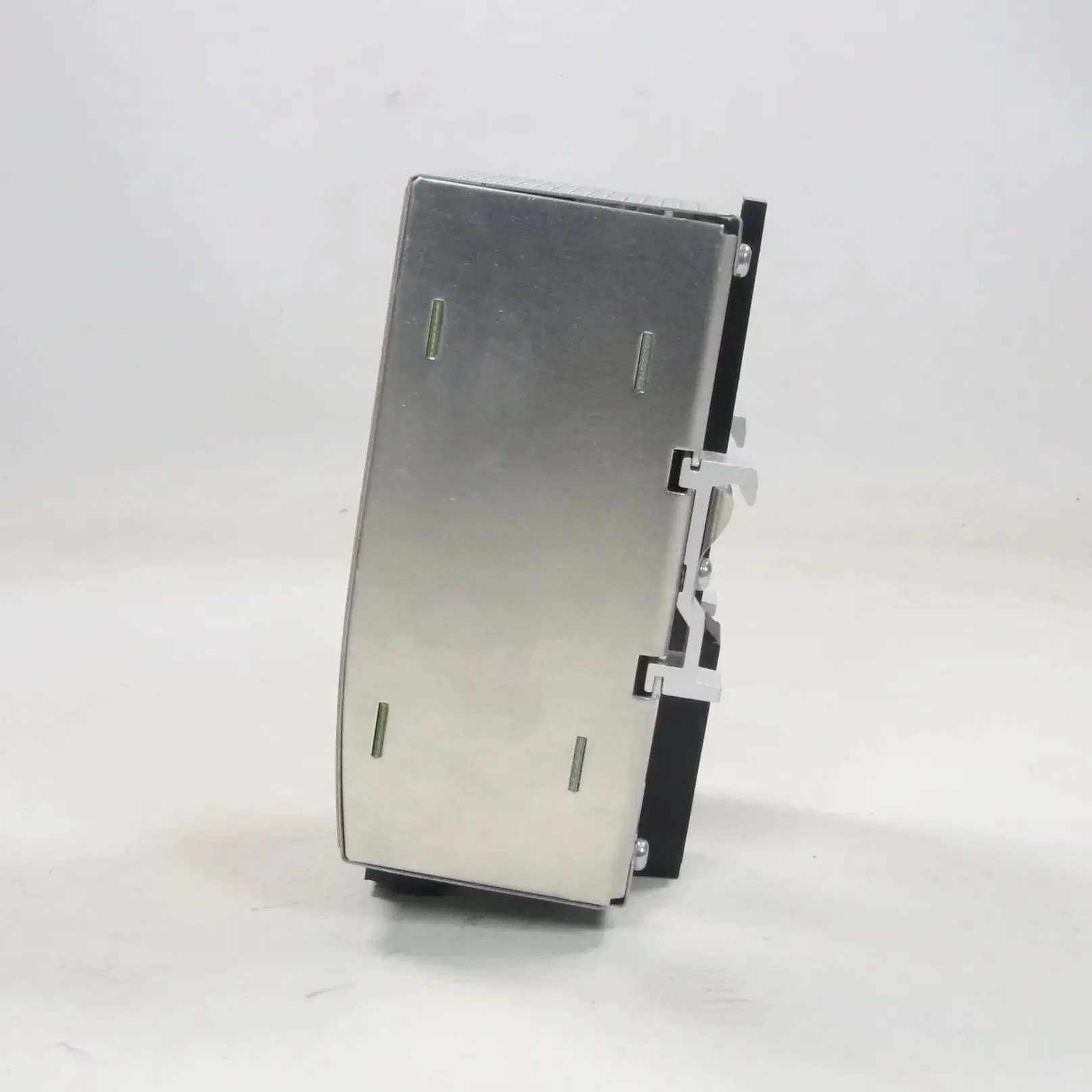

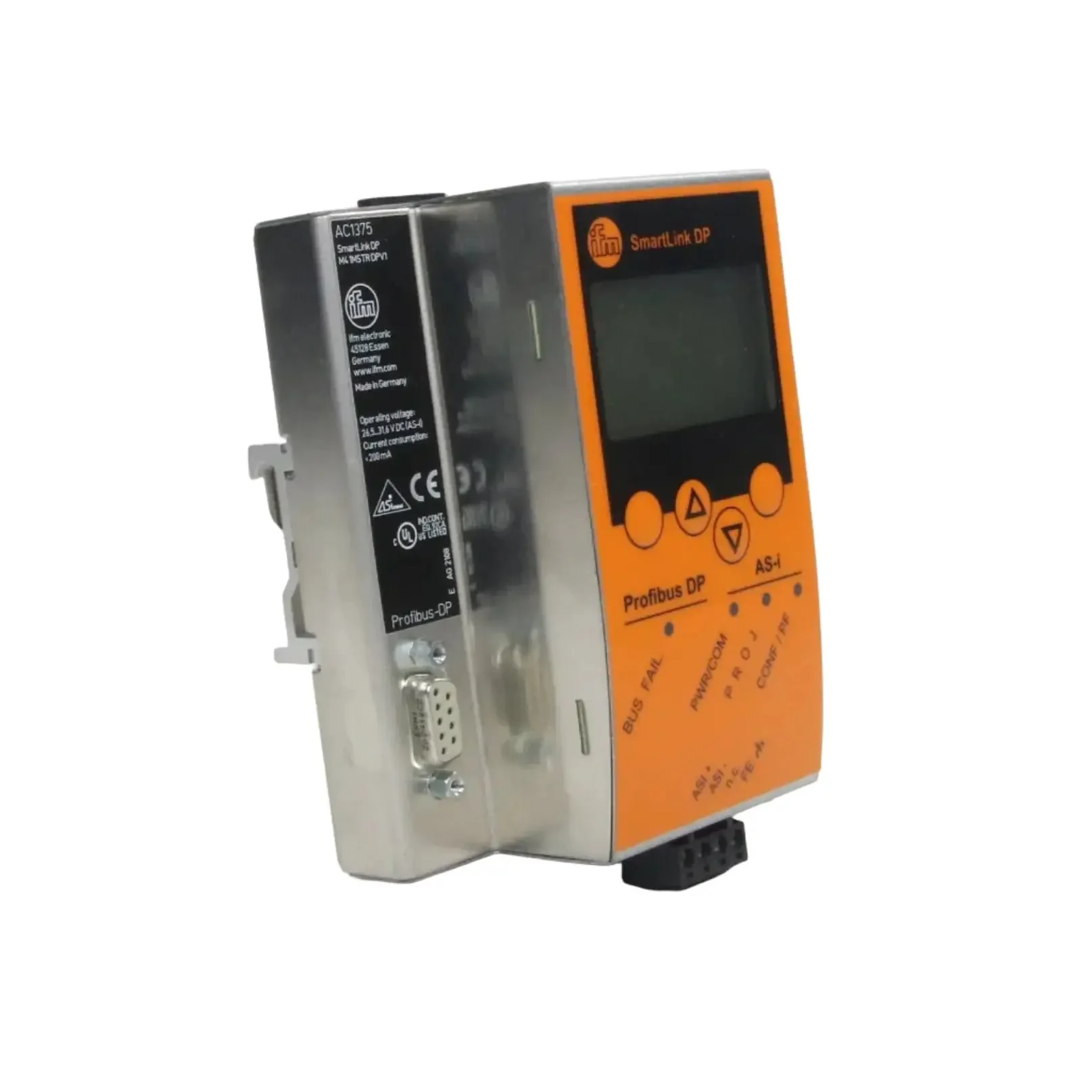

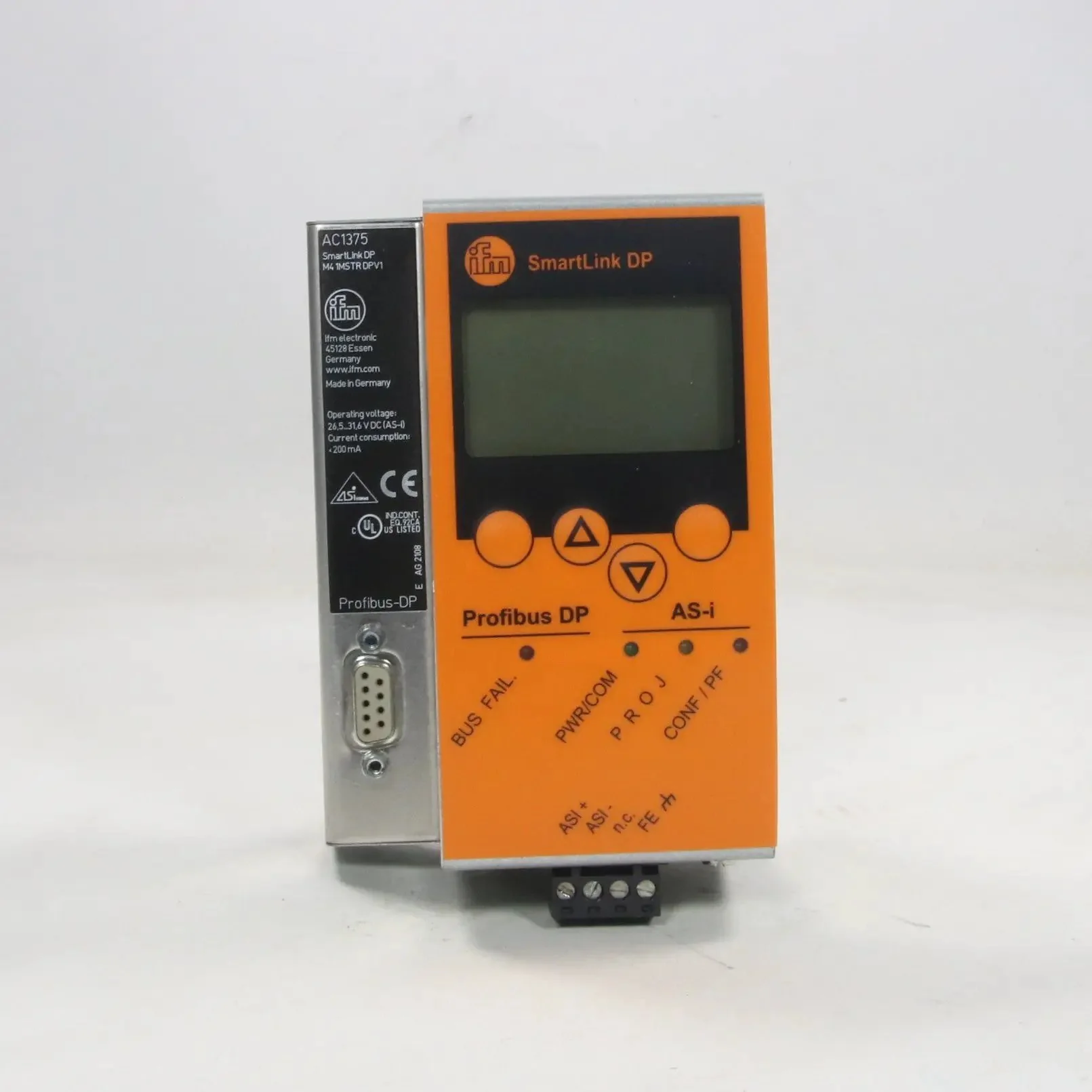

IFM Electronic AC1375 Smartlink Profibus DP Gateway

- Brand: IFM Electronic

- Model: AC1375 SmartLink DP

- Type: AS-Interface Gateway / Fieldbus Gateway

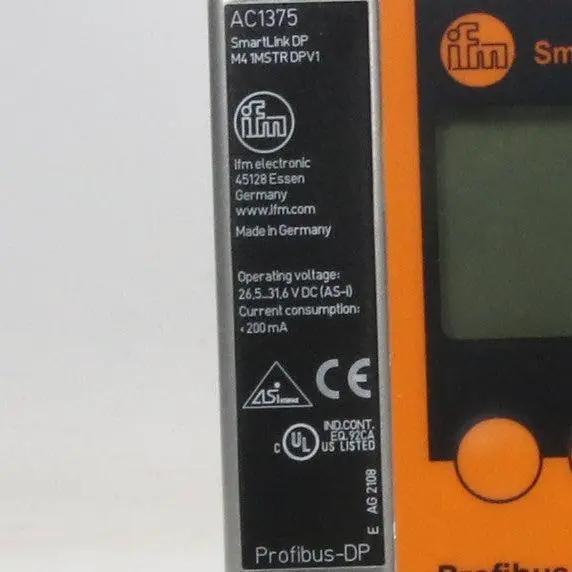

- Part number: M4 1MSTRDPV1

- Technical specifications:
- AS-Interface interface: 1 AS-i master
- PROFIBUS DP interface: 1 PROFIBUS DP port
- Supported protocols: PROFIBUS DP (slave); AS-Interface (master)
- Power supply: 24 V DC
- Current consumption: 200 mA
- AS-i voltage: 26.5–31.6 V DC
- AS-i current: Up to 8 A
- Diagnostics: LEDs for status; web server for configuration/diagnostics; GSD file for PROFIBUS integration
- Configuration: Via web interface, engineering tool, or pushbuttons
- Additional features: Automatic addressing of AS-i slaves; support for AS-i safety ; compact DIN rail housing; high EMC immunity; suitable for industrial automation, factory automation, and machine building
- Operating temperature: -25°C to +60°C
- Protection: IP20

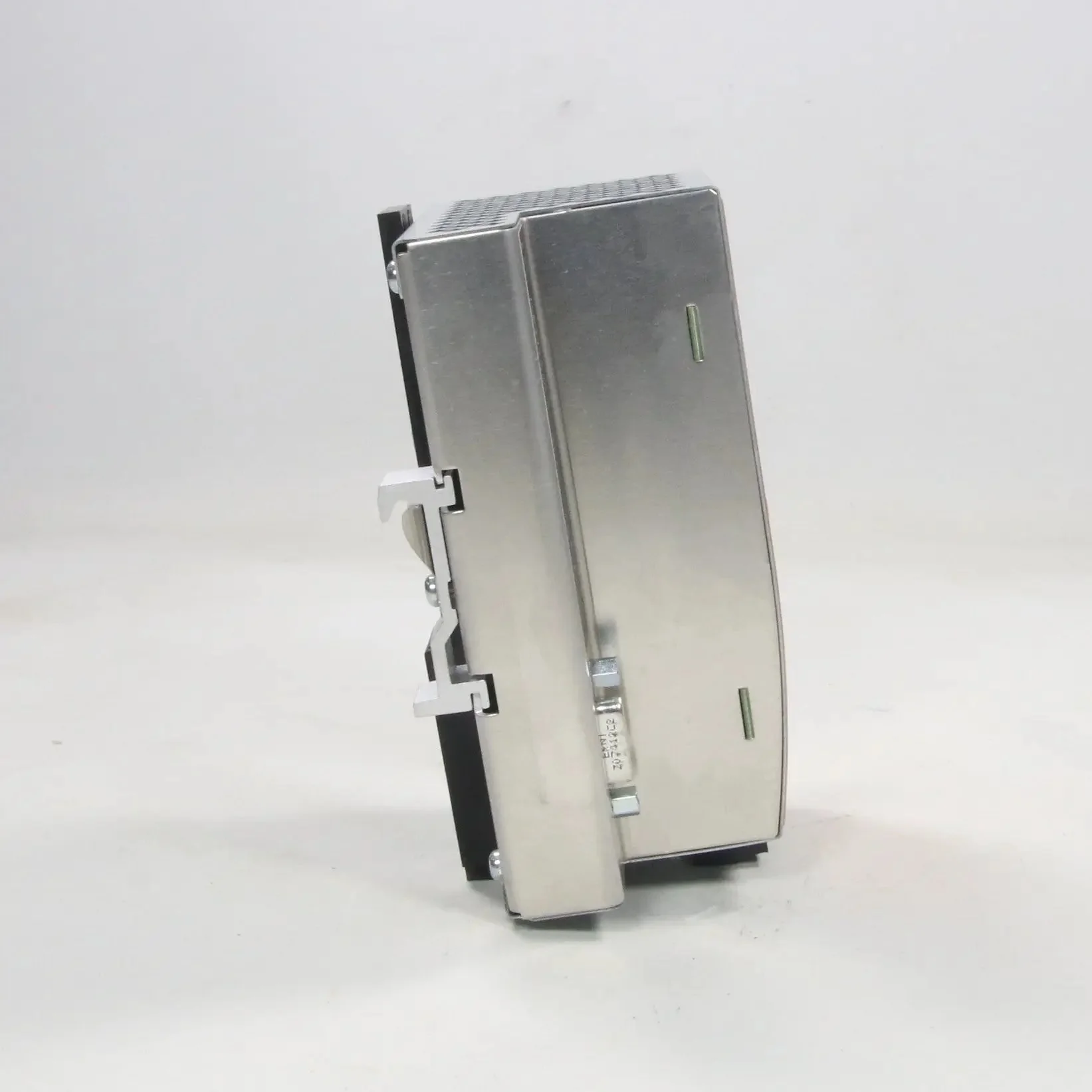

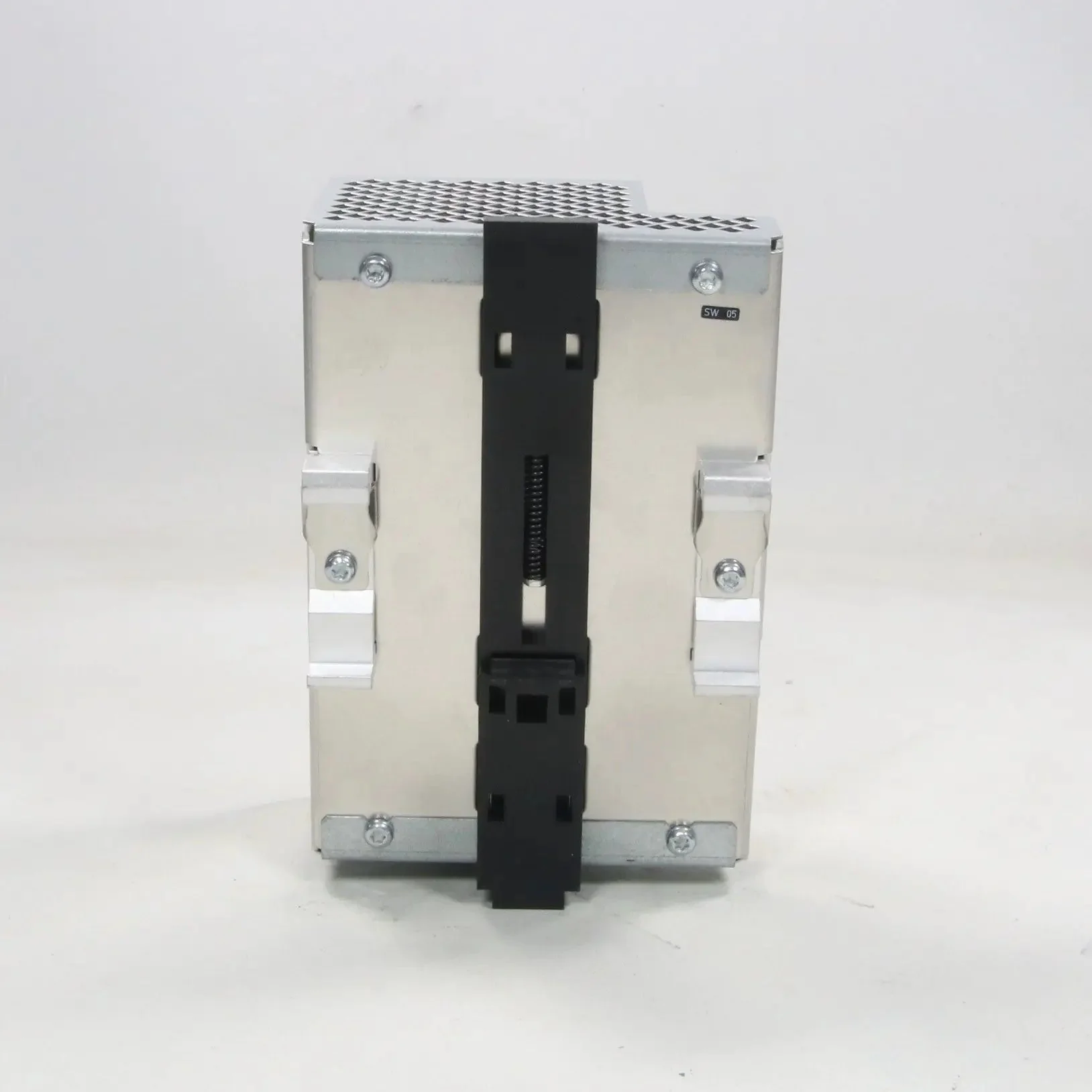

- Mounting: DIN rail
- Standards: Compliant with AS-Interface specification (v3.0); PROFIBUS DP conformance; IEC/EN 61131-2; CE, UL approvals

Status: Discontinued

Weight: 350 g

Dimensions: 85 x 70 x 135 mm

Country of origin: Germany

HS code: 8517.62
