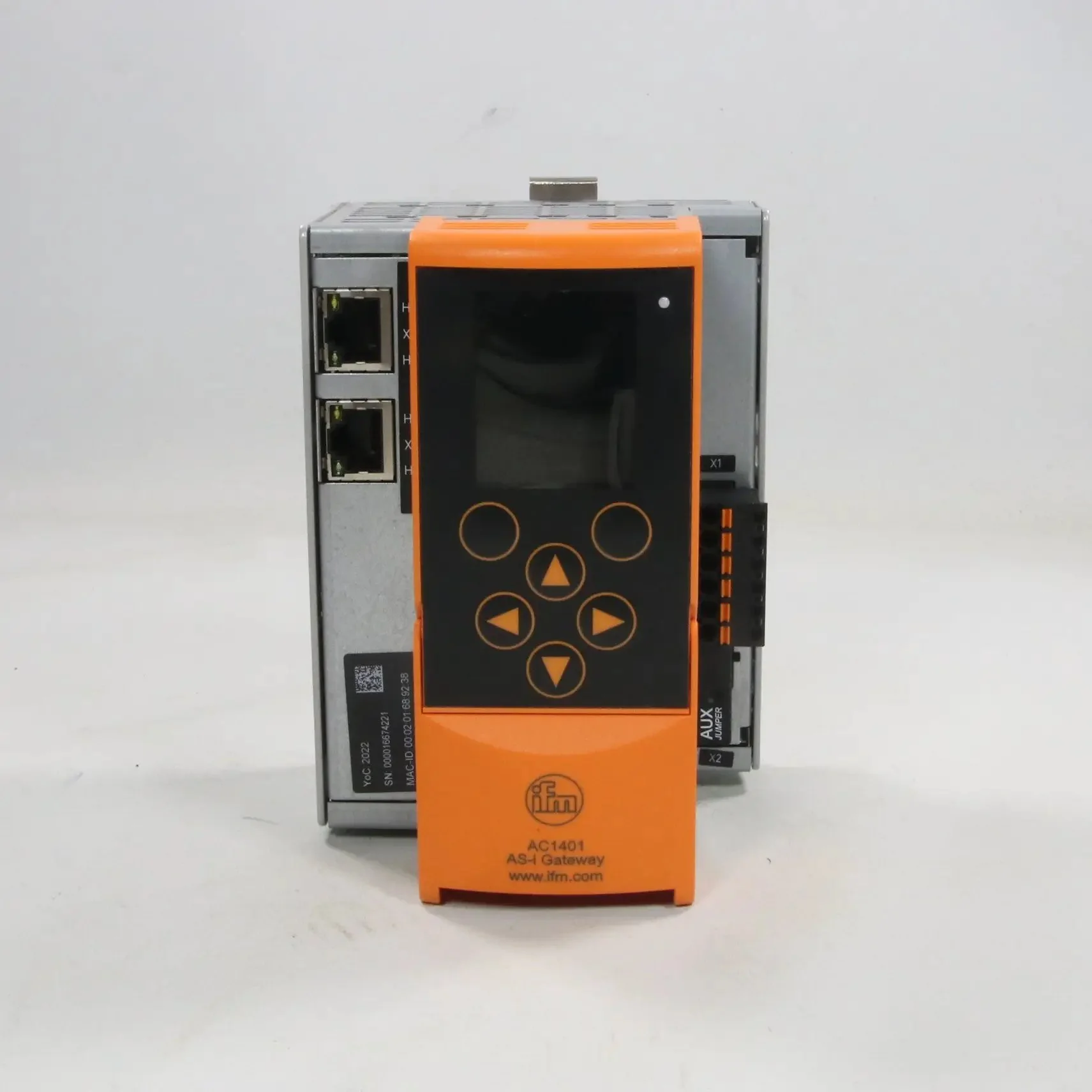

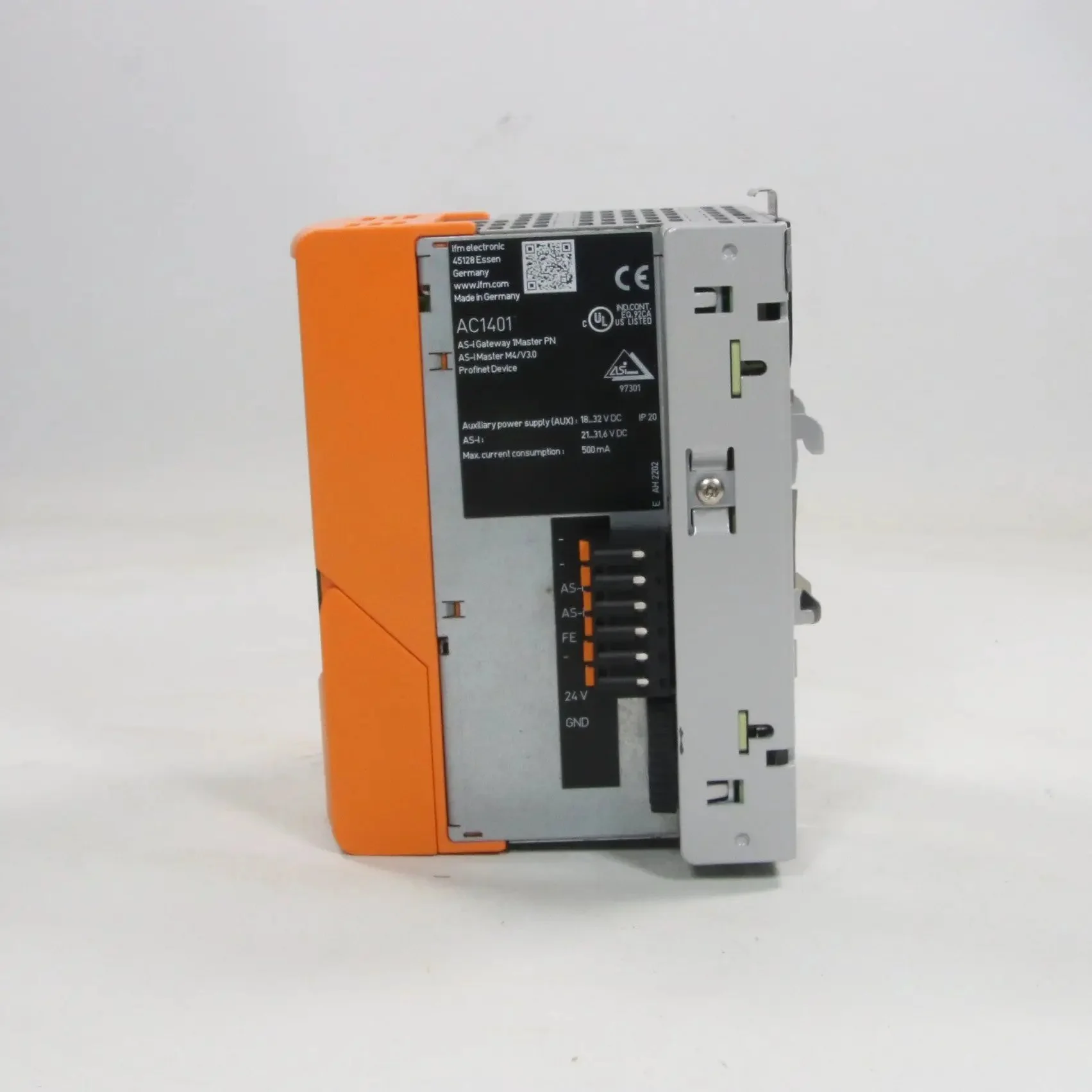

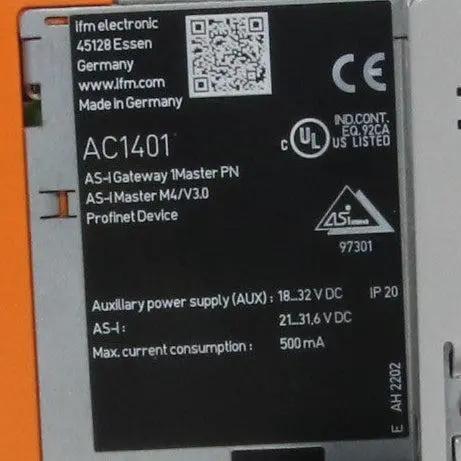

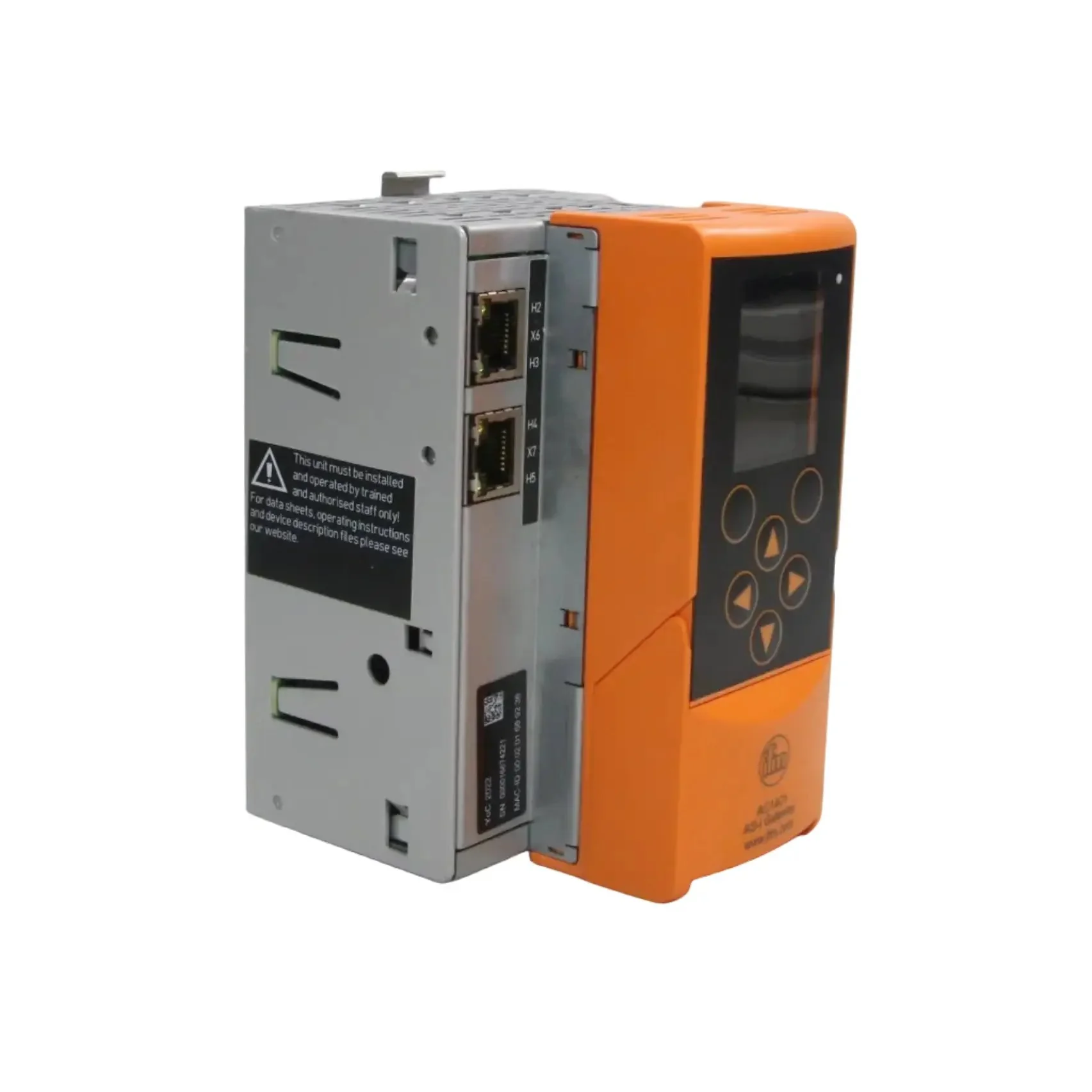

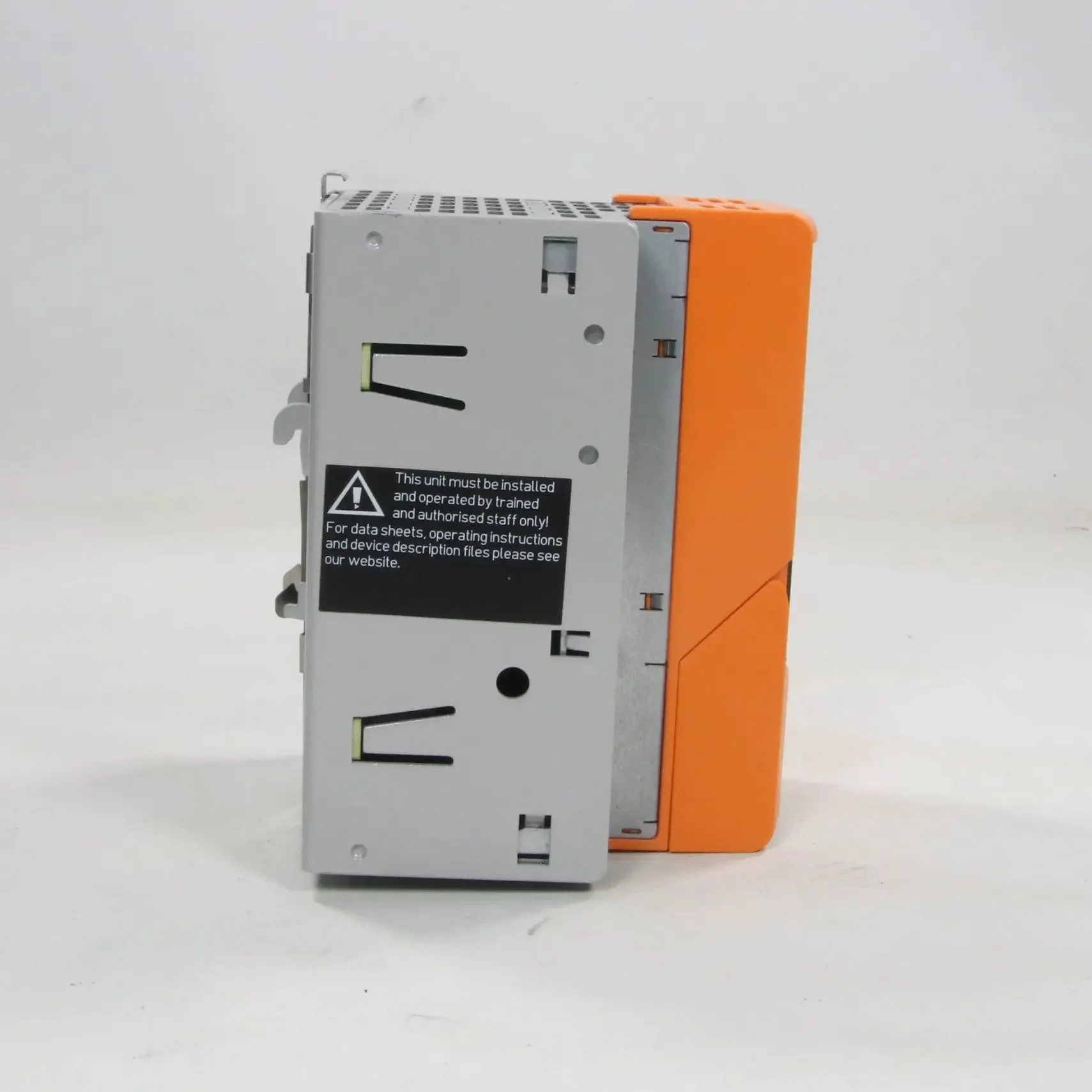

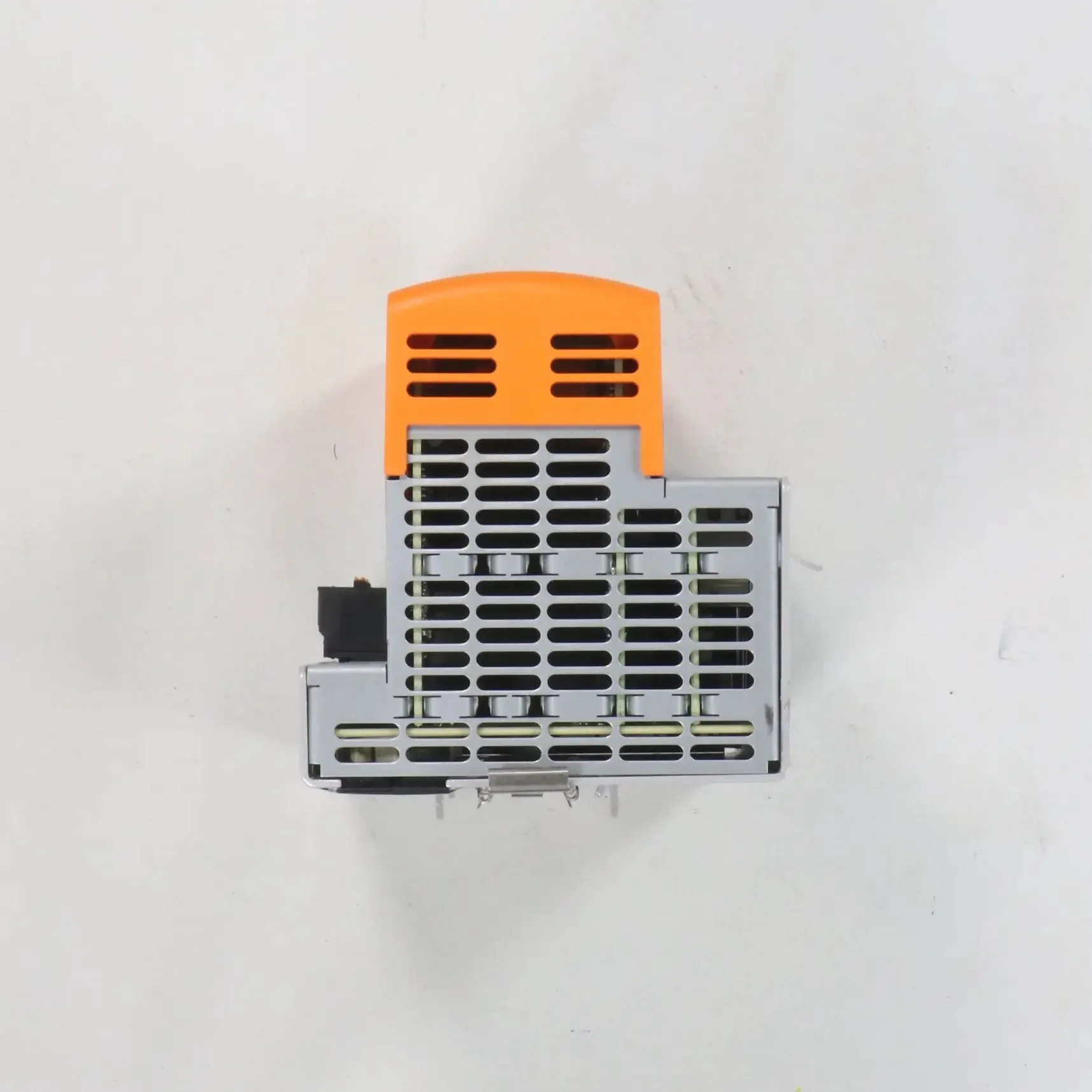

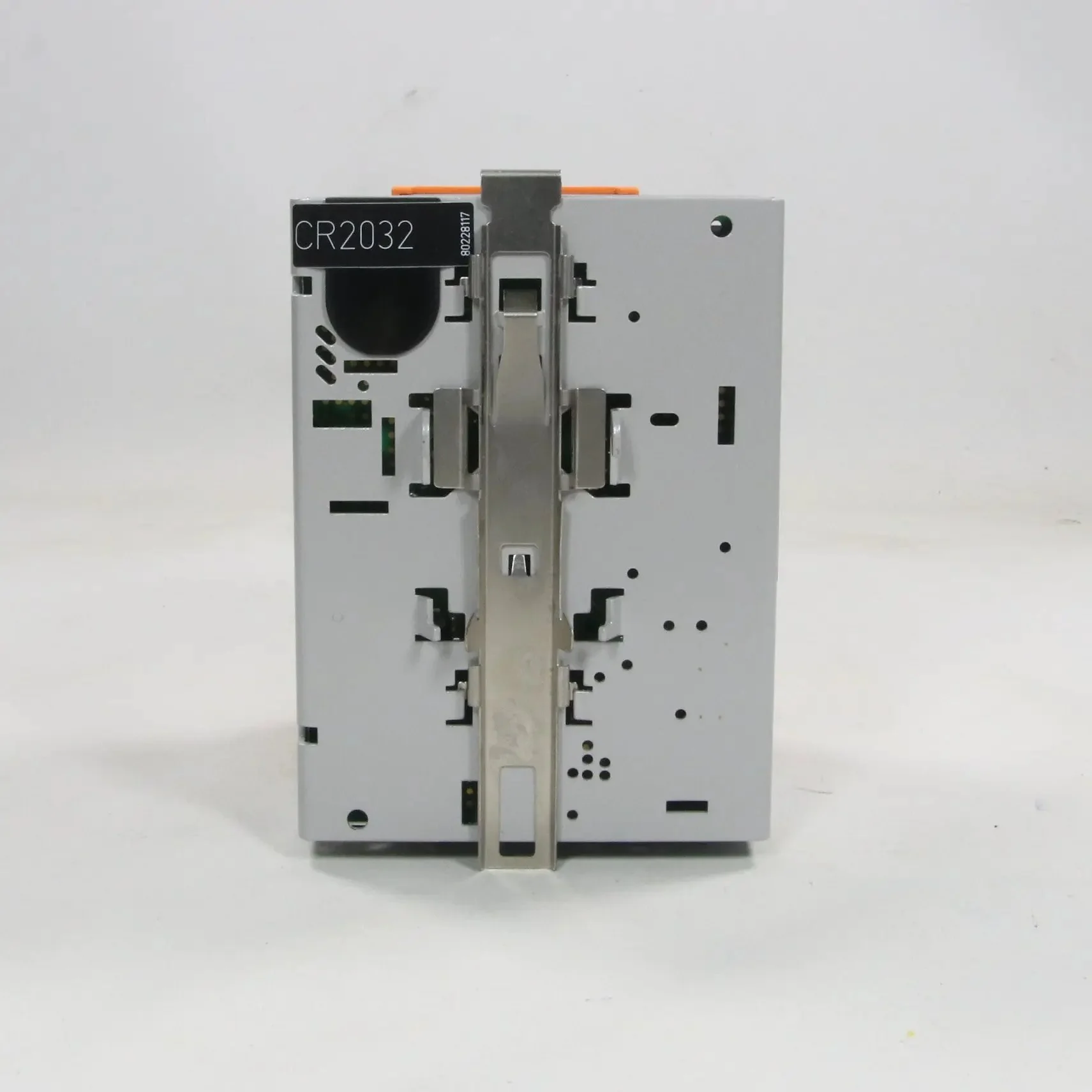

IFM Electronic AC1401 AS-Interface Profinet Gateway

- Brand: IFM Electronic

- Model: AC1401

- Type: AS-Interface Gateway / Fieldbus Gateway

- Part number: AC1401

- Technical specifications:
- AS-Interface interface: 1 AS-i master
- PROFINET interface: 2 x Ethernet ports
- Supported protocols: PROFINET IO (device); AS-Interface (master)
- Power supply: 24 V DC
- Current consumption: 500 mA
- AS-i voltage: 21–31.6 V DC
- Diagnostics: LEDs for status; web server for configuration/diagnostics; GSDML file for PROFINET integration
- Configuration: Via web interface, engineering tool (e.g., TIA Portal), or pushbuttons
- Additional features: Automatic addressing of AS-i slaves; support for AS-i safety; compact DIN rail housing; high EMC immunity; suitable for industrial automation, factory automation, and machine building
- Operating temperature: -25°C to +60°C
- Protection: IP20
- Mounting: DIN rail (TS35)
- Standards: Compliant with AS-Interface specification (v3.0); PROFINET conformance class A/B; IEC/EN 61131-2; CE, UL approvals

Weight: 550 g

Dimensions: 95 x 100 x 125 mm

Country of origin: Germany

HS code: 8517.62
