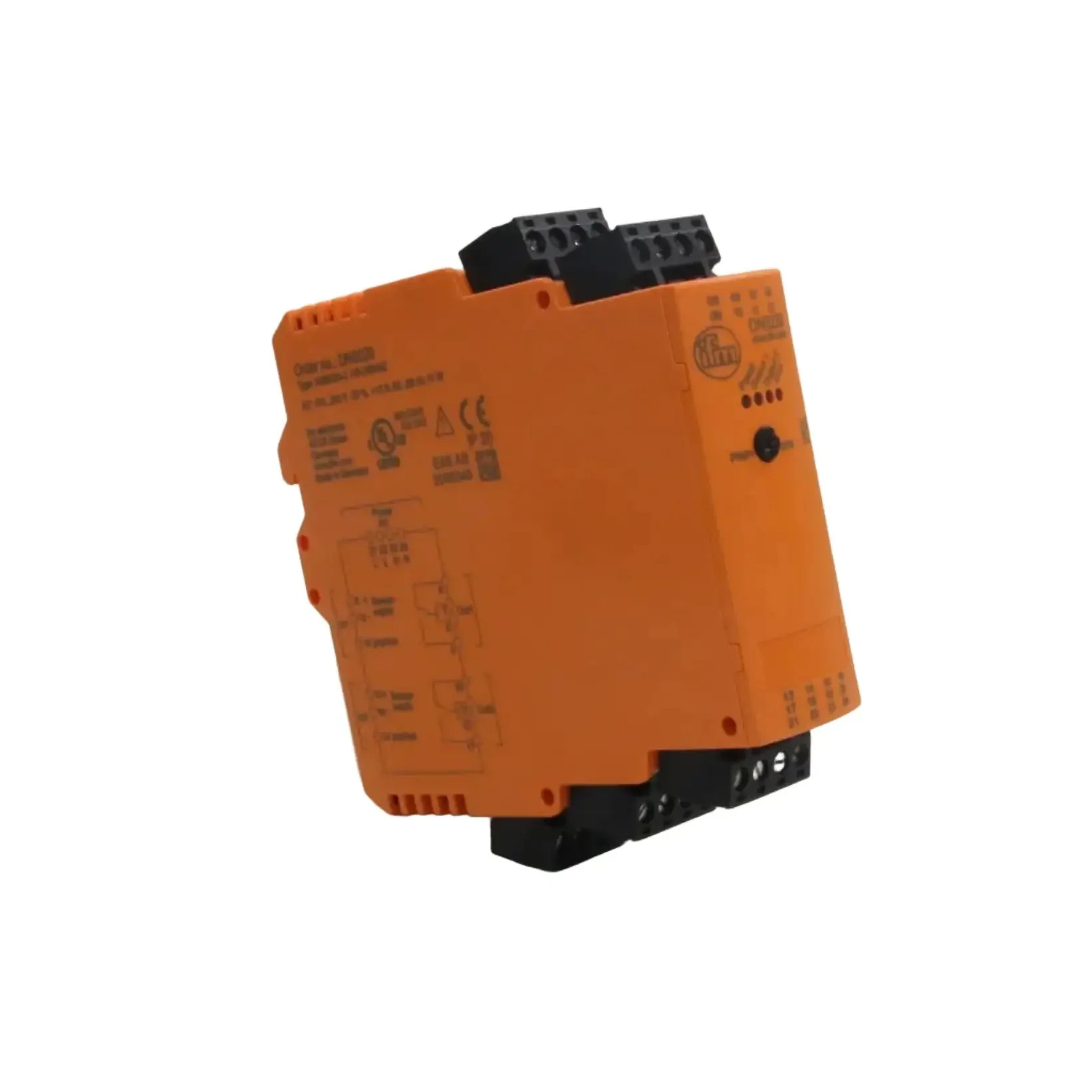

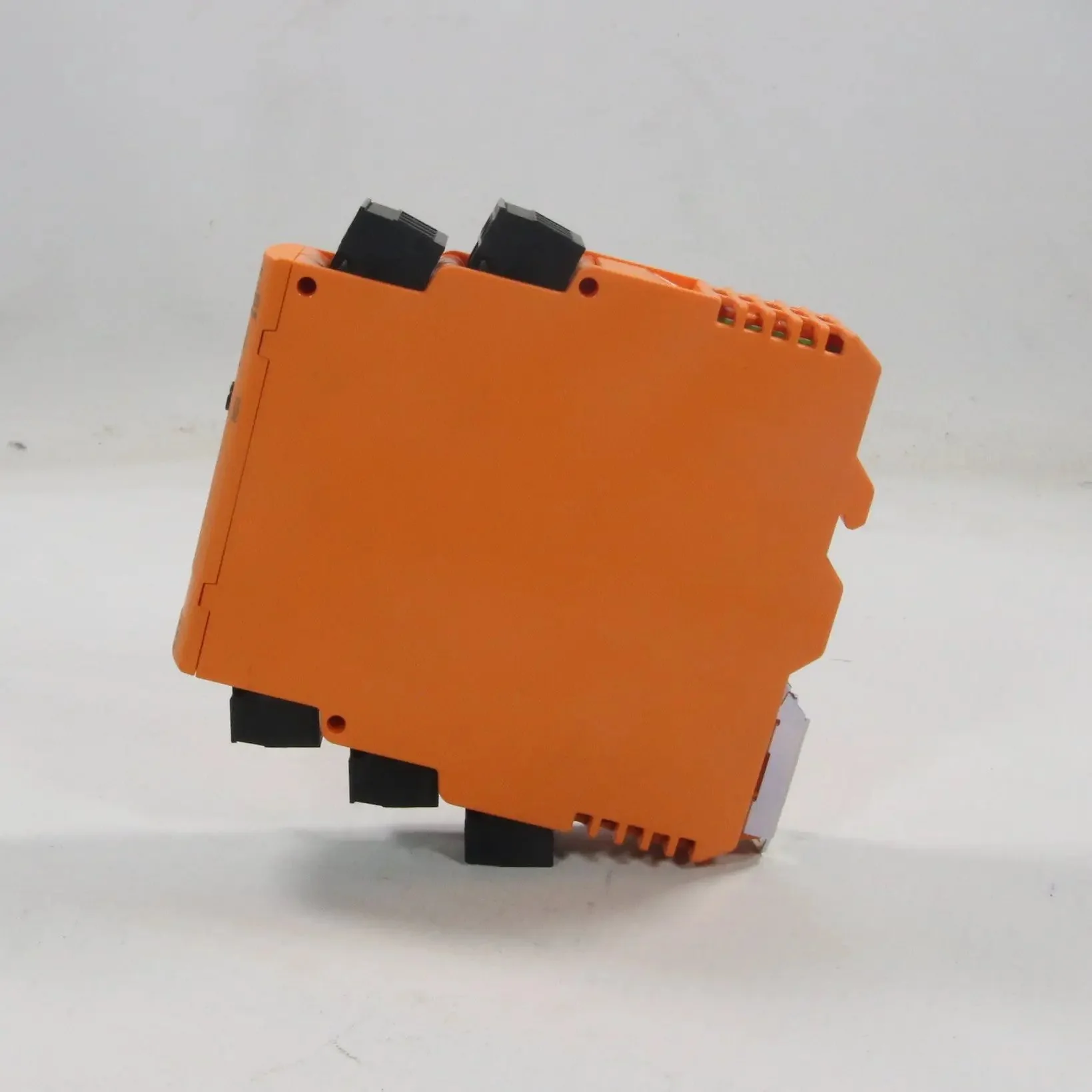

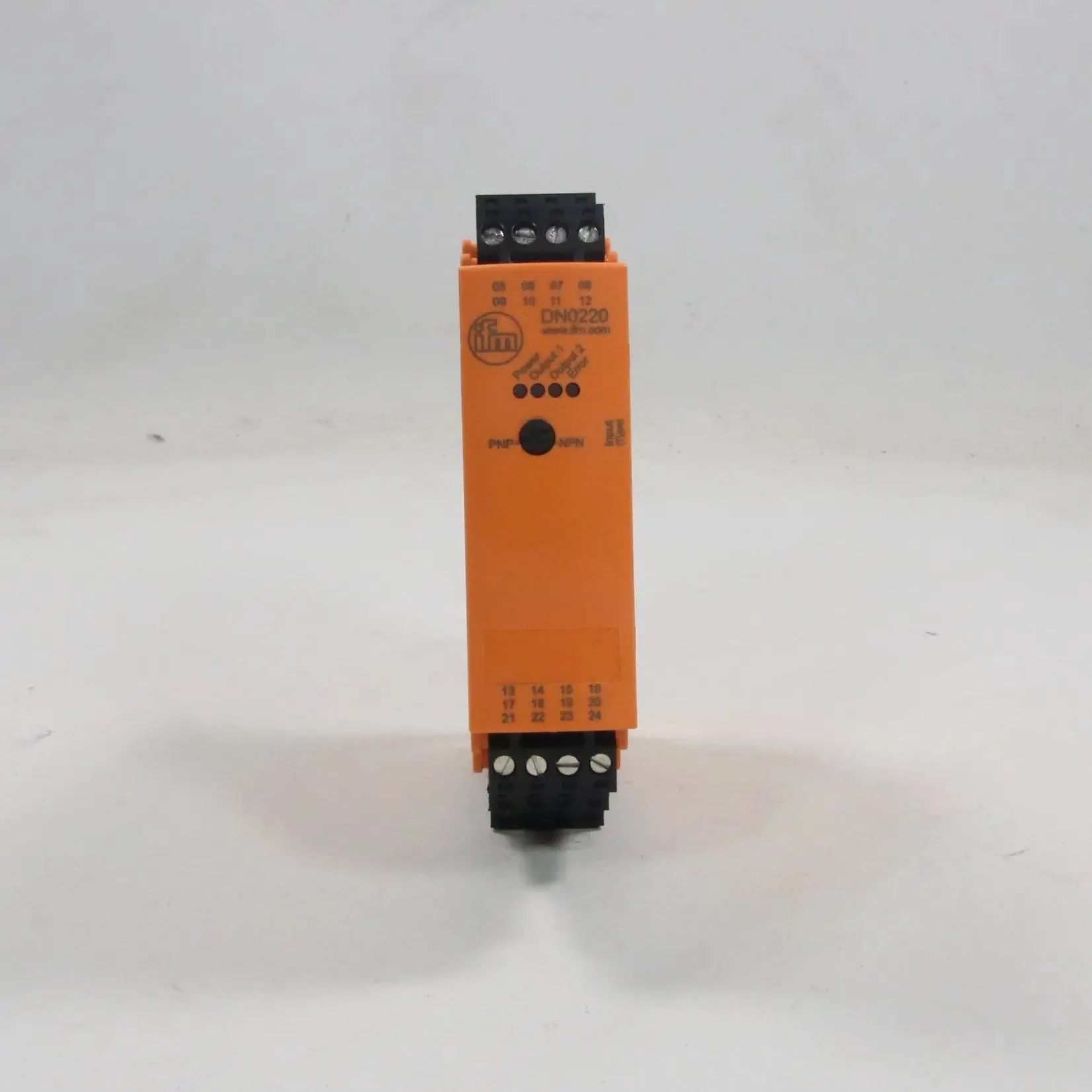

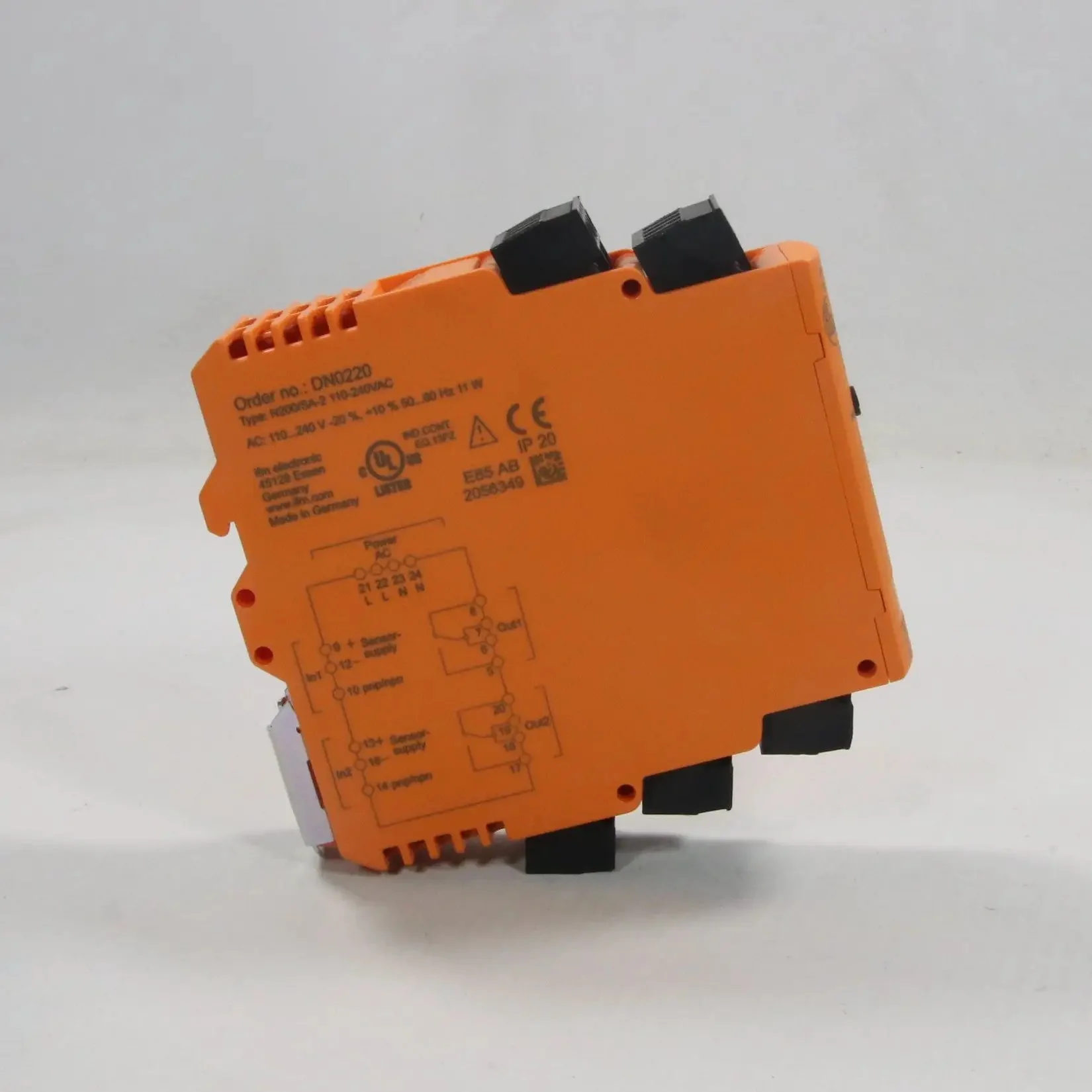

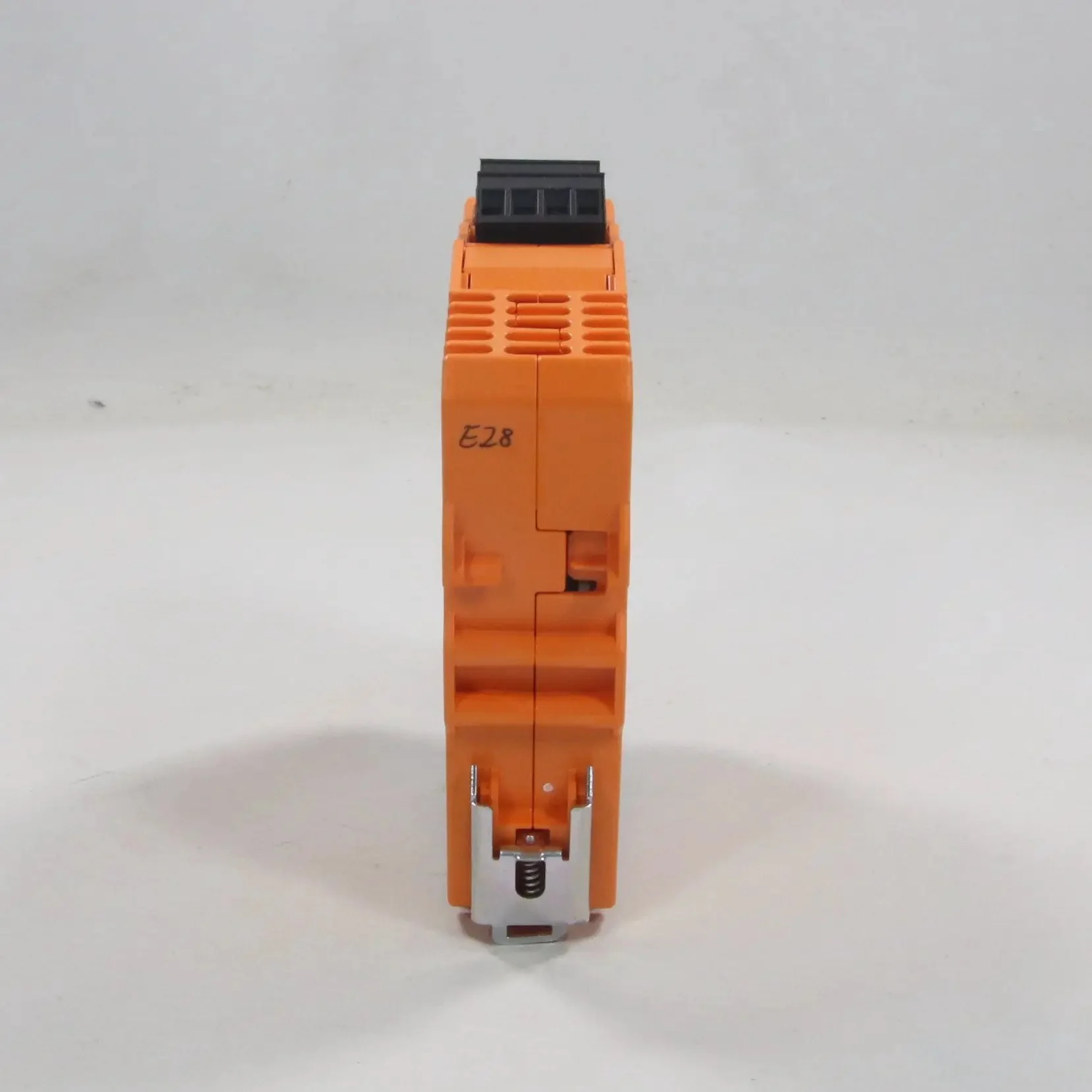

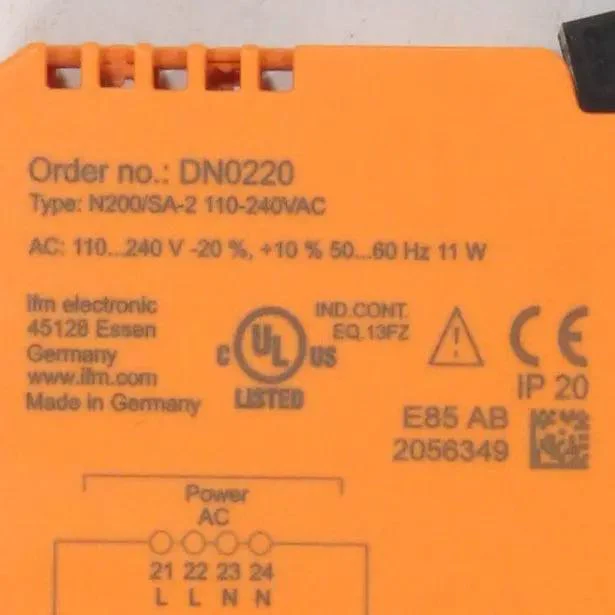

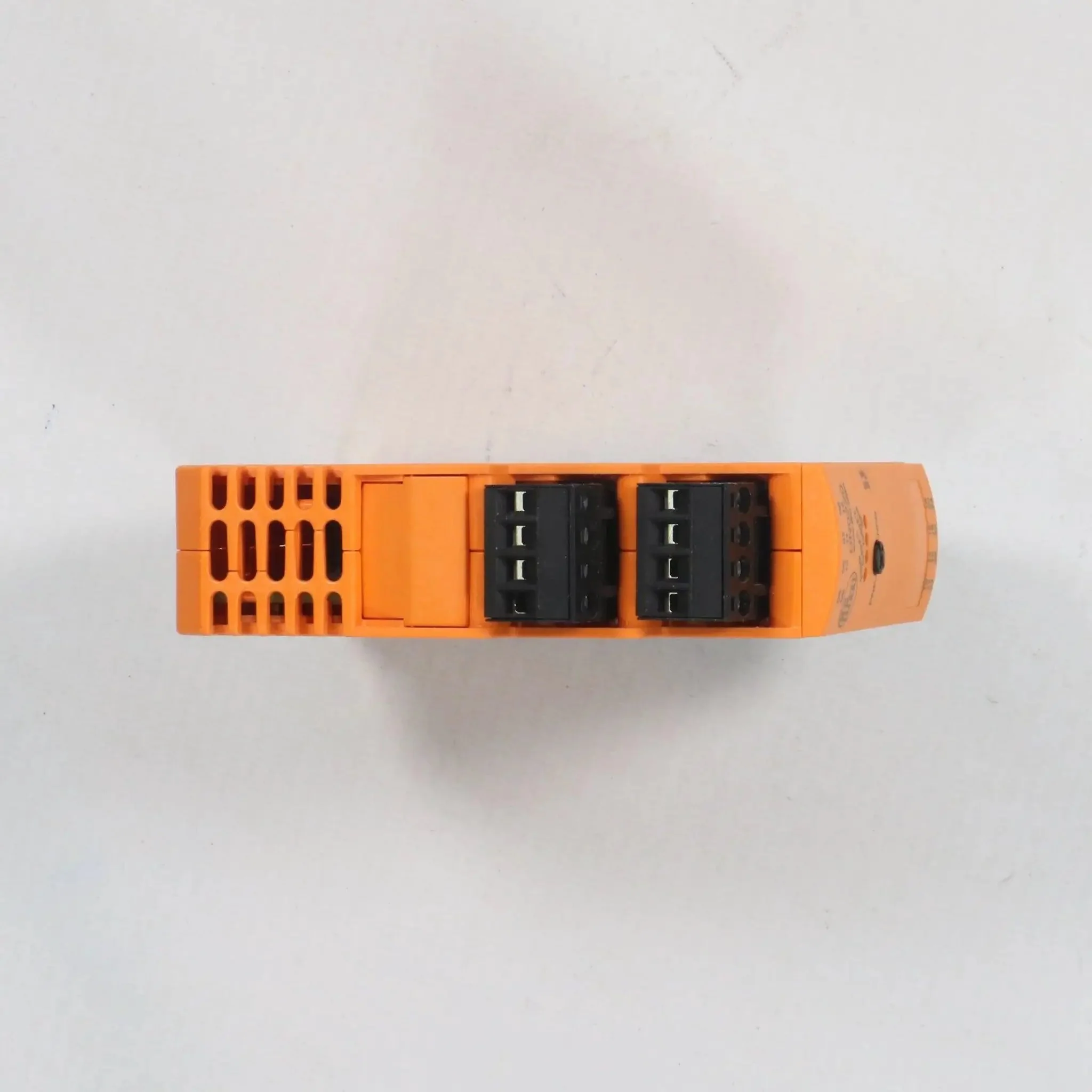

IFM Electronic DN0220 Switching Amplifier - N200/SA-2 110-240VAC

- Brand: IFM Electronic

- Model: DN0220

- Type: Switching Amplifier

- Part number: N200/SA-2 110-240VAC

- Technical specifications:
- Supply voltage: 110–240 V AC
- Digital inputs: PNP/NPN
- Outputs: 2 relay outputs
- Connection: Plug-in screw terminals
- Switching delay: Adjustable
- Nominal frequency: 50/60 Hz
- Protection class: IP20
- Operating temperature: -20°C to +60°C
- Mounting: DIN rail
- Additional features: 2-channel design; adjustable time delay; standard applications; easy configuration
- Standards: Compliant with IEC/EN 60947-5-6; IEC/EN 61010; CE marked

Weight: 250 g

Dimensions: 113 x 25 x 110 mm

Country of origin: Germany

HS code: 8543.70
