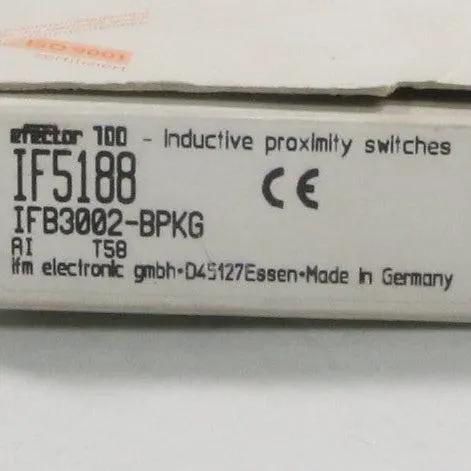

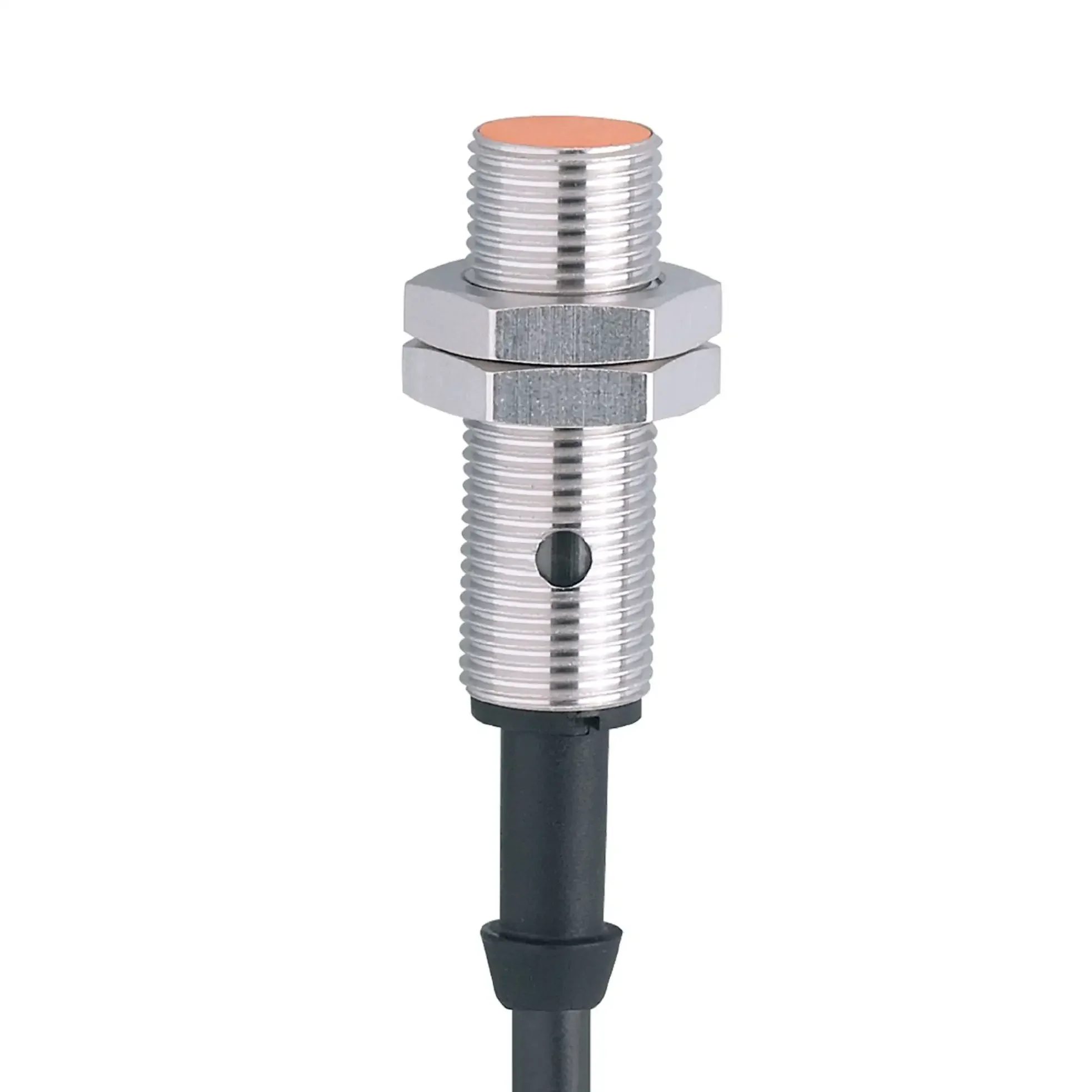

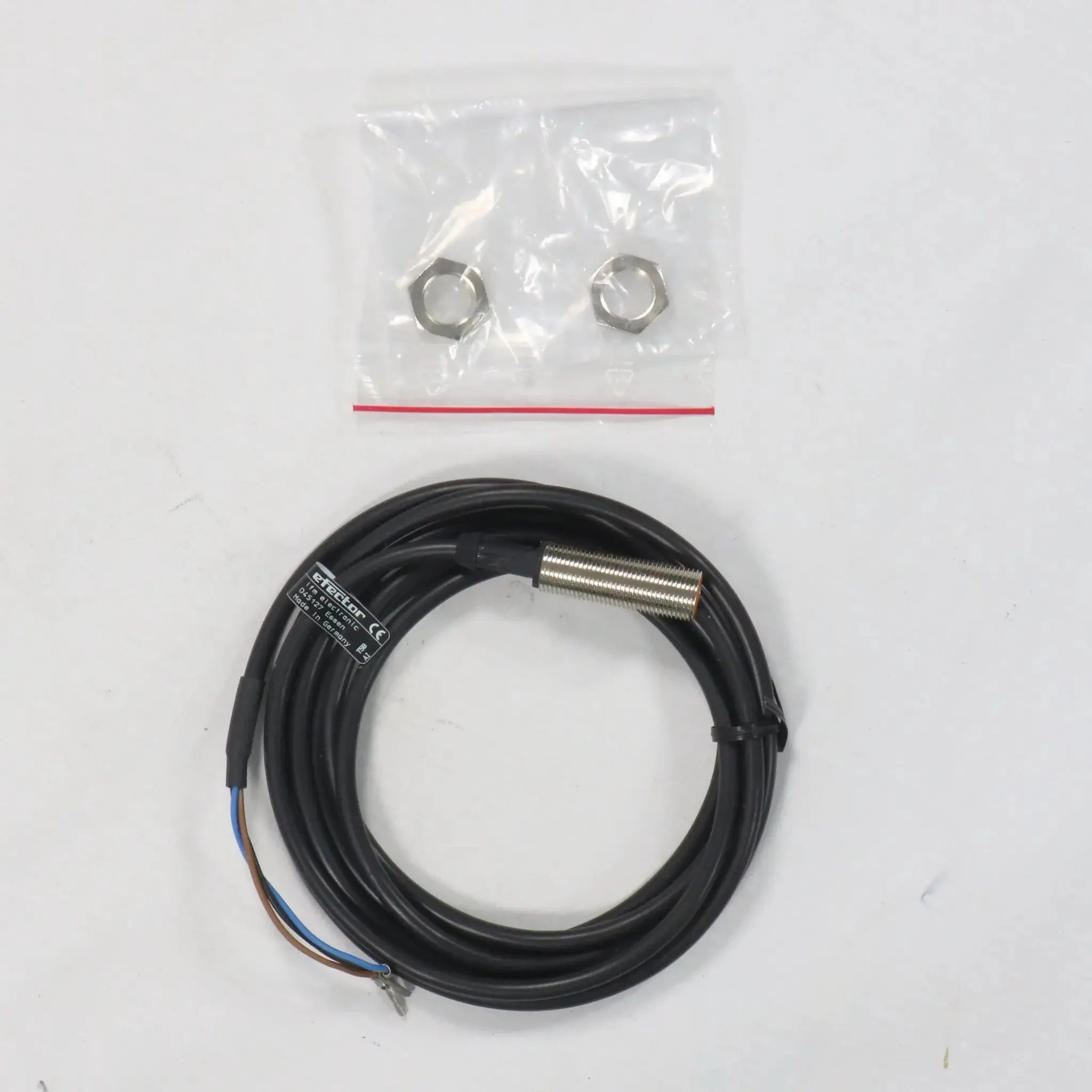

IFM Electronic IF5188 Inductive Proximity Switch

- Brand: IFM Electronic

- Model: IF5188

- Type: Inductive Proximity Switch

- Part number: IFB3002-BPKG

- Technical specifications:
- Switching distance: 2 mm
- Housing: M12 threaded cylindrical
- Output: PNP
- Switching frequency: 1500 Hz
- Voltage supply: 10–36 V DC
- Current consumption: <20 mA
- Load current: Max. 150 mA
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Overload protection: Yes
- LED indicators: Power ON (green) and switching status (yellow)
- Connection: Cable
- Protection rating: IP67
- Operating temperature: -25°C to +80°C
- EMC immunity: High
- Additional features: Flush mountable; high switching frequency; robust metal housing; suitable for detecting ferrous and non-ferrous metals; vibration-resistant
- Standards: Compliant with IEC/EN 60947-5-2; CE, UL, cULus approvals

Weight: 250 g

Dimensions: 150 x 120 x 30 mm

Country of origin: Germany

HS code: 8536.50
