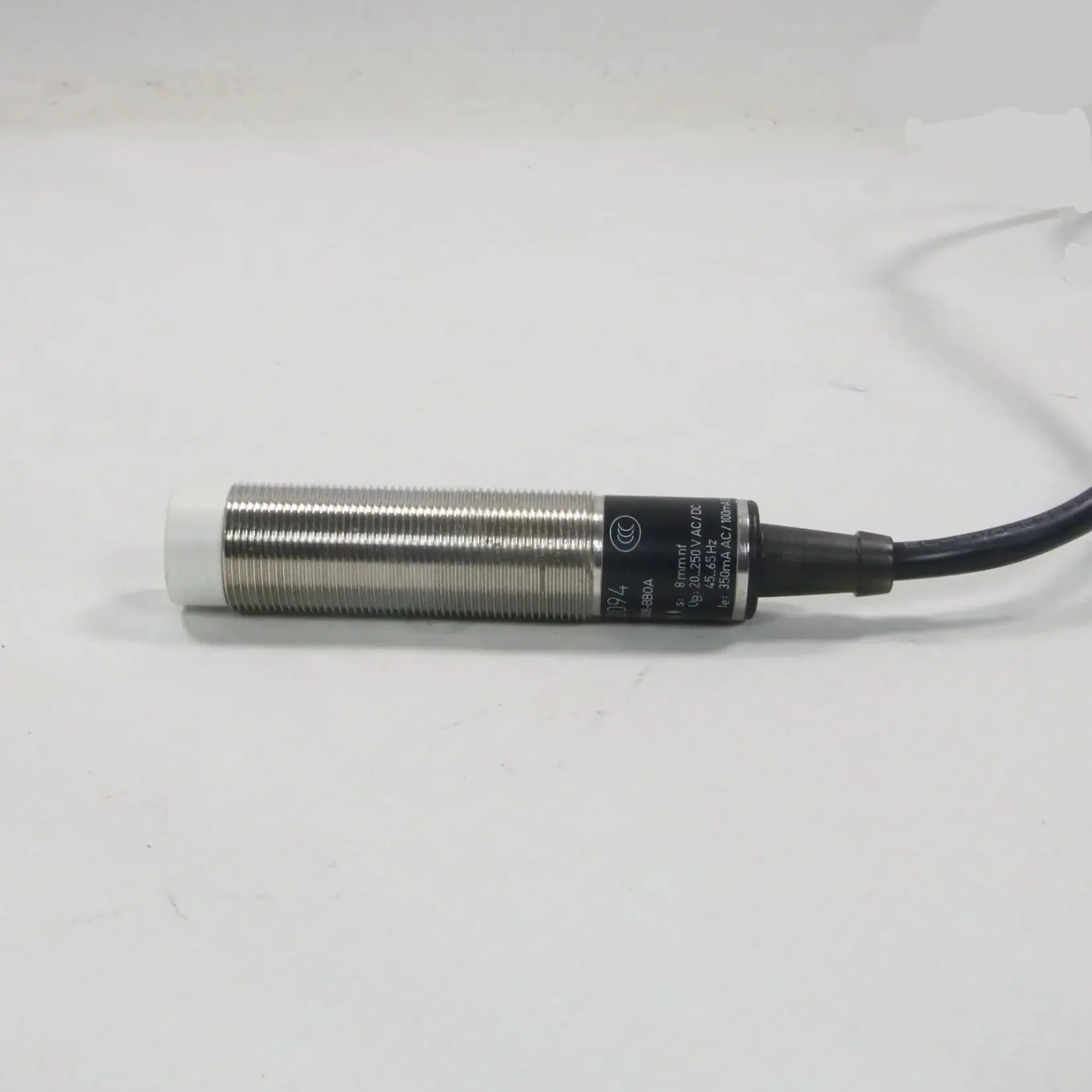

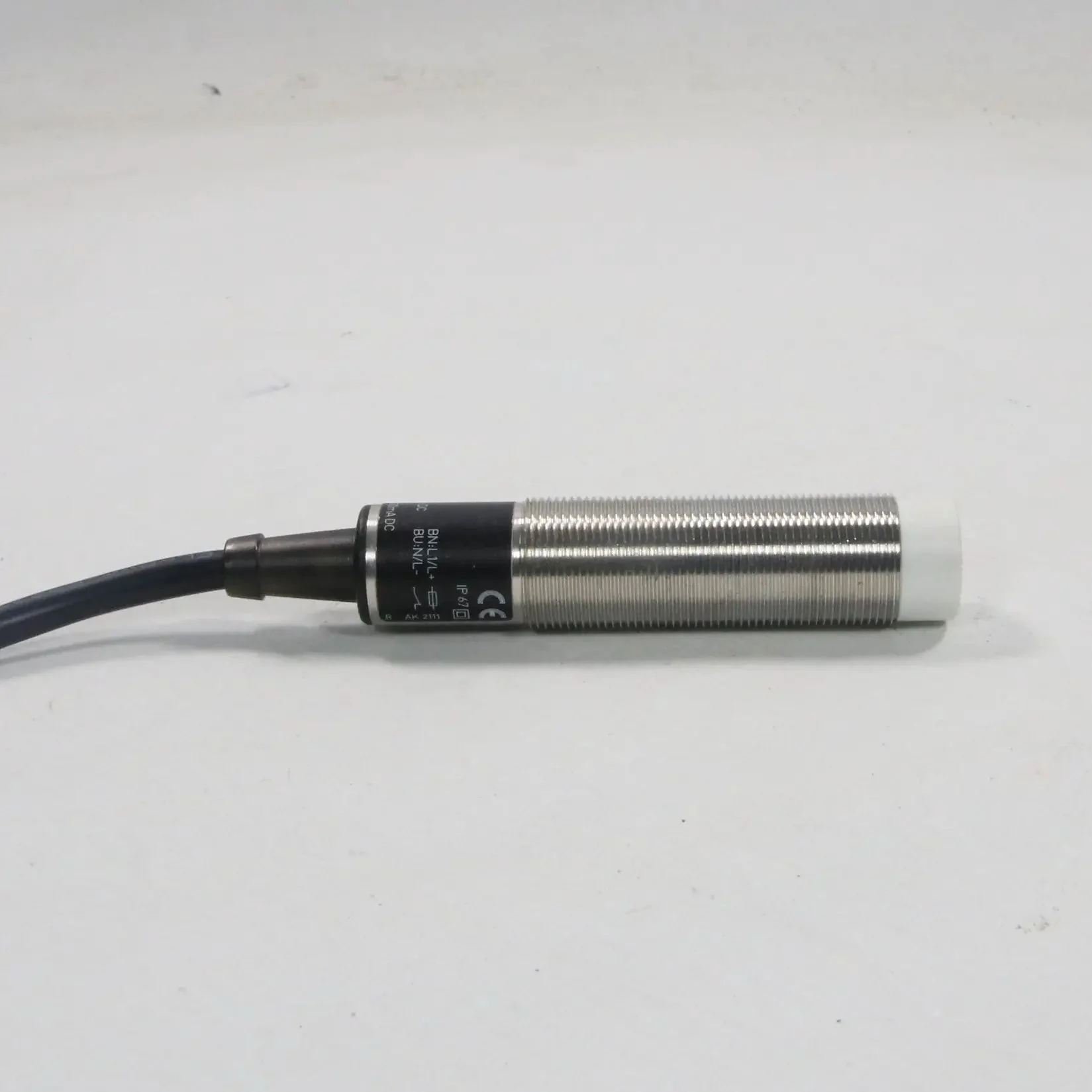

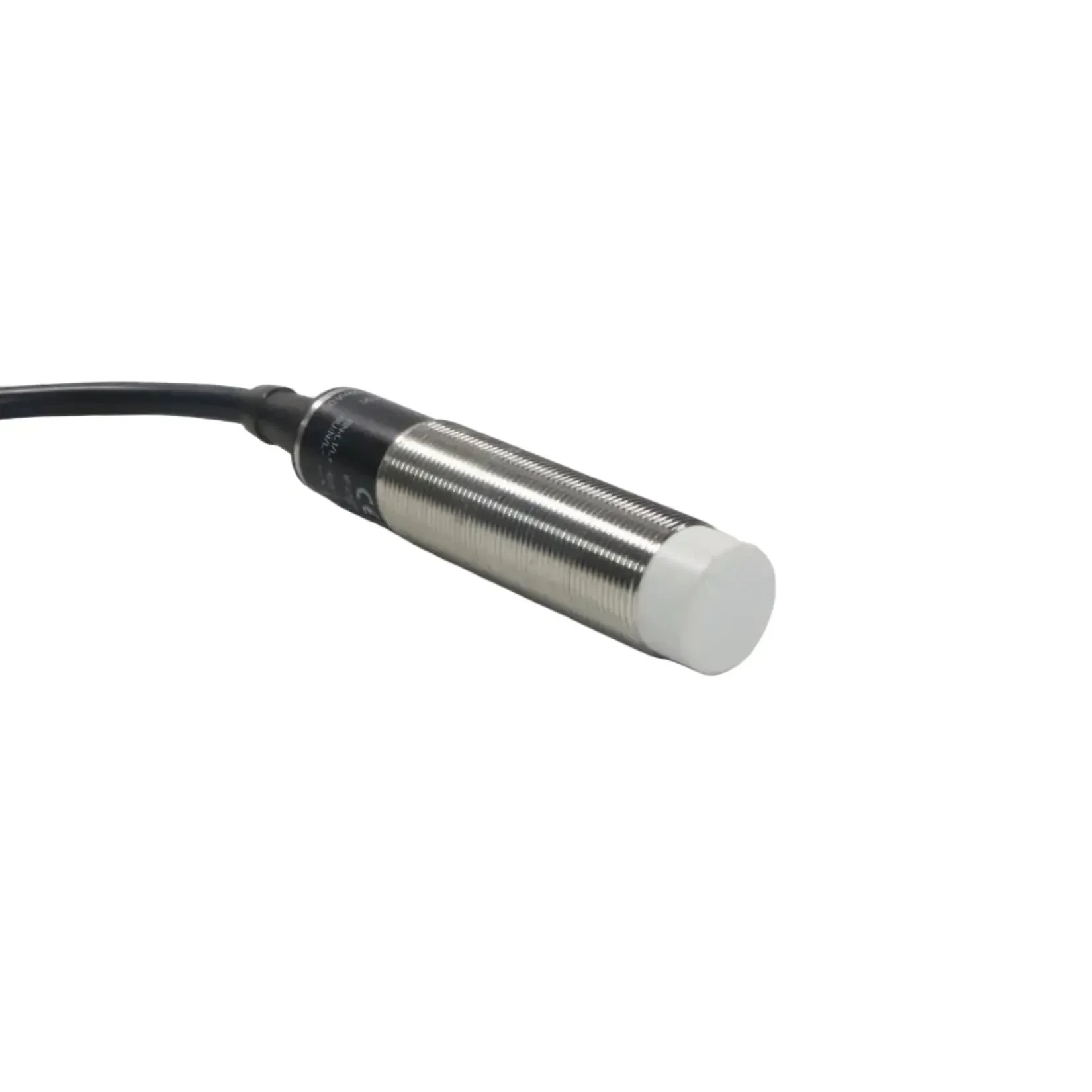

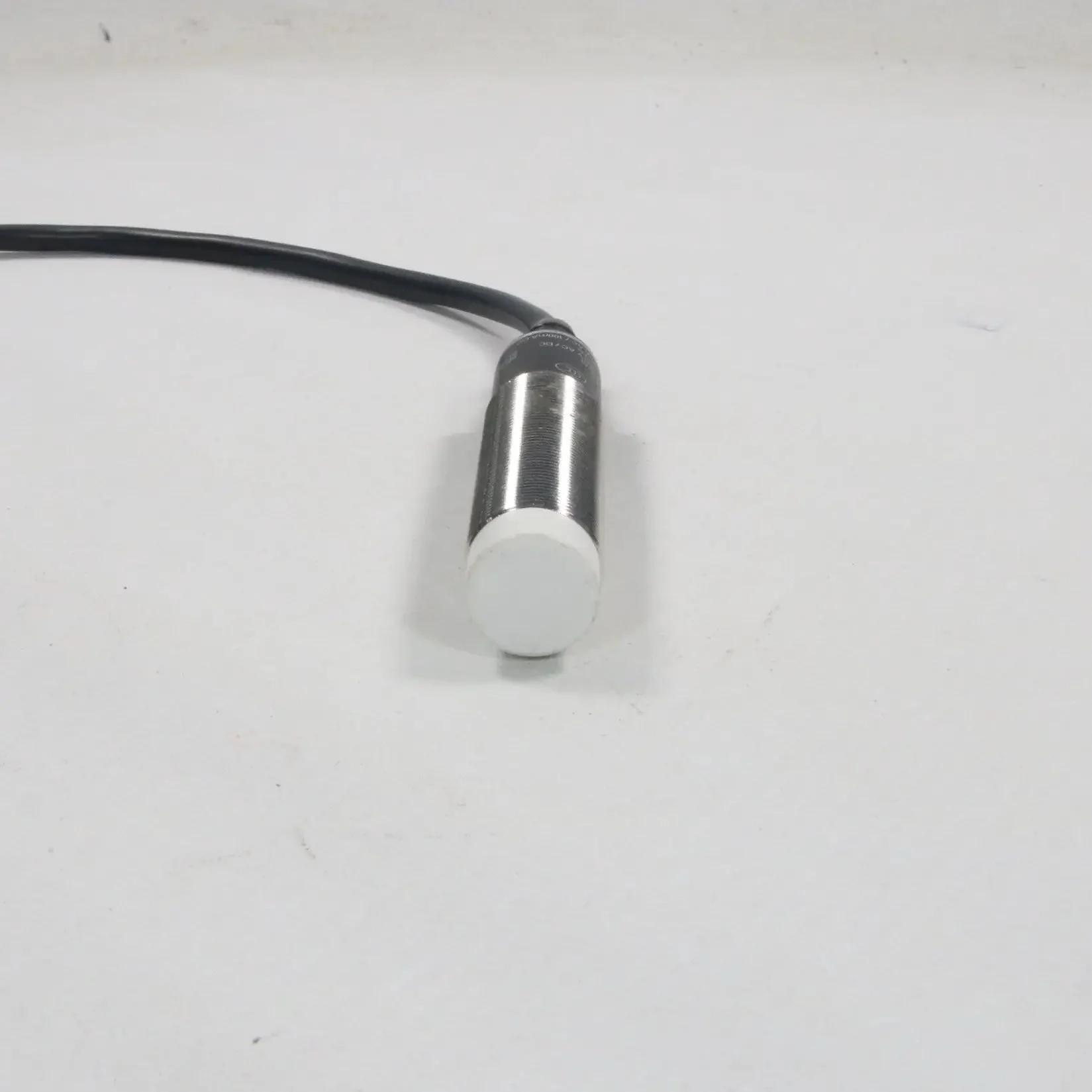

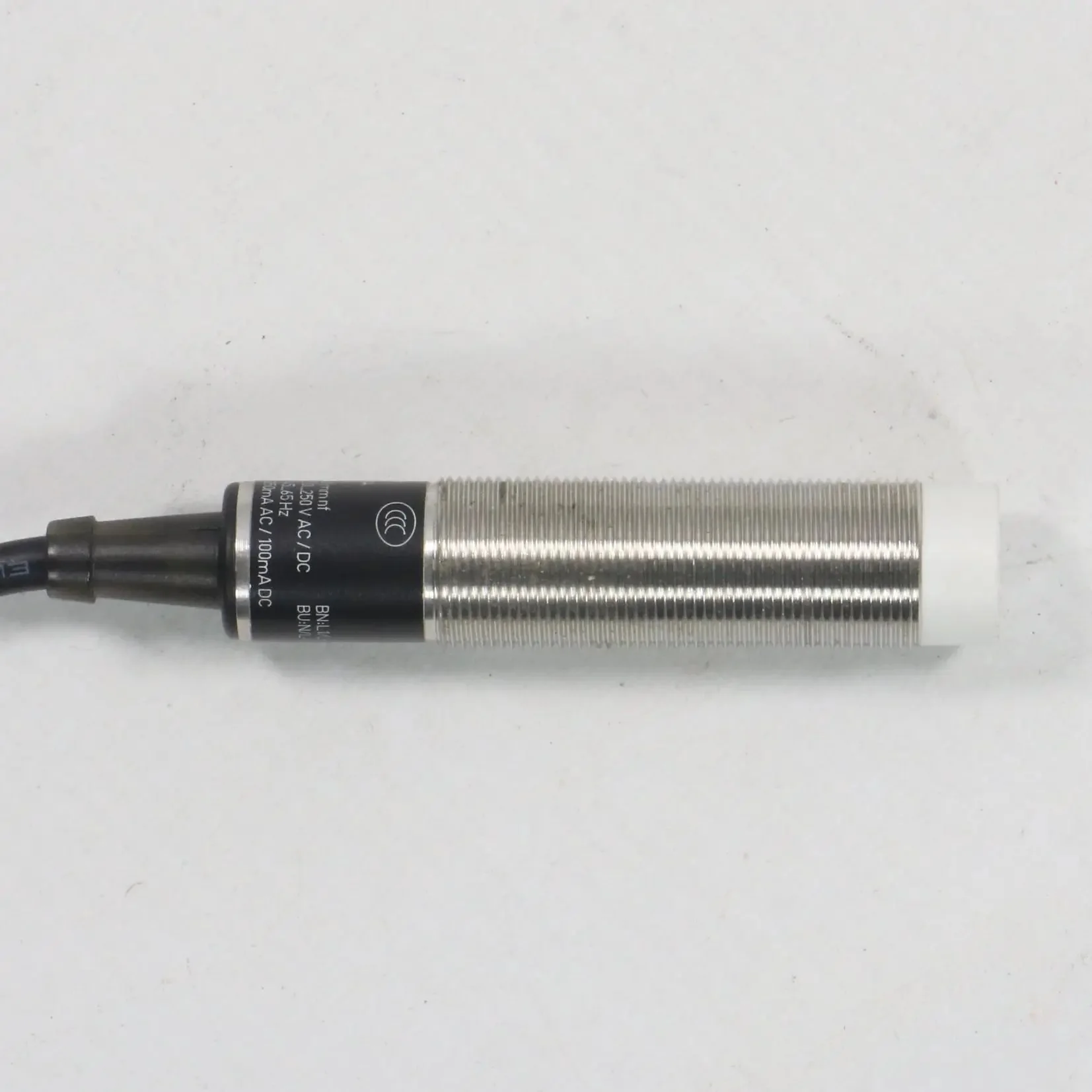

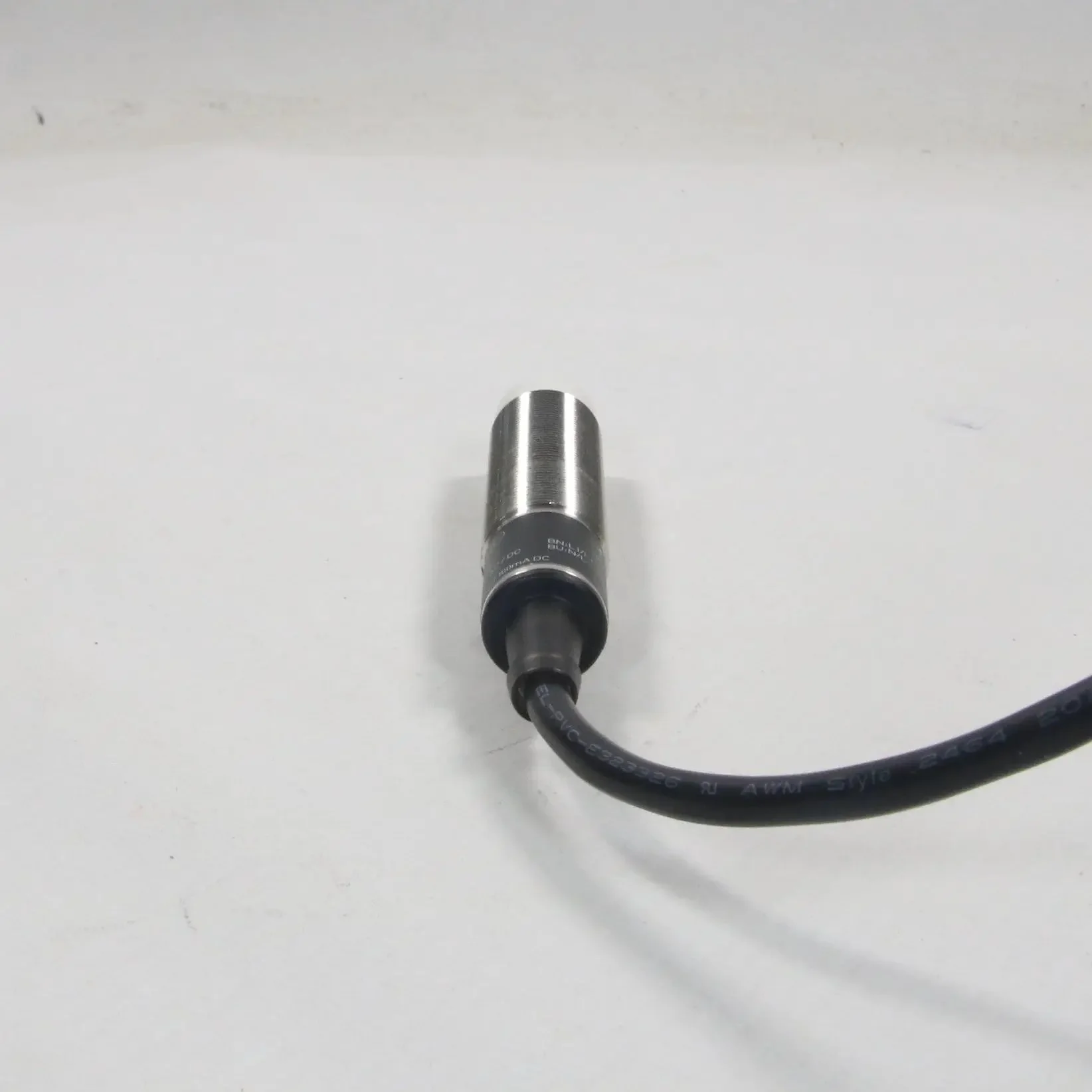

IFM Electronic IG0094 Inductive Sensor - IGA2008-BBOA

- Brand: IFM Electronic

- Model: IG0094

- Type: Inductive Sensor

- Part number: IGA2008-BBOA

- Technical specifications:
- Sensing range: 8 mm
- Housing: M18 threaded cylindrical
- Output function: Normally closed
- Switching frequency: 25/AC, 50/DC
- Supply voltage: 20...250 AC/DC
- Load current min.: 5 mA
- Connection: M12 connector
- Degree of protection: IP67
- Operating temperature: -25°C to +70°C
- LED indicators: 1 x LED; switching status (yellow)
- Additional features: Non-flush mountable; suitable for detection of ferrous and non-ferrous metals; robust for industrial environments
- Standards: Compliant with IEC/EN 60947-5-2; CE marked

Weight: 150 g

Dimensions: M18 x 80 mm (2m cable)

Country of origin: Germany

HS code: 8536.50
