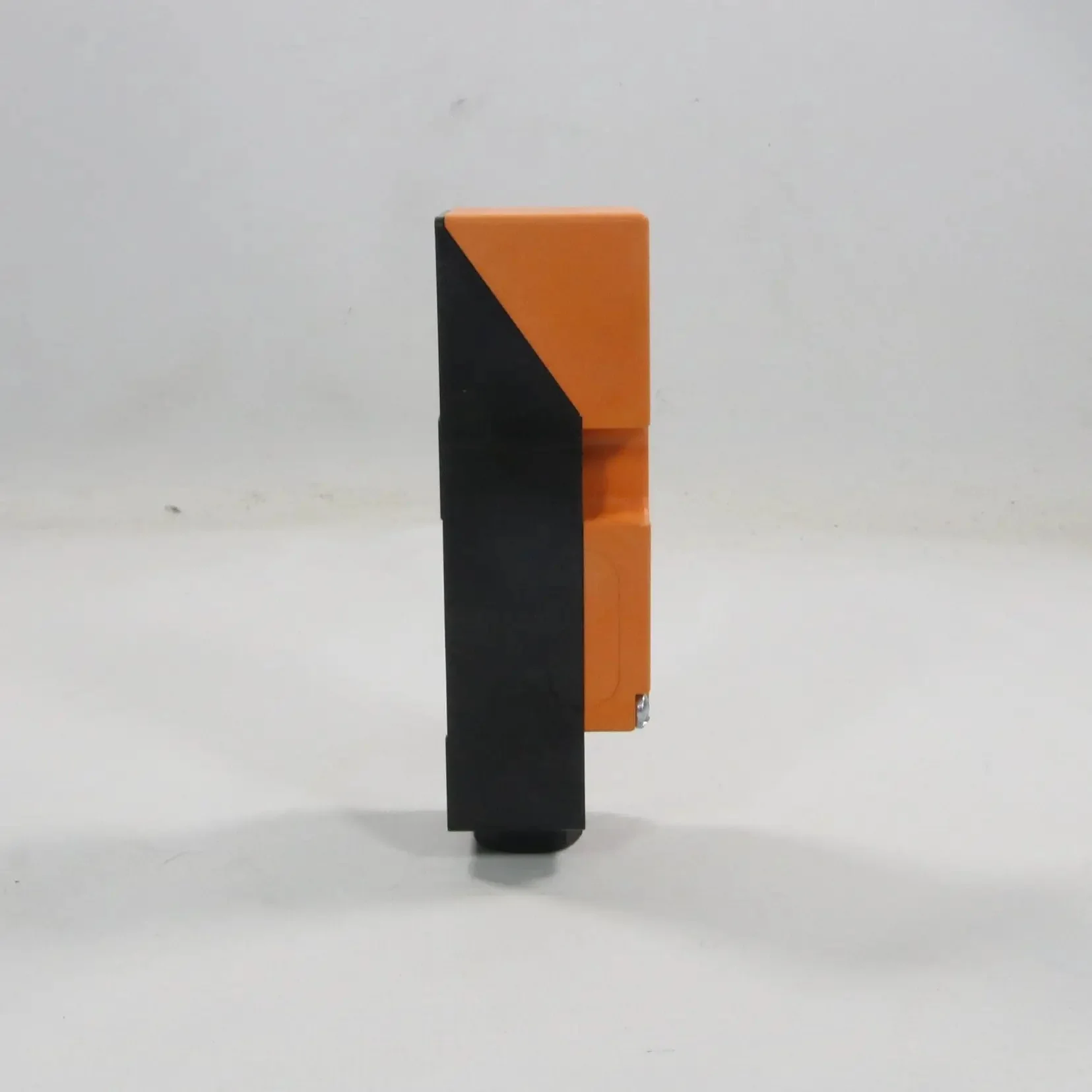

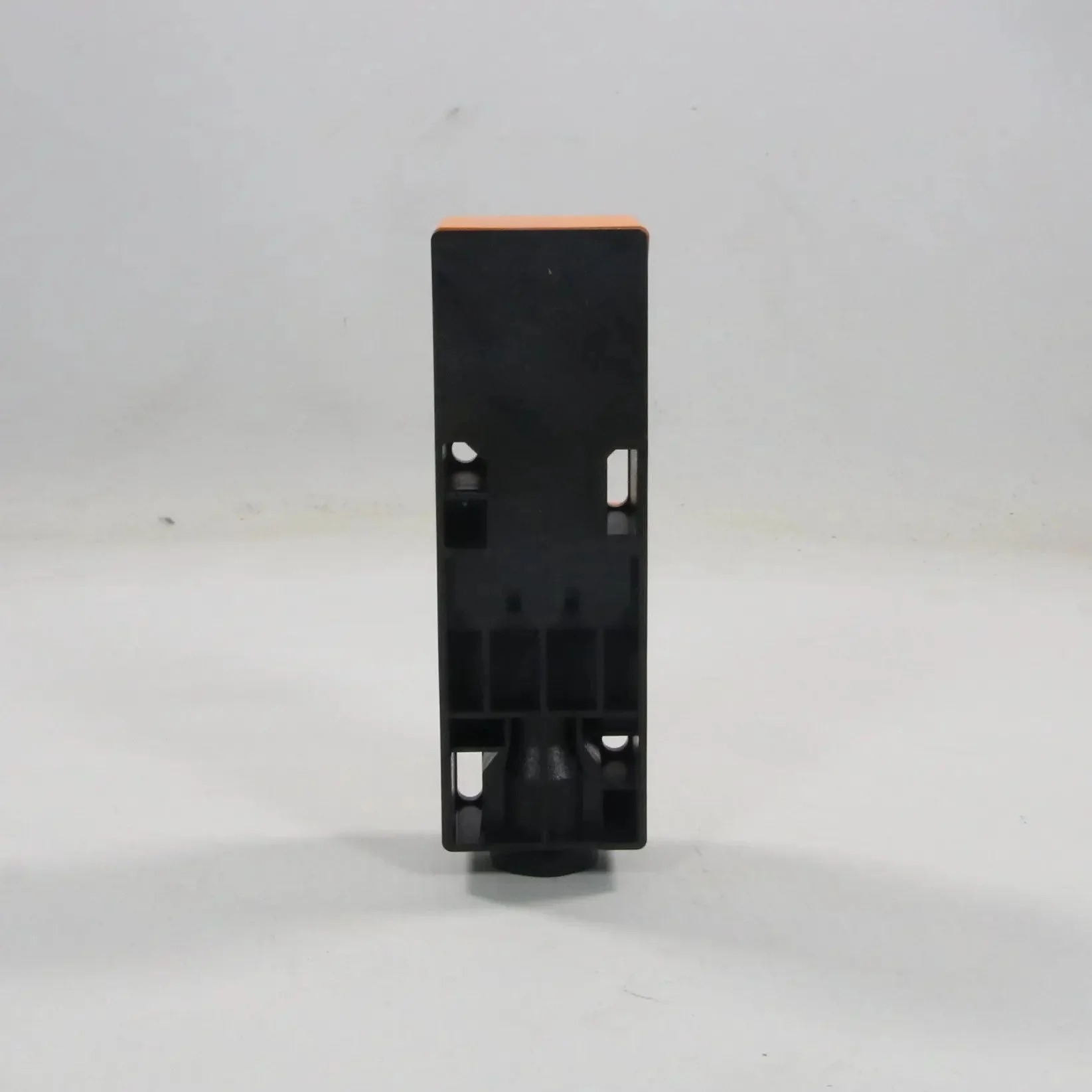

IFM Electronic IM0010 Inductive Sensor - IME2020-FBOA

- Brand: IFM Electronic

- Model: IM0010

- Type: Inductive Sensor

- Part number: IME2020-FBOA

- Technical specifications:
- Sensing range: 20 mm
- Housing: Rectangular
- Output function: Normally open/normally closed (selectable)
- Switching frequency: AC/20, DC/55 Hz
- Supply voltage: 20...250 V AC/DC
- Load current: 5 mA
- Connection: Cable gland
- Degree of protection: IP65
- Operating temperature: -25°C to +70°C
- LED indicators: 1 x LED; switching status (yellow)
- Standards: Compliant with IEC/EN 60947-5-2; CE marked

Weight: 200 g

Dimensions: 40 x 40 x 121 mm

Country of origin: Germany

HS code: 8536.50
