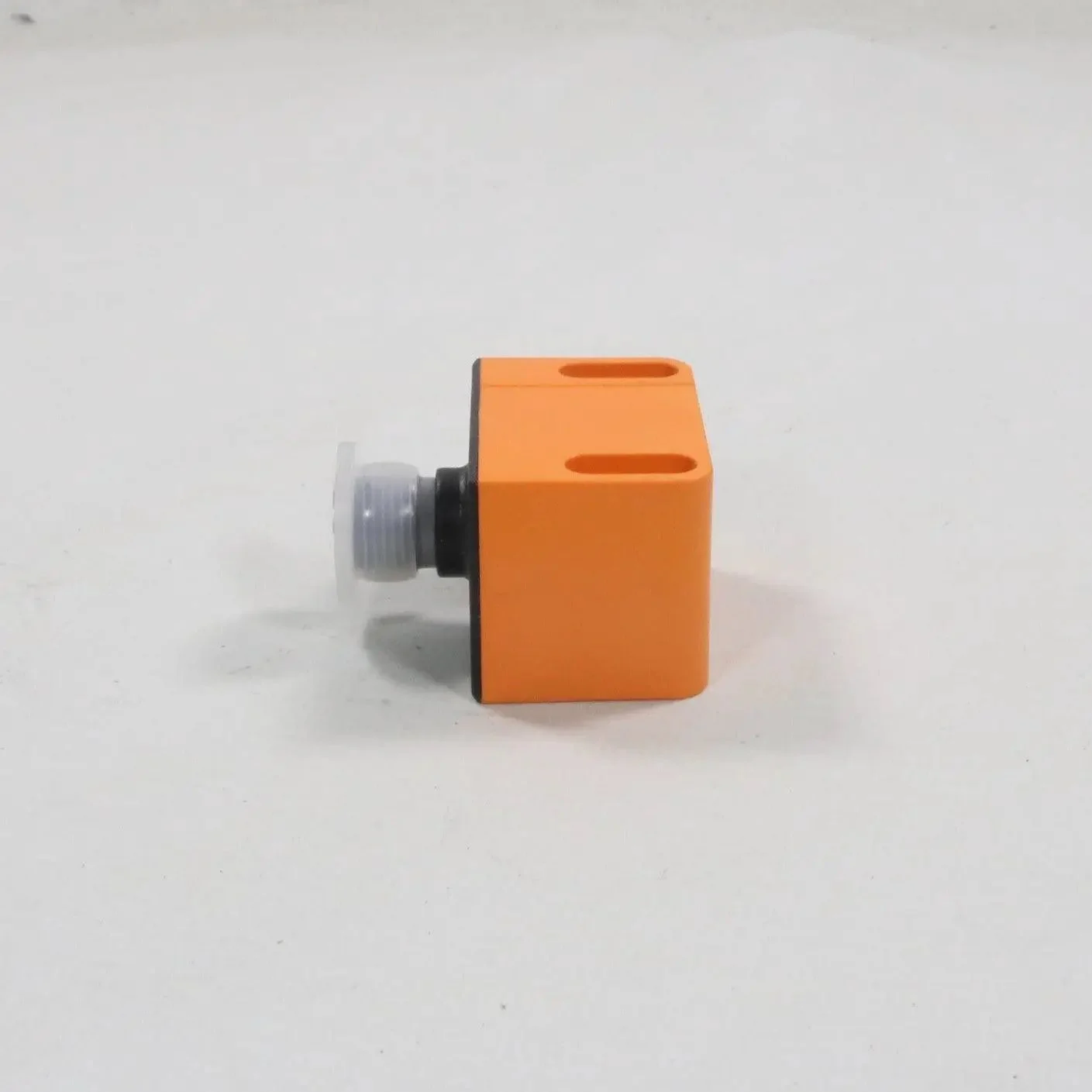

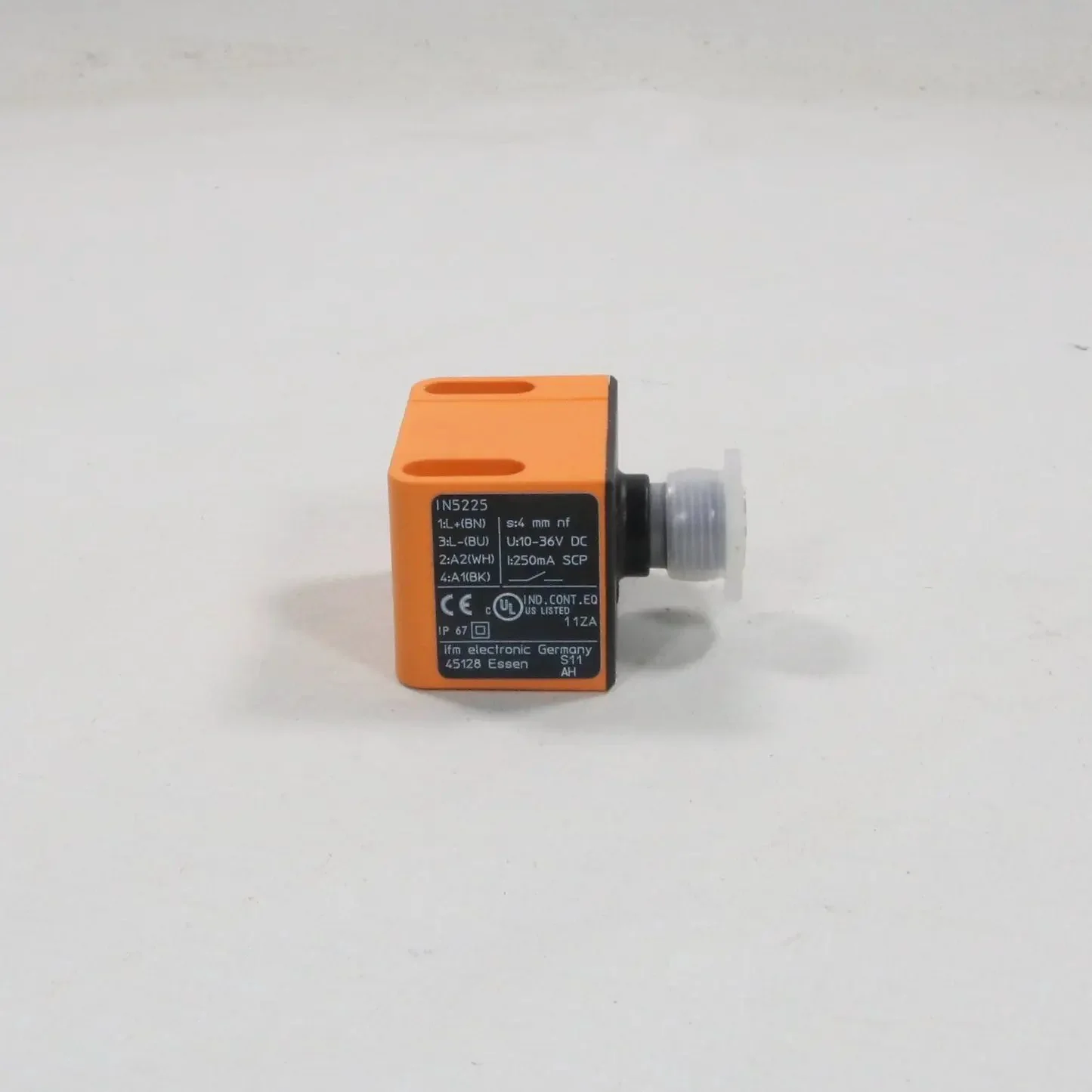

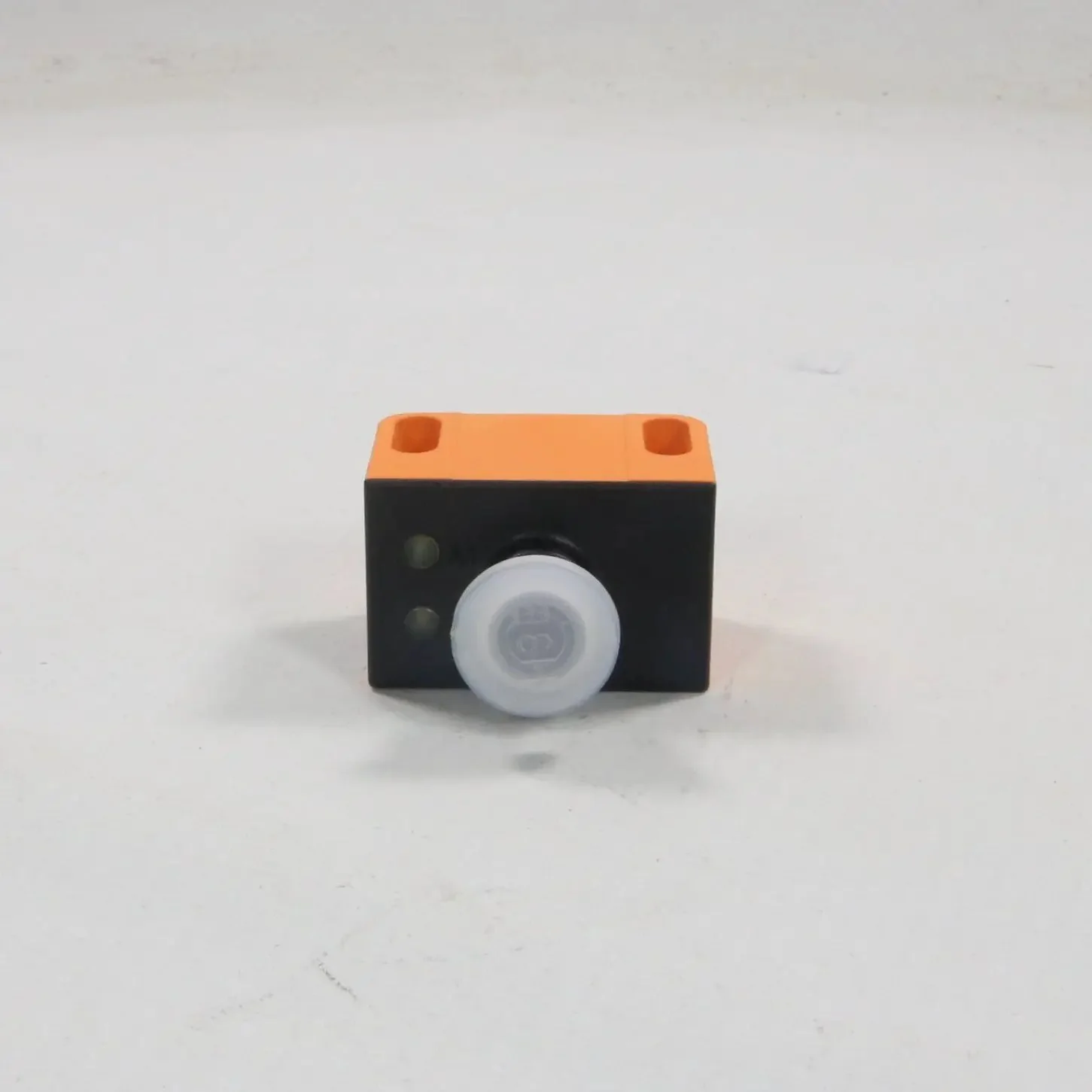

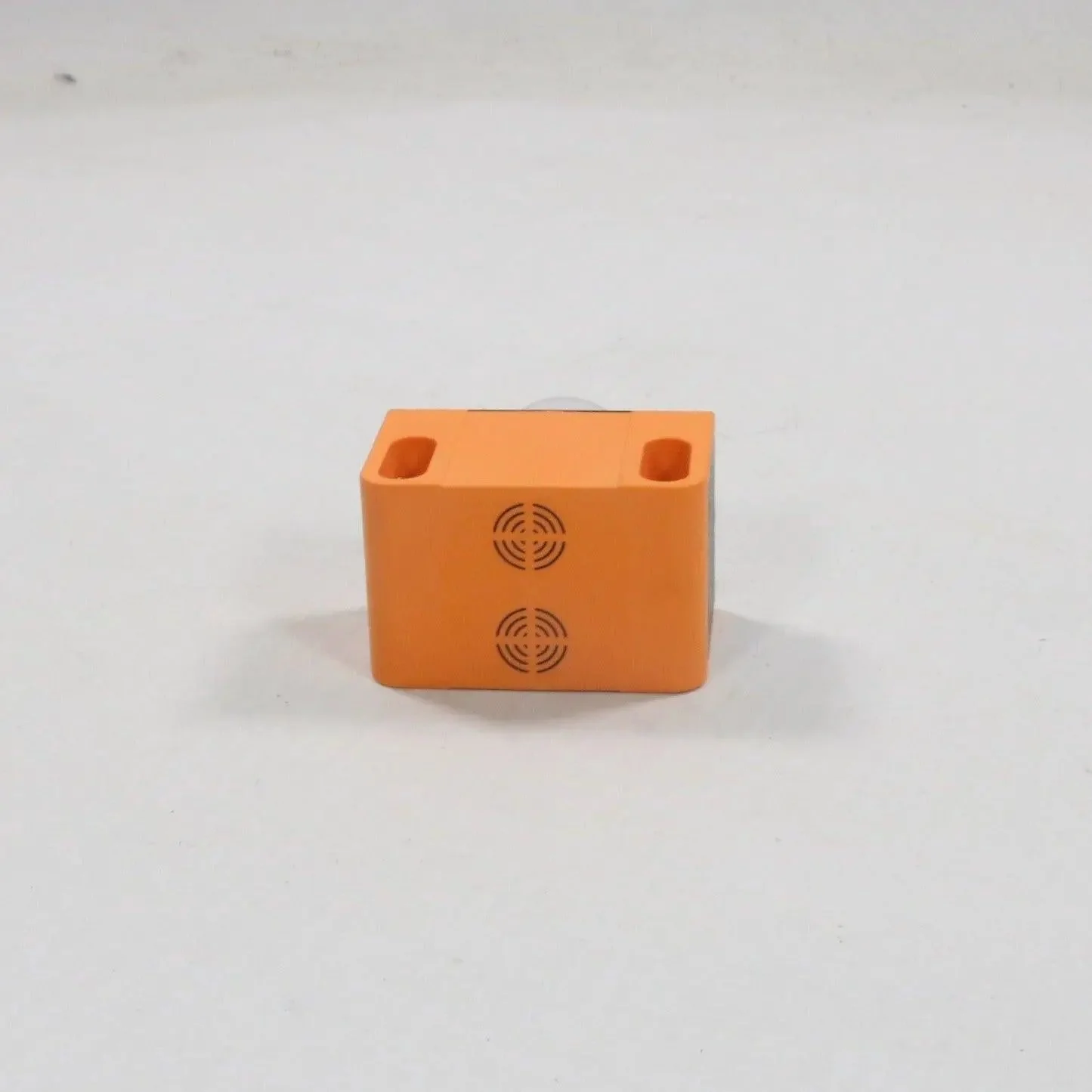

IFM Electronic IN5225 Inductive Valve Position Sensor

Brand: IFM Electronic

Model: IN5225

Type: Inductive Valve Position Sensor

Part number: IND3004DBPKG/US-100-DPV

Technical specifications:
- Sensing range: 4 mm
- Housing: Rectangular
- Output: PNP
- Switching frequency: 1300 Hz
- Supply voltage: 10–30 V DC
- Current consumption: 5 mA
- Load current: 200 mA
- Connection: M12 connector
- Degree of protection: IP67
- Operating temperature: -25°C to +70°C
- LED indicators: 2 x Yellow
- Additional features: Short-circuit/overload/reverse polarity protection; high EMC immunity; insensitive to electromagnetic interference; suitable for metal detection (ferrous or non-ferrous)
- Standards: Compliant with IEC/EN 60947-5-2; CE marked

Weight: 50 g

Dimensions: 90 x 60 x 30 mm

Country of origin: Germany

HS code: 8536.50
