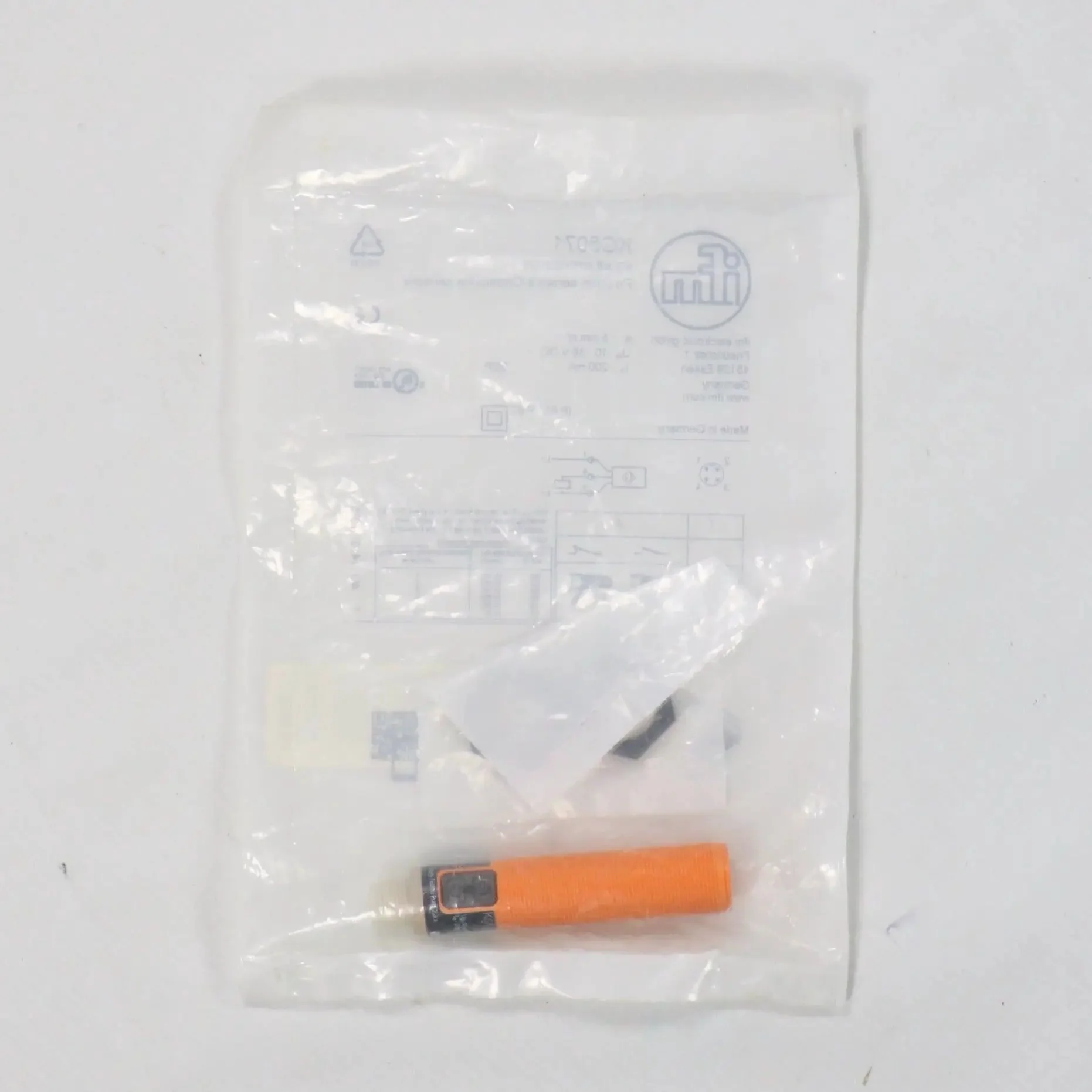

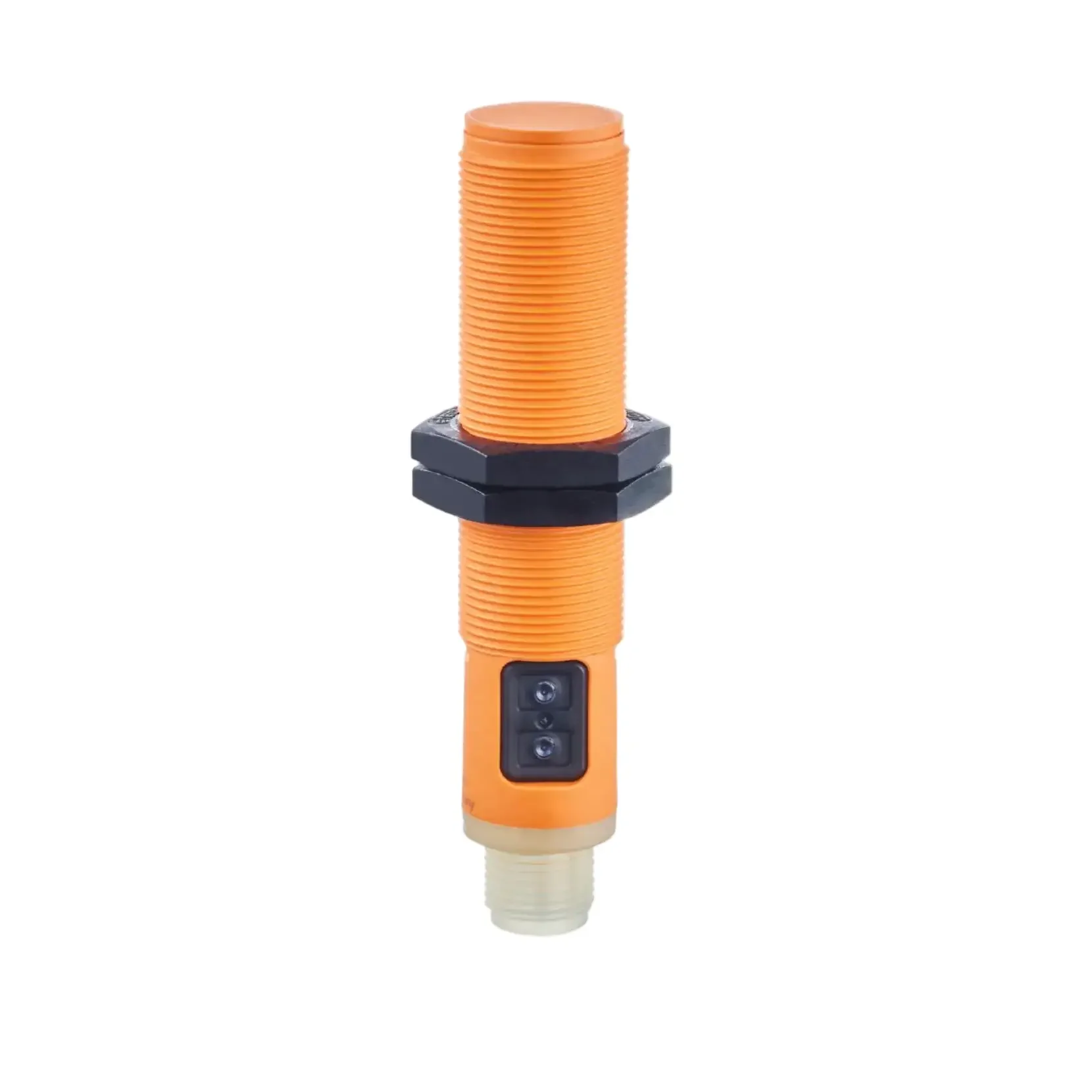

IFM Electronic KG5071 Capacitive Sensor - KG-3080NFPKG/2T/US

- Brand: IFM Electronic

- Model: KG5071

- Type: Capacitive Sensor

- Part number: KG-3080NFPKG/2T/US

- Technical specifications:
- Sensing range: 8 mm
- Housing: PBT threaded type M18
- Output: PNP
- Switching frequency: 10–50 Hz
- Supply voltage: 10–36 V DC
- Communication interface: IO link
- Switching output: 200 mA
- Connection: M12 connector
- Degree of protection: IP65/IP67
- Operating temperature: -25°C to +80°C
- LED indicators: 1 x LED; switching status (yellow)
- Standards: Compliant with IEC/EN 60947-5-2; CE marked

Weight: 50 g

Dimensions: M18 x 87 mm

Country of origin: Germany

HS code: 8536.50
