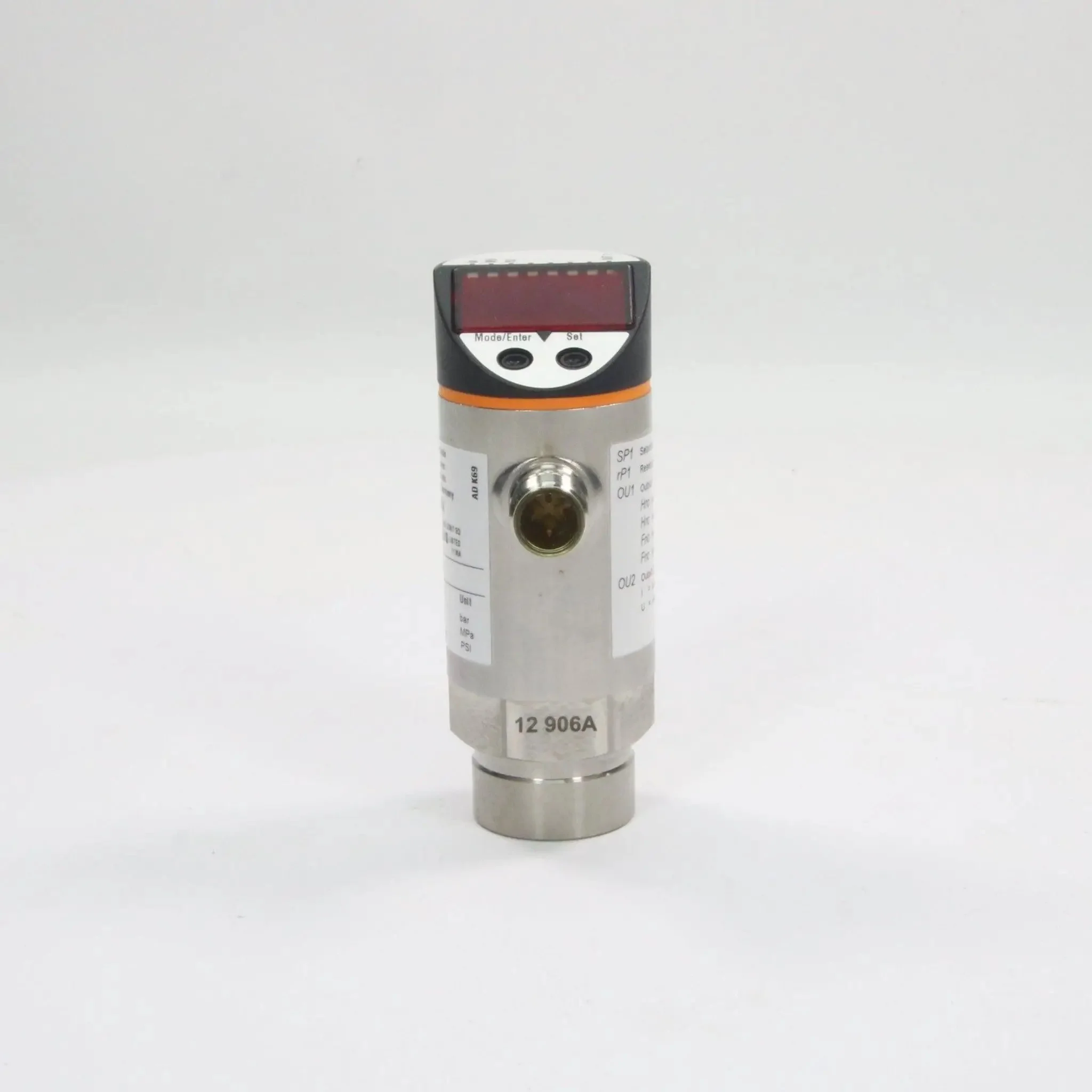

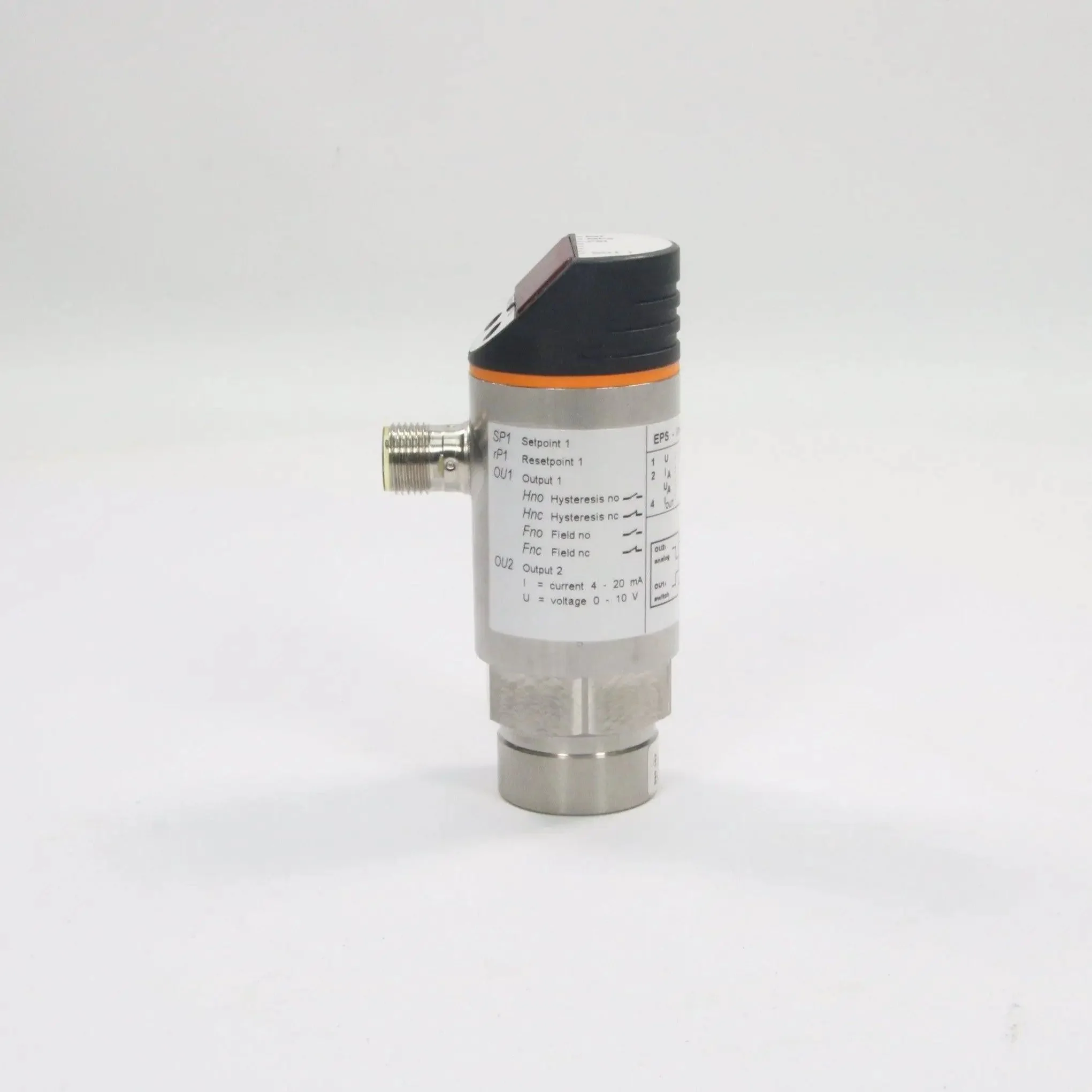

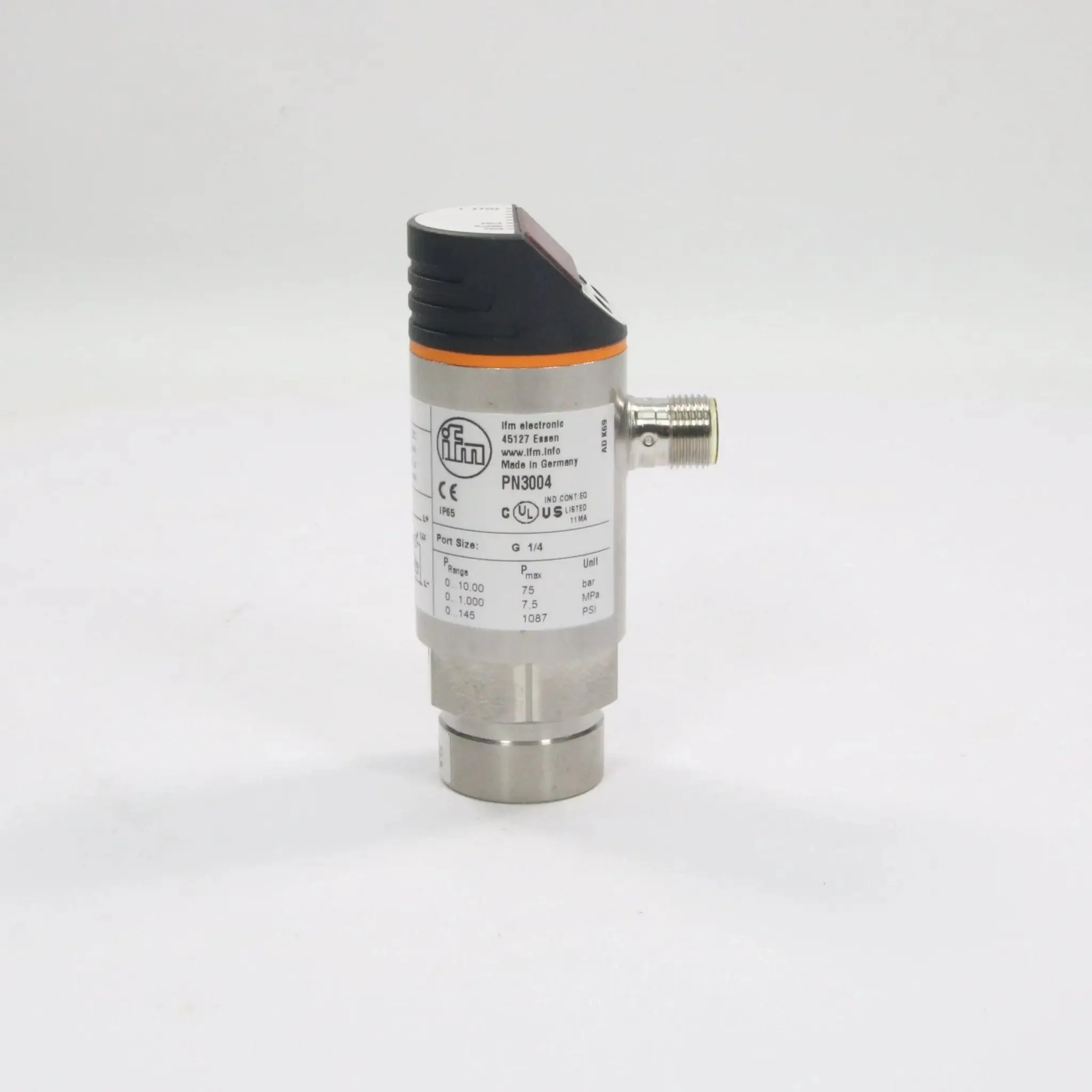

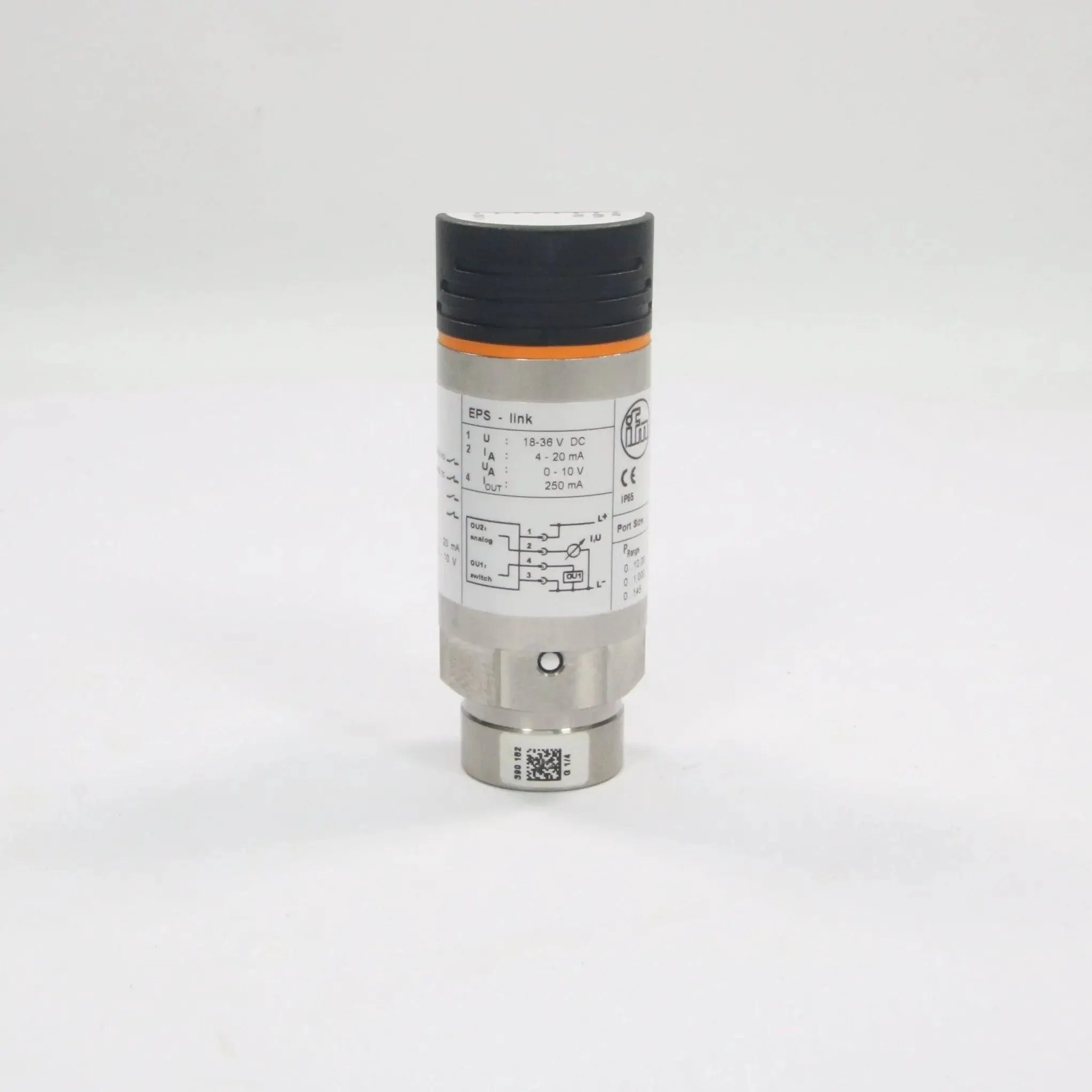

IFM Electronic PN3004 Pressure Sensor

Brand: IFM Electronic
Model: PN3004
Type: Pressure Sensor with Display

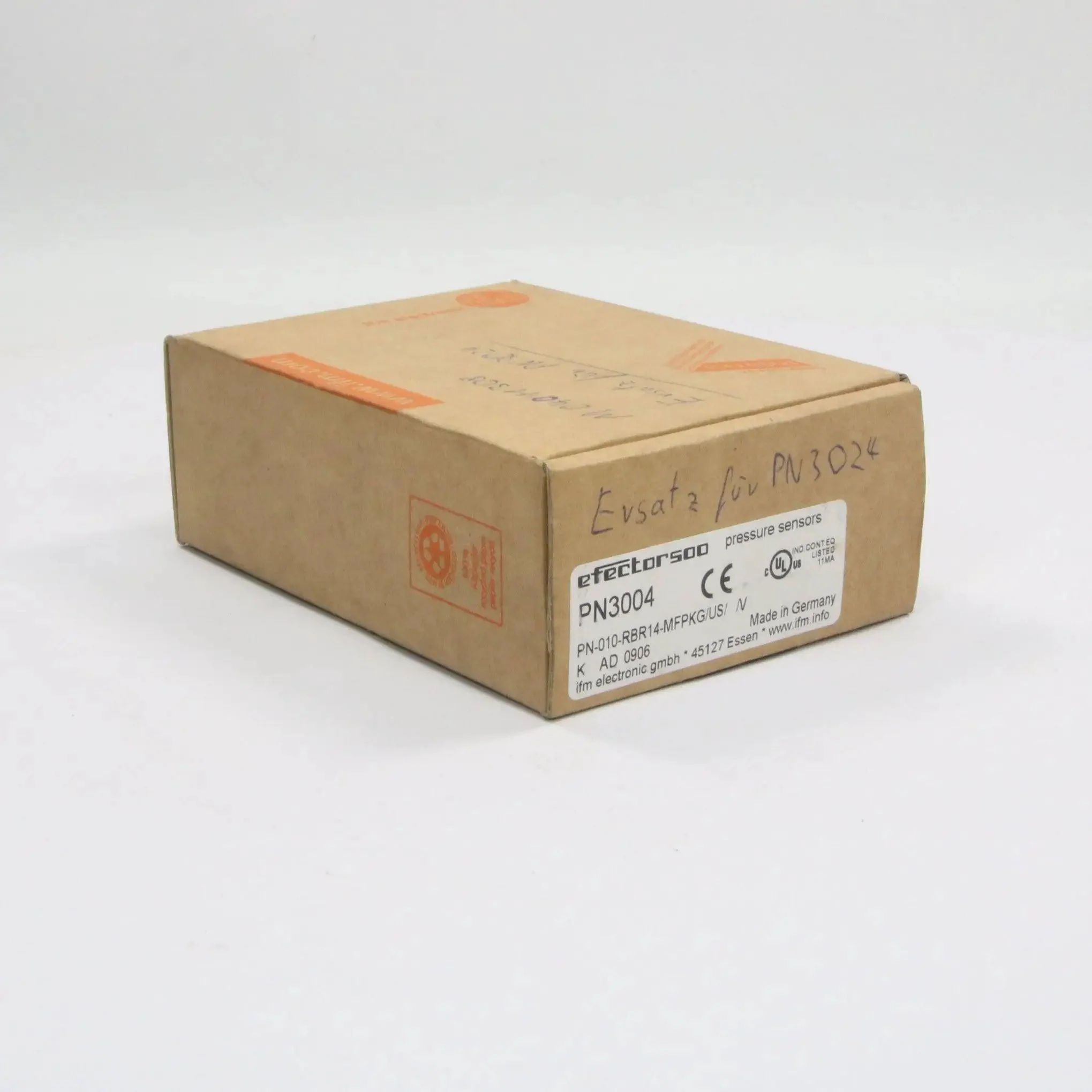

Part Number: PN3004 (also referenced as PN-010-RBR14-MFPKG/US//V)

Technical Specs:
- Sensor Type: Combined pressure sensor
- Measuring Range: -1 to 10 bar
- Maximum Pressure: 75 bar
- Accuracy: ≤ ±0.5% of span
- Process Connection: G 1/4 internal thread
- Output Type:
  - Switching Output: PNP, NO/NC programmable
  - Analog Output: 4-20 mA (0 bar = 4 mA, 10 bar = 20 mA) or 0-10 V (0 bar = 0 V, 10 bar = 10 V)
- Supply Voltage: 18 to 36 V DC
- Current Consumption: ≤ 250 mA
- Display: 4-digit alphanumeric 7-segment display
- Switching Frequency: up to 100 Hz
- Response Time: < 3 ms (for switching output); step response 11 ms (10-90%)
- Electrical Connection: M12 connector, 4-pin
- Housing Material: Stainless steel (316L/1.4404), PBT, PC, FPM, PA
- Media: Liquids and gases compatible with stainless steel and FPM seals
- Operating Temperature Range: -25°C to 80°C
- Storage Temperature Range: -40°C to 100°C
- Protection Rating: IP65
- Additional Features:
  - Programmable via 2 pushbuttons for set/reset points, hysteresis, and output functions (NO/NC, window)
  - Highly stable ceramic measuring element (tolerant of overpressures)
  - Low zero offset or drift from aging, overpressure, or temperature
  - Signal damping, output delay on/off options
  - IO-Link interface for digital communication
- Certifications: CE, UL, ATEX (II 2G Ex d e IIC T6 Gb, II 2D Ex tb IIIC T80°C Db), IECEx, RoHS

Dimension:
- Length: 92 mm
- Diameter: G 1/4 thread

- Weight: 220 g

Country of Origin: Germany

HS Code: 9026.20
