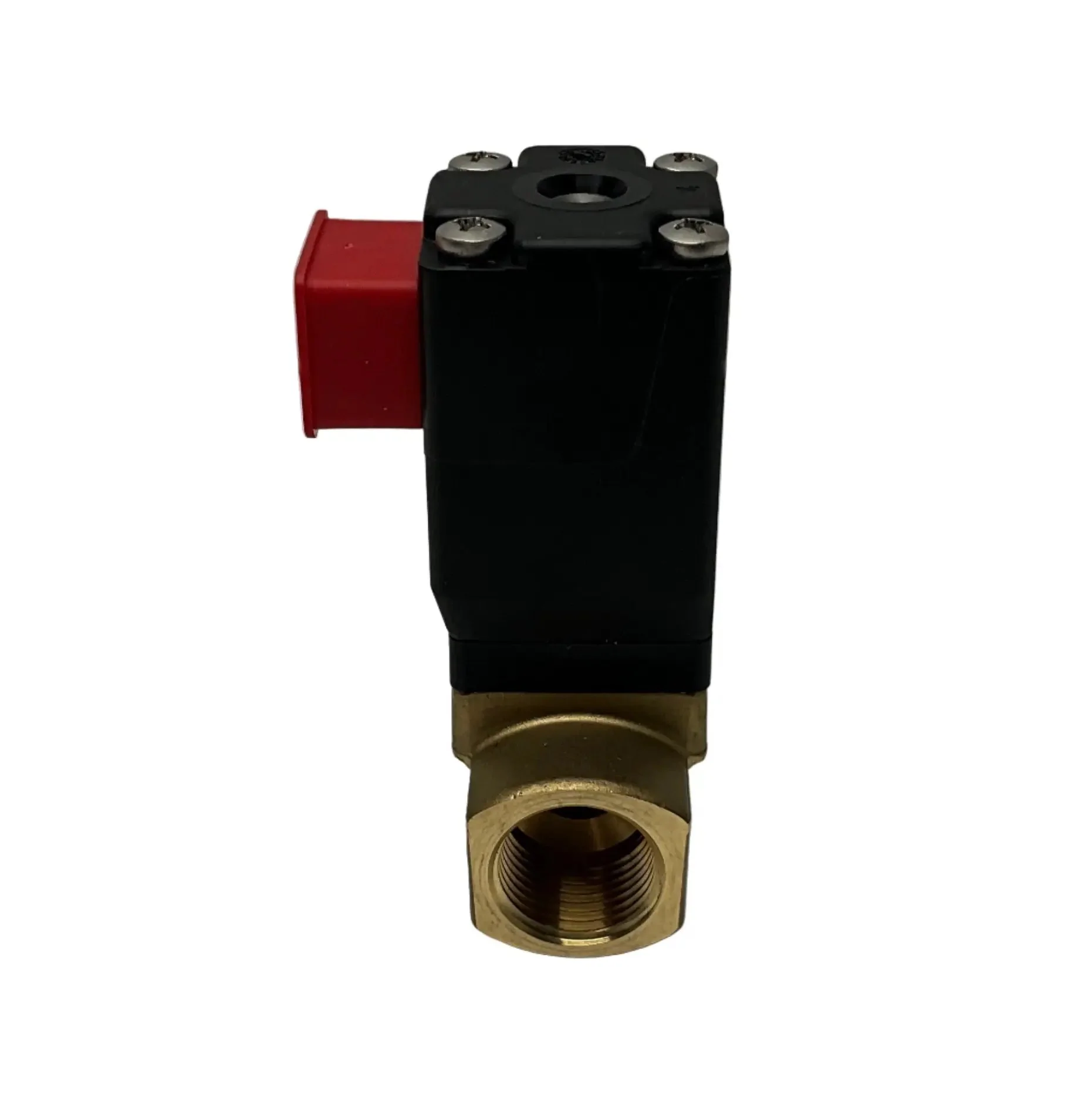

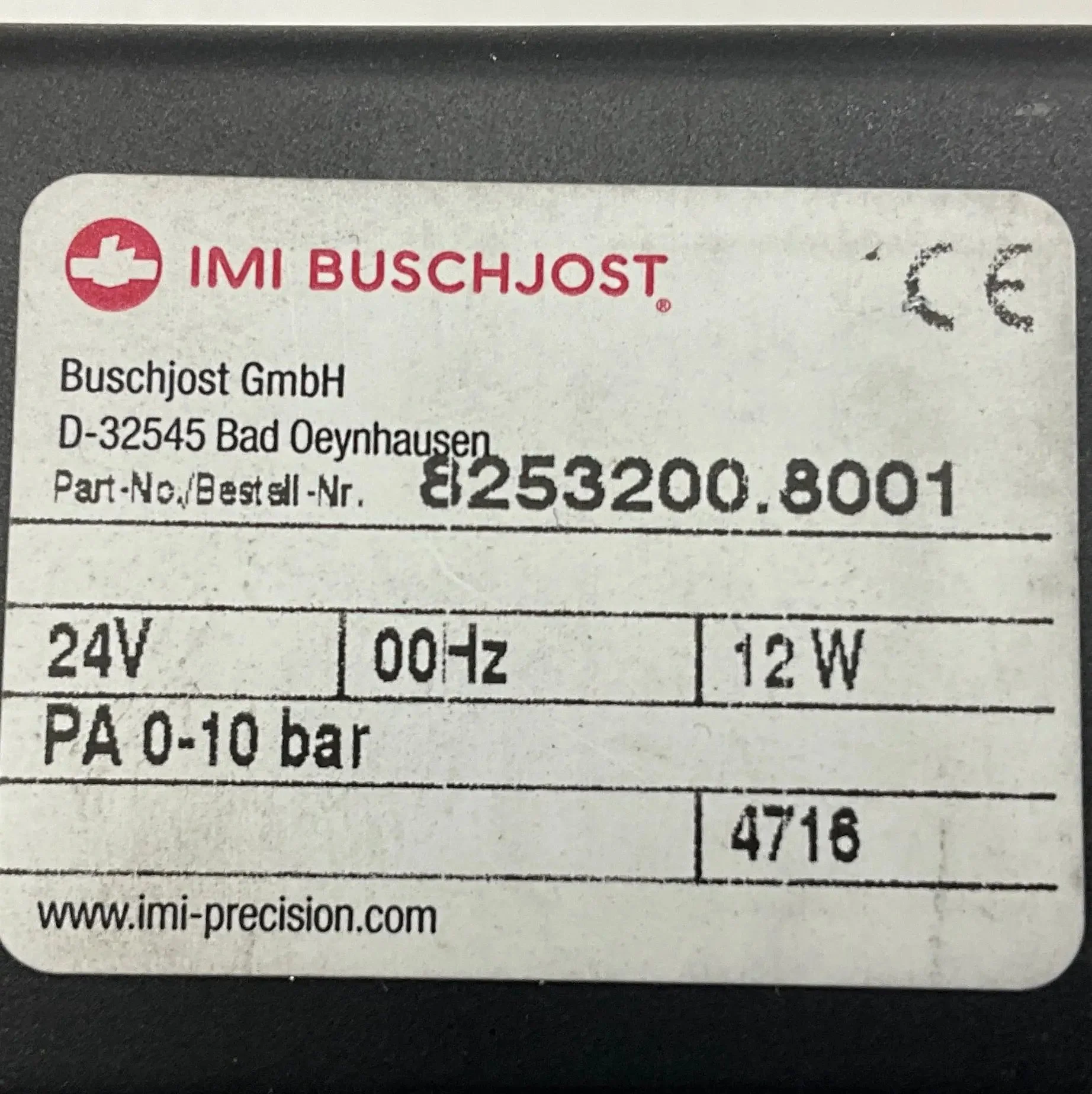

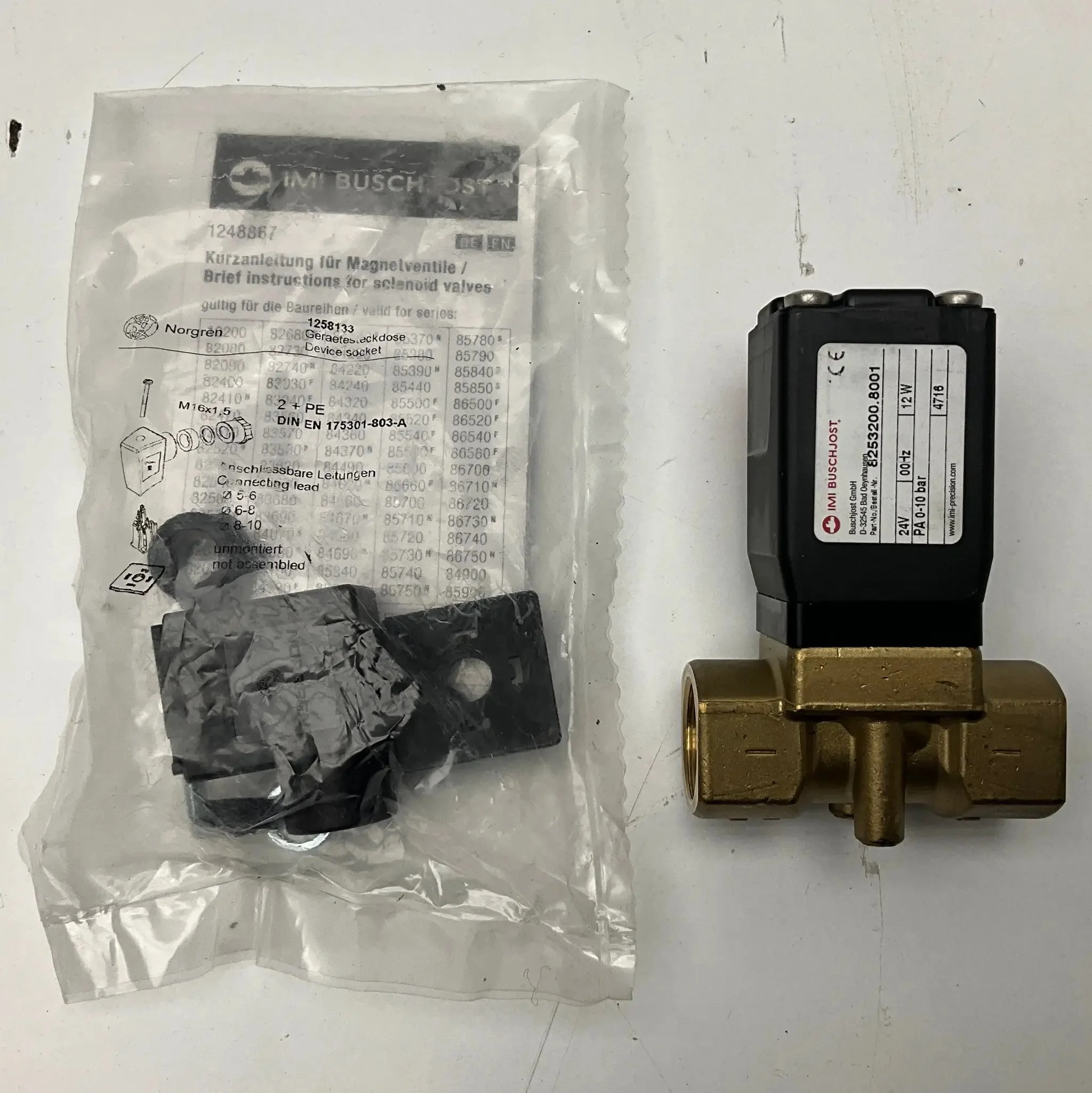

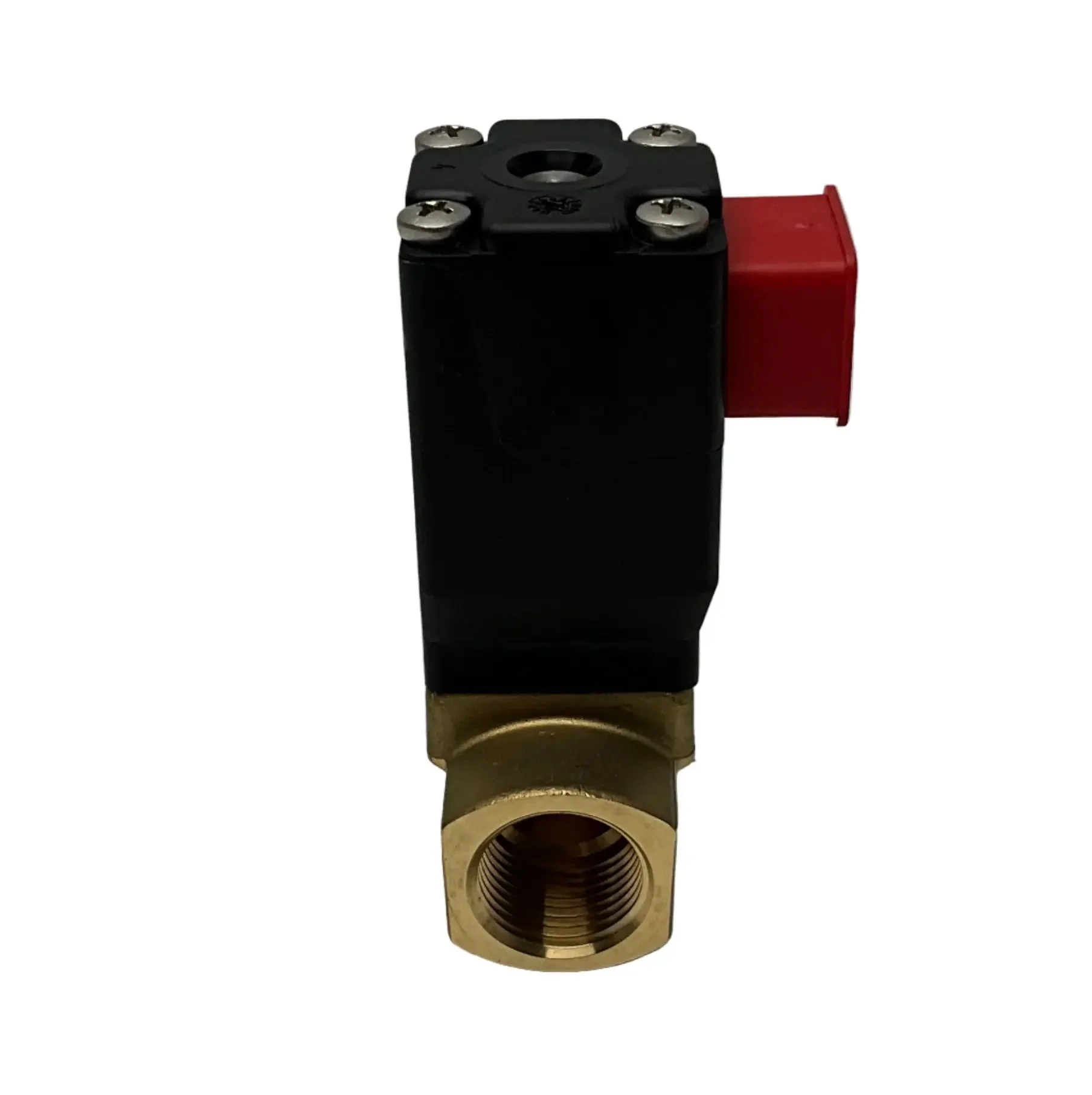

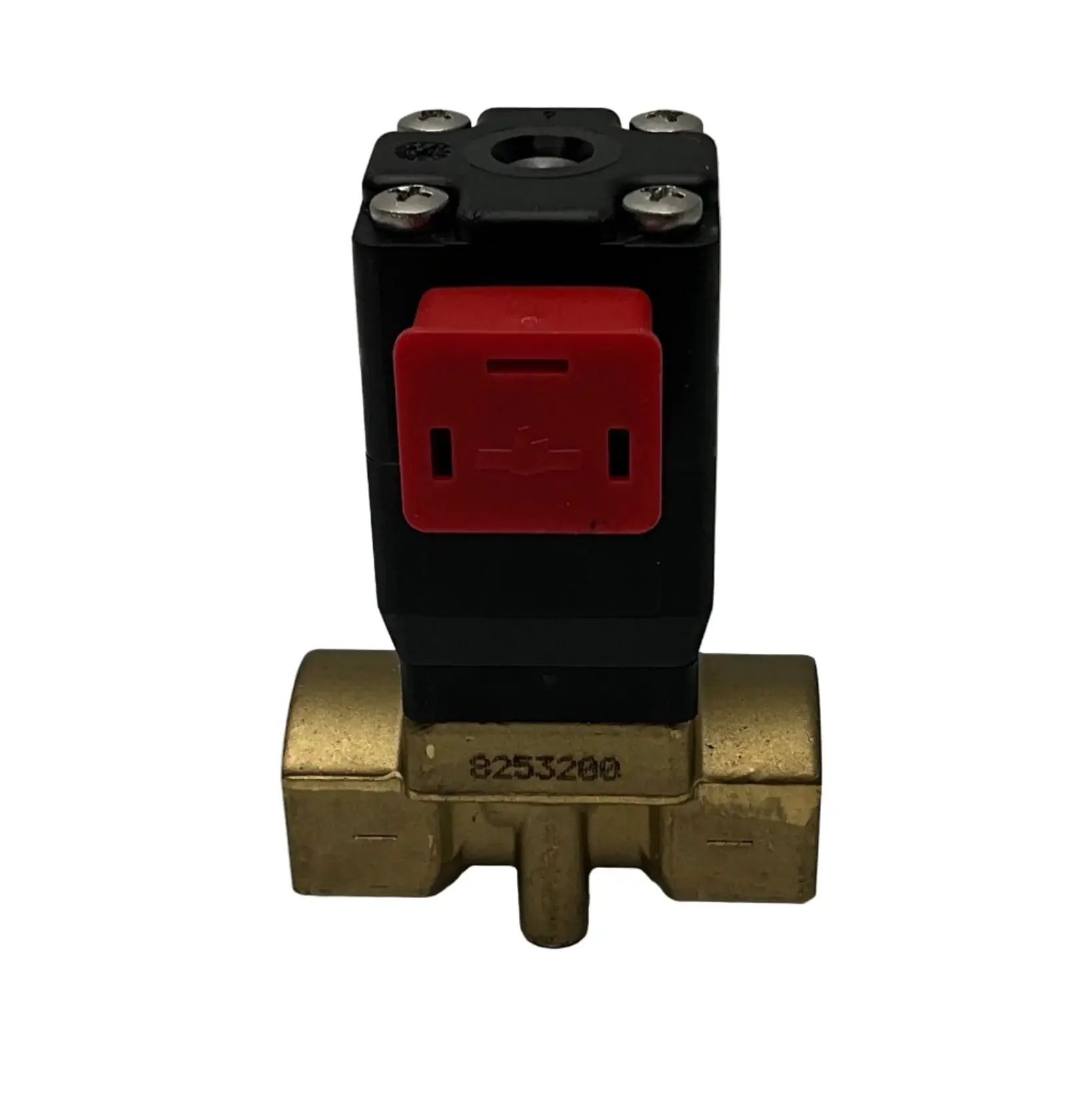

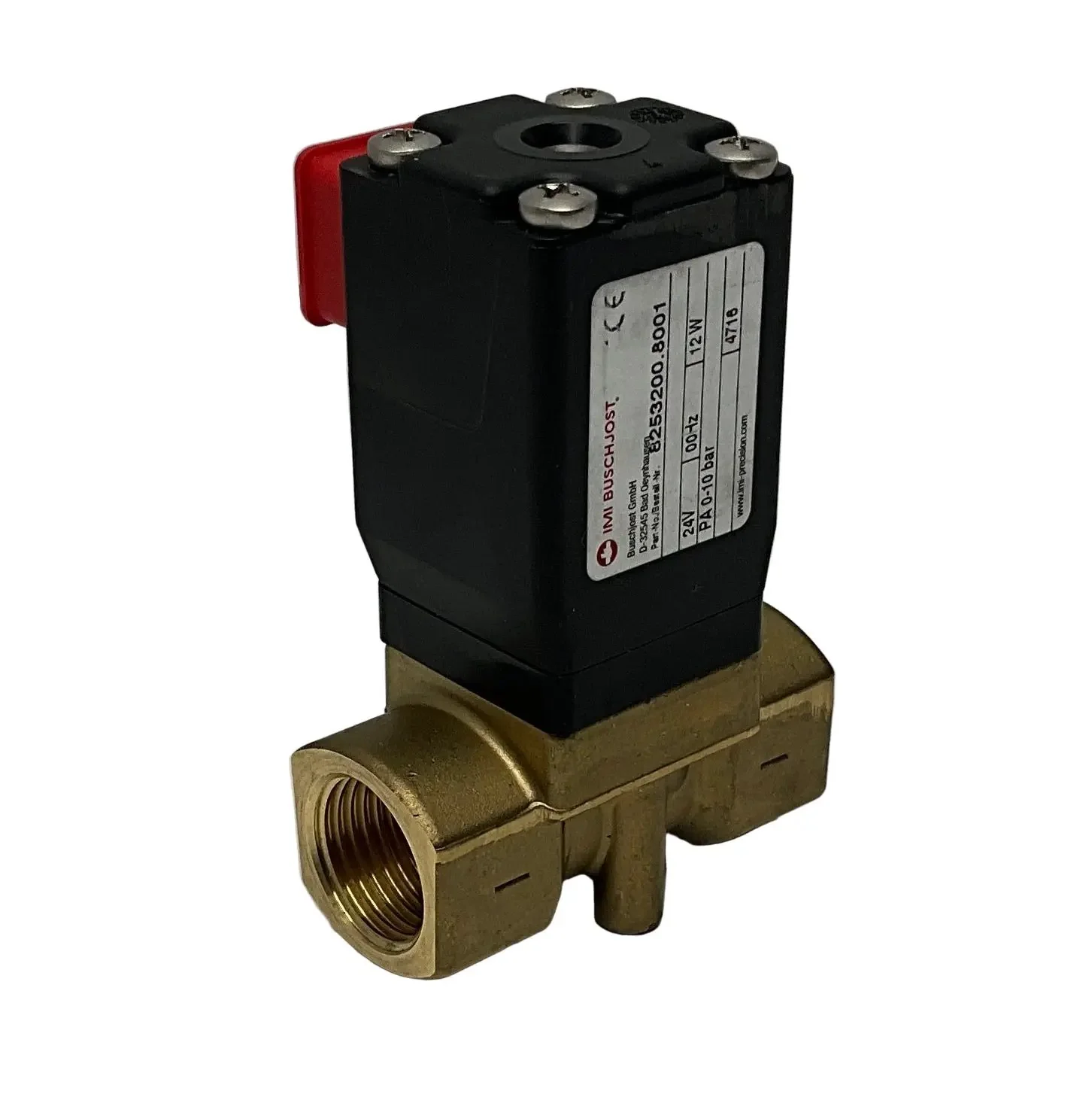

IMI Buschjost 8253200.8001 Solenoid Valve

Brand: IMI Buschjost
Model: 8253200.8001
Type: Solenoid Valve
Part Number: 8253200.8001

Technical Specs:
- Valve Function: 2/2-way, Normally Closed (NC), pilot-operated
- Port Connection: G 1/2 (internal thread)
- Orifice Size: 14 mm
- Operating Pressure Range: 0 to 10 bar
- Flow Rate: 5-10 m³/h
- Media: Neutral liquids and gases
- Media Temperature Range: -10°C to +100°C
- Ambient Temperature Range: -20°C to +55°C
- Body Material: Brass
- Seal Material: NBR
- Voltage: 24 V DC
- Power Consumption: 12 W
- Electrical Connection: DIN EN 175301-803 Form A
- Enclosure Rating: IP65
- Duty Cycle: 100%
- Response Time: < 50 ms
- Additional Features:
  - Rotatable solenoid (360°) for flexible installation
  - Manual override option available
  - Compact design for space-saving applications

Dimensions: 140 x 120 x 80 mm

Weight: 500 g

Country of Origin: Germany

HS Code: 8481.80
