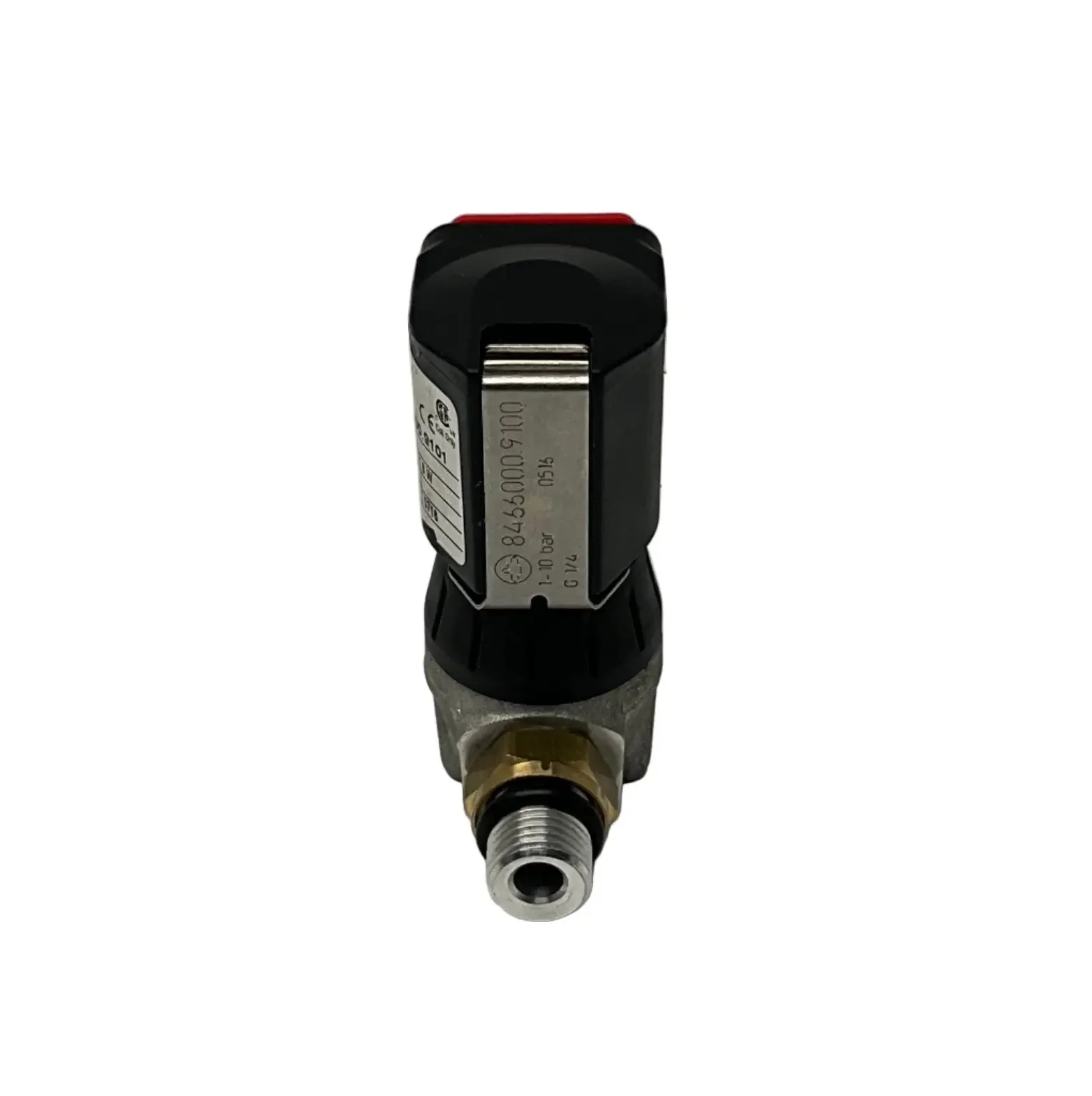

IMI Buschjost 8466000.9101 Solenoid Valve - 24 V DC

Brand: IMI Buschjost (IMI Norgren)
Model: 8466000.9101
Type: Solenoid Valve
Part Number: 8466000.9101

Technical Specs:
- Valve Function: 3/2-way, Normally Closed (NC), pilot-operated
- Port Connections: G 1/4 (internal thread) G 1/4 (external thread)
- Orifice Size: 1.6 mm
- Flow Coefficient (Kv): 0.07 m³/h
- Operating Pressure Range: 0 to 10 bar
- Media: Neutral gaseous and liquid fluids
- Media Temperature Range: -10°C to +60°C
- Ambient Temperature Range: -10°C to +60°C
- Body Material: Aluminium
- Seal Material: NBR
- Voltage: 24 V DC
- Power Consumption: 8 W
- Electrical Connection: DIN EN 175301-803 Form A
- Enclosure Rating: IP65
- Duty Cycle: 100%
- Response Time: < 50 ms
- Additional Features:
  - Compact design for direct mounting to angle seat valves
  - Noiseless exhaust for quiet operation
  - Low power consumption for energy efficiency
  - Ventilation and noise insulation
- Certifications: CE, RoHS compliant

Dimensions: 80 x 70 x 30 mm

Weight: 250 g

Country of Origin: Germany

HS Code: 8481.80
