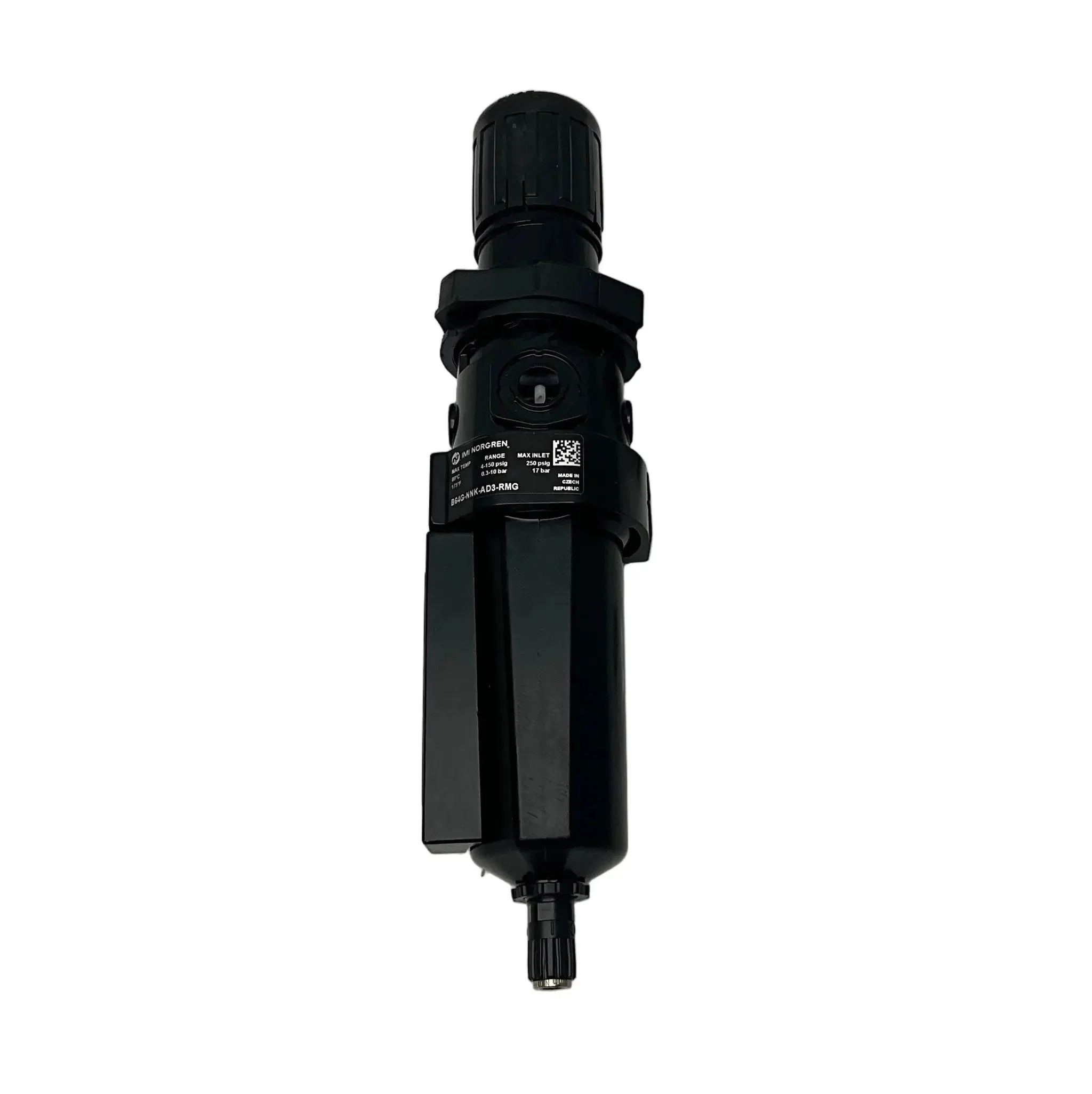

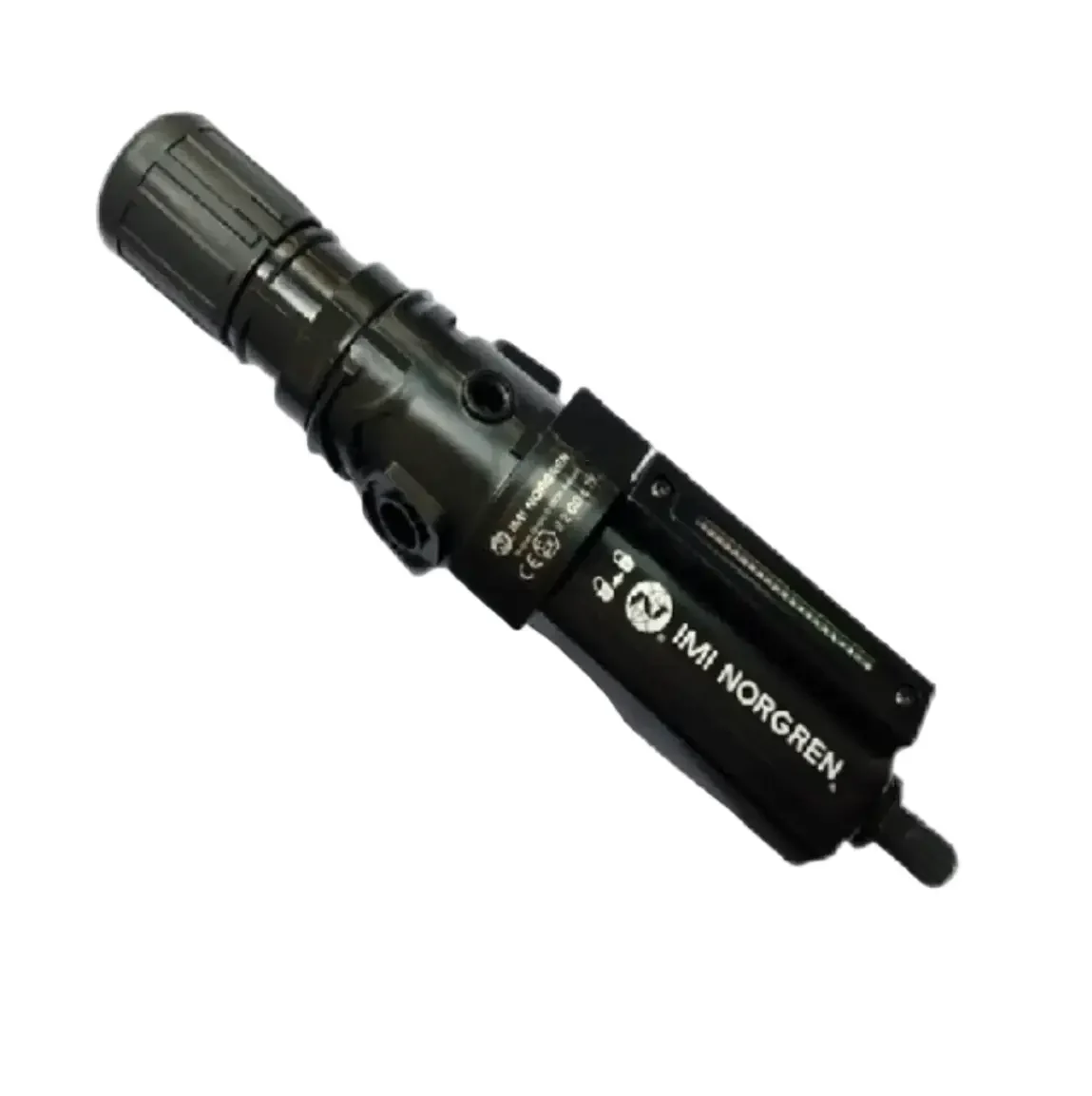

IMI Norgren B64G-NNK-AD3-RMG Olympian Plus Regulator/Filter

Brand: IMI Norgren
Model: Olympian Plus
Type: Coalescing Filter/Regulator
Part Number: B64G-NNK-AD3-RMG

Technical Specs:
- Series: Olympian Plus B64G
- Port Size: without yoke
- Filter Element: 40 µm
- Regulator Type: Relieving type
- Pressure Range: 0.3 to 10 bar adjustable
- Maximum Inlet Pressure: 17 bar
- Flow Capacity: 106 dm3/sec
- Drain Type: Auto drain
- Bowl Material: Guarded polycarbonate bowl with metal bowl guard
- Element Drain: Manual or automatic drain
- Pressure Gauge: 0–10 bar
- Mounting: Inline or bracket mount
- Temperature Range: -20 °C to +80 °C
- Media: Compressed air
- Additional Features:
  - Modular design
  - High flow capacity with low pressure drop
  - Automatic drain for condensate removal
  - Metal bowl guard for safety (MG)
  - Quick-release bayonet bowl for easy maintenance
  - Pressure gauge
  - Tamper-resistant pressure adjustment

Dimensions:
- Port Size: 1/2"
- Overall Height: 300 mm
- Width: Approx. 80 mm
- Depth: Approx. 90 mm

Weight: 1.5 kg

Country of Origin: Czechia

HS Code: 8421.39
