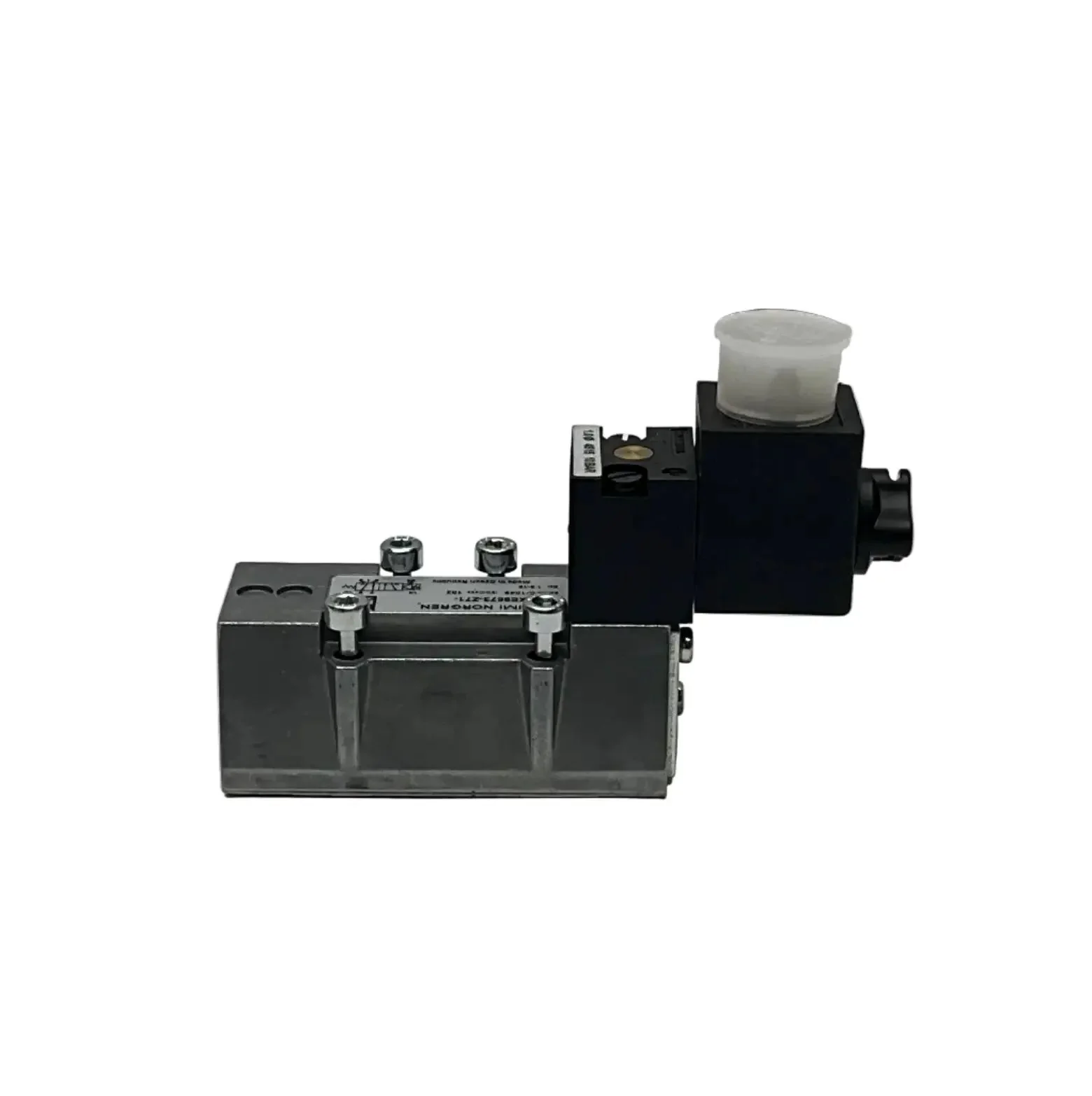

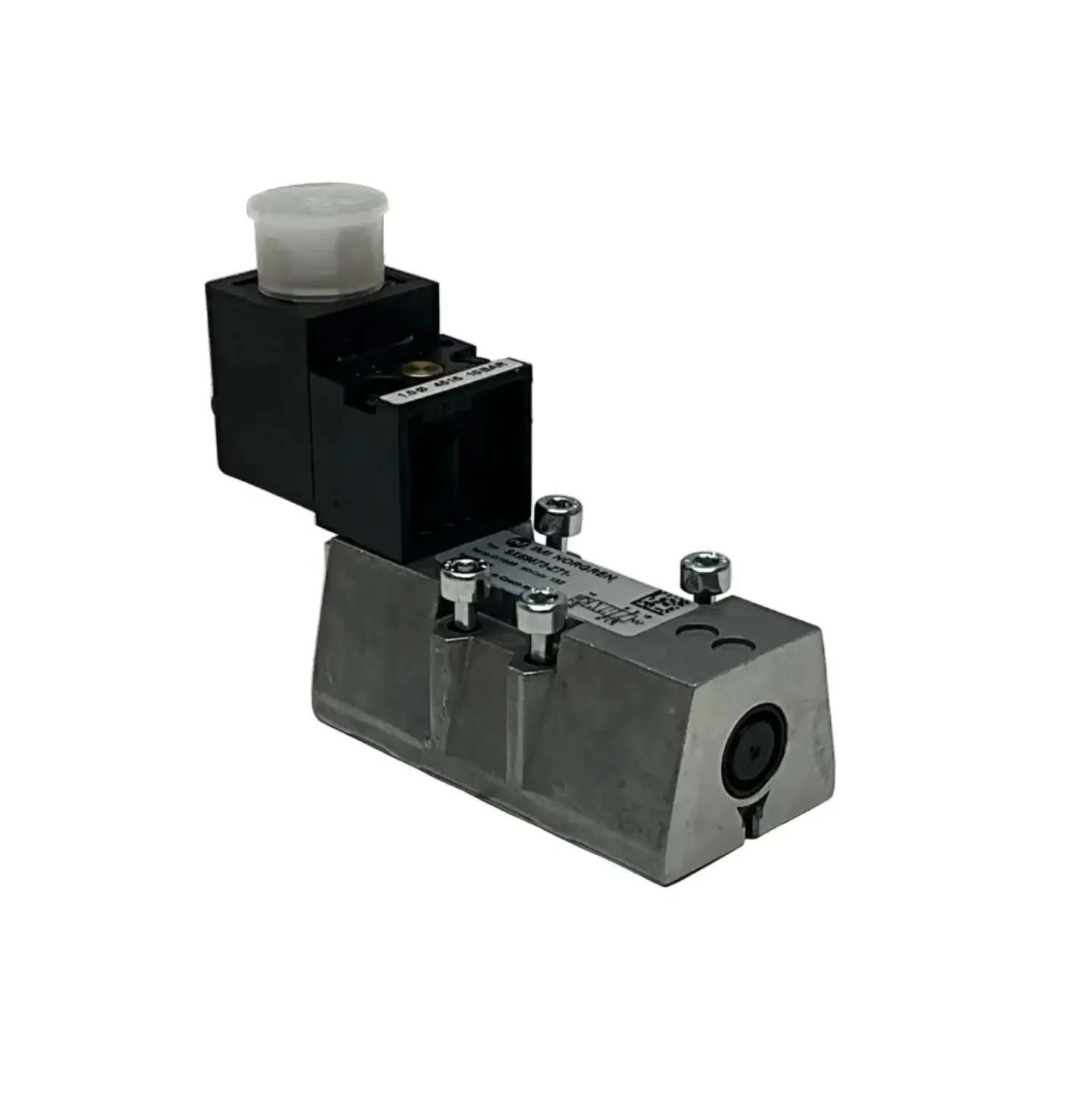

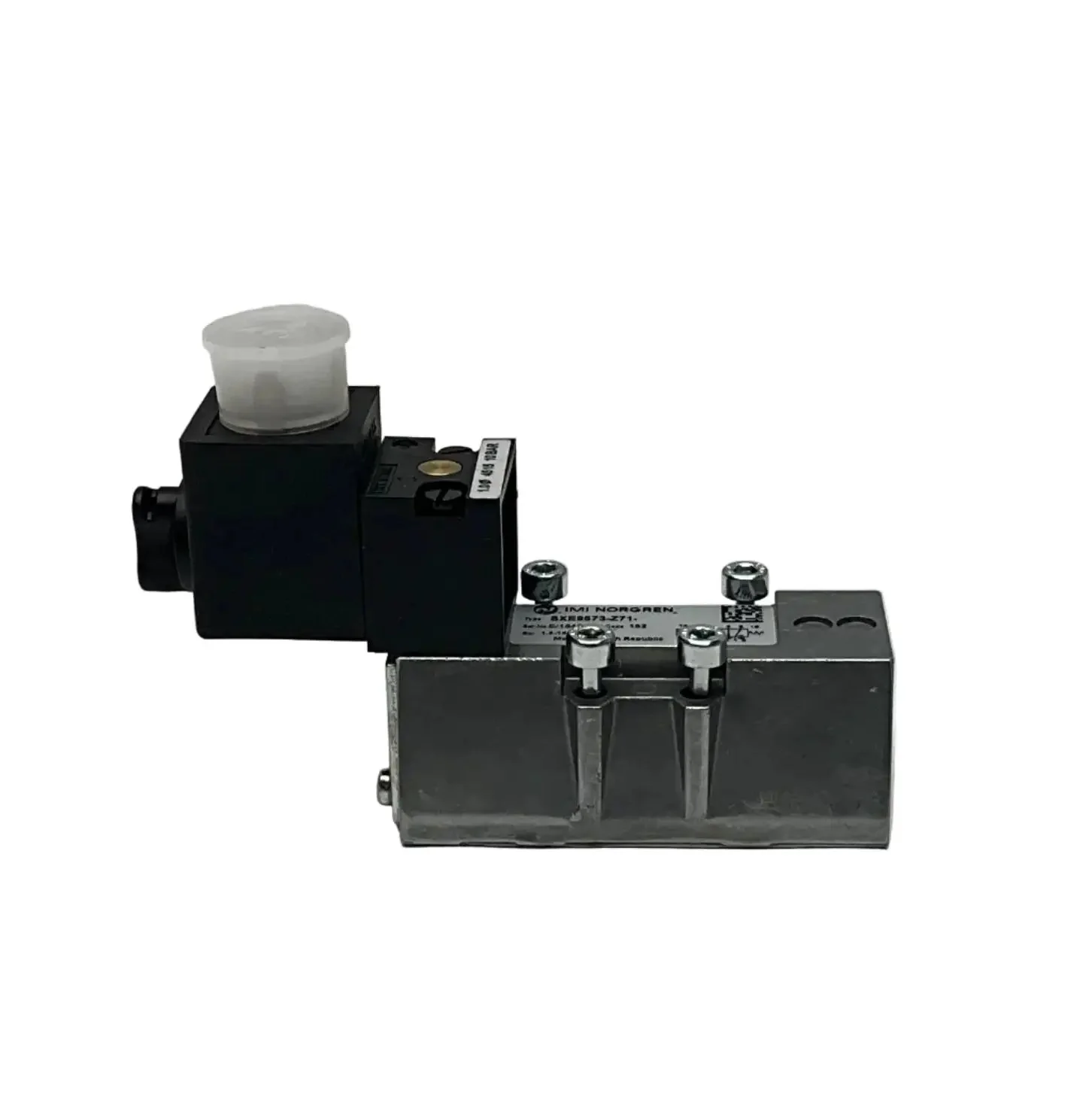

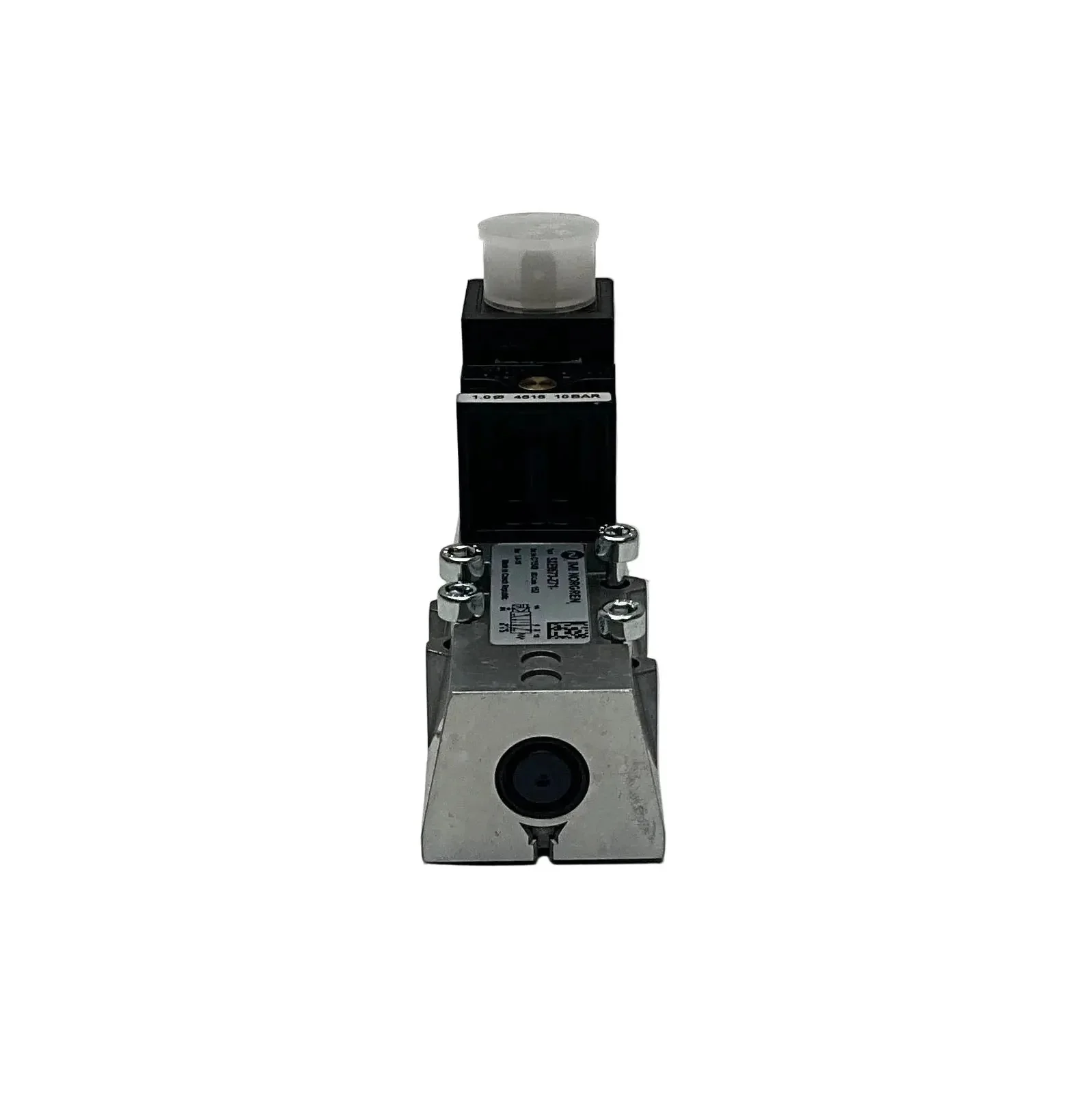

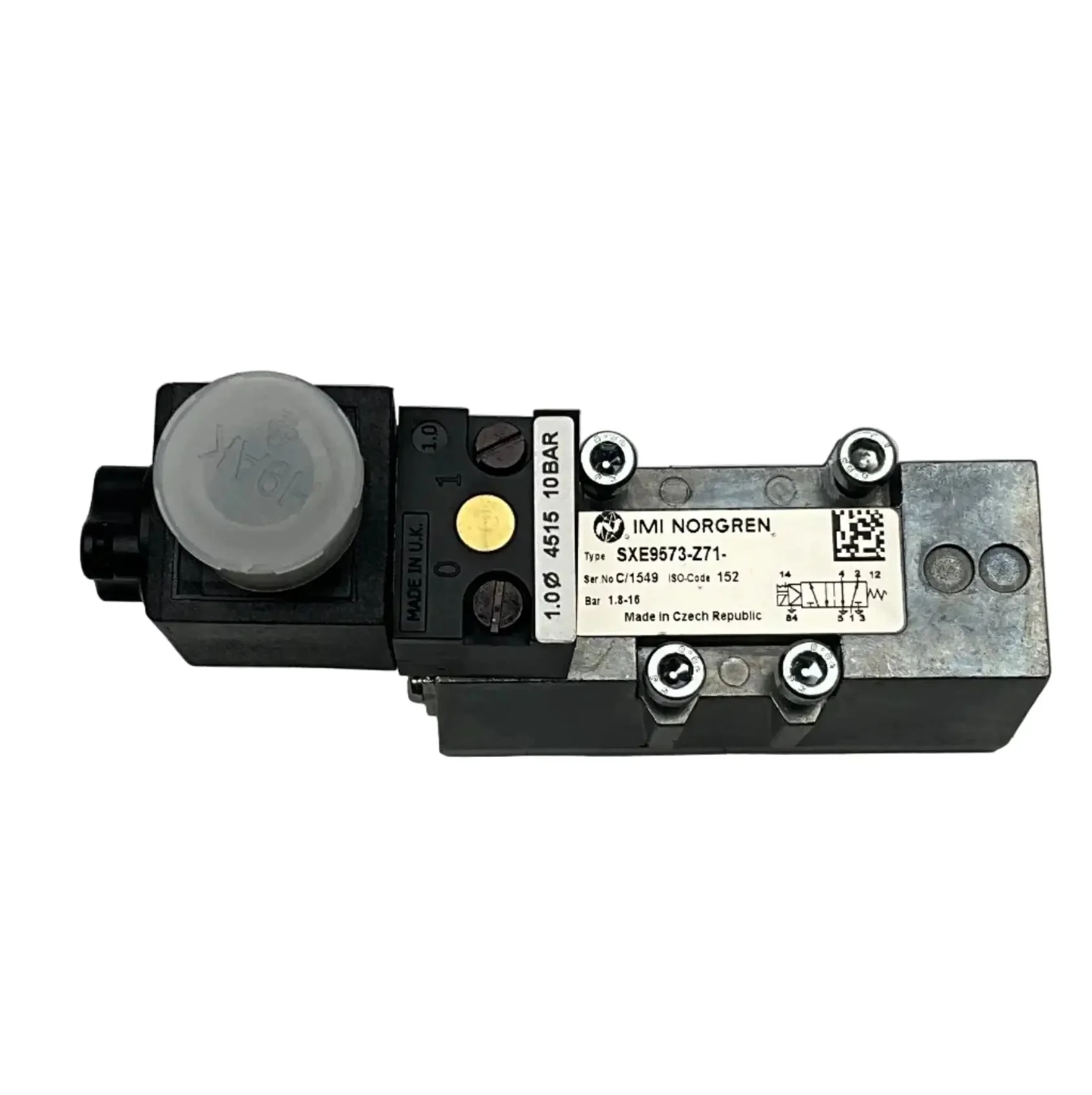

IMI Norgren SXE9573-Z71-61-23N 5/2 Way Solenoid Valve

- Brand: IMI Norgren
- Model: SXE9573-Z71-61-23N
- Type: 5/2 Way Solenoid Valve
- Part Number: SXE9573-Z71-61-23N

- Technical Specs:

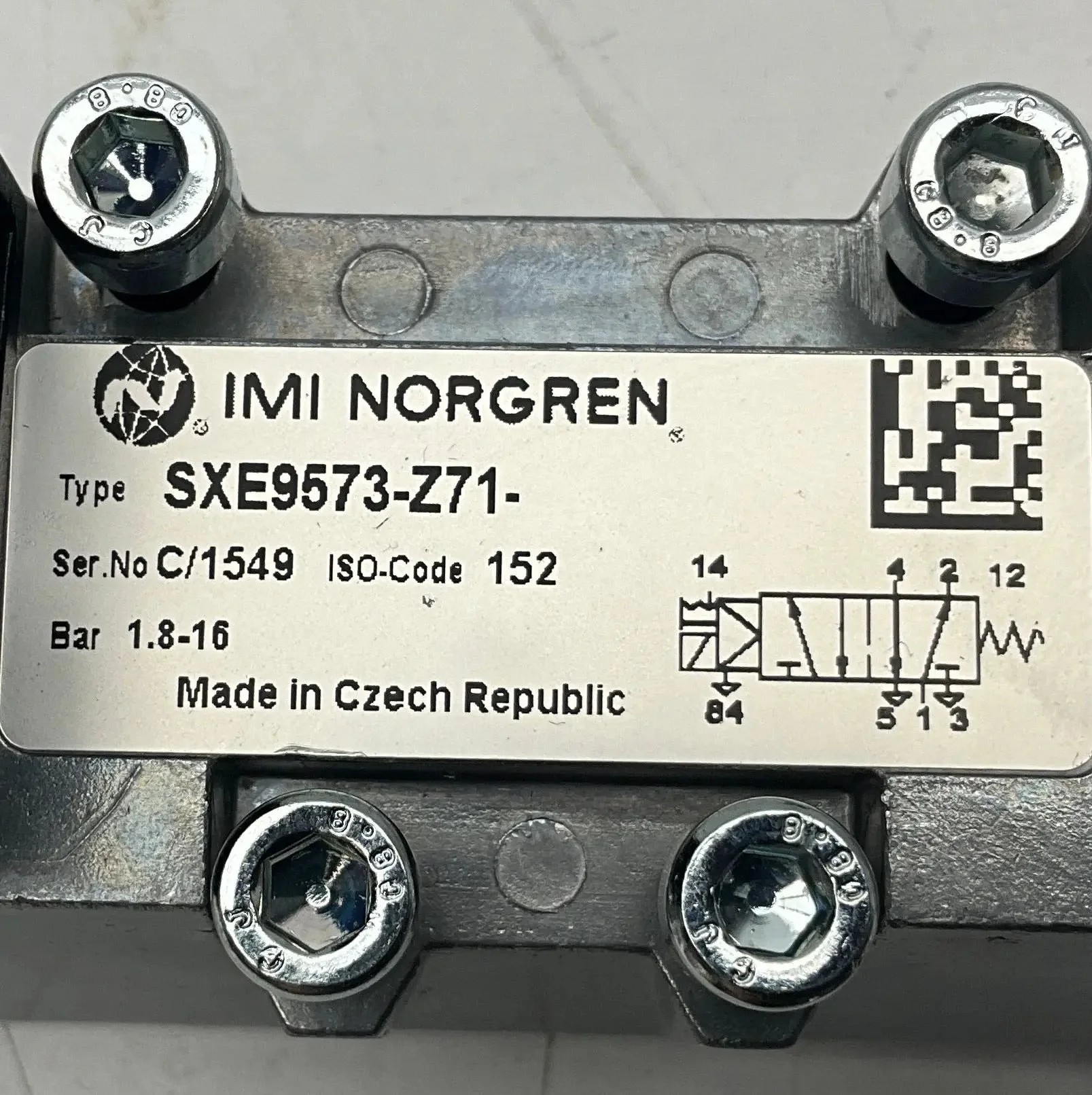

- Valve Type: 5/2-way single solenoid valve
- Flow Rate: 1250 l/min
- Operating Pressure Range: 1.8….16 bar
- Media: Compressed air
- Body Material: Die-cast aluminium
- Seals: Nitrile

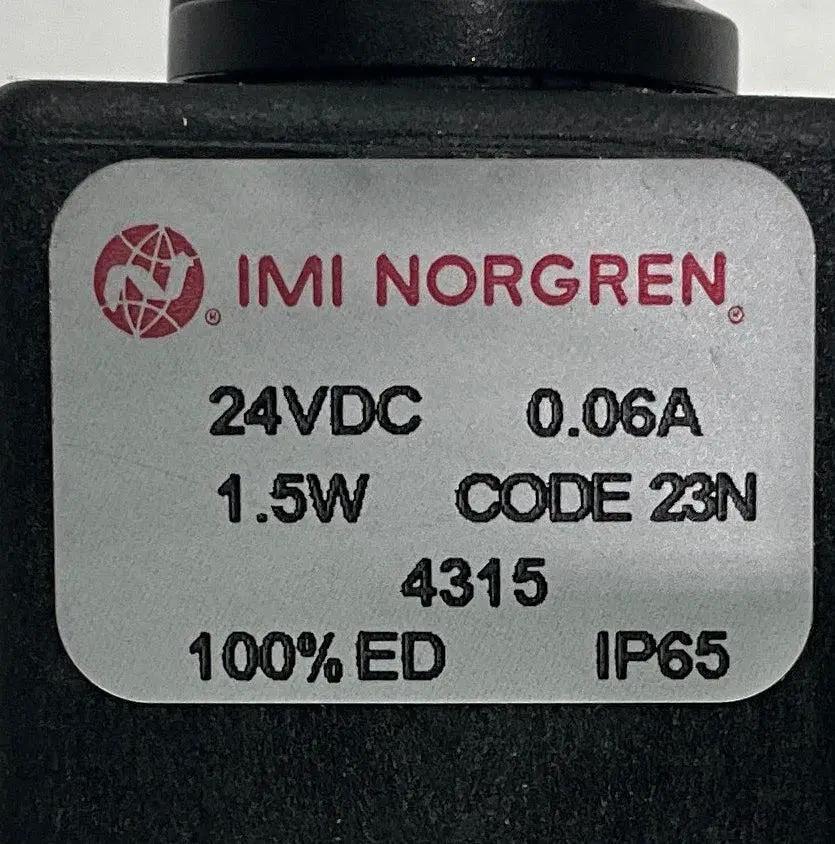

- Coil: 24 V DC 0.06 A
- Power Consumption: 1.5 W
- Electrical Connection: DIN 43650 Form A
- Protection Class: IP65
- Manual Override: Non-locking push button
- Mounting: Inline or manifold
- Operating Temperature: -10 °C to +50 °C

Dimensions: 150 x 50 x 65 mm

Weight: 400 g

Country of Origin: Czechia

HS Code: 8481.80
