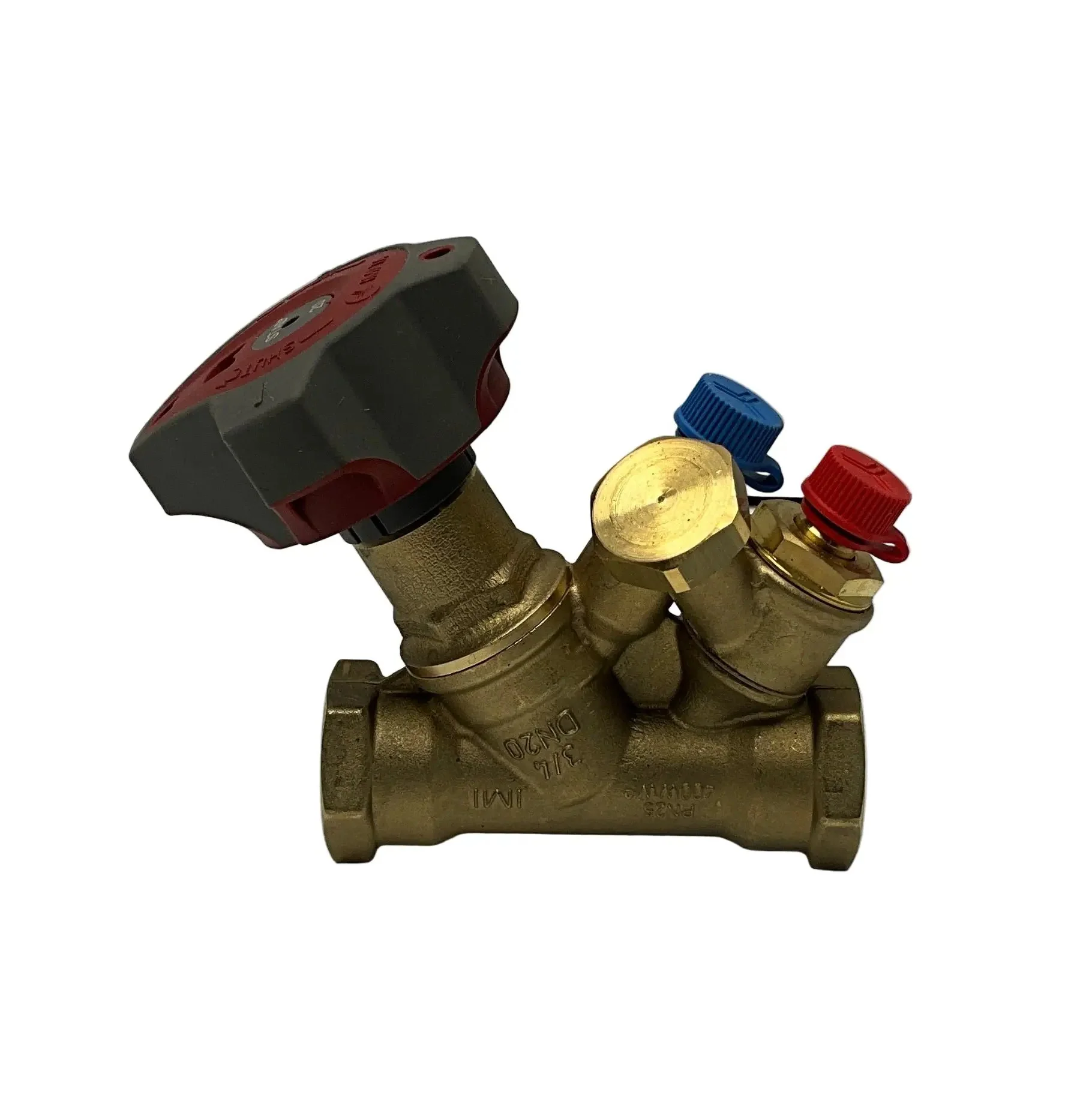

IMI TA Stad 52 851220 DN20 Balancing Valve

Brand: IMI TA (Hydronic Engineering)
Model: STAD 52
Type: Manual Balancing Valve
Part Number: 52851220

Technical Specs:
- Valve Type: Threaded manual balancing valve with pre-setting and measuring function
- Nominal Size: DN20
- Connection Type: Female threads G 3/4" (ISO 228)
- Pressure Rating: PN 25
- Kvs Value: 6.3 m³/h
- Temperature Range: -20°C to +120°C continuous; intermittent up to +150°C
- Media: Water or neutral fluids, water-glycol mixtures (0-57%)
- Body Material: Brass
- Seal Material: EPDM
- Additional Features:
  - Handwheel with micrometer scale for precise adjustment
  - Memory stop for repeatable settings
  - Suitable for differential pressure measurement
- Certifications: DVGW compliant

Dimensions: 130 x 130 x 65 mm

Weight: 0.8 kg

Country of Origin: Sweden

HS Code: 8481.80
