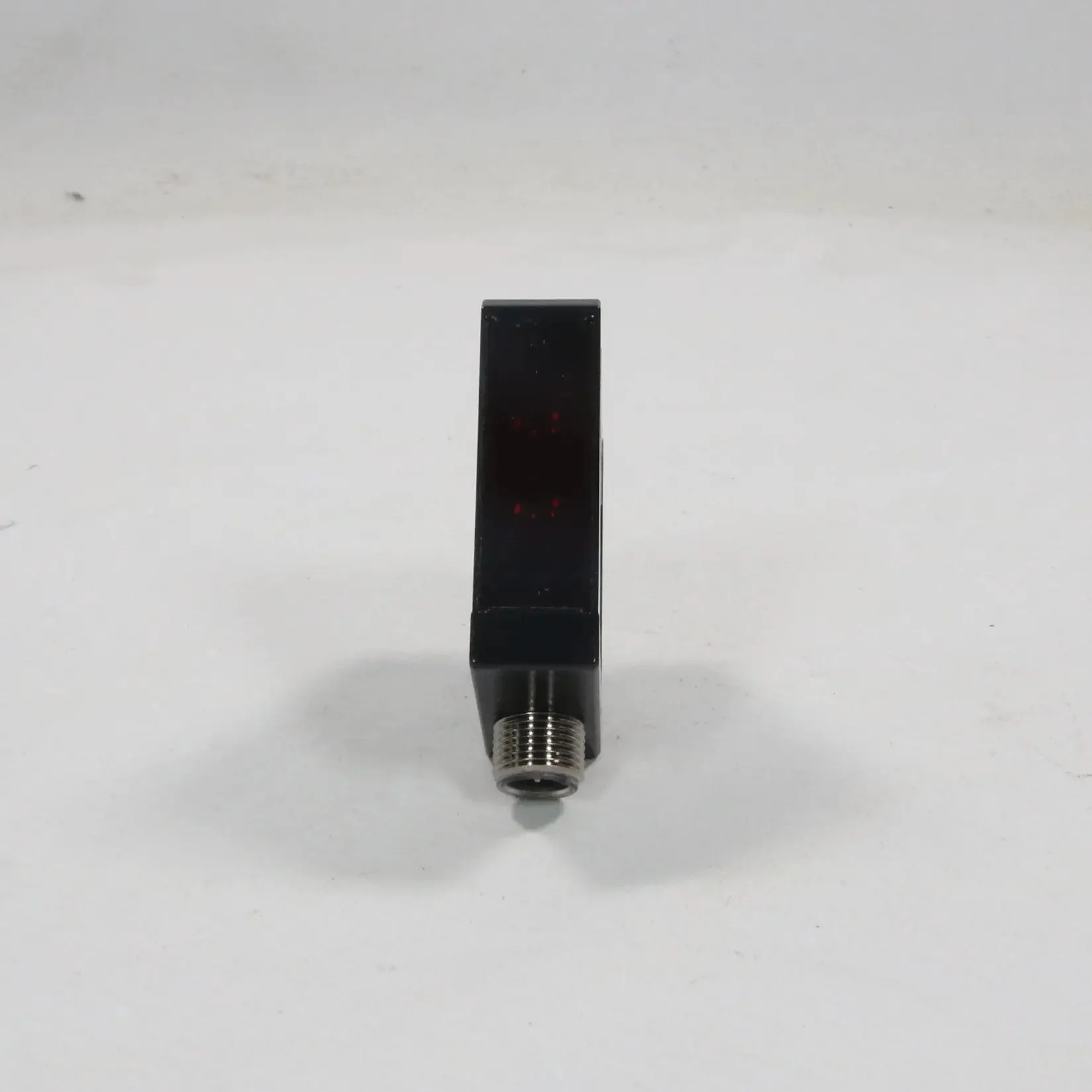

IPF Electronic OR170420 Retro Reflective Optical Sensor

- Brand: IPF Electronic GmbH

- Model: OR170420

- Type: Retro-Reflective Optical Sensor / Photoelectric Sensor

- Part number: 1844648

- Technical specifications:
- Sensing principle: Retro-reflective
- Sensing range: 0.1–7 m
- Light source: Polarised red light
- Output: PNP
- Switching frequency: 500 Hz
- Supply voltage: 10–30 V DC
- Current consumption: ≤30 mA
- Load current: 200 mA
- Connection: M12 connector
- Housing: Zinc die-cast with PMMA
- Degree of protection: IP67
- Operating temperature: -25°C to +60°C
- LED indicators: Power ON (green); switching status (yellow)
- Adjustment: Potentiometer for sensitivity/range setting
- Additional features: Polarization filter; background suppression not applicable (retro-reflective); high EMC immunity; short-circuit/overload/reverse polarity protection
- Standards: Compliant with IEC/EN 60947-5-2; CE marked

Weight: 150 g

Dimensions: 60 x 50 x 15 mm

Country of origin: Germany

HS code: 8536.50
