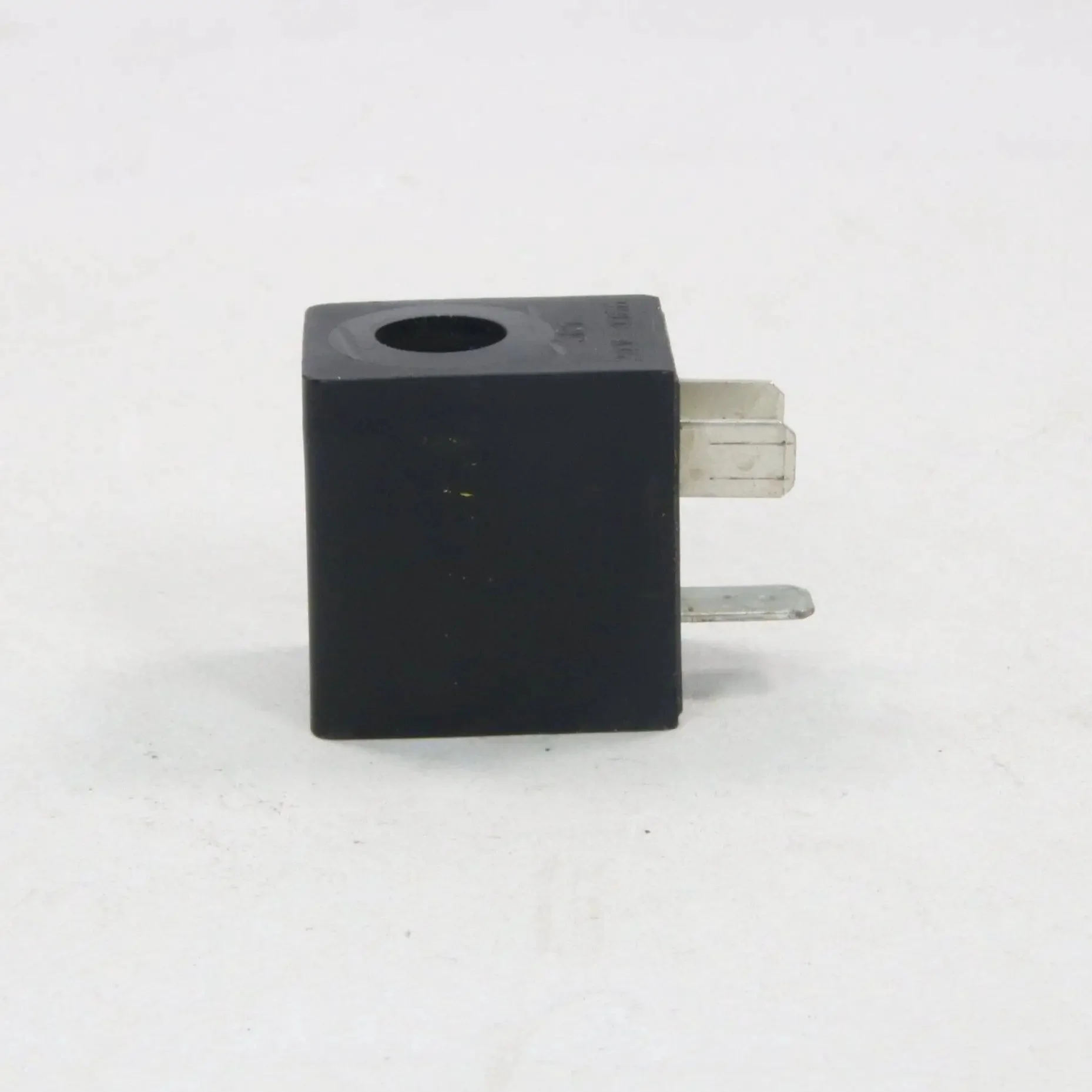

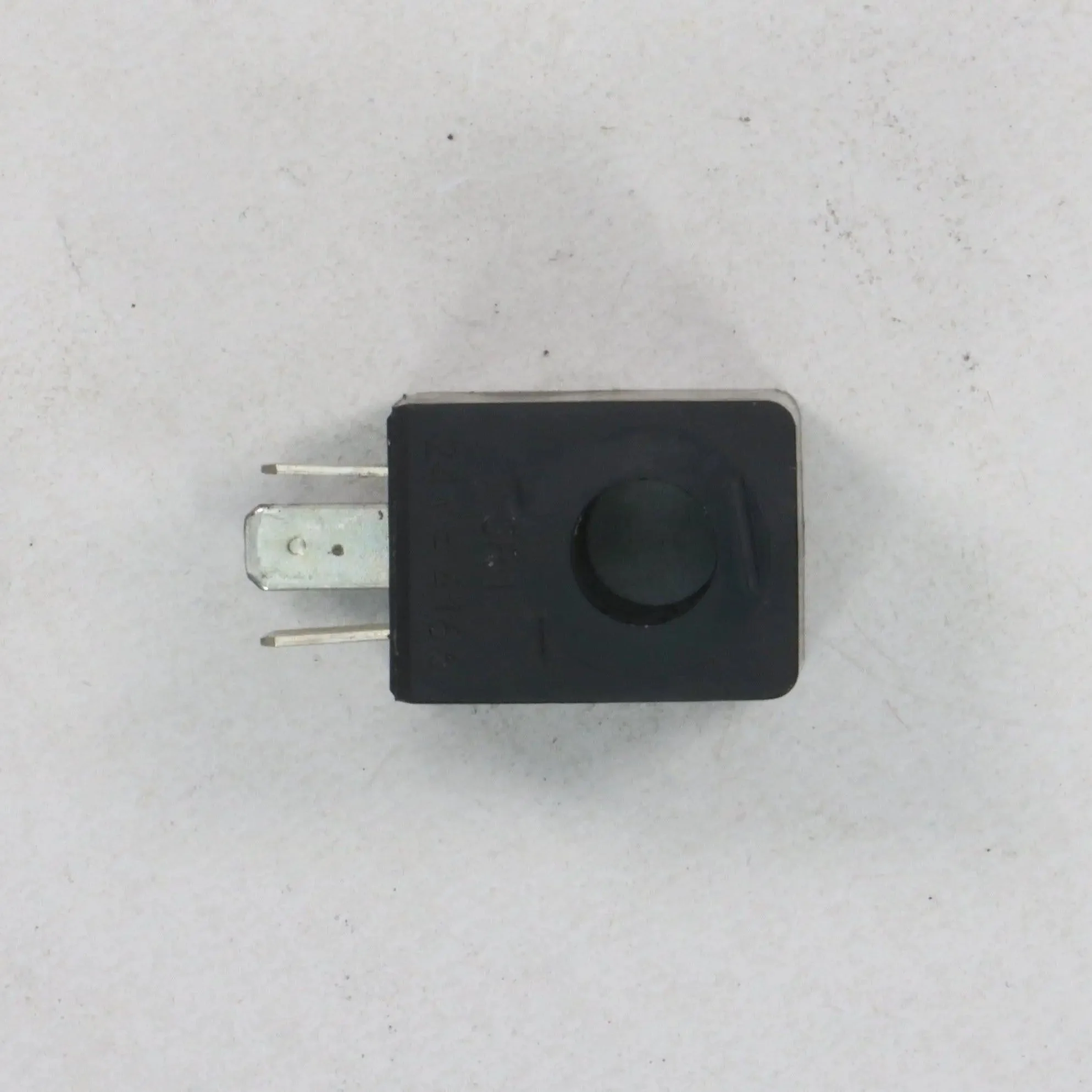

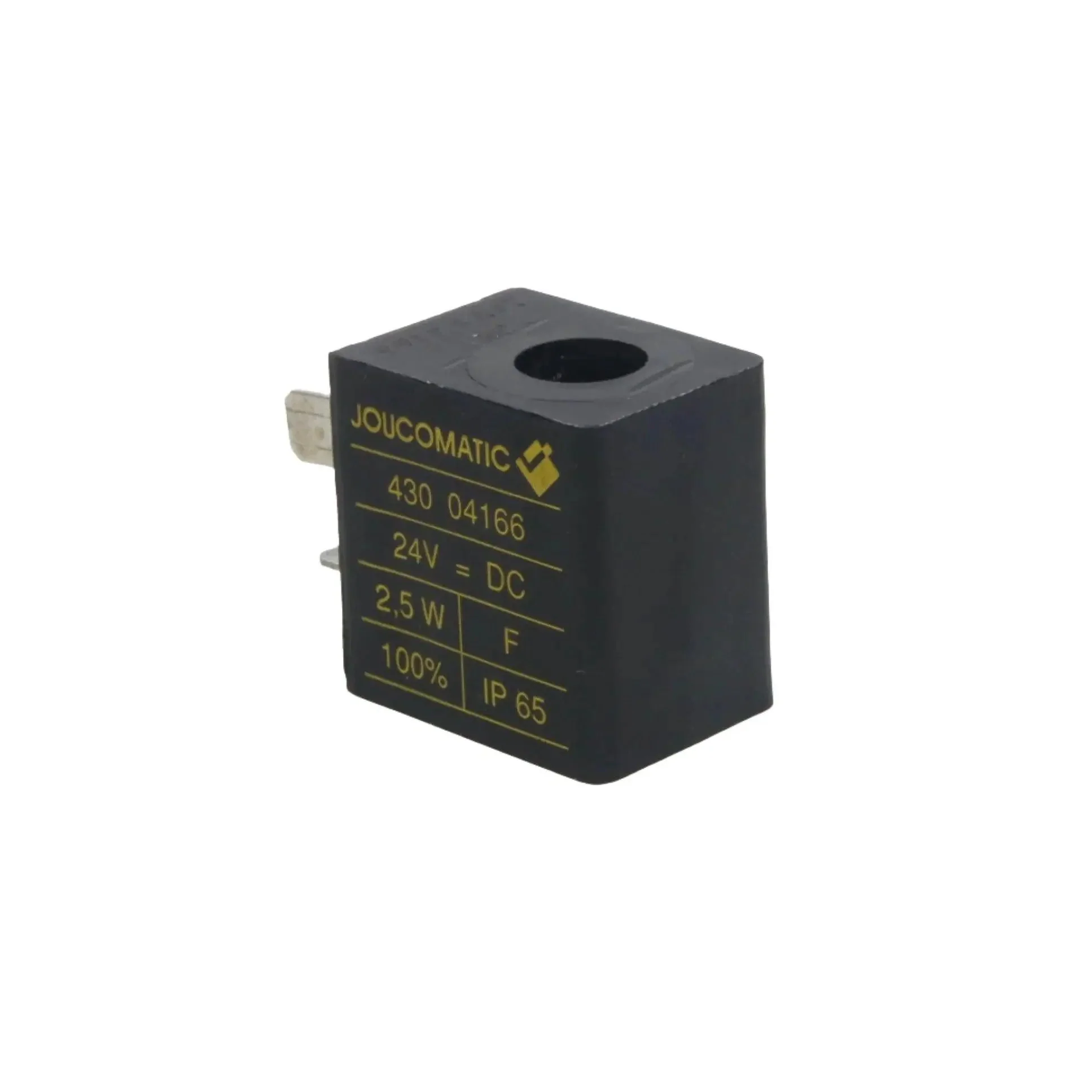

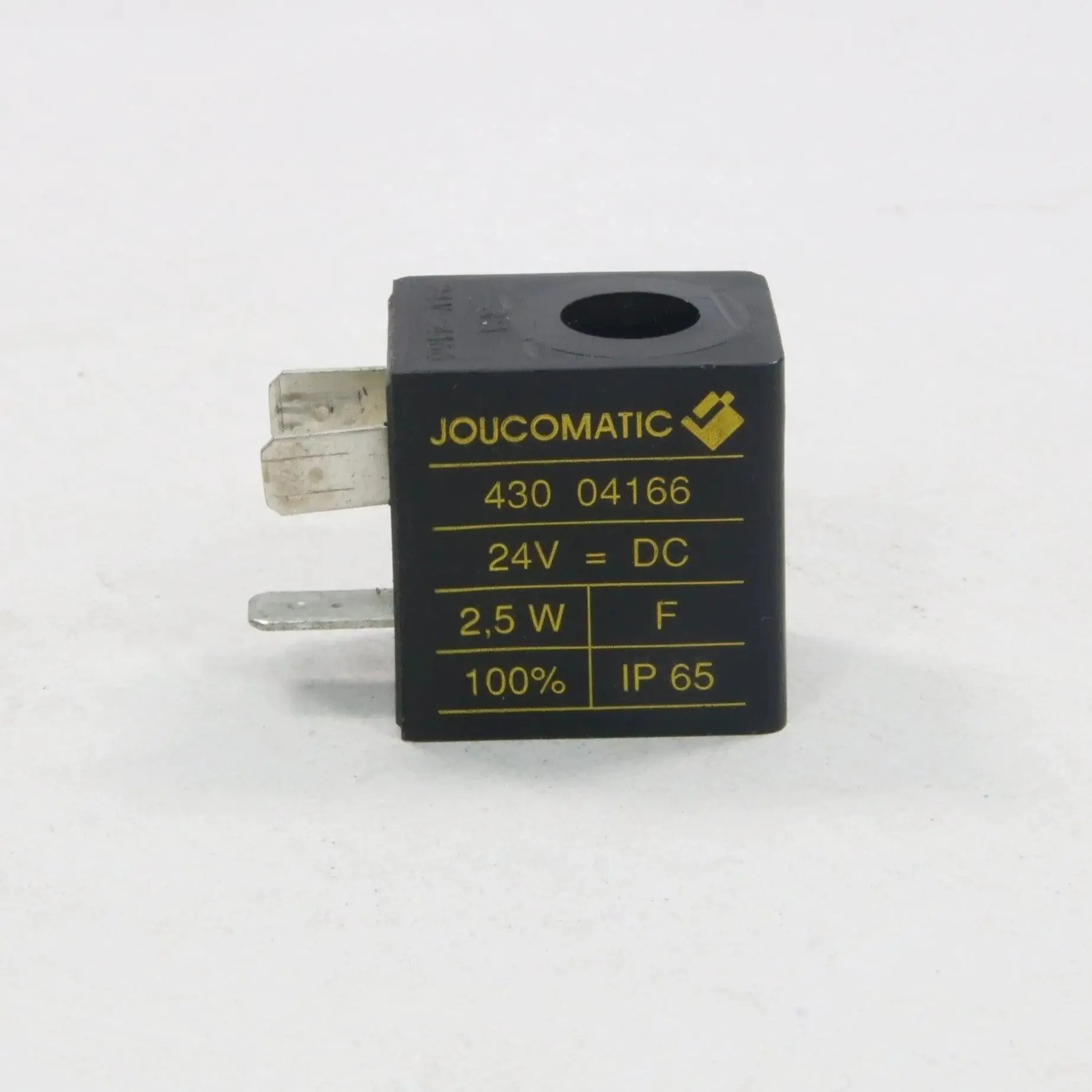

Joucomatic 430 04166 Solenoid Valve Coil

Brand: ASCO (Emerson)
Model: 430 04166
Type: Solenoid Valve Coil
Part Number: 43004166

Technical Specs:
- Coil Type: Solenoid coil with blade plug-in connection
- Voltage: 24 V DC
- Power Consumption: 2.5 W
- Insulation Class: F
- Protection Rating: IP65

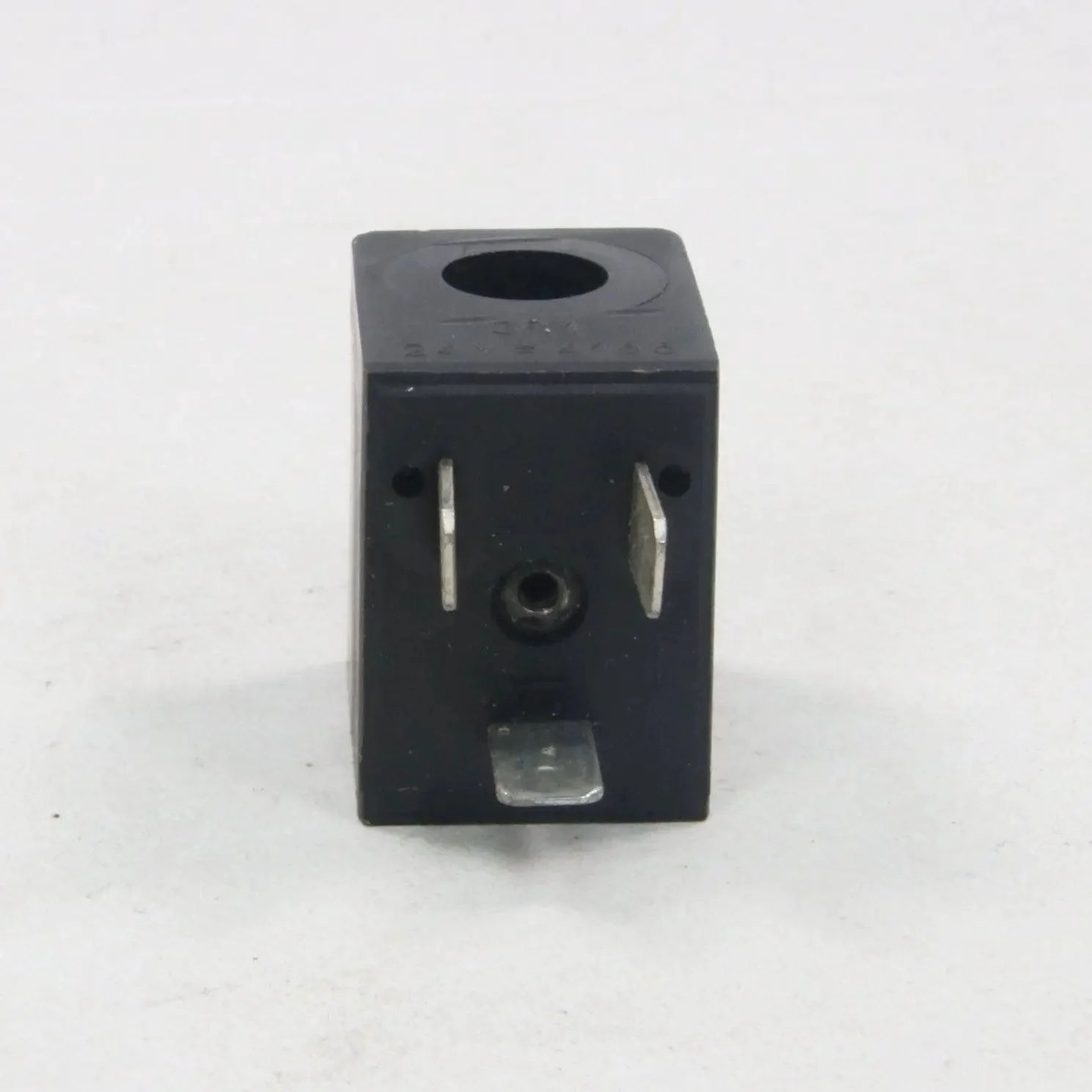

- Electrical Connection: 3-pin blade plug-in (F3 type, typically DIN 43650 compatible)
- Duty Cycle: 100% continuous operation (ED 100%)
- Ambient Temperature Range: -10°C to 40°C
- Medium: Air
- Operating Pressure Range: 0 to 10 bar
- Orifice Size: 1.2 mm (0.047 in)
- T.P.L.: 612009
- Certifications: Complies with IEC 335, EN 60730-1, UL 429
- Additional Features:
  - Designed for continuous duty within maximum ambient temperature limits
  - Compact and lightweight design for use with ASCO Joucomatic solenoid valves

Dimensions: 40 x 20 x 30mm

Weight: 60g

Country of Origin: France

HS Code: 8504.50
