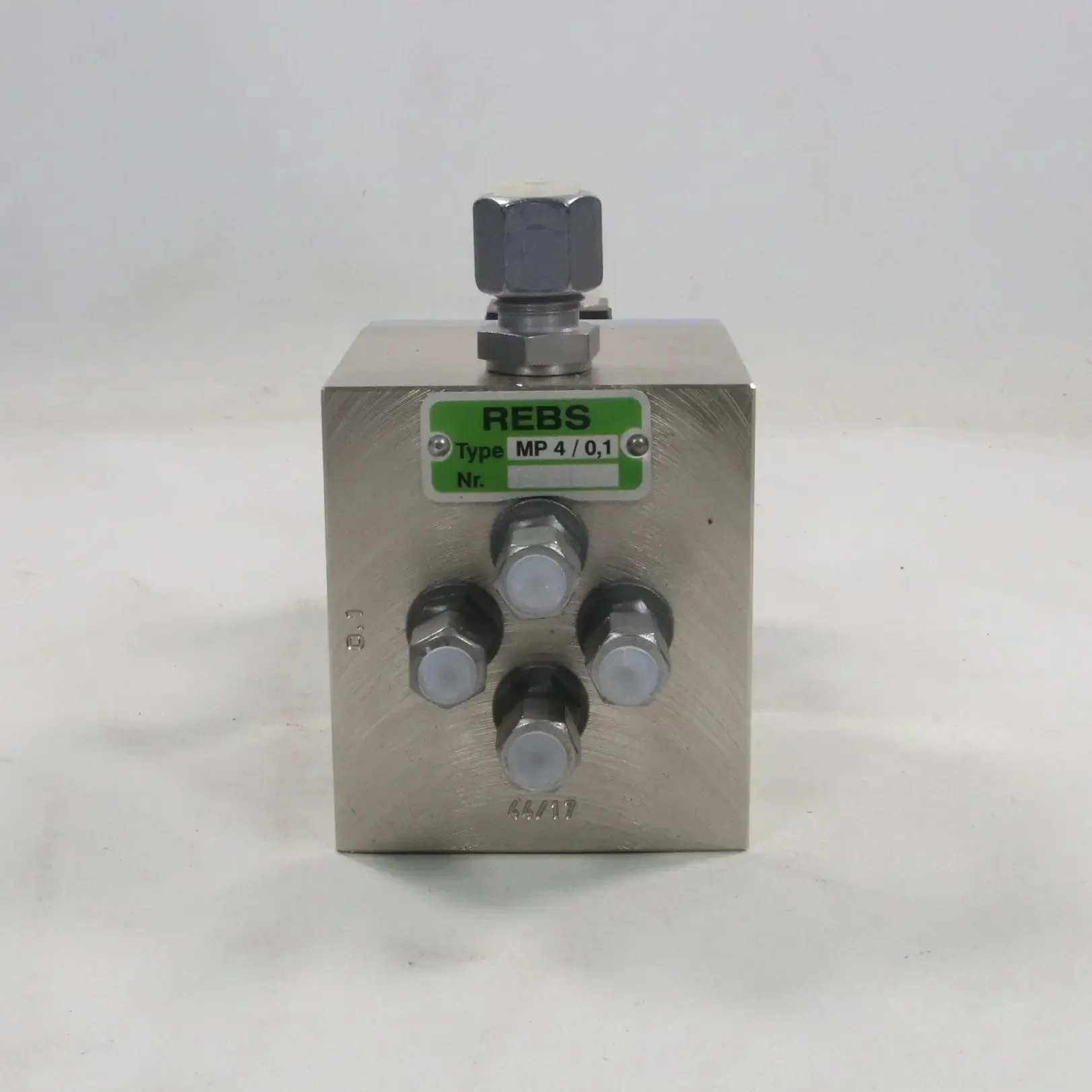

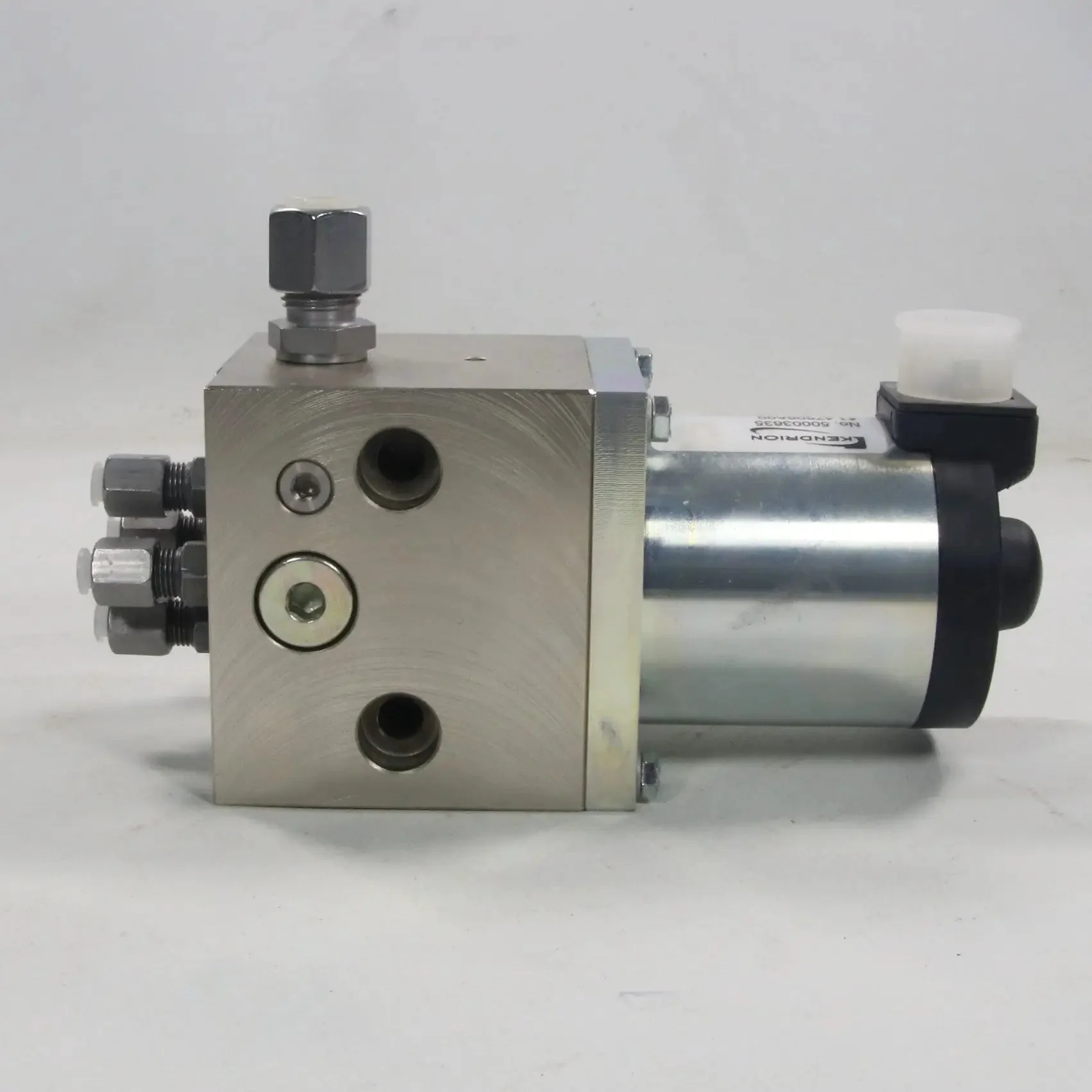

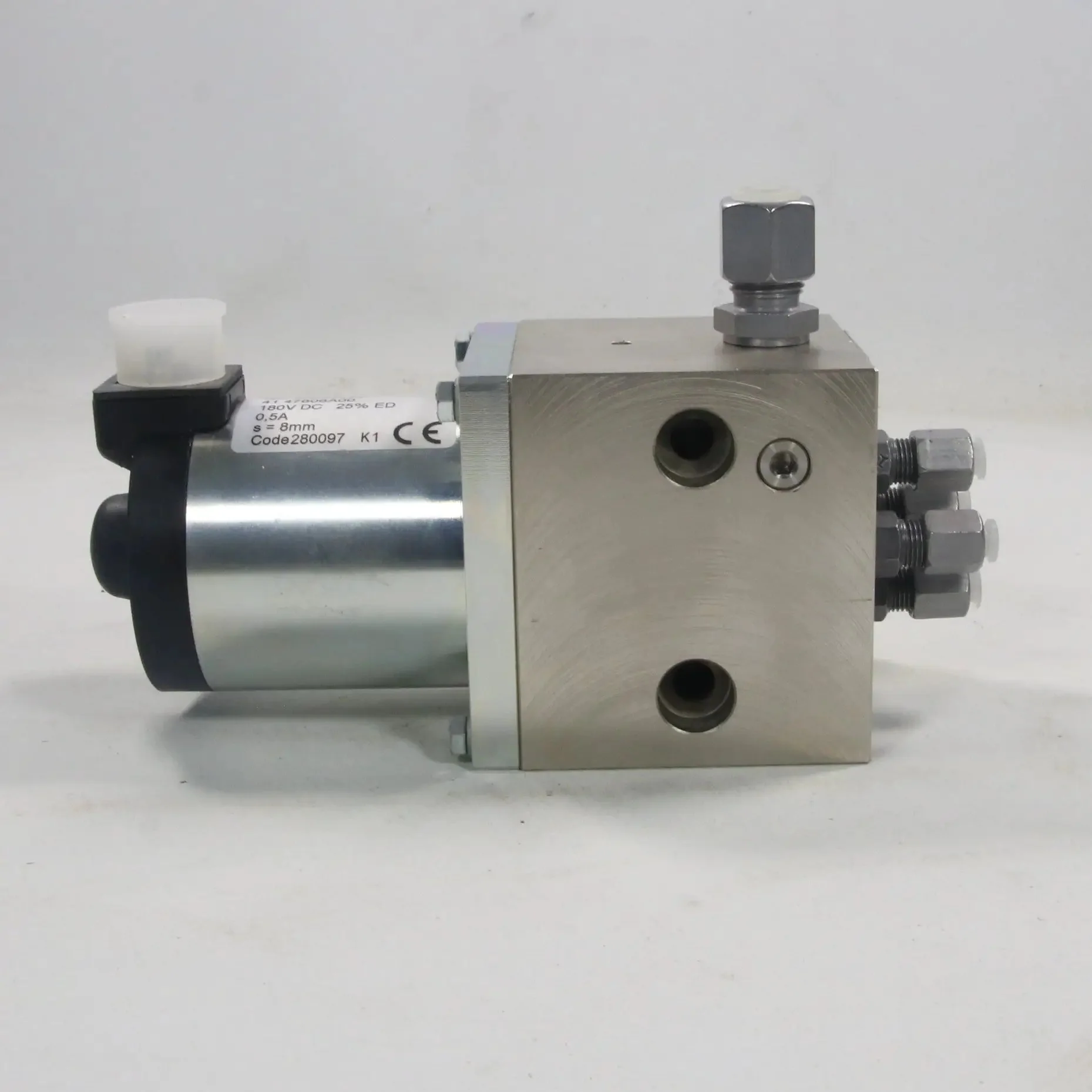

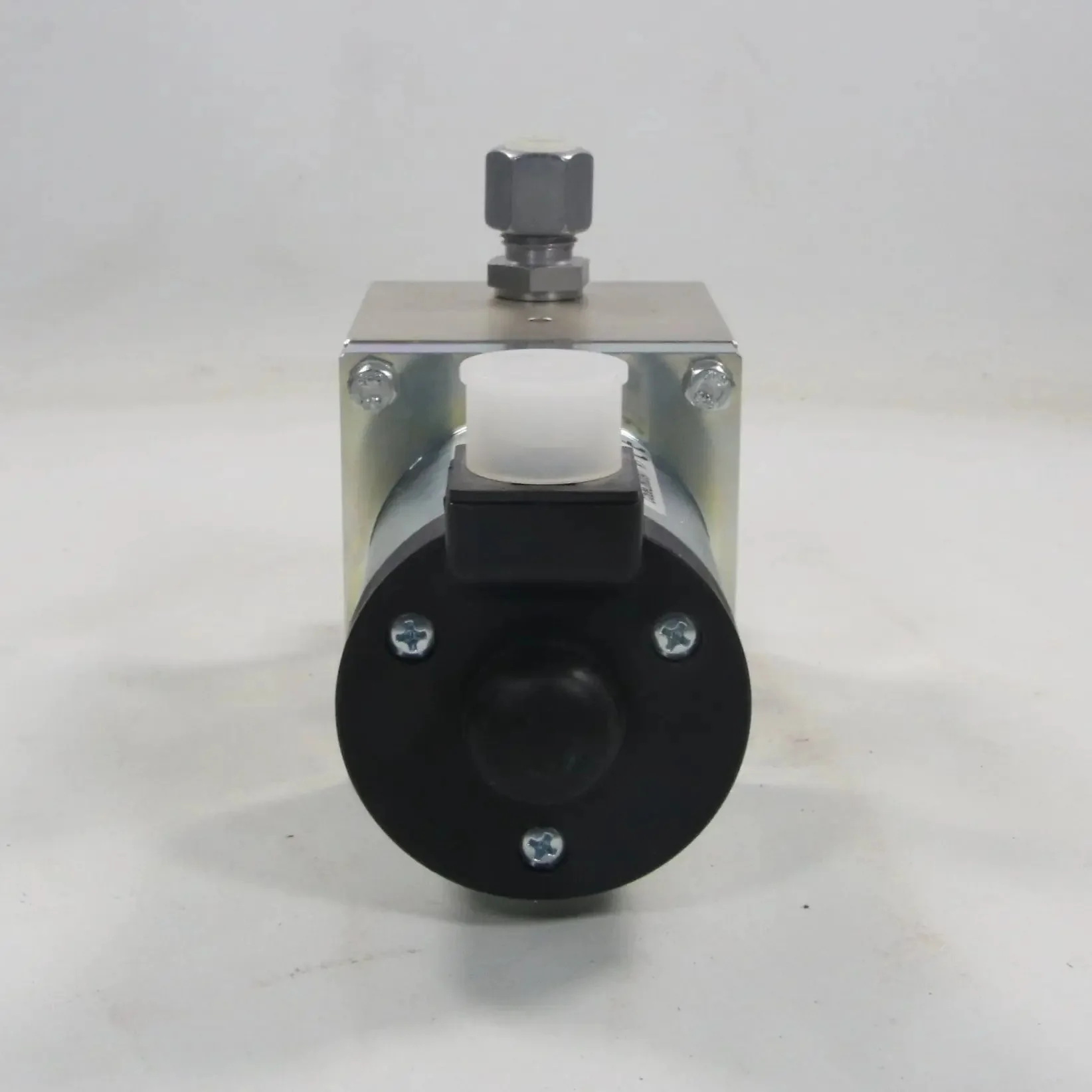

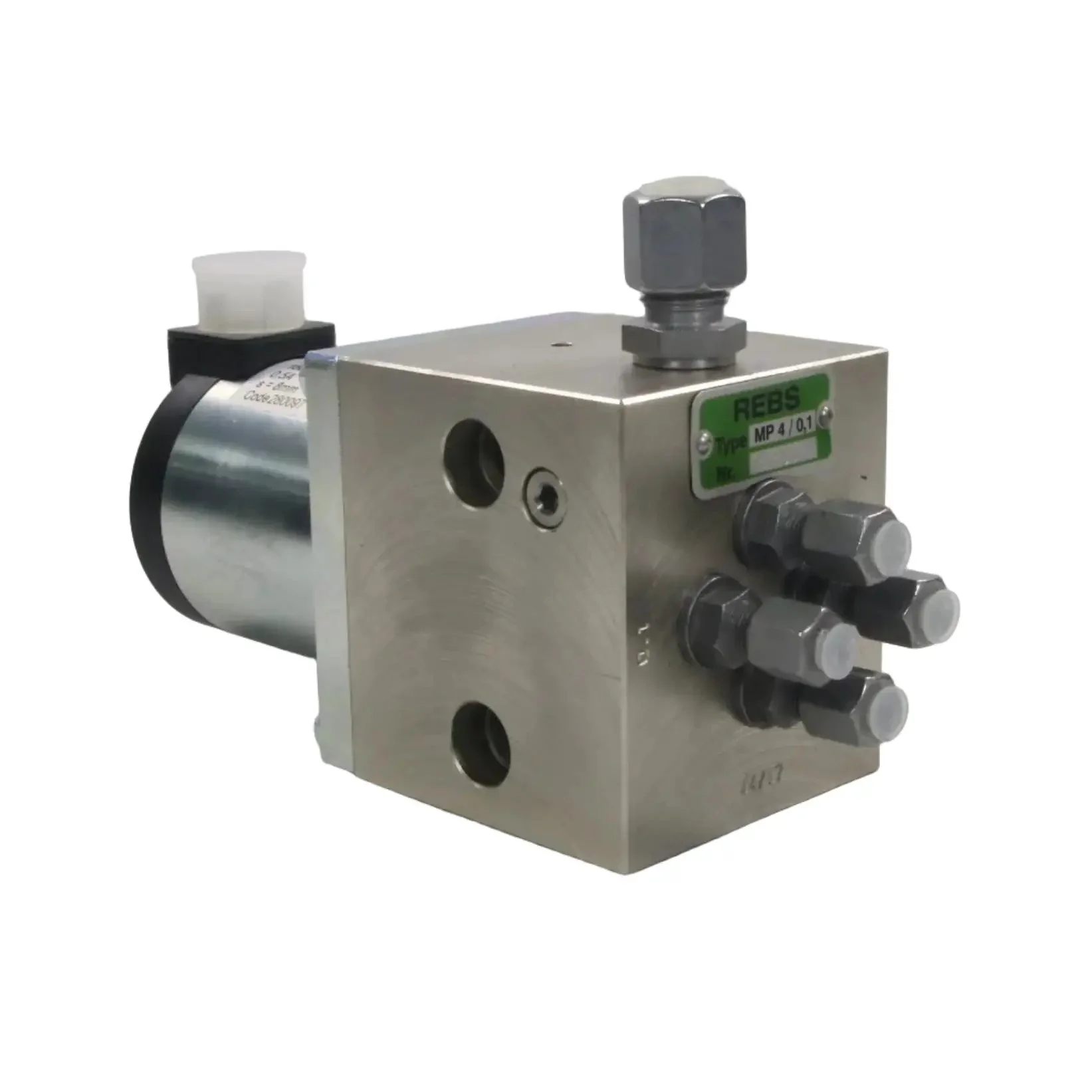

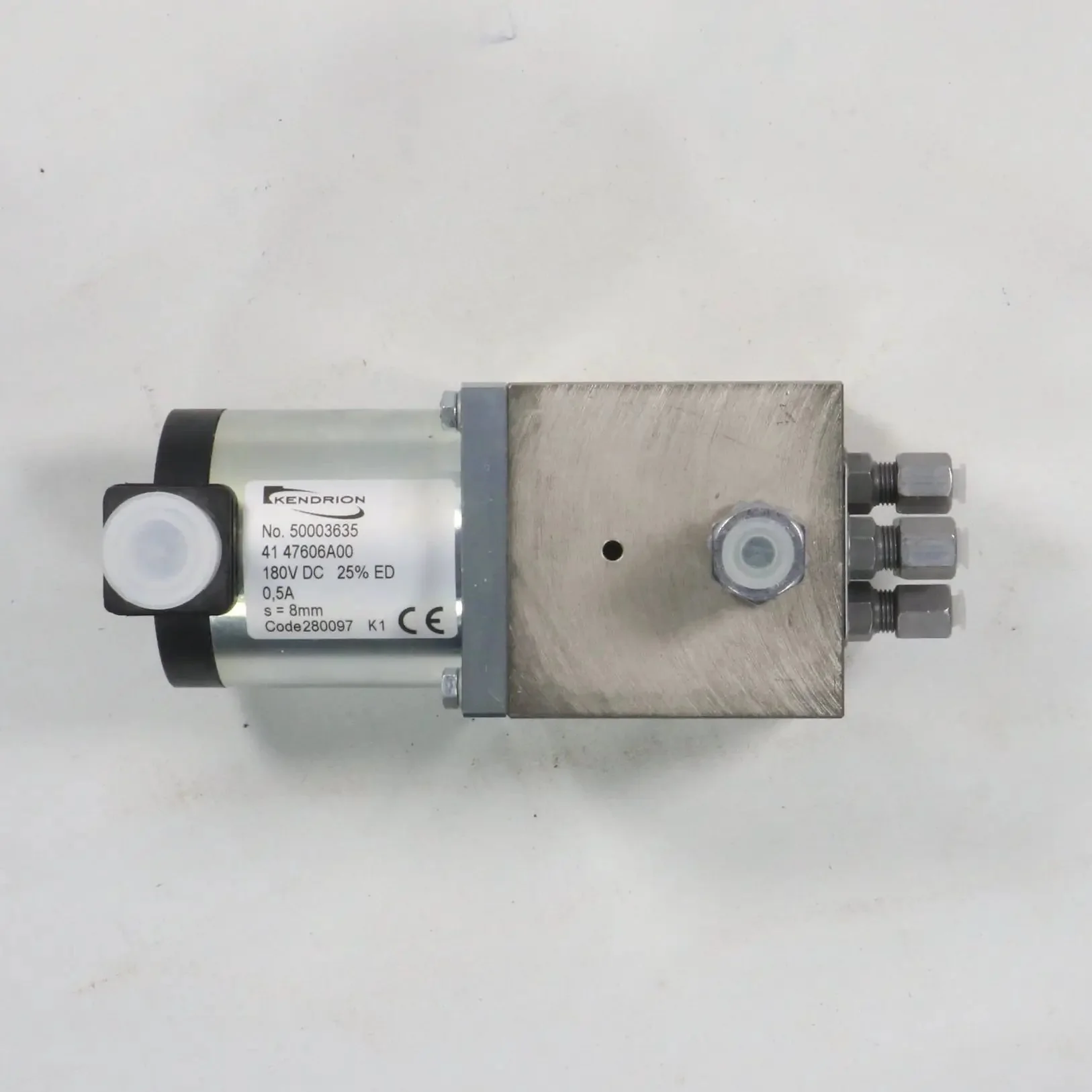

Kendrion Solenoid Actuator & REBS Valve Block Assembly

- Brand: Kendrion (Kendrion Kuhnke Automation GmbH) & REBS (REBS Zentralschmiertechnik GmbH)

- Model: Kendrion: 50003635, REBS: MP 4/0,1

- Type: Solenoid Valve Block Assembly

- Part numbers: 50003635 / 181605

- Technical specifications:
- Solenoid:
  - Voltage: 180V DC
  - Stroke: 8 mm
  - Duty cycle: 25% ED
  - Connector: DIN 43650
- Valve block:
  - Ports: 4 x 6 mm 1 x 10 mm
  - Operating pressure: 10 bar
  - Flow rate: Low-flow
  - Media: Air / oil
  - Temperature range: -10°C to +60°C
  - Mounting: Manifold or sub-base
- Combined assembly: Kendrion solenoid actuates REBS MP valve block for on/off or directional control of lubricant flow; used in centralized lubrication systems
- Additional features: Compact design; high reliability for continuous operation; low power solenoid; suitable for machine tools, presses, conveyors, or industrial lubrication systems
- Standards: Compliant with ISO 4401 or VDMA for pneumatic valves; CE marked; RoHS compliant

Weight: 4.1 kg

Dimensions: 180 x 70 x 110 mm

Country of origin: Germany

HS code: 8481.80
