Kinco SMC60S-0040-30MAK-3DSH-(5) AC Servo Motor with Planetary Gearbox

Brand: Kinco (Servo Motor)
Model: SMC605-0040-30MAK-3DSH-(5) (Servo Motor with Integrated Gear)
Type: AC Servo Motor with Planetary Gearbox

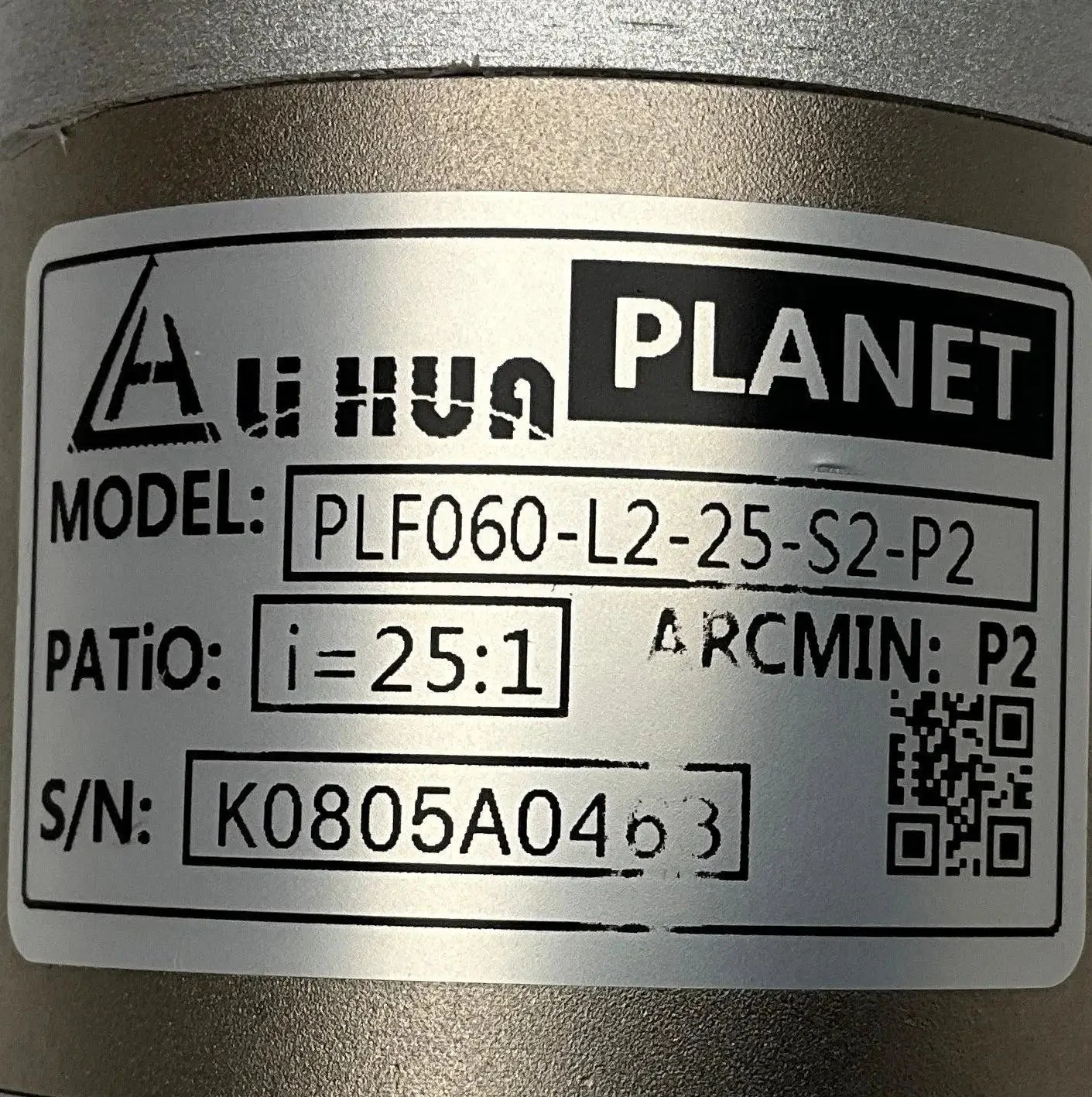

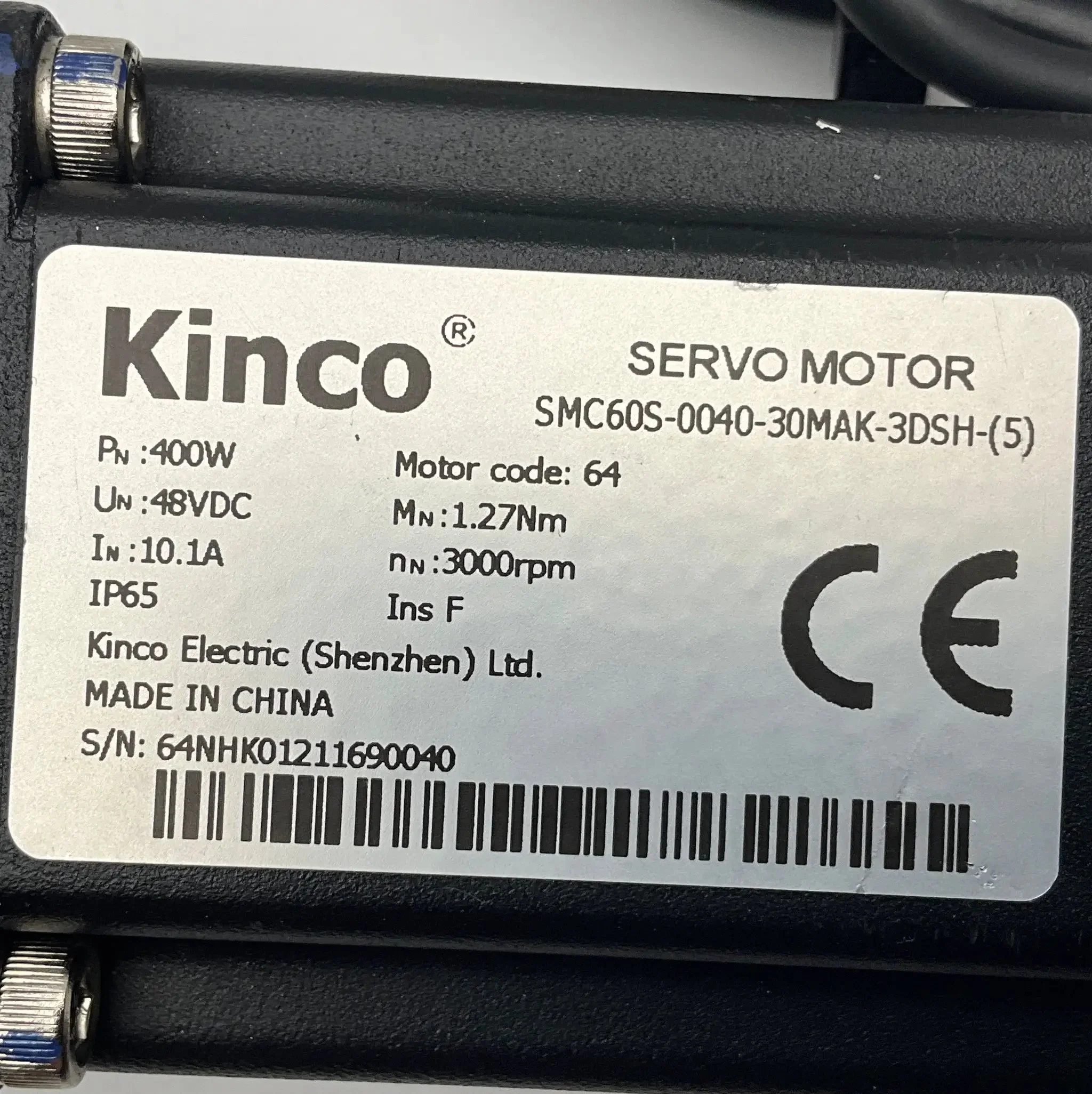

Part Number: SMC60S-0040-30MAK-3DSH for motor; PL060-L2-25-S2-P2 for gear

Technical Specs:
- Servo Motor Type: AC Servo motor, 16 bit Single Turn Magnetic
- Rated Power: 400 W
- Rated Torque: 1.27 Nm
- Rated Speed: 3000 rpm
- Motor code: 64
- Moment of Inertia: 0.25 kg·cm²
- Voltage: 48 V DC
- Current: Rated 10.1 A
- Insulation Class: F
- Protection Rating: IP65
- Ambient Temperature Range: 0°C to 40°C
- Gearbox Type: Planetary gearbox
- Gear Ratio: 25:1
- Backlash: ≤ 8 arcmin
- Output Torque (Gear): 50 Nm
- Input Speed (Gear): 3000 rpm
- Efficiency: ≥ 90%
- Material: Aluminum alloy housing for gear
- Additional Features:
  - Compact and lightweight design for easy integration
  - Low cogging torque for smooth operation
  - High overload capacity - 300% for 1 second
  - Modular compatibility for Kinco servo systems
- Certifications: CE, RoHS compliant

Dimension:
- Motor Flange Size: 60 mm x 60 mm
- Motor/Gear: 255 x 75 x 60 mm

Weight:  2.9 kg

Country of Origin: China

HS Code: 8501.90
