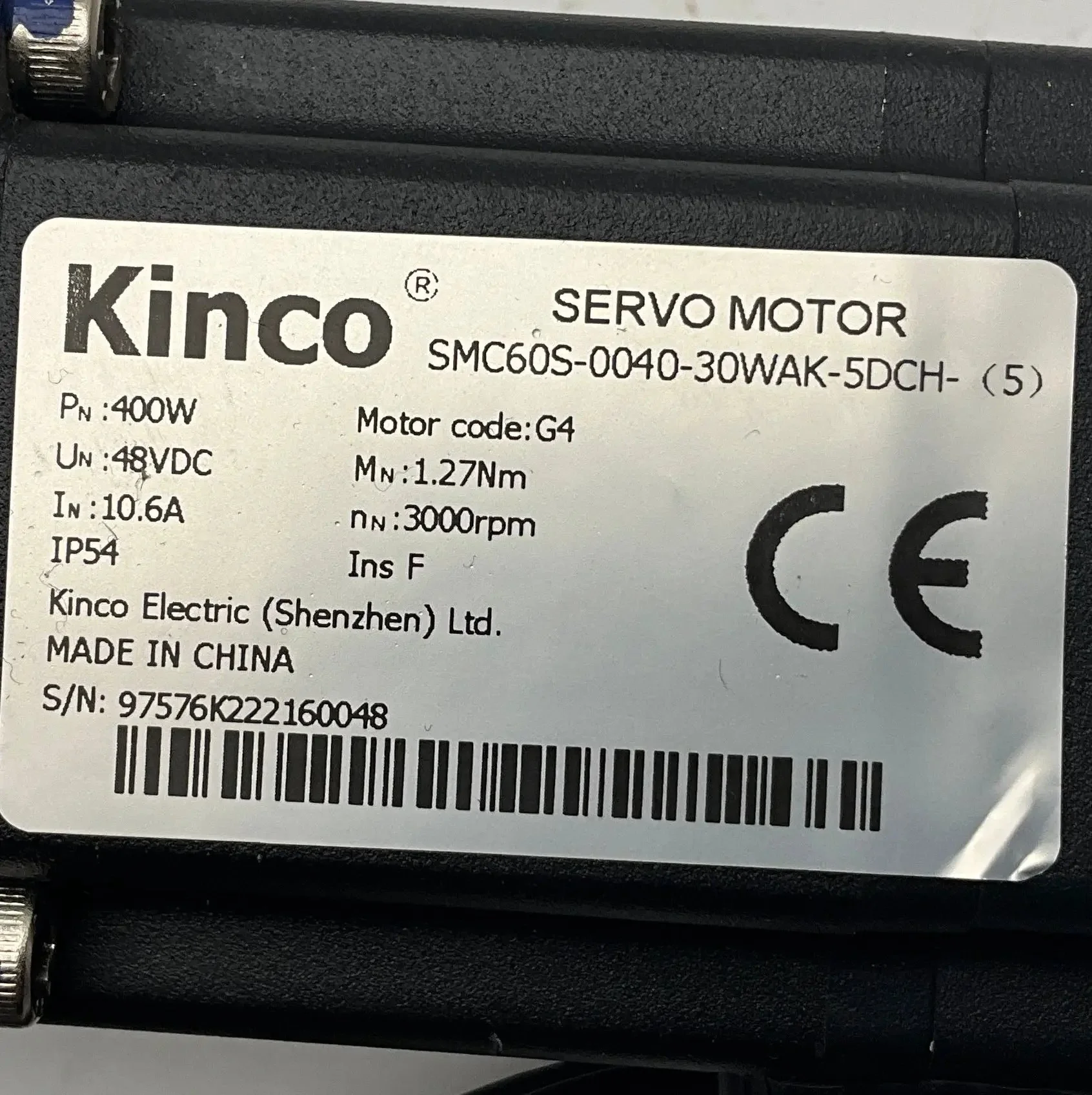

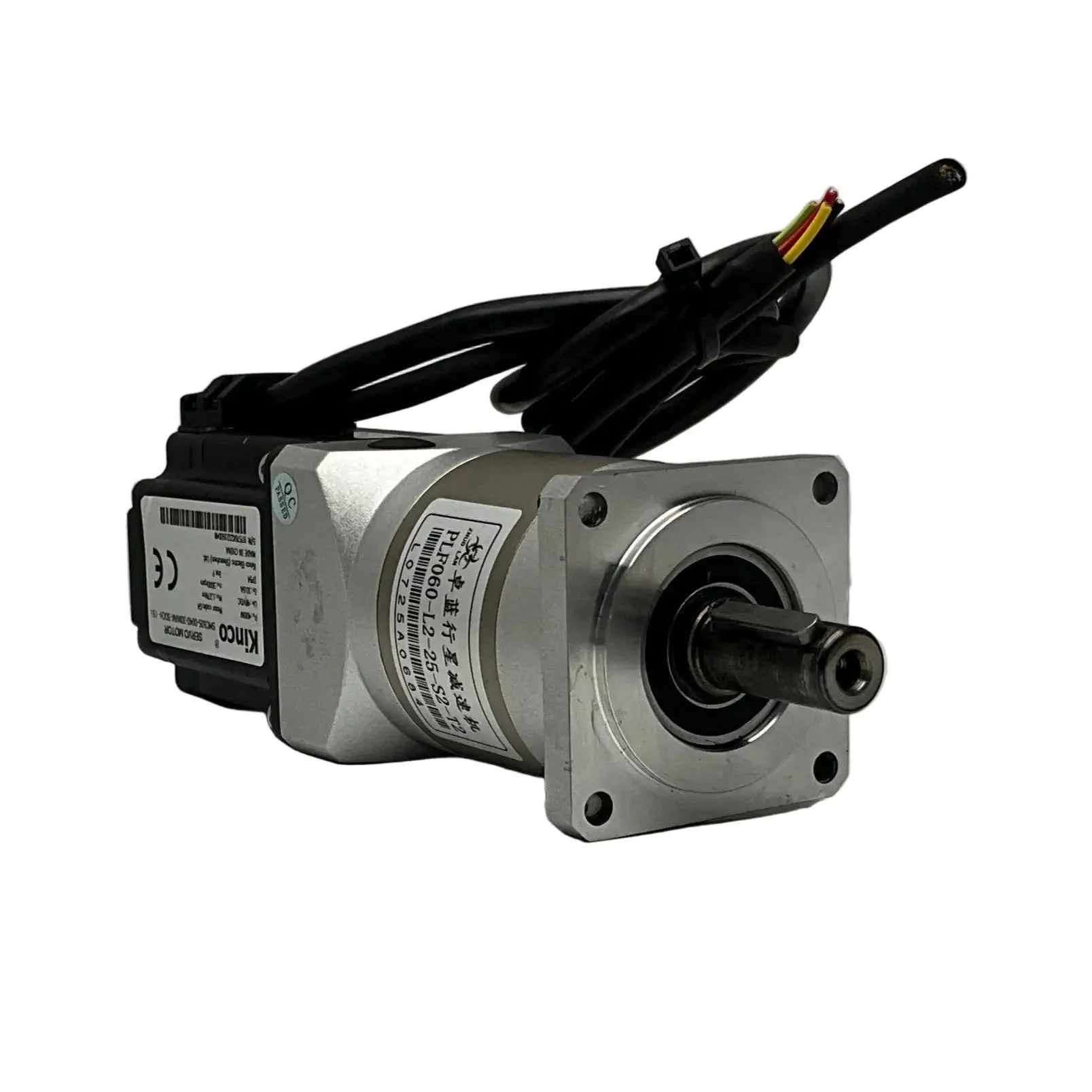

Kinco SMC60S-0040-30WAK-5DCH-(5) AC Servo Motor with Planetary Gearbox

Brand: Kinco (Servo Motor)
Model: SMC60S-0040-30WAK-5DCH-(5) (Servo Motor with Integrated Gear)
Type:AC Servo Motor with Planetary Gearbox

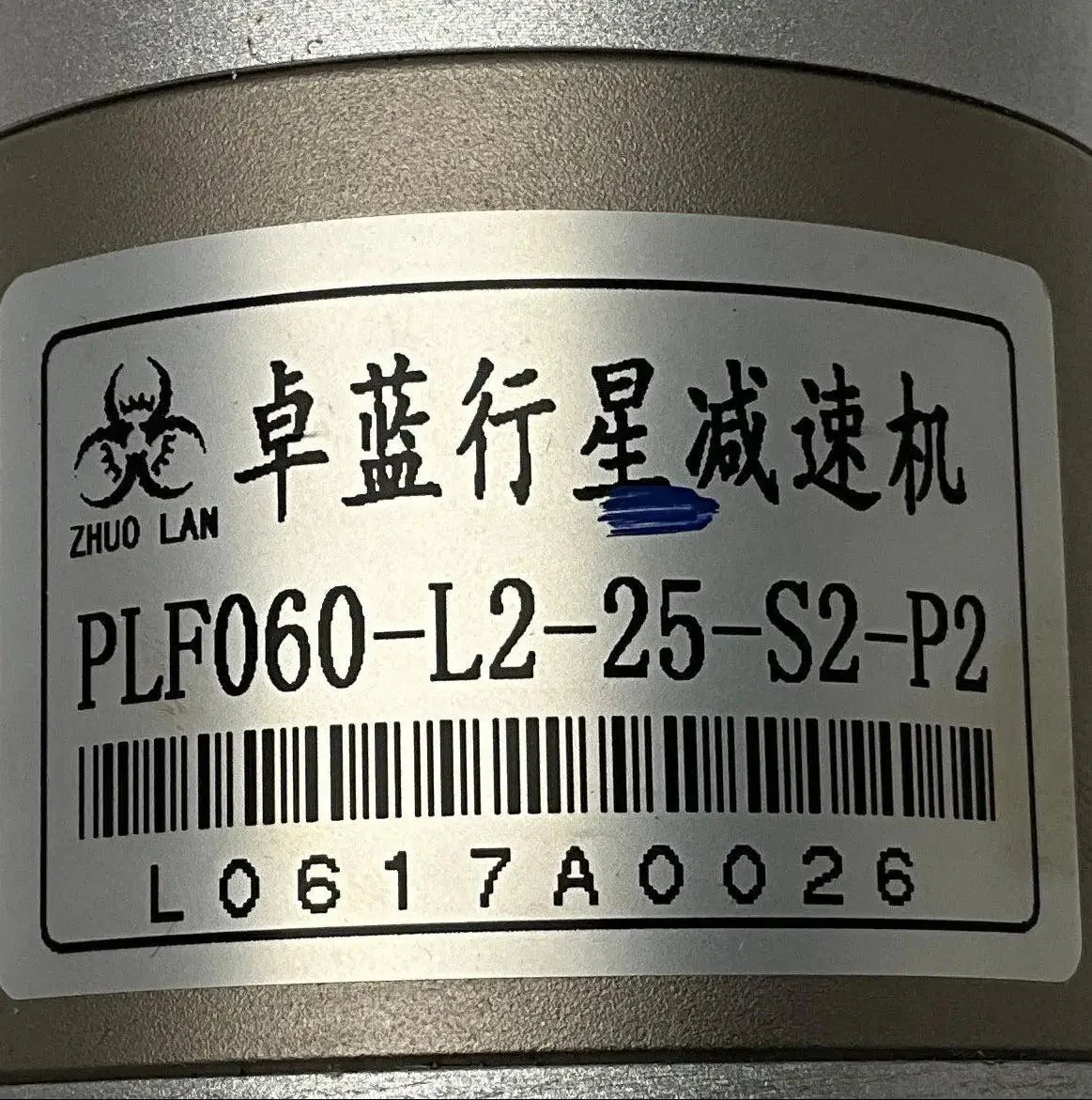

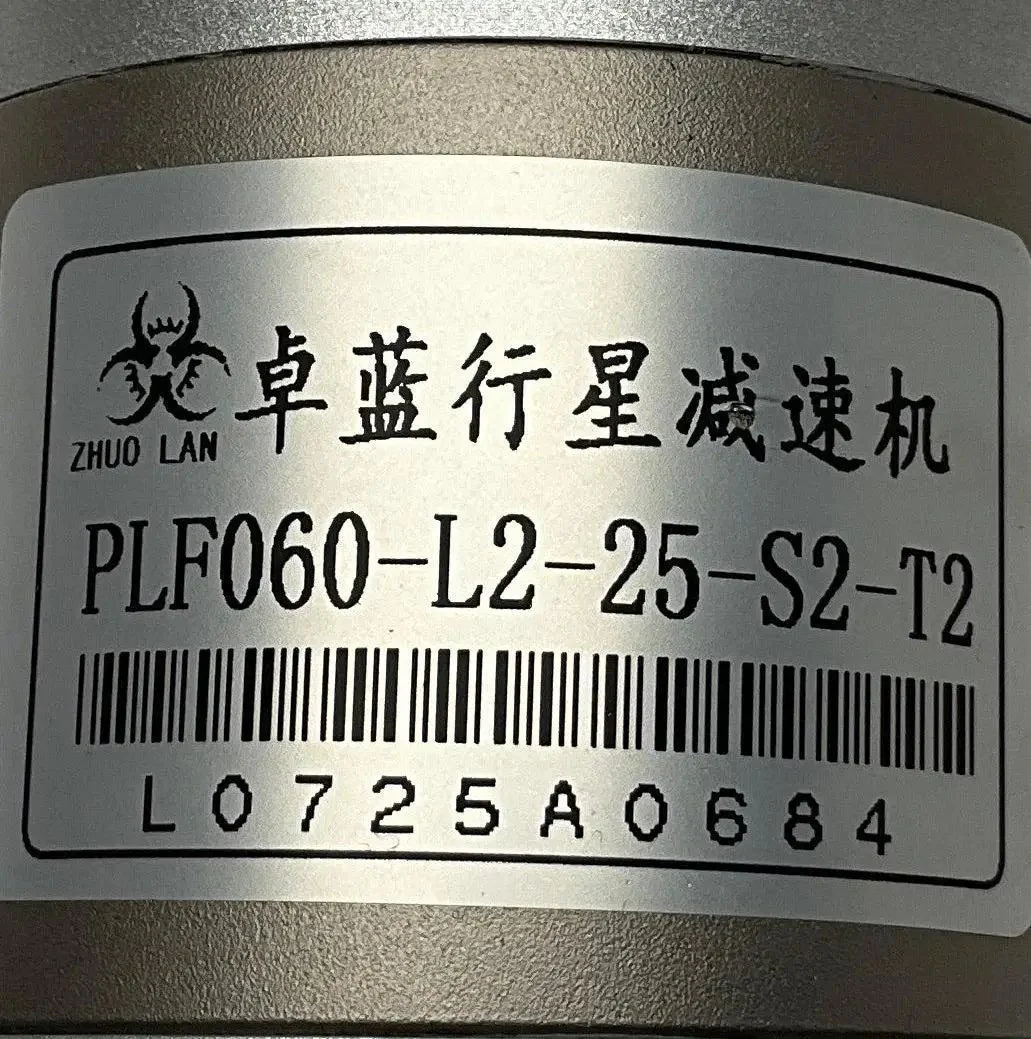

Part Number: SMC60S-0040-30WAK-5DCH for motor; PLF060-L2-various gear

Technical Specs:
- Servo Motor Type: AC Servo motor, 2500 P/R Encoder (Magnetic)
- Rated Power: 400 W
- Rated Torque: 1.27 Nm
- Rated Speed: 3000 rpm
- Motor code: G4
- Moment of Inertia: 0.14 kg·cm²
- Voltage: 48 V DC
- Current: Rated 10.6 A
- Insulation Class: F
- Protection Rating: IP54
- Ambient Temperature Range: 0°C to 40°C
- Gearbox Type: Planetary gearbox
- Gear Ratios: 2:1/5:1/12:1/20:1/25:1
- Backlash: ≤ 8 arcmin
- Input Speed (Gear): 3000 rpm
- Efficiency: ≥ 90%
- Material: Aluminium alloy housing for gear
- Additional Features:
  - Compact and lightweight design for easy integration
  - Low cogging torque for smooth operation
  - High overload capacity - 300% for 1 second
  - Modular compatibility for Kinco servo systems
- Certifications: CE, RoHS compliant

Dimension:

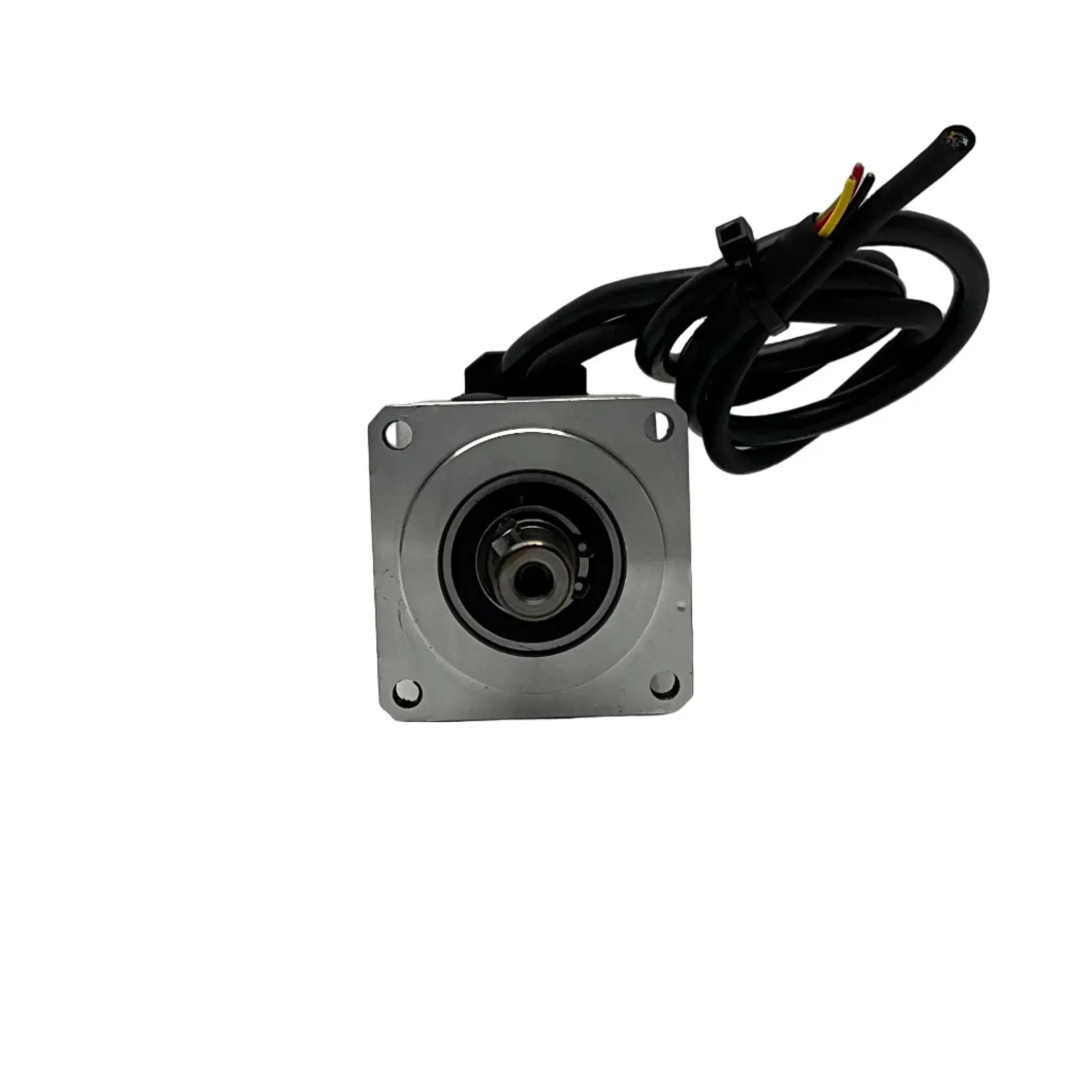

- Motor Flange Size: 60 mm x 60 mm
- Motor/Gear: 210 x 75 x 60 mm

Weight:  2.4 kg

Country of Origin: China

HS Code: 8501.90
