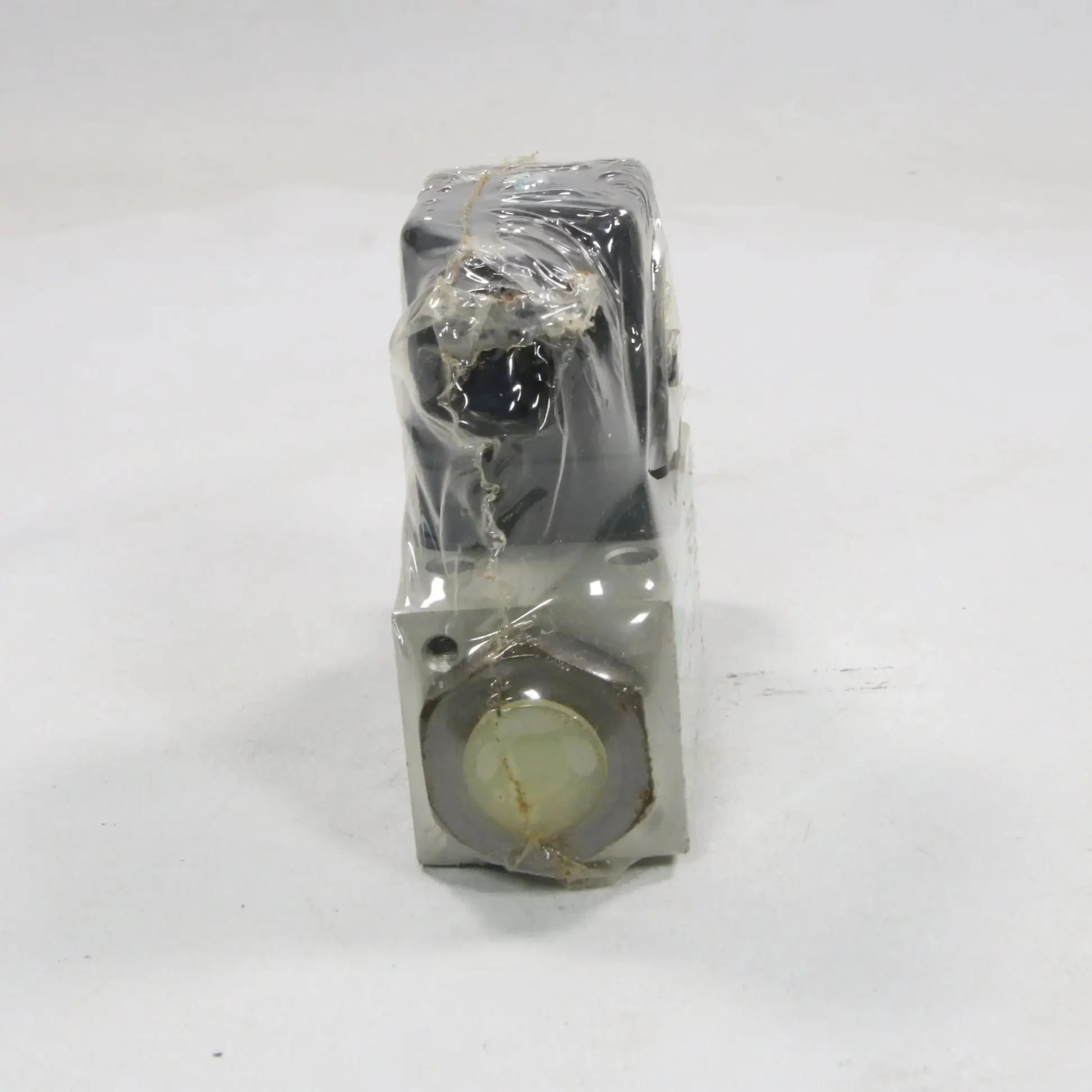

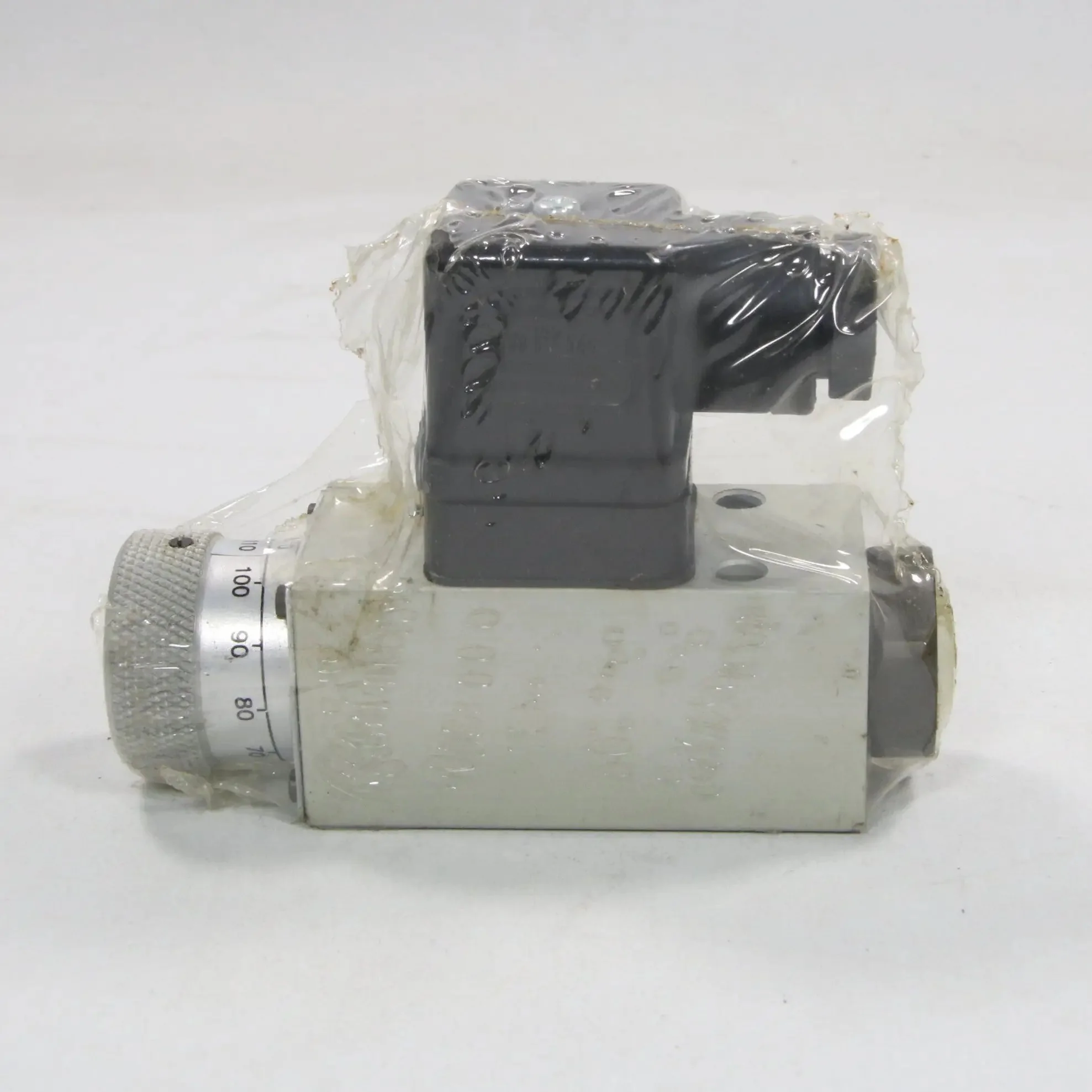

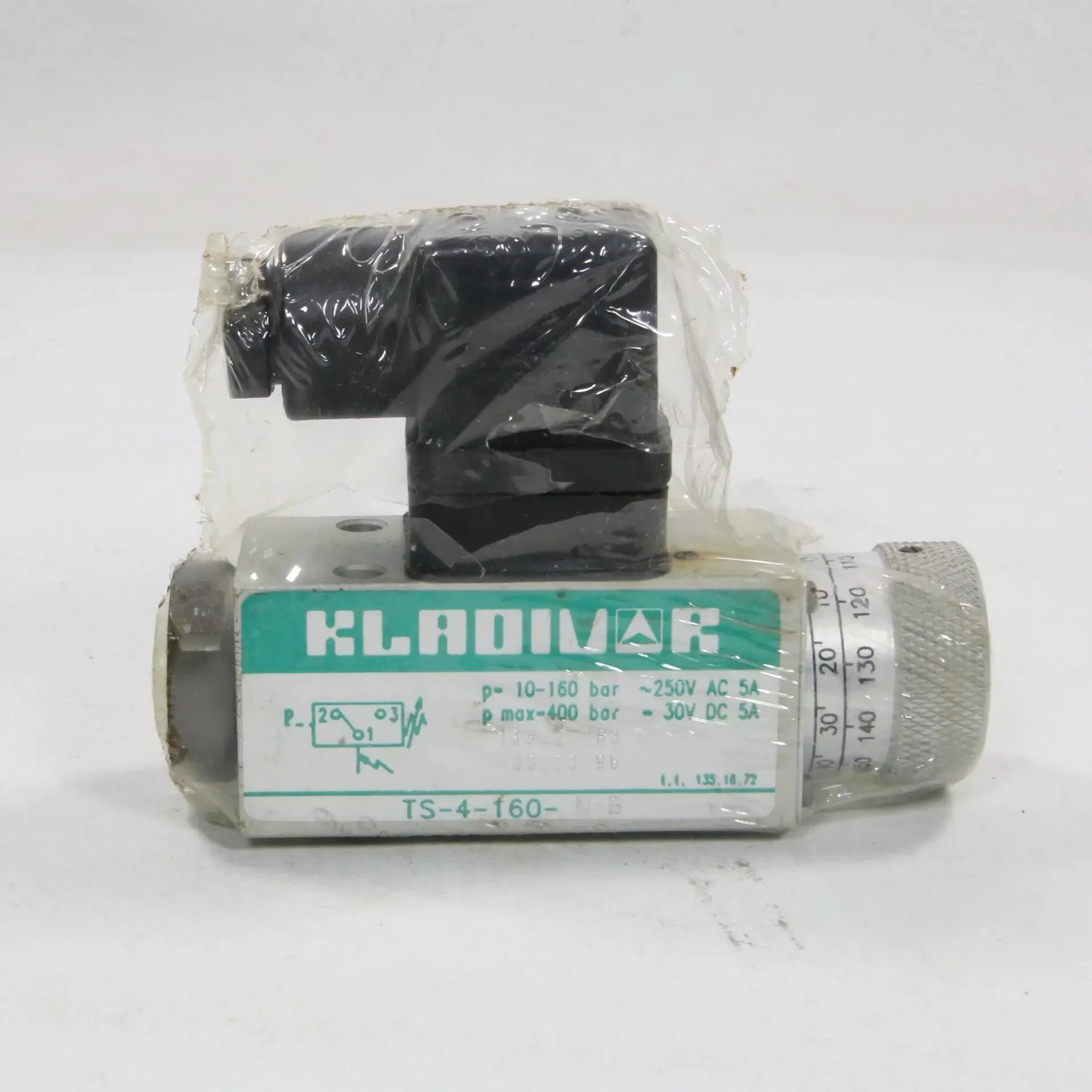

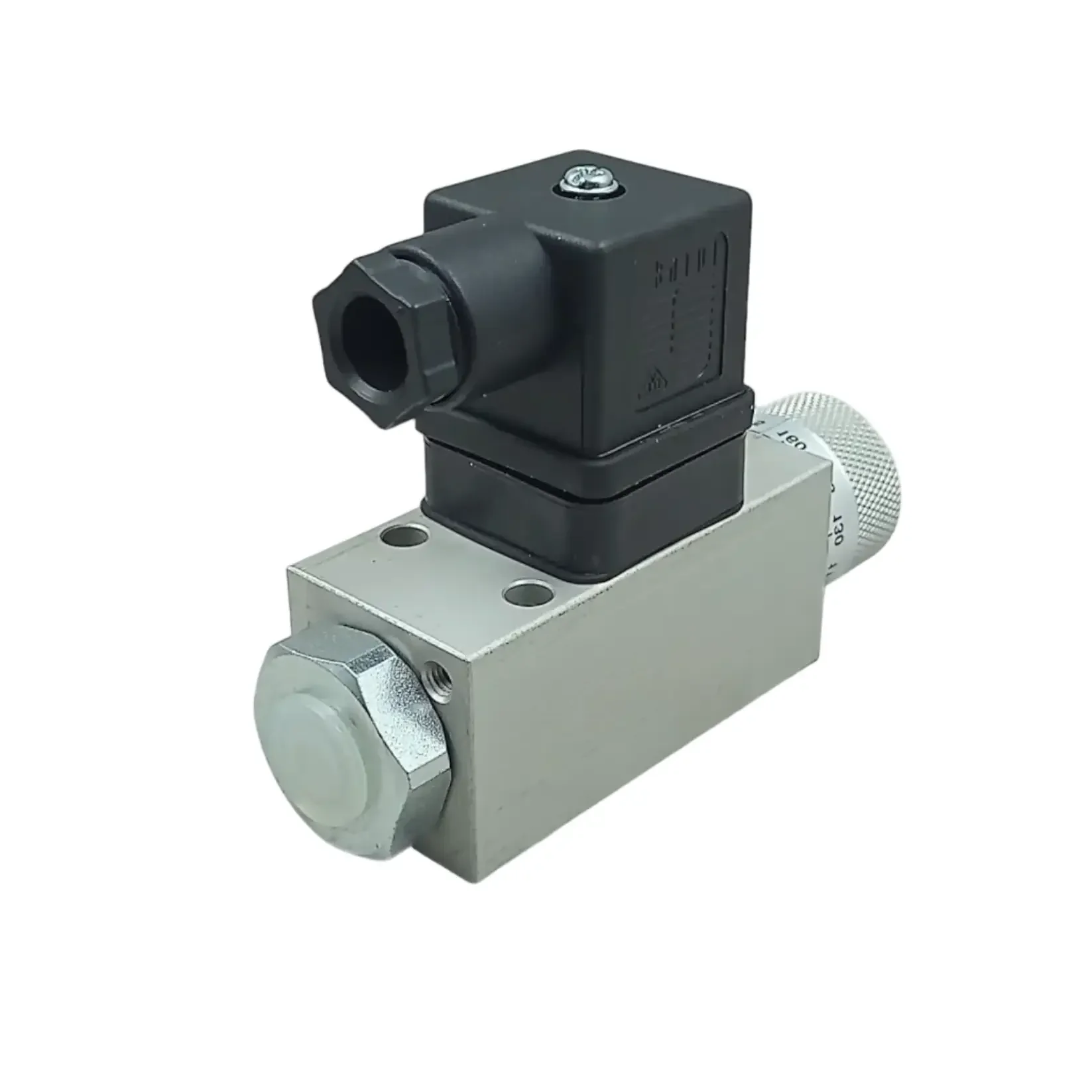

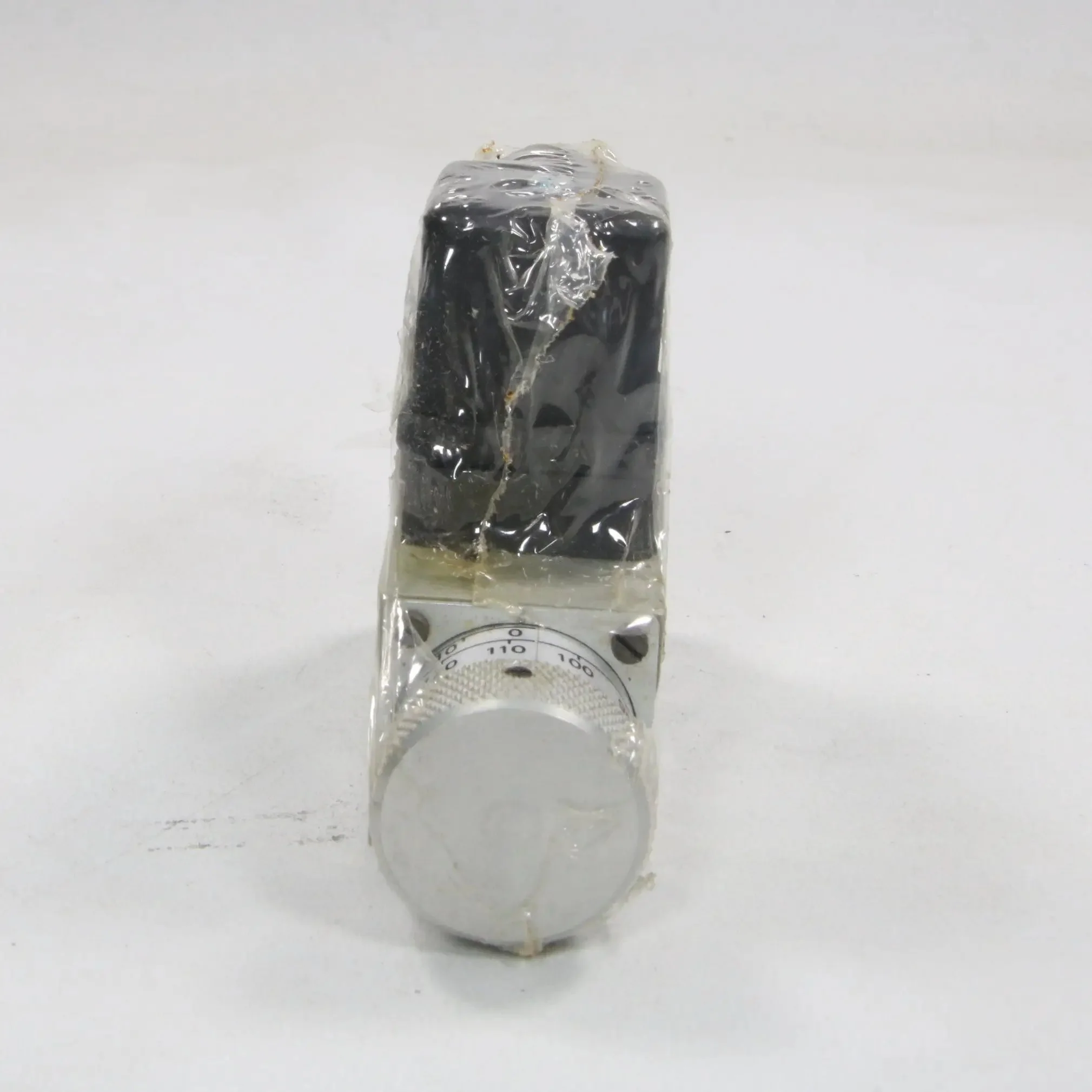

Kladivar TS-4-160-N-B Adjustable Pressure Switch
- Brand: Kladivar (Poclain Hydraulics)
- Model: TS-4-160-N-B
- Type: Adjustable Pressure Switch
- All tech specs:
- Function: Mechanical pressure switch for monitoring and controlling pressure in hydraulic, pneumatic and industrial systems
- Measuring Range: 10 – 160 bar (adjustable setpoint)
- Overpressure Limit: 400 bar
- Switching Differential (Hysteresis): Adjustable 5 – 30 bar
- Switching Accuracy: ±1.5 % of full scale
- Switching Capacity: 10 A at 250 V AC / 30 V DC (resistive load)
- Electrical Connection: DIN EN 175301-803 connector
- Process Connection: G1/4" male thread
- Wetted Parts Material: Stainless Steel
- Housing Material: Die-cast aluminium
- Seal Material: NBR
- Setpoint Adjustment: Front spindle with scale and locknut
- Visual Indicator: Scale on front for setpoint setting
- Protection Rating: IP65
- Operating Temperature (medium): –20 °C to +80 °C
- Ambient Temperature: –20 °C to +70 °C
- Vibration Resistance: 10 g (10–500 Hz)
- Shock Resistance: 50 g (11 ms)
- Certifications: CE compliant
- Features: Adjustable hysteresis, robust construction, high overload safety, discontinued
Dimensions: 95 x 30 x 70 mm
Weight: 250 g
Country of origin: Slovenia
HS code: 903289
Original: $37,760.66
-70%$37,760.66
$11,328.20
Description
- Brand: Kladivar (Poclain Hydraulics)
- Model: TS-4-160-N-B
- Type: Adjustable Pressure Switch
- All tech specs:
- Function: Mechanical pressure switch for monitoring and controlling pressure in hydraulic, pneumatic and industrial systems
- Measuring Range: 10 – 160 bar (adjustable setpoint)
- Overpressure Limit: 400 bar
- Switching Differential (Hysteresis): Adjustable 5 – 30 bar
- Switching Accuracy: ±1.5 % of full scale
- Switching Capacity: 10 A at 250 V AC / 30 V DC (resistive load)
- Electrical Connection: DIN EN 175301-803 connector
- Process Connection: G1/4" male thread
- Wetted Parts Material: Stainless Steel
- Housing Material: Die-cast aluminium
- Seal Material: NBR
- Setpoint Adjustment: Front spindle with scale and locknut
- Visual Indicator: Scale on front for setpoint setting
- Protection Rating: IP65
- Operating Temperature (medium): –20 °C to +80 °C
- Ambient Temperature: –20 °C to +70 °C
- Vibration Resistance: 10 g (10–500 Hz)
- Shock Resistance: 50 g (11 ms)
- Certifications: CE compliant
- Features: Adjustable hysteresis, robust construction, high overload safety, discontinued
Dimensions: 95 x 30 x 70 mm
Weight: 250 g
Country of origin: Slovenia
HS code: 903289
