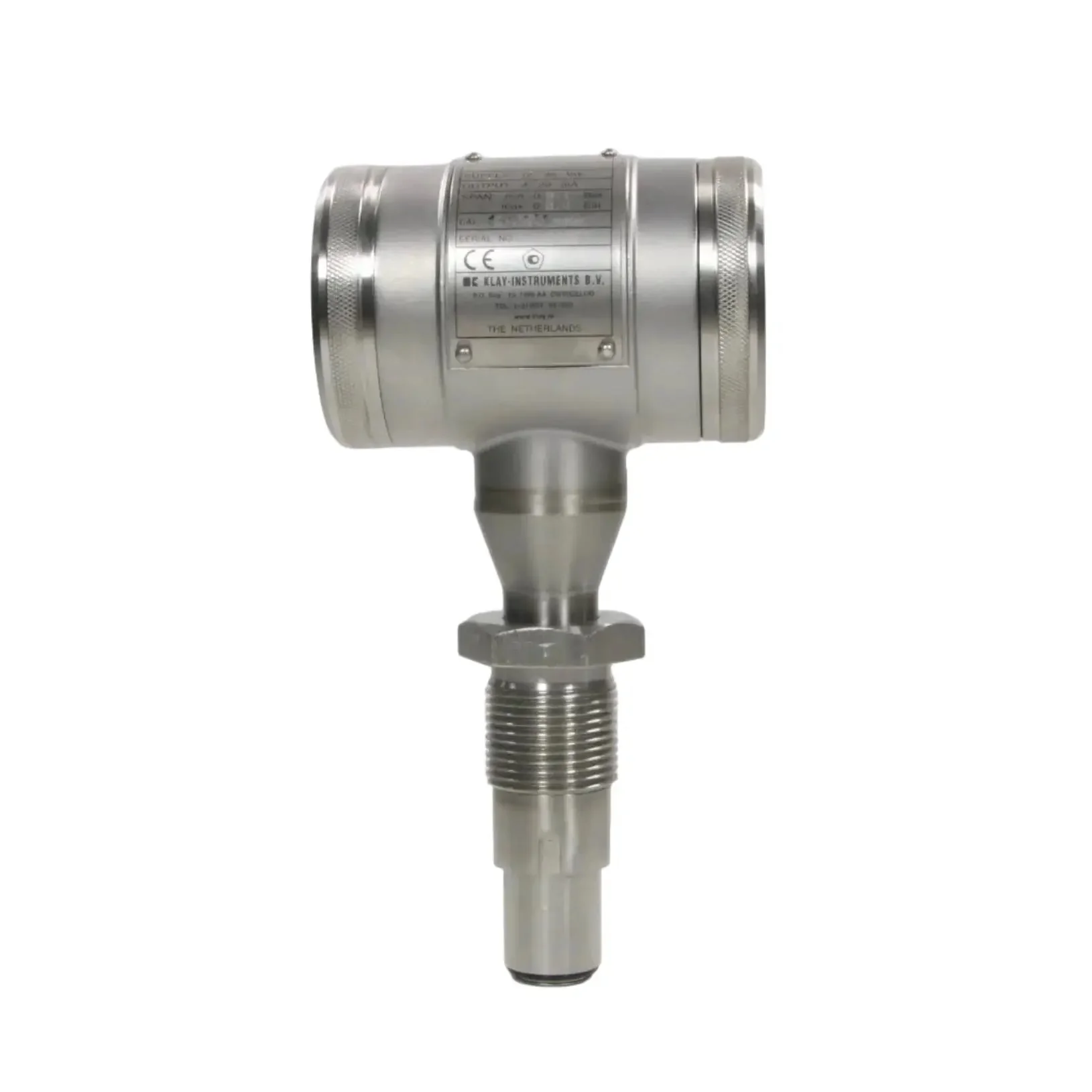

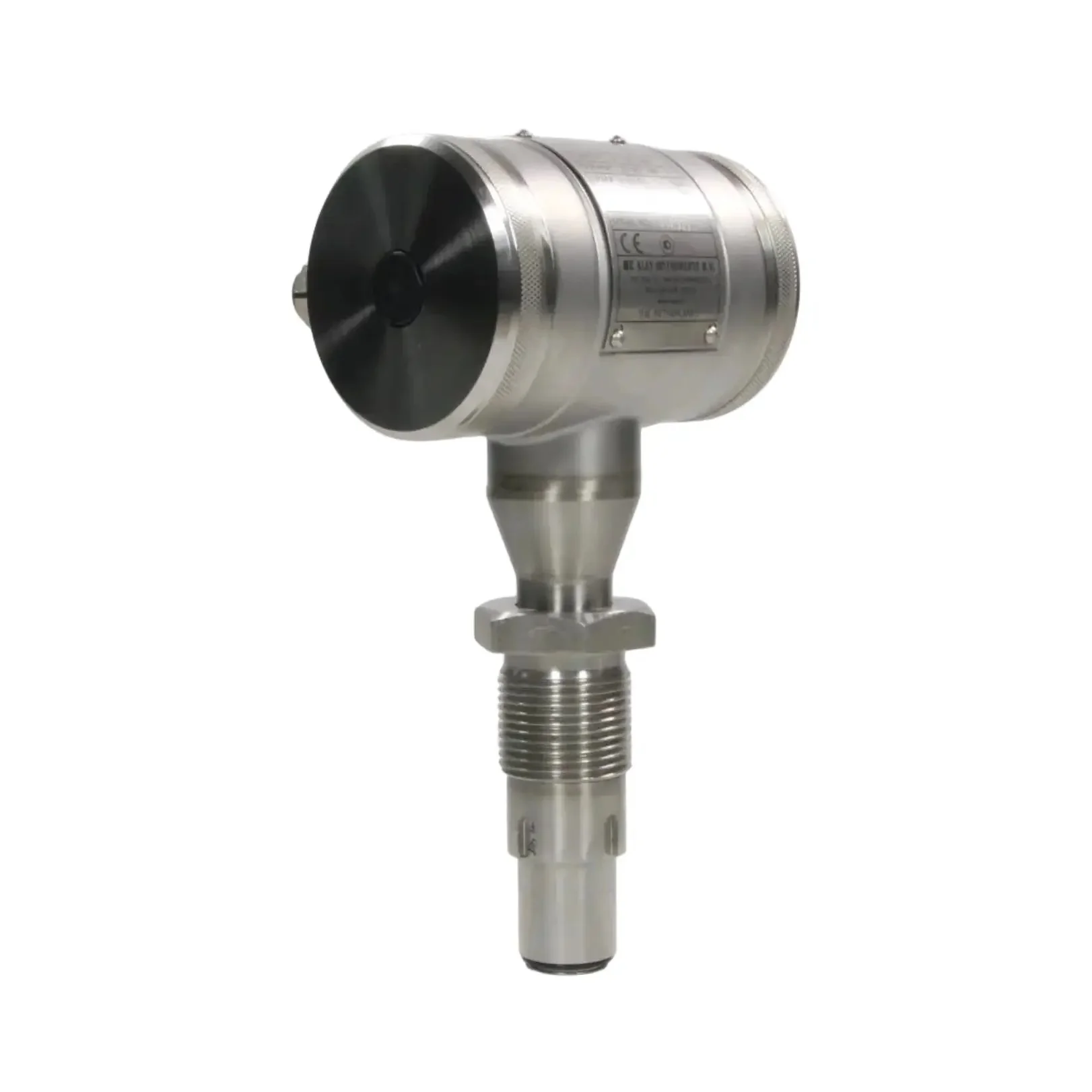

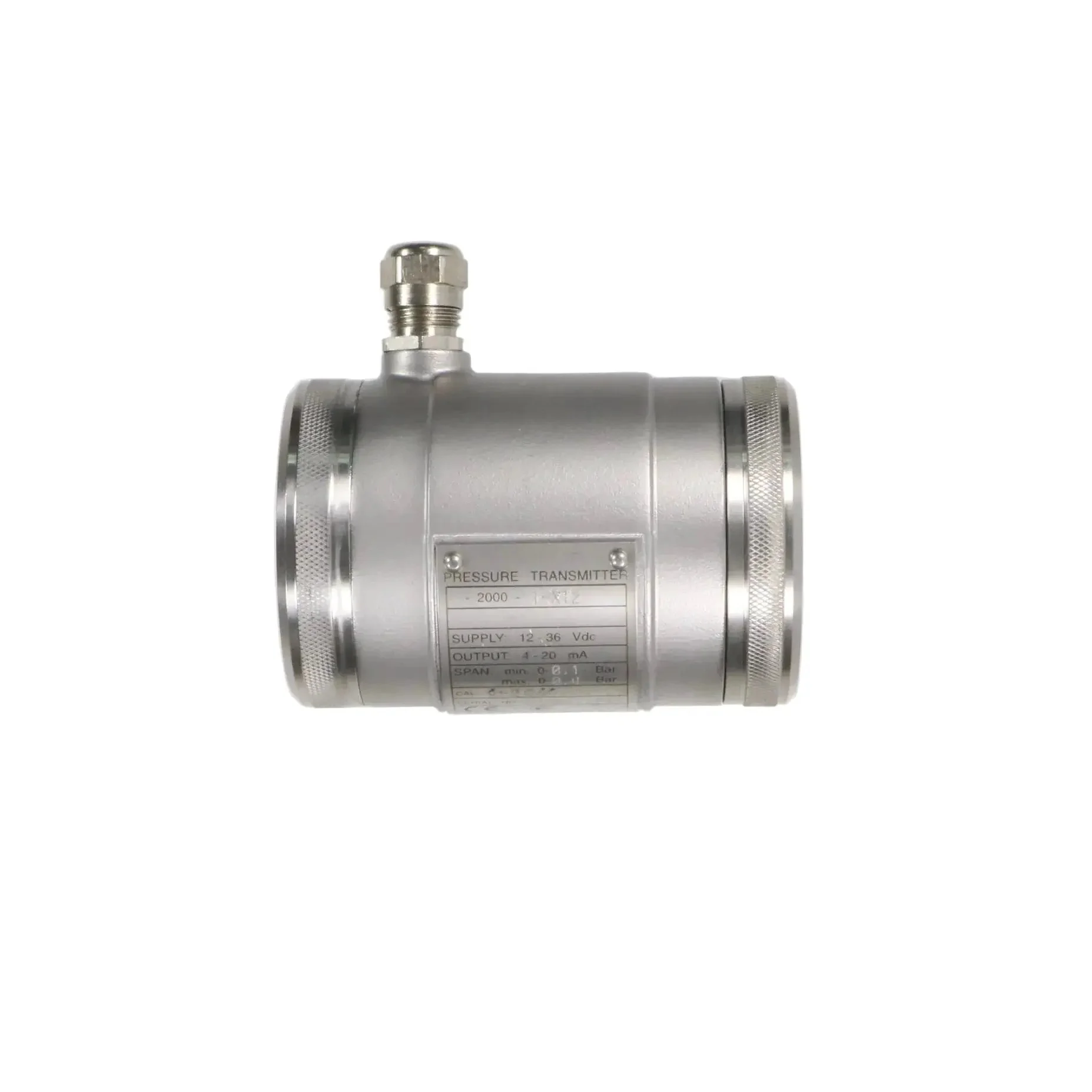

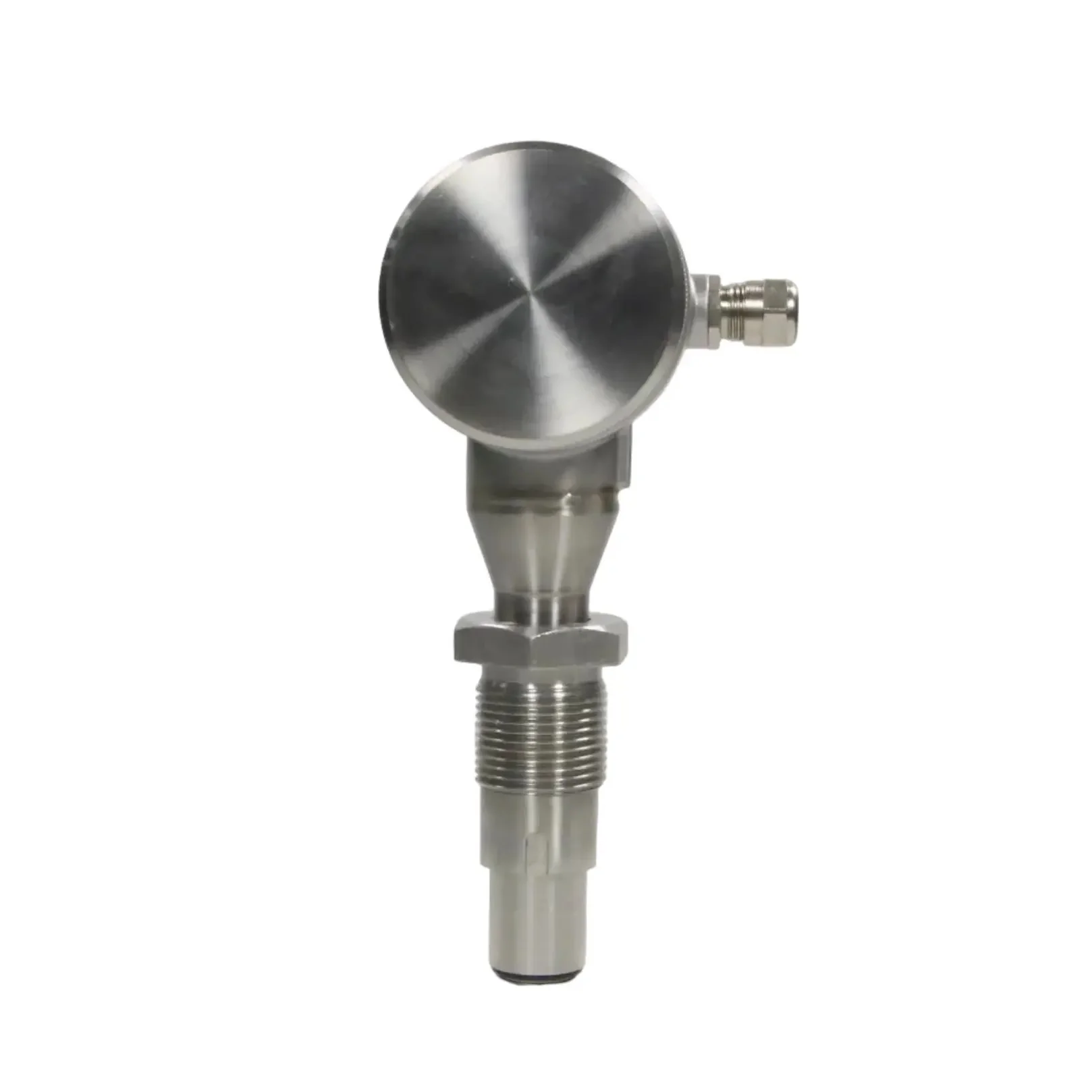

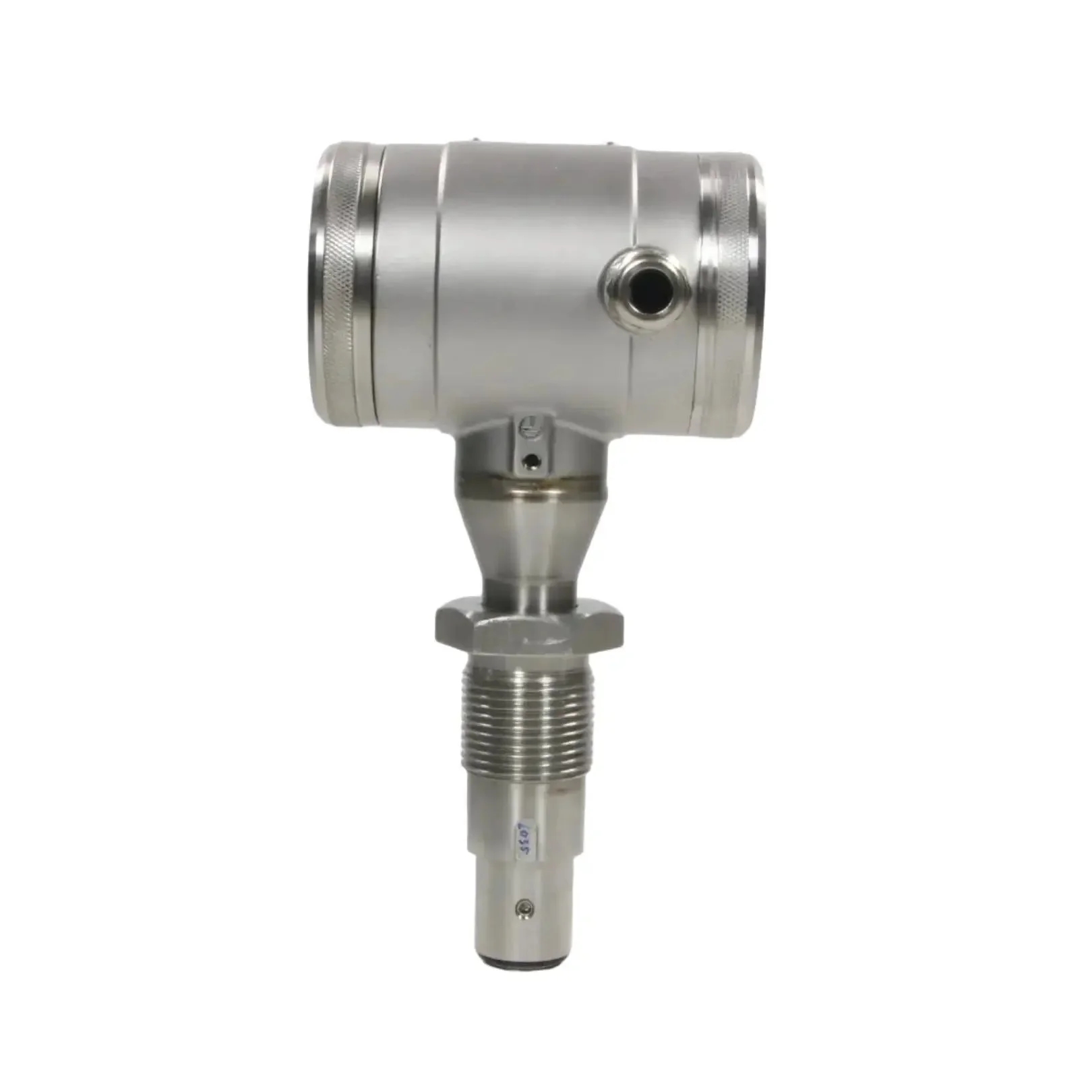

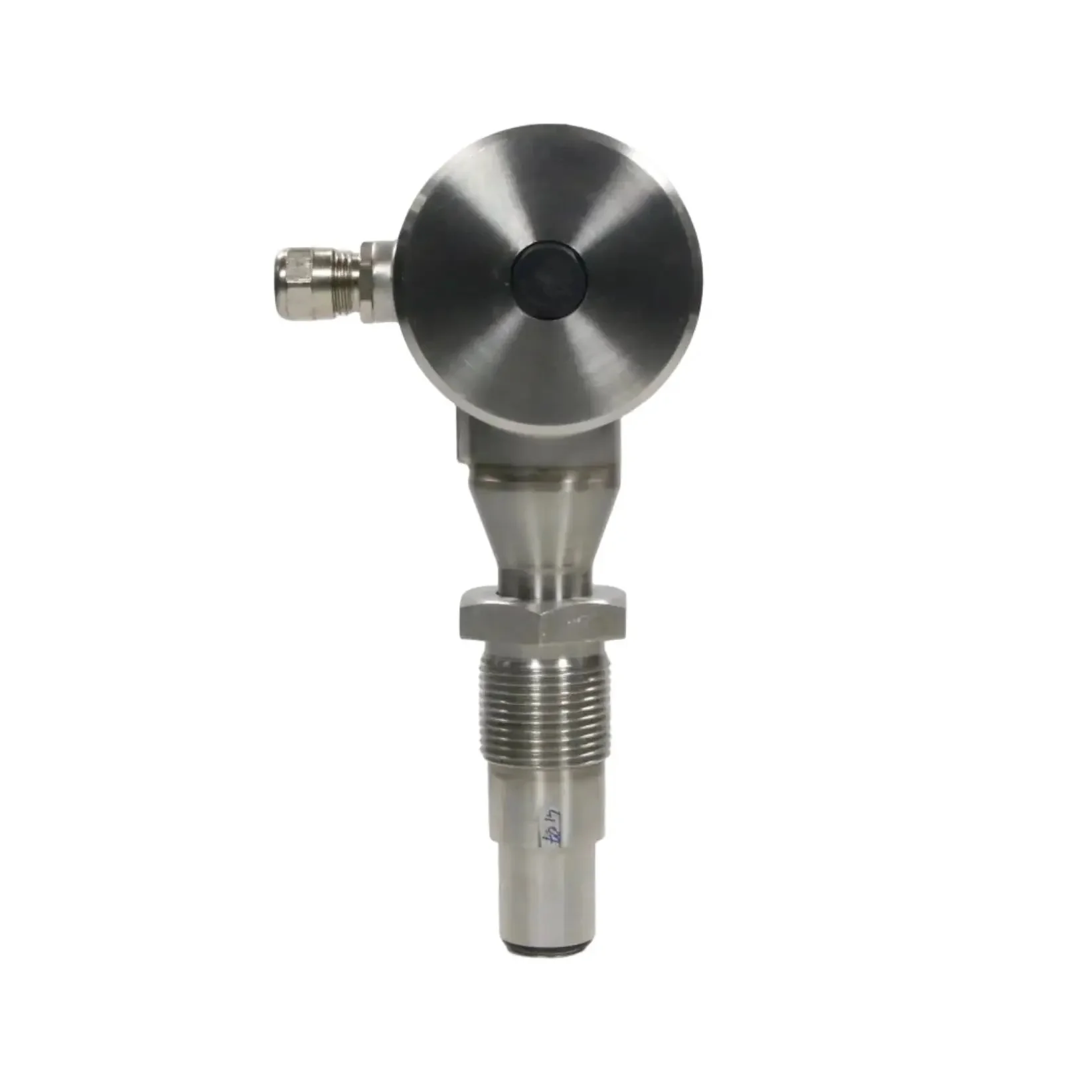

Klay Instruments 2000 I - X12 Intelligent Pressure Transmitter

- Brand: Klay Instruments

- Model: I - X12

- Series: 2000

- Type: Intelligent Pressure Transmitter (Microprocessor-based with flush metallic diaphragm, local display and push-button adjustment)

 - Order number: B14092301/B15091702

- All tech specs:
- Measuring principle: Piezoresistive silicon sensor with flush metallic diaphragm
- Measuring range: 0....0.1 bar
- Accuracy: 0.1 % of adjusted span
- Turn down ratio: Up to 10:1
- Process temperature: -20 °C to +80 °C
- Ambient temperature: -20 °C to +70 °C

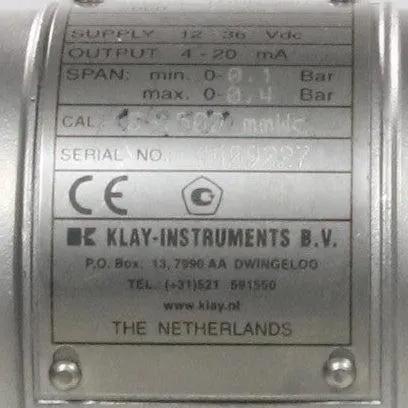

- Output signal: 4-20 mA / two-wire
- Power supply: 12-36 V DC
- Cal: 0 - 1500 mmWc

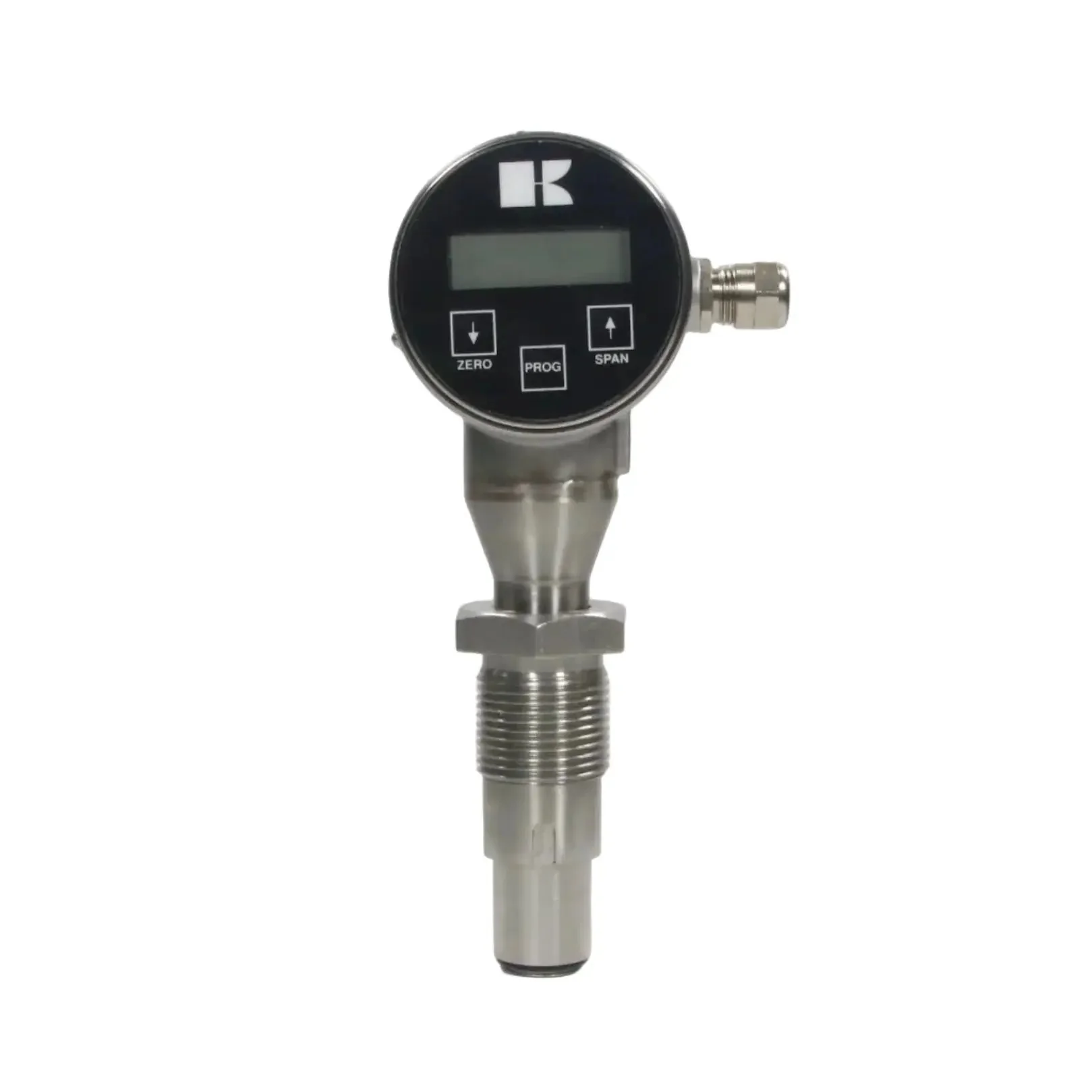

- Display: Local LCD indicator
- Process connection: 1" PASVE
- Wetted parts: Stainless steel 316L (1.4404)
- Housing: All stainless steel ; protection class IP67 / NEMA 4X
- Features: Fully temperature compensated (internal sensor monitors process temp), high overload/burst pressure resistance, local indication, easy programming, suitable for pulp/paper, chemical, food, marine industries
- Overpressure capability: Very high burst pressure
- Part of Series 2000: Intelligent transmitters with flush diaphragm technology for reliable measurement in demanding applications

Dimensions: 240 x 120 x 120 mm

Weight: 2.0 kg

Country of origin: Netherlands

HS code: 902620
