Klay Instruments 8000-San Pressure Transmitter

- Brand: Klay Instruments
- Model: 8000-San(ca5m)-A-X3
- Type: Sanitary Pressure Transmitter with Cable
- Part Number: 10002228

- Technical Specs:
- Measuring Principle: Piezoresistive pressure sensor with flush stainless steel diaphragm
- Cal: 60 cmWc
- Overpressure Limit: 2 × full scale
- Burst Pressure: 4 × full scale
- Accuracy: ±0.2 % FS
- Repeatability: ≤ ±0.05 % FS
- Temperature Influence: ≤ ±0.015 % FS / 10 K (zero point), ≤ ±0.015 % FS / 10 K (span)
- Process Temperature Range: –20 °C to +100 °C
- Ambient Temperature Range: –20 °C to +80 °C
- Supply Voltage: 10–40 V DC
- Output Signal: 4–20 mA (2-wire)
- Load Resistance: Max 600 Ω at 24 V supply
- Response Time: ≤ 10 ms

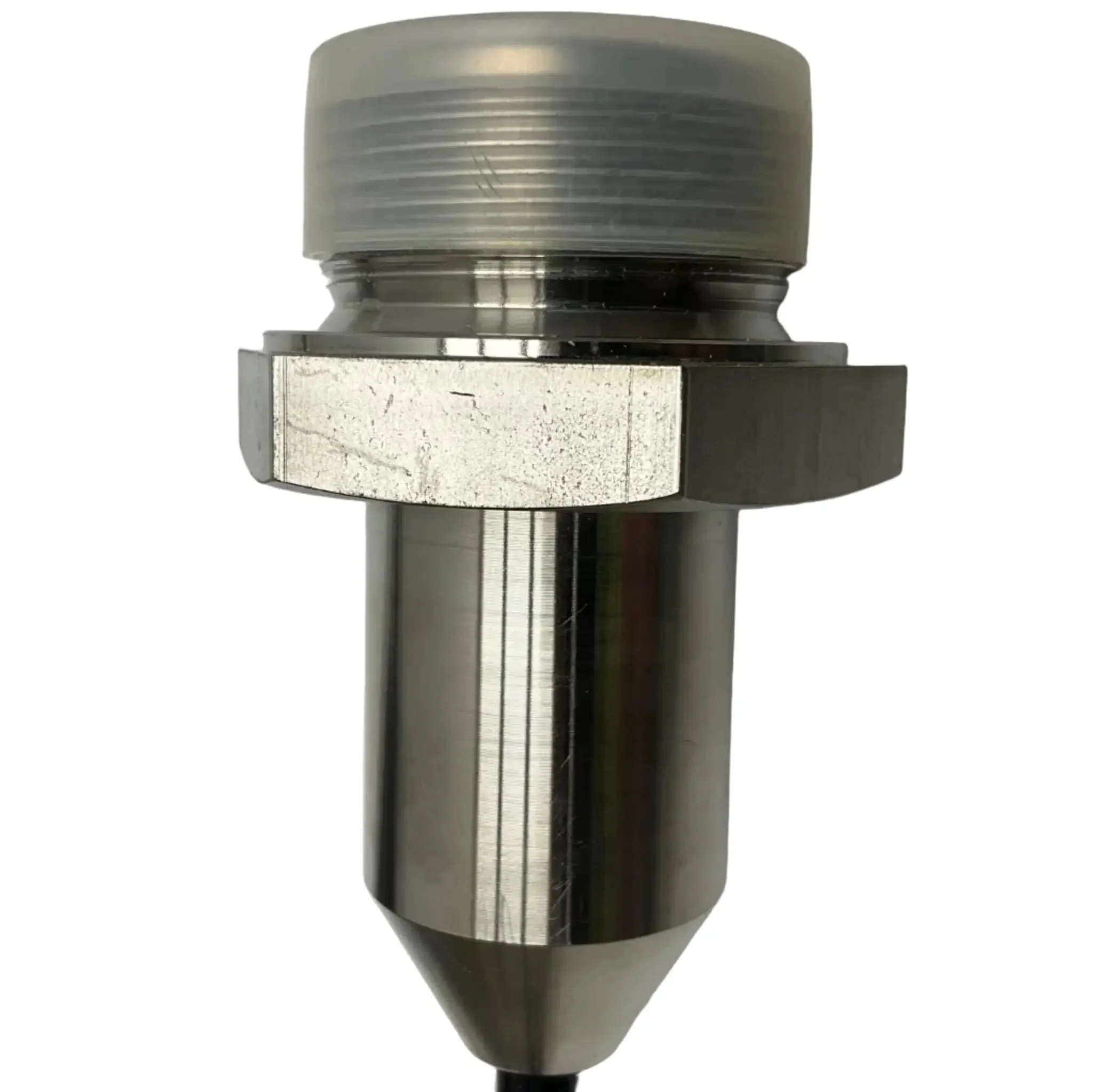

- Process Connection: DN40 (standard sanitary fitting for 8000-San series)
- Diaphragm Material: 316L stainless steel
- Fill Fluid: None
- Housing Material: Stainless steel

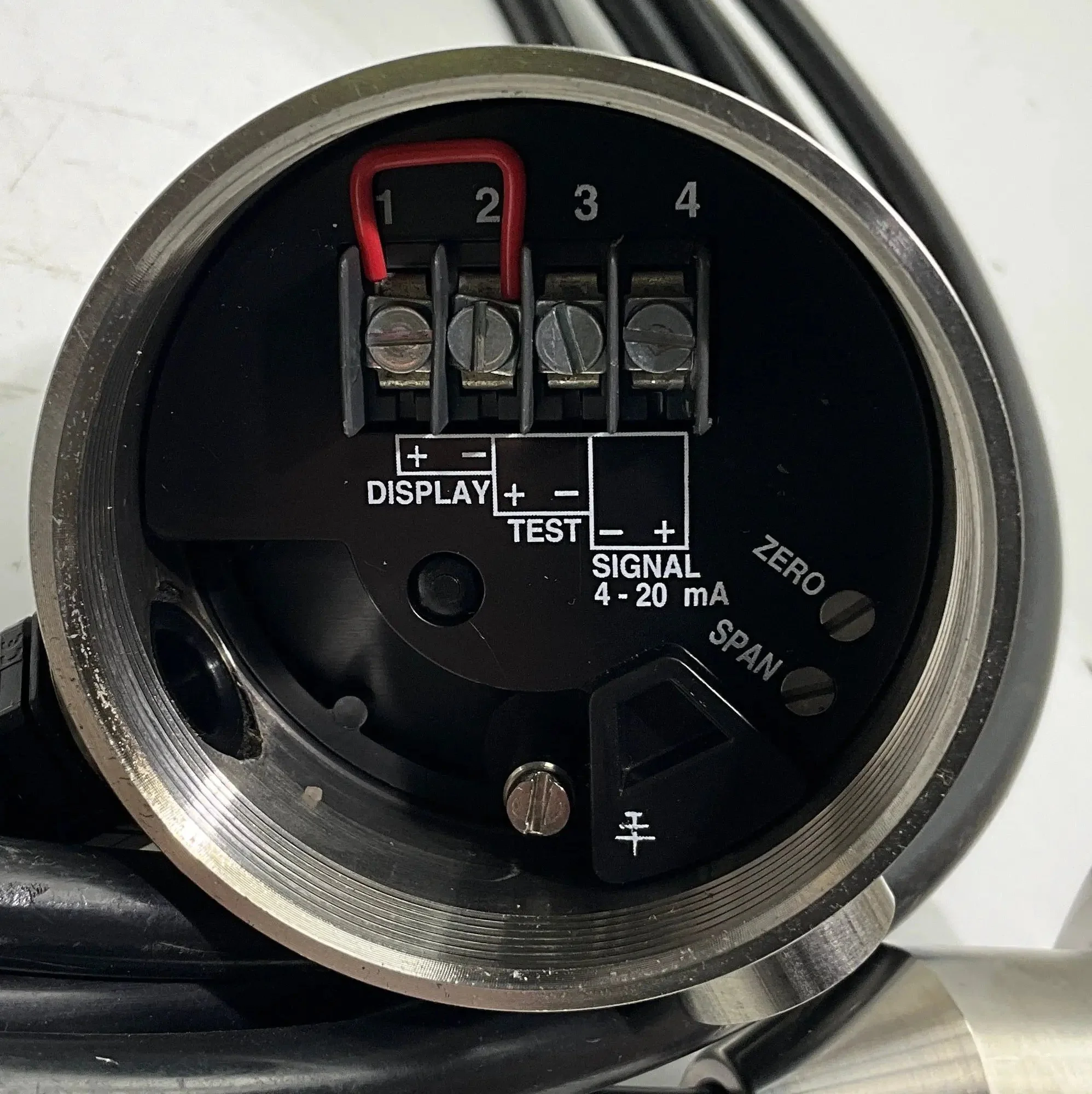

- Electrical Connection: Cable
- Protection Class: IP66
- Additional Features:
  - 3-A, EHEDG, FDA-compliant materials
  - Robust stainless steel construction
  - High resistance to shock and vibration
- Certifications: 3-A, EHEDG, FDA

Dimensions: 400 x 400 x 150 mm

Weight: 2.6 kg

Country of Origin: Netherlands

HS Code: 9026.20
