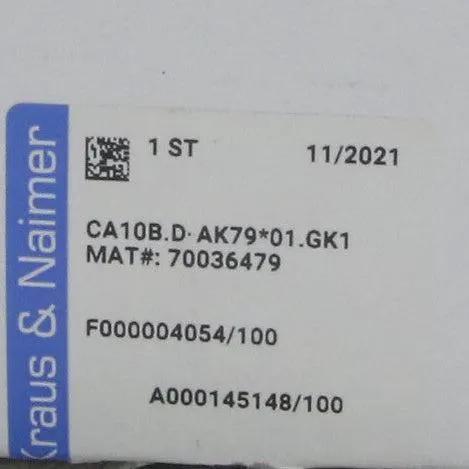

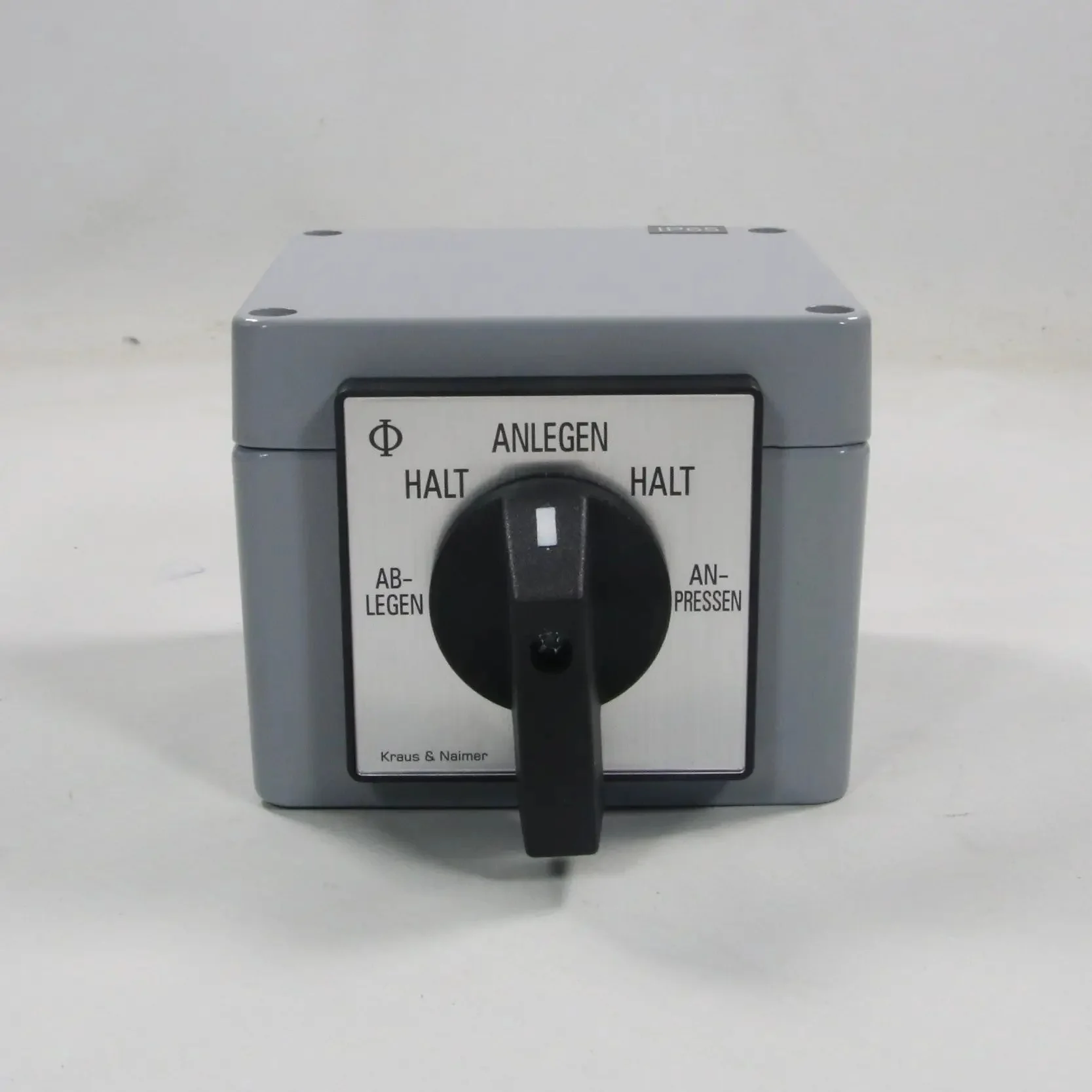

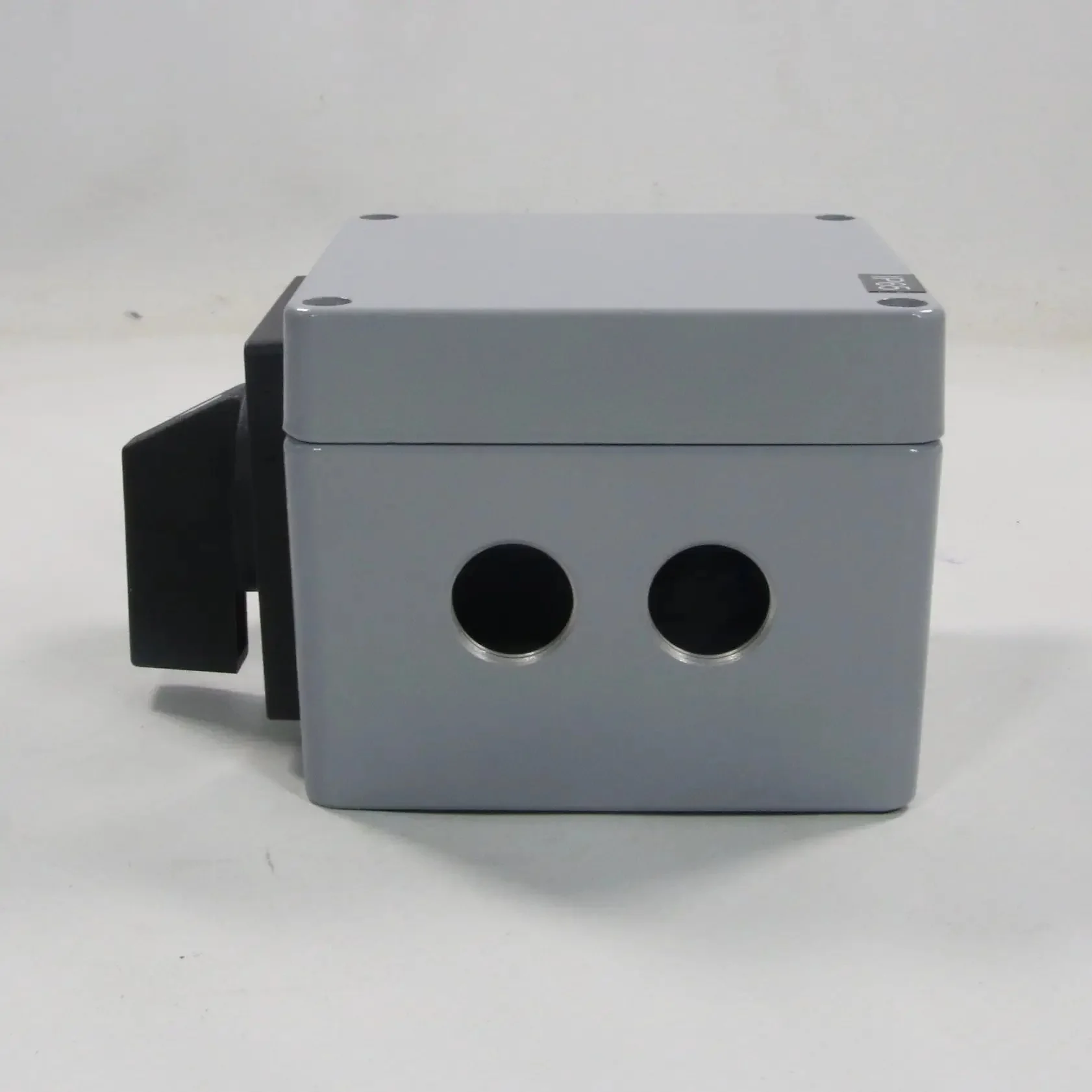

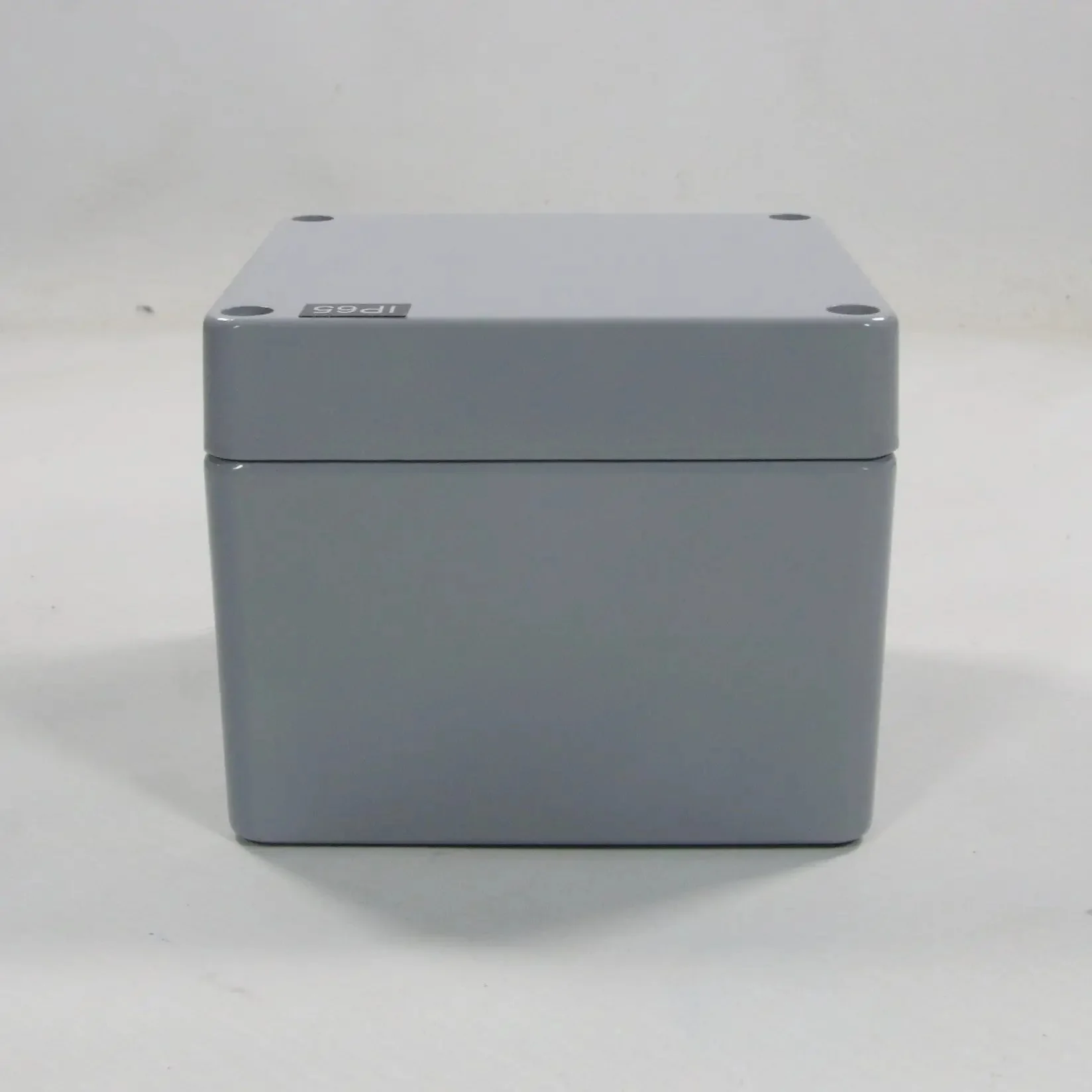

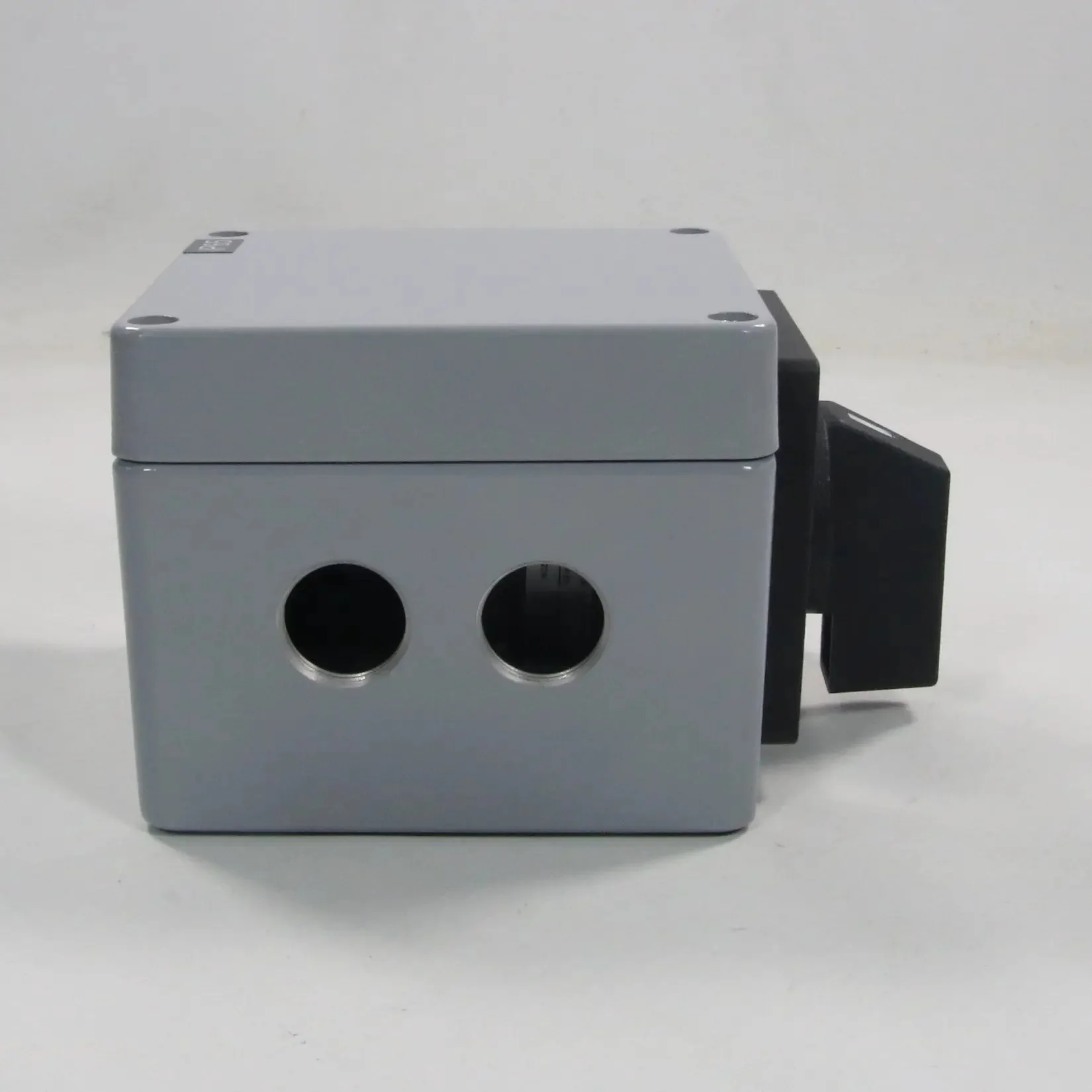

Kraus & Naimer CA10B.D-AK79*01.GK1 Selector Switch - 70036479

- Brand: Kraus & Naimer

- Model: CA10B.D-AK79*01.GK1

- Type: Selector Switch

- Part number: 70036479

- Technical specifications:
- Series: CA10B
- Thermal current Ith / Rated current: 20 A
- Rated insulation voltage Ui: 690 V AC/DC
- Rated impulse withstand voltage Uimp: 6 kV
- Switching angle: 30°, 45°, 60° or 90°
- Contacts: Silver contacts
- Utilization category: AC-23 / AC-3 (motor switching)
- Handle / Mounting: Standard black handle; panel mounting  4-hole possible)
- Terminals: Finger-proof screw terminals
- Additional features: Latching mechanism; robust construction; high mechanical endurance; suitable for control, instrumentation, and small motor applications; compact design for limited space
- Standards: IEC 60947-3 / EN 60947-3 / VDE 0660 part 107; CE marked

Weight: 800 g

Dimensions: 140 x 100 x 80 mm

Country of origin: Austria

HS code: 8536.50
