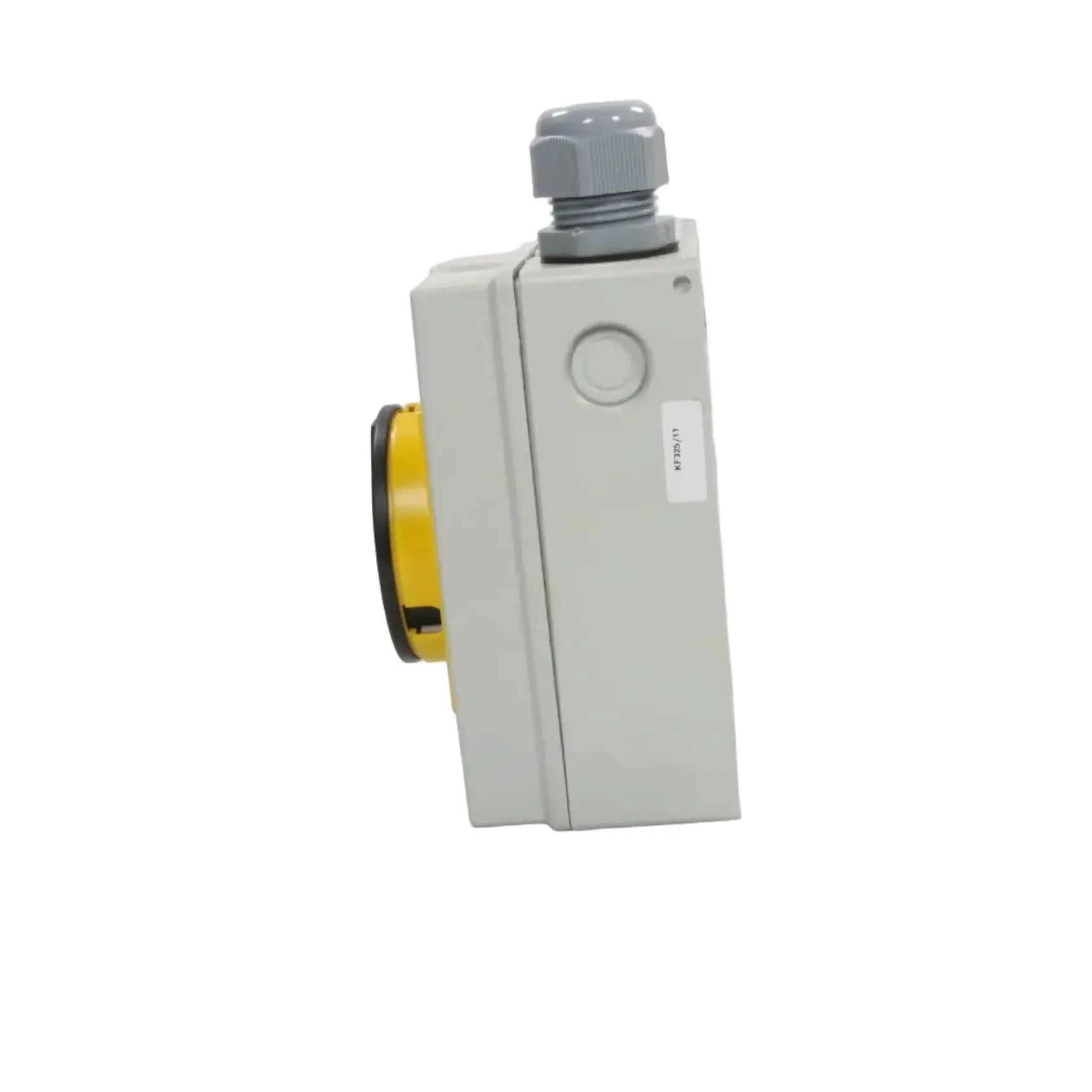

Kraus & Naimer KF325/11 Switch Disconnector

- Brand: Kraus & Naimer
- Model: KF325/11
- Type: Switch Disconnector
- All tech specs:
  - Function: Load-break switch disconnector for on-load switching and isolation of electrical circuits
  - Rated Operational Voltage (Ue): 690 V AC (50/60 Hz)
  - Rated Insulation Voltage (Ui): 1000 V
  - Rated Impulse Withstand Voltage (Uimp): 8 kV
  - Rated Current (Ie): 25 A (AC-23A)
  - Rated Power (kW): 11 kW at 400 V (AC-23A)
  - Utilization Category: AC-23A (motor load), AC-21A (resistive load)
  - Number of Poles: 3-pole
  - Number of Positions: 2 positions
  - Switching Angle: 90°
  - Handle: Front-operated, black handle (lockable in OFF position)
  - Mounting: Panel or door mounting
  - Terminal Type: Screw terminals
  - Conductor Cross Section: 2.5 – 6 mm² (solid/flexible)
  - Short-Circuit Withstand Current (Icw): 2 kA for 1 s
  - Mechanical Endurance: > 100,000 operations
  - Electrical Endurance: > 10,000 operations at rated load
  - Protection Rating: IP65
  - Ambient Temperature: -25°C to +55°C
  - Certifications: IEC/EN 60947-3, VDE, UL, CSA
  - Features: Positive opening contacts, compact design, high breaking capacity
- Dimensions: 100 x 70 x 170 mm
- Weight: 350 g
- Country of origin: Austria
- HS code: 853650
