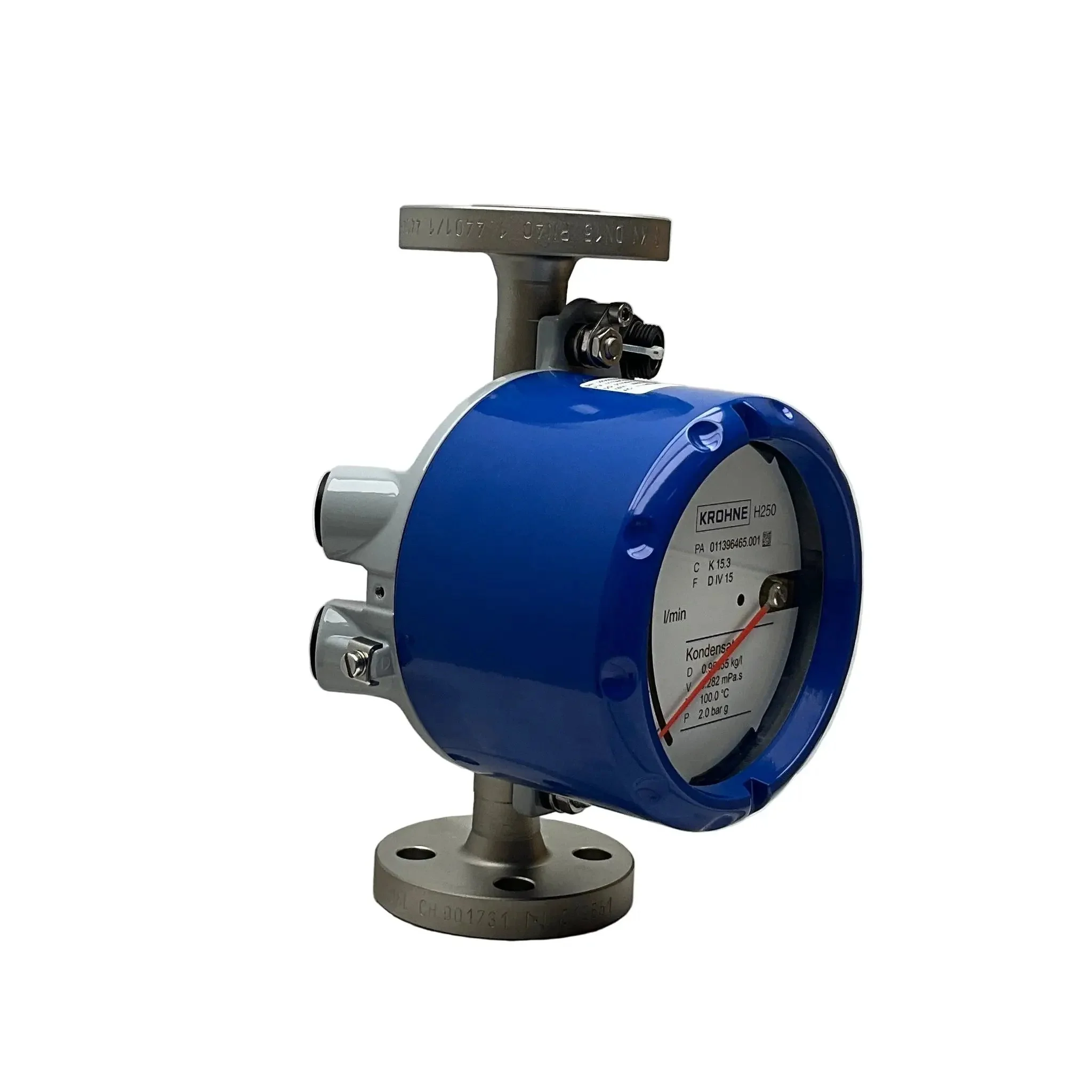

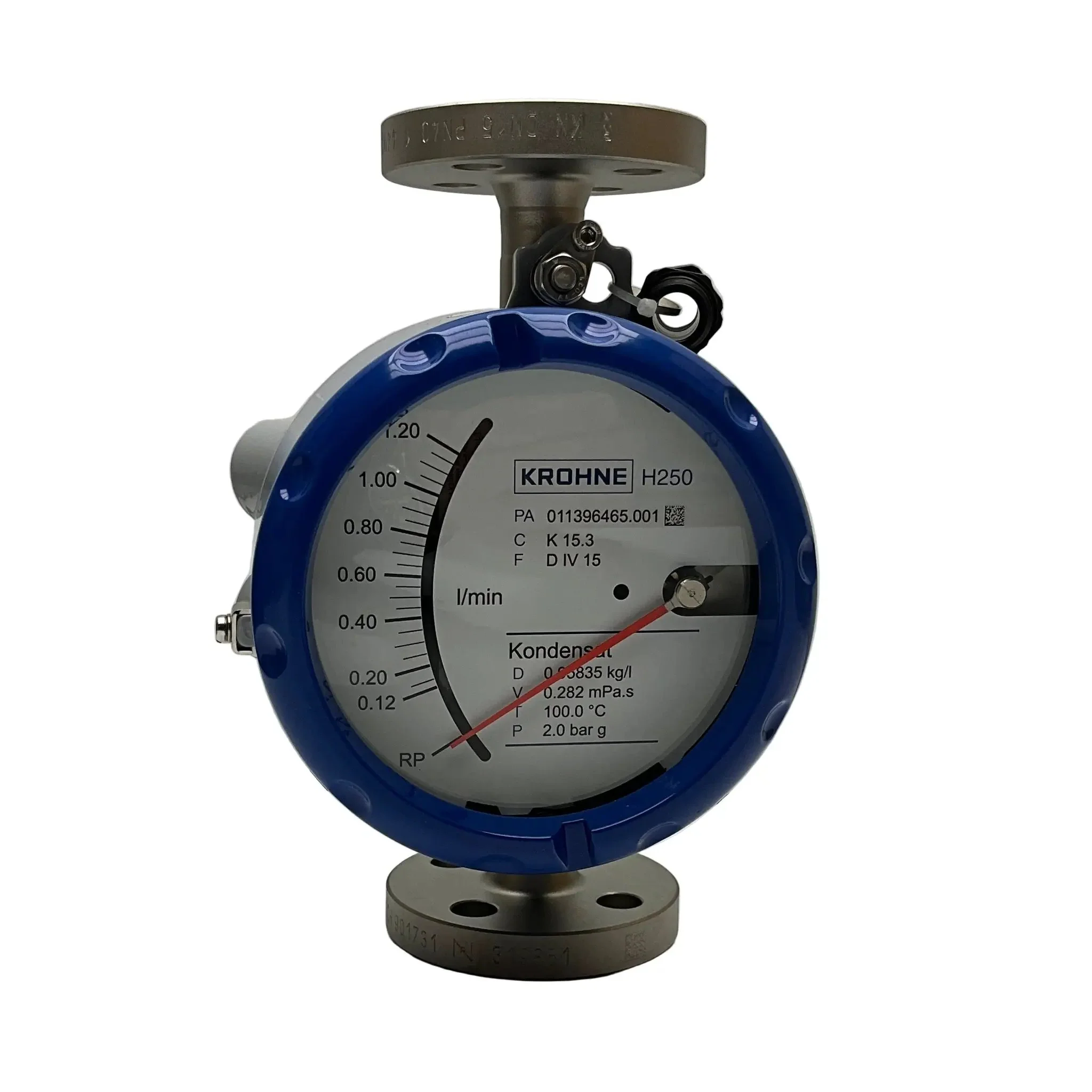

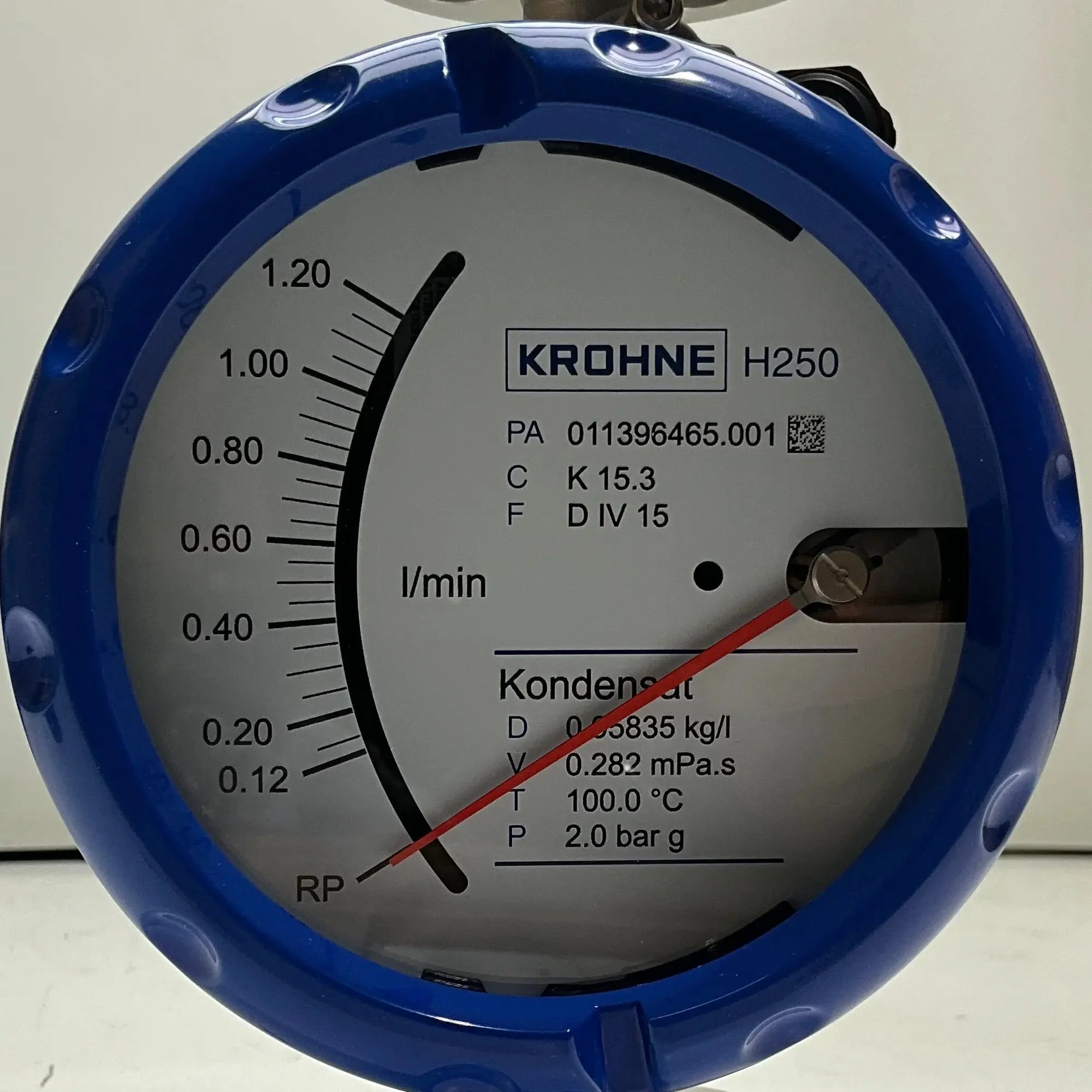

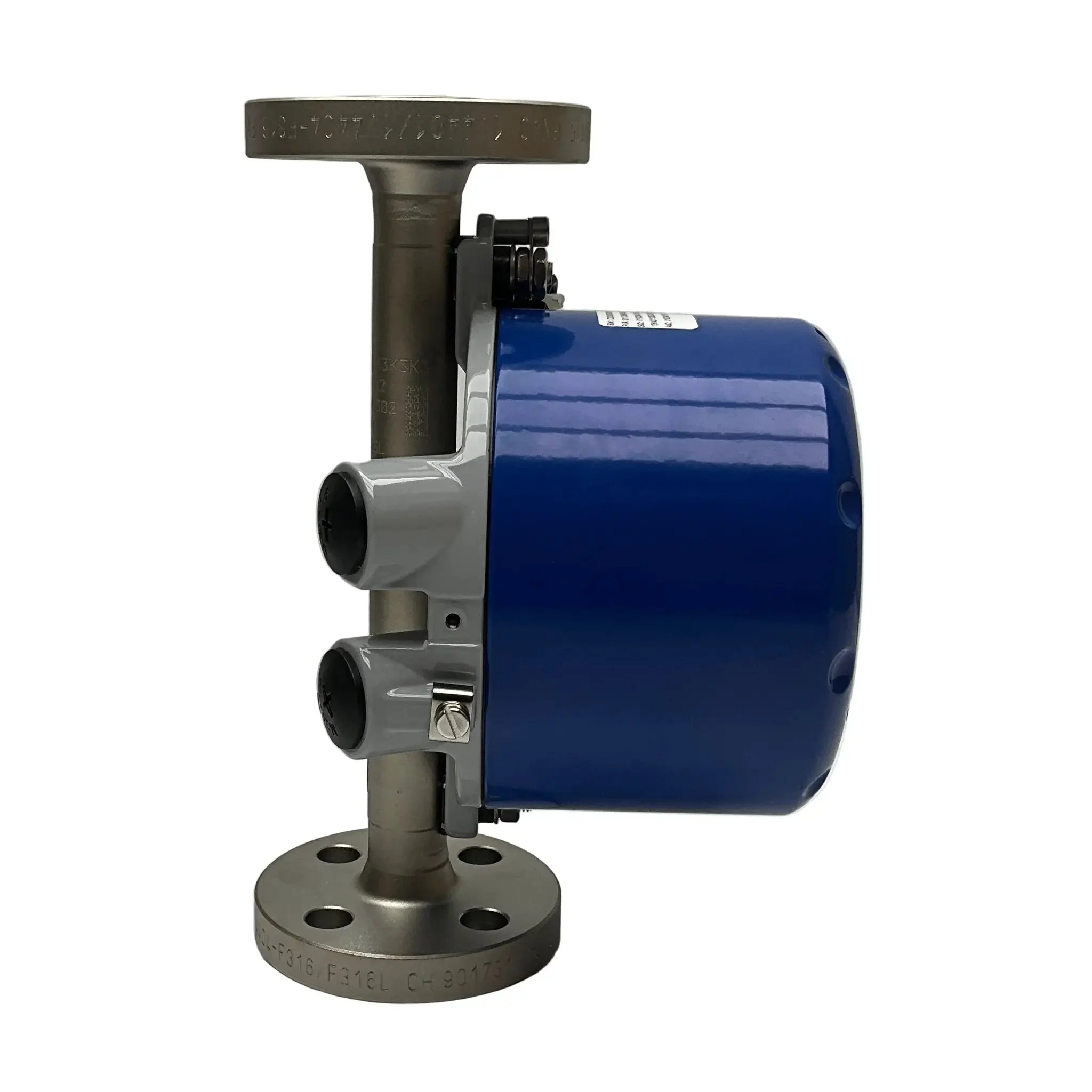

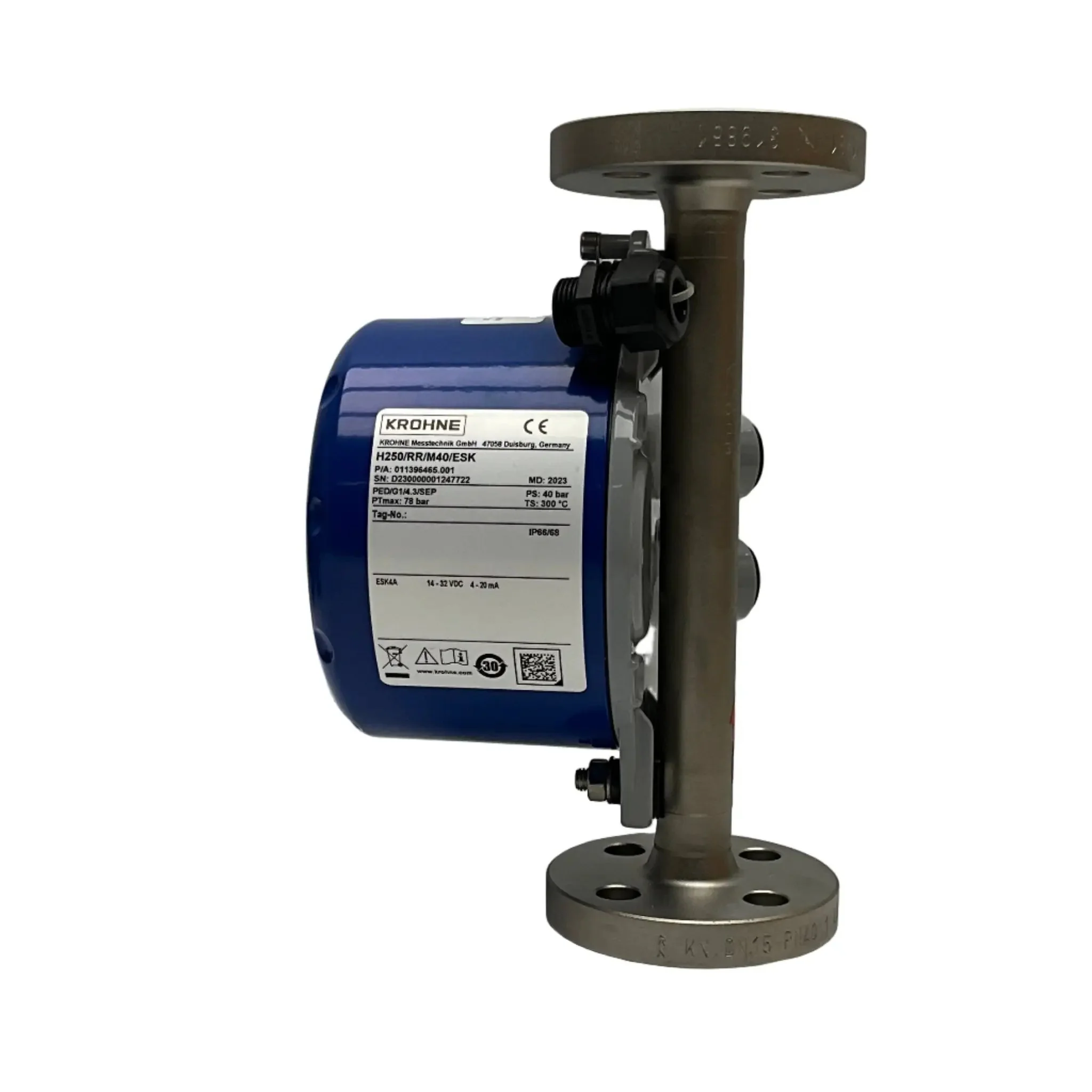

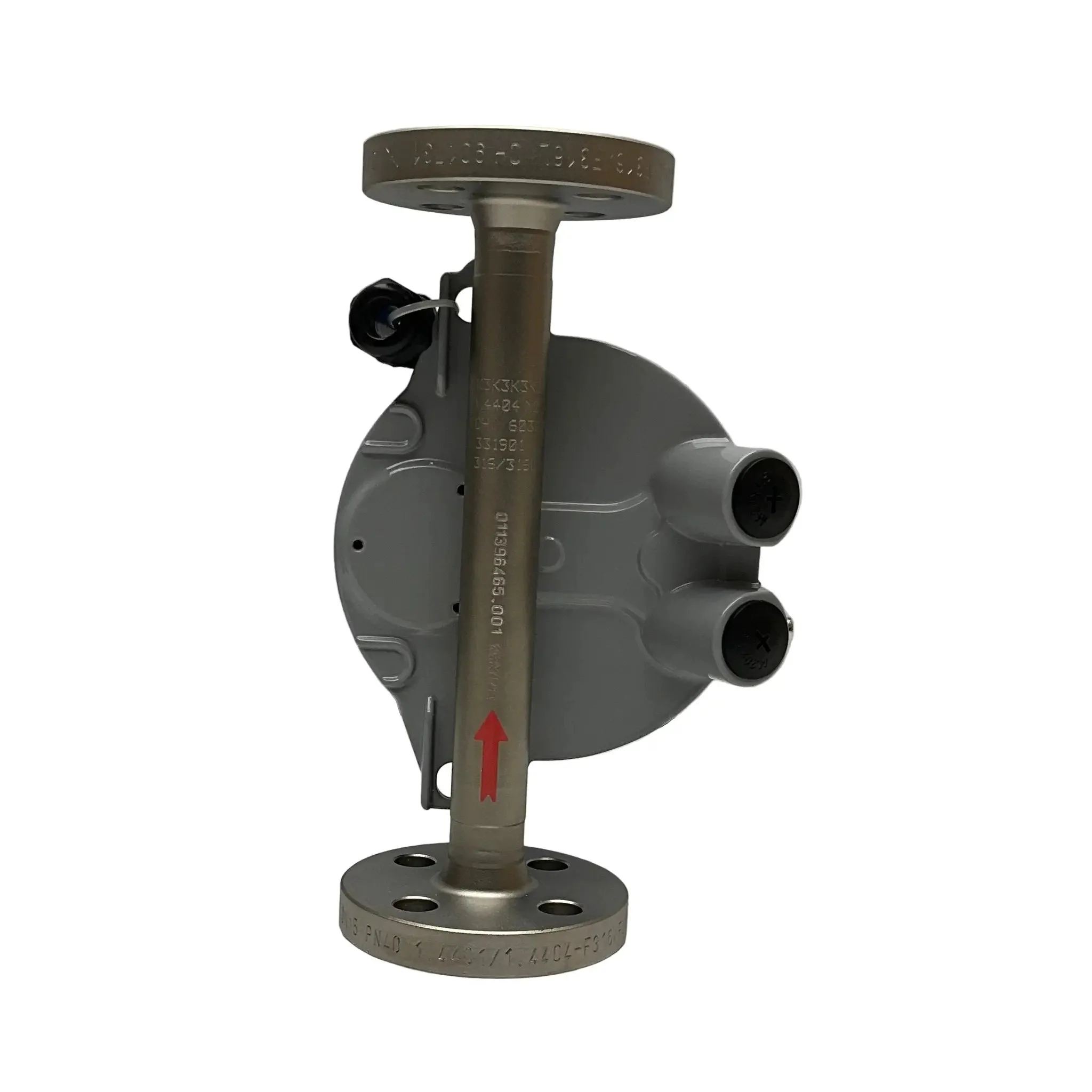

Krohne H250H/RR/M40/ESK Variable Area Flowmeter

Brand: Krohne

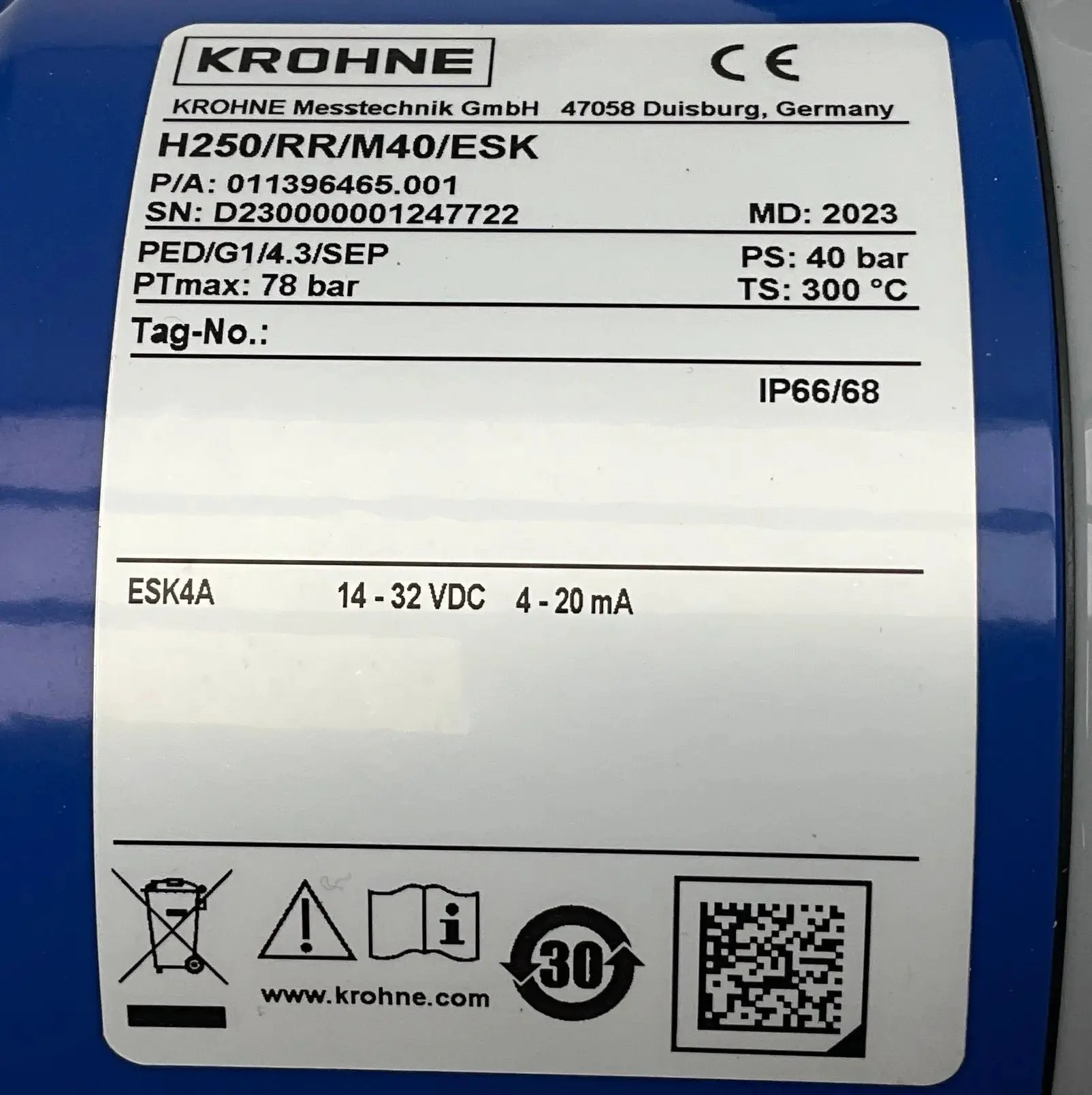

Model: H250H/RR/M40/ESK
Type: Variable Area Flowmeter
Part Number: 011396465.001

Technical Specs:
- Measuring Principle: Variable Area
- Flow Range: 0.1 to 350 kg/h
- Accuracy: ±1.6% of reading (FS) for liquids, ±2.5% for gases
- Repeatability: ±0.25% FS
- Process Temperature: -196°C to +300°C
- Body Material: Stainless steel (1.4404 / AISI 316L)
- Liner Material: N/A

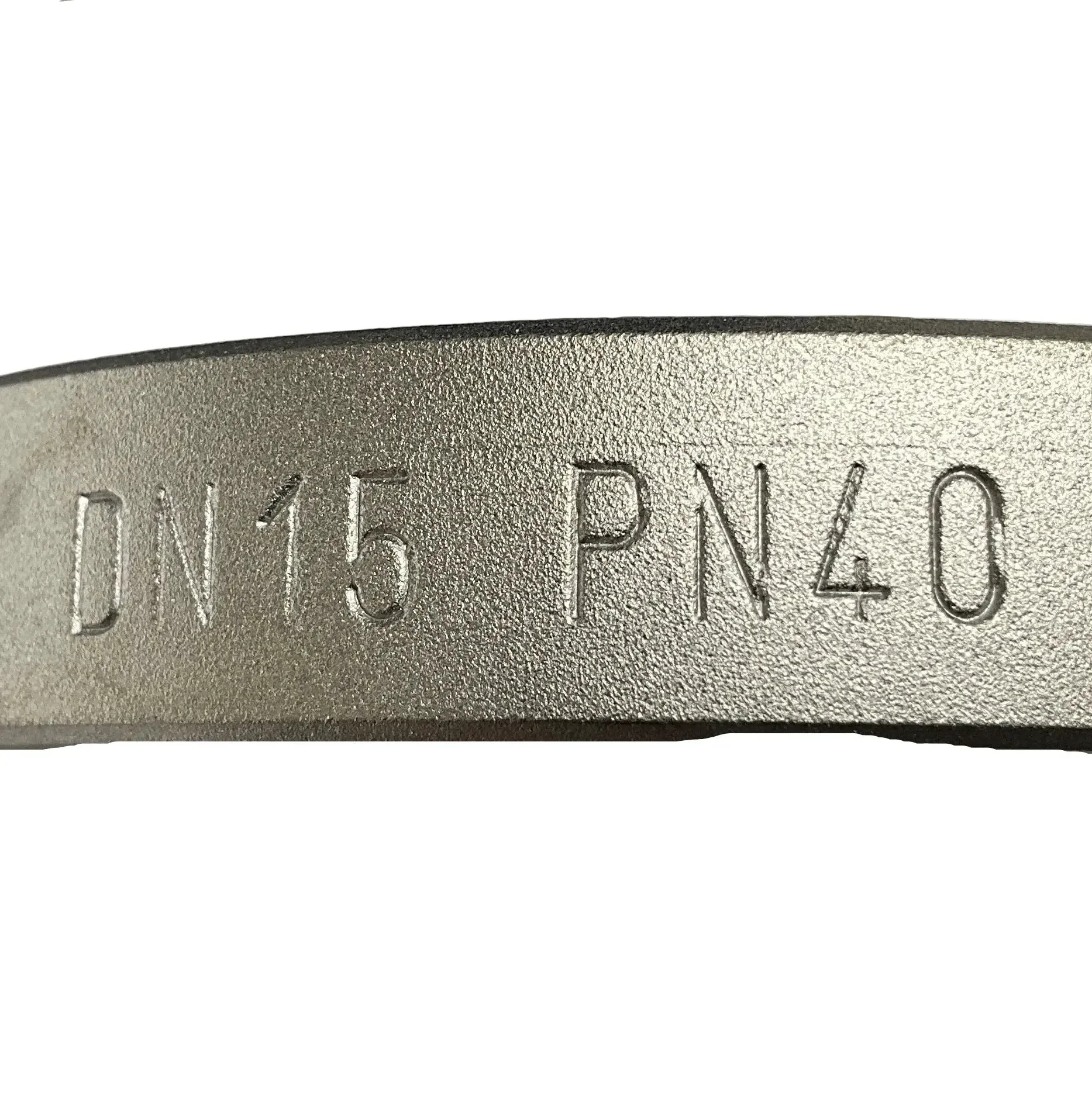

- Process Connection: Flanged, DN15, PN40
- Output Signal: 4-20 mA HART
- Supply Voltage: 14 - 32V DC
- PT Max.: 78 bar
- Enclosure Rating: IP66/IP68
- Additional Features: Hermetically sealed metal tube. Modular design with optional electronics (e.g., limit switches, 4-20 mA). Long service life with no maintenance.
- Certifications: ATEX (Ex d IIC T6), PED (Category III), CE

Dimensions: 360 x 260 x 220 mm

Weight: 4.5 kg

Country of Origin: Germany

HS Code: 9026.10
