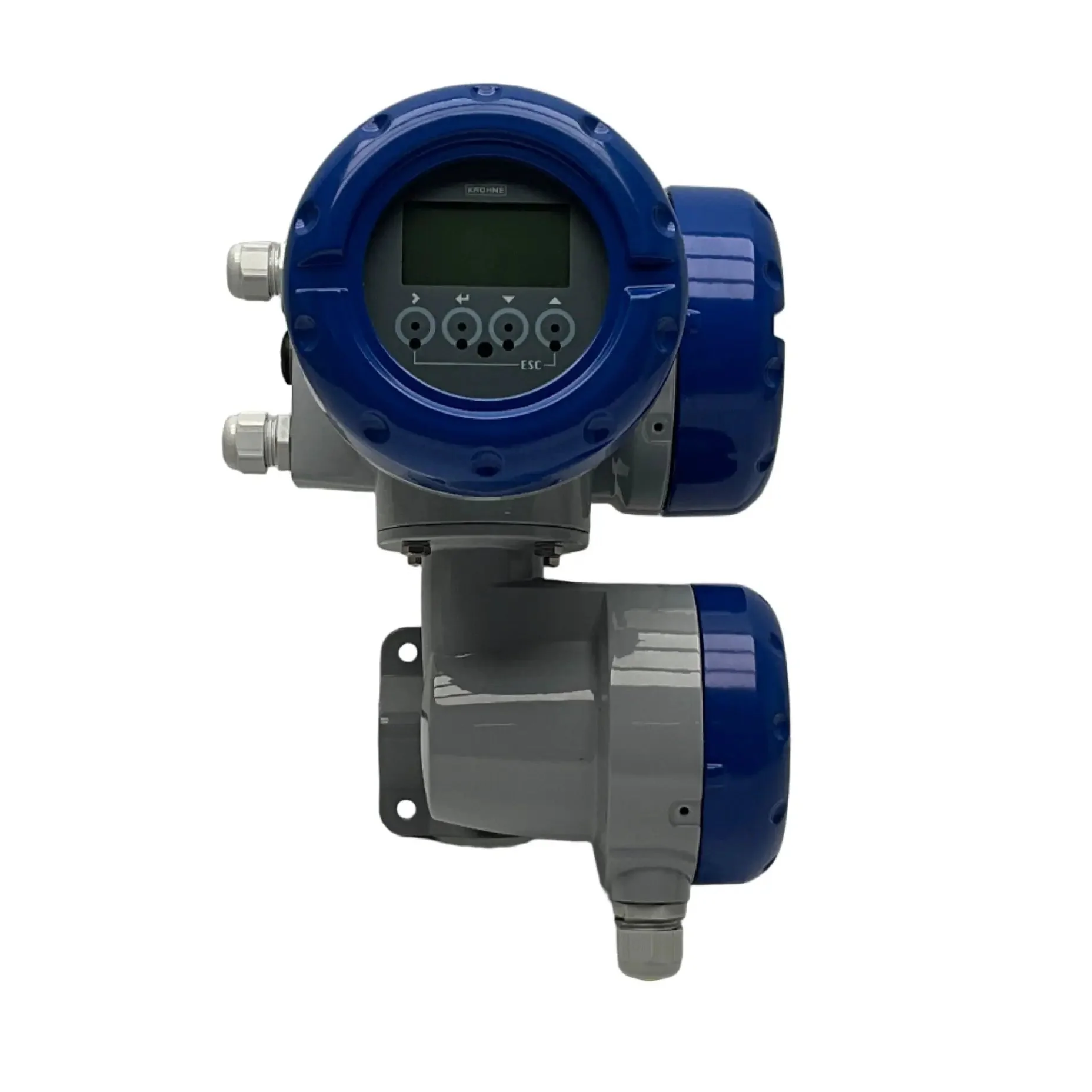

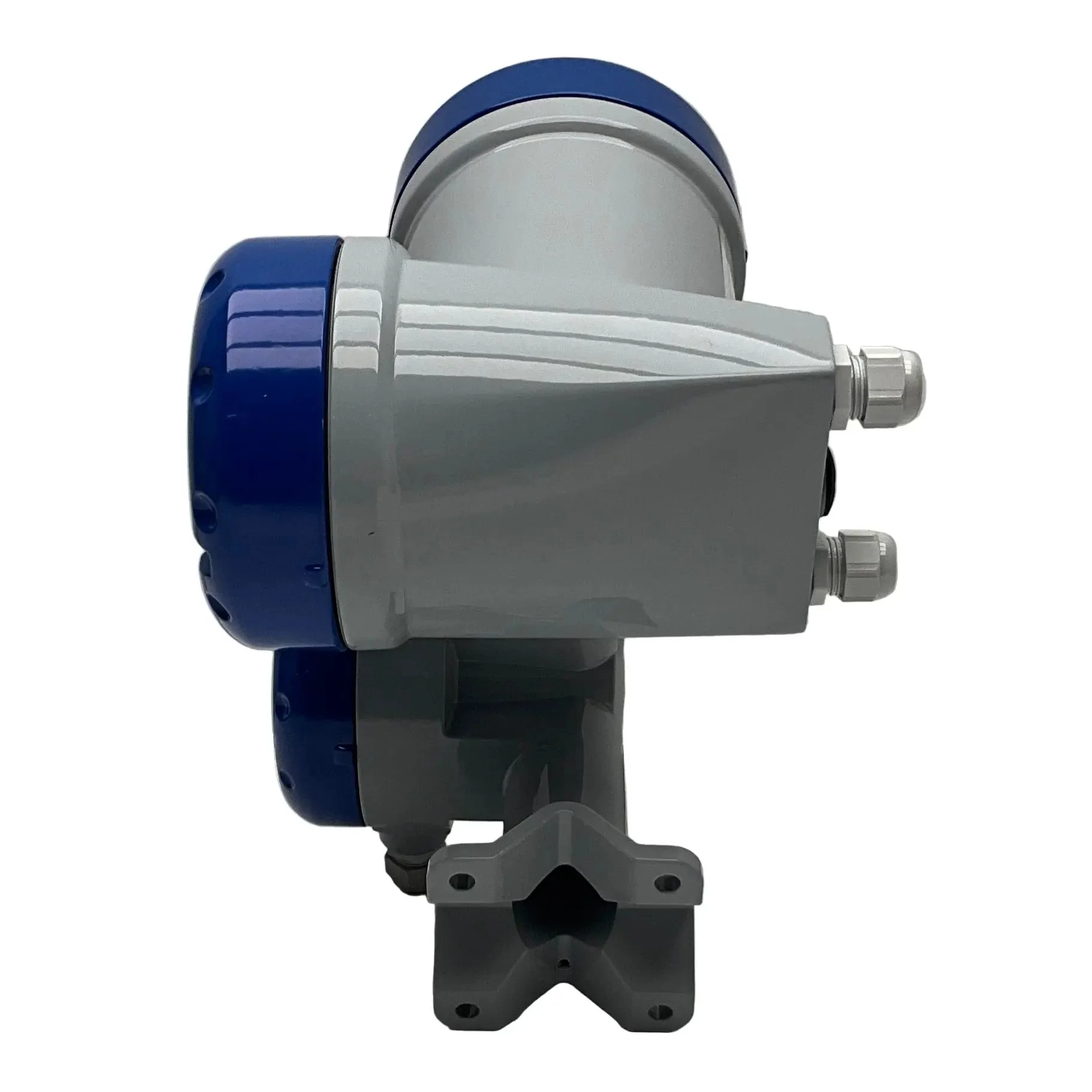

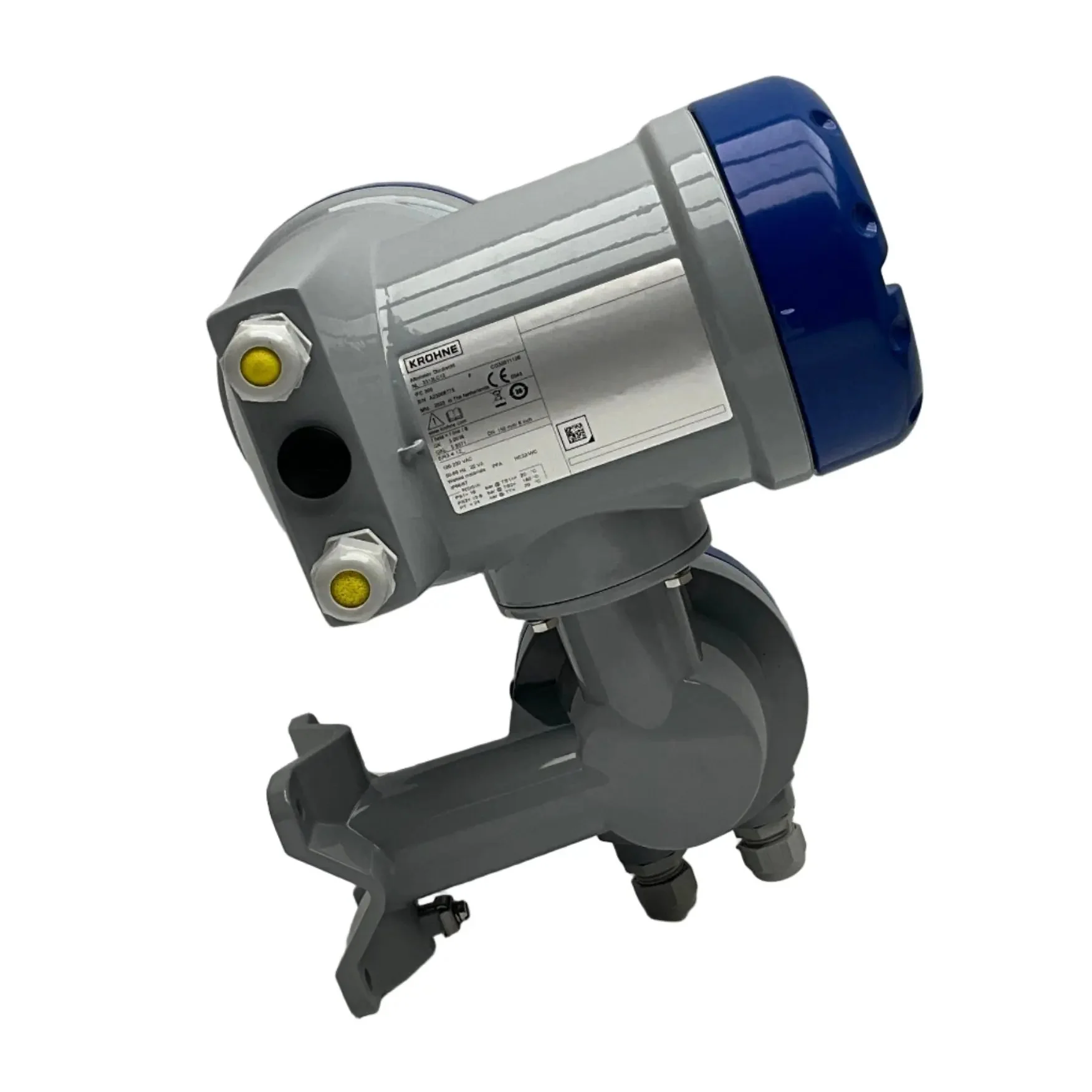

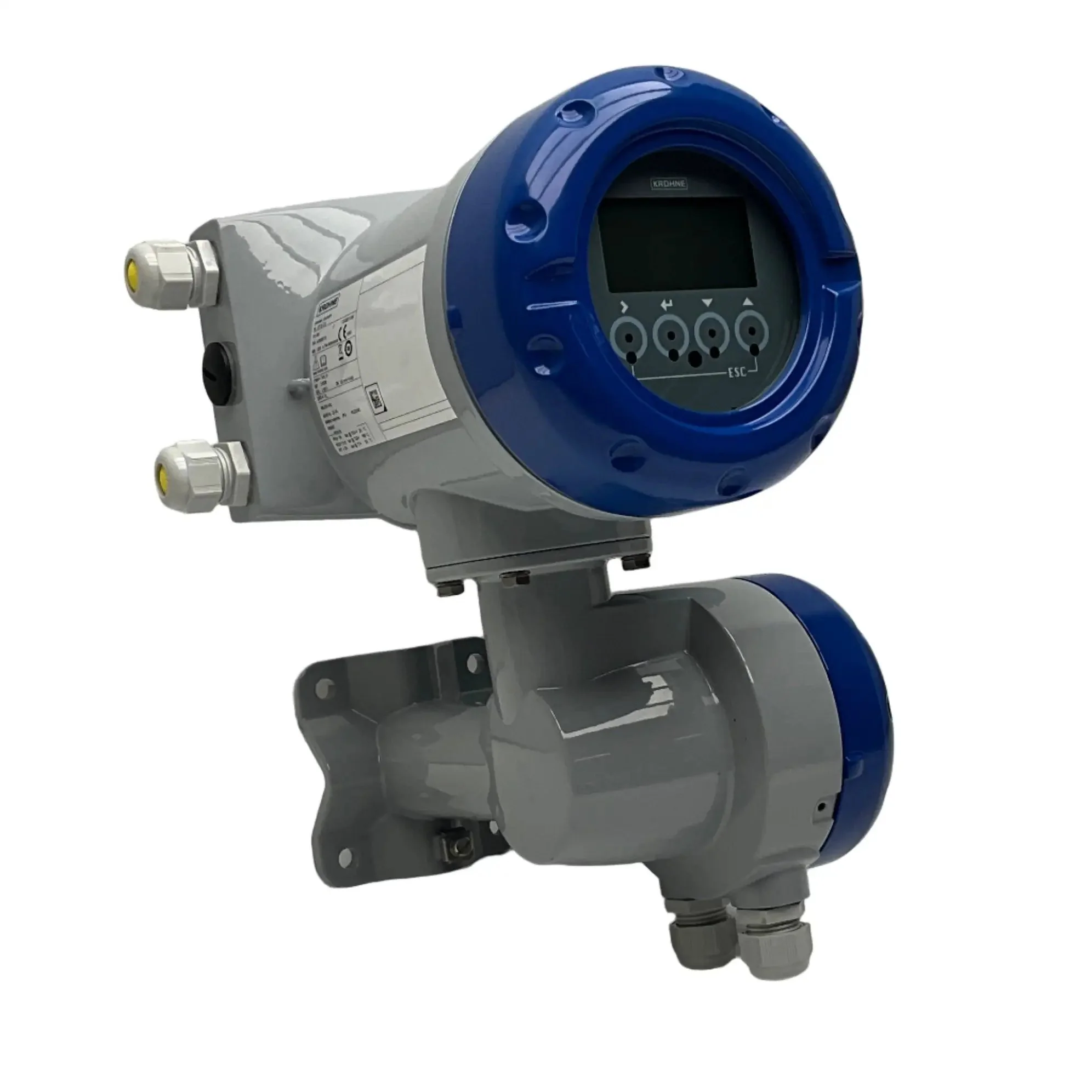

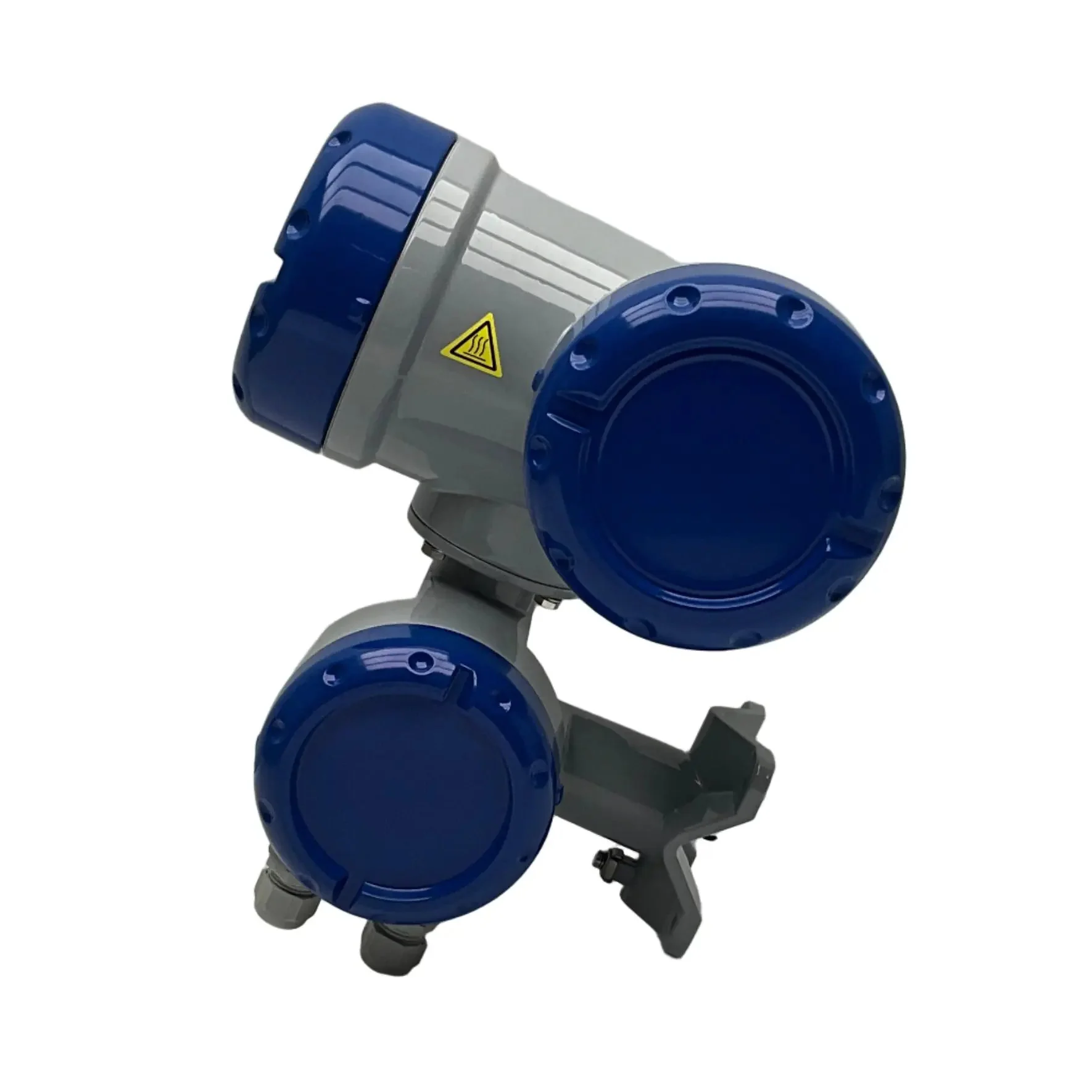

Krohne IFC 300 F Electromagnetic Flow Signal Converter

Brand: Krohne
Model: IFC 300 F
Type: Electromagnetic Flow Signal Converter

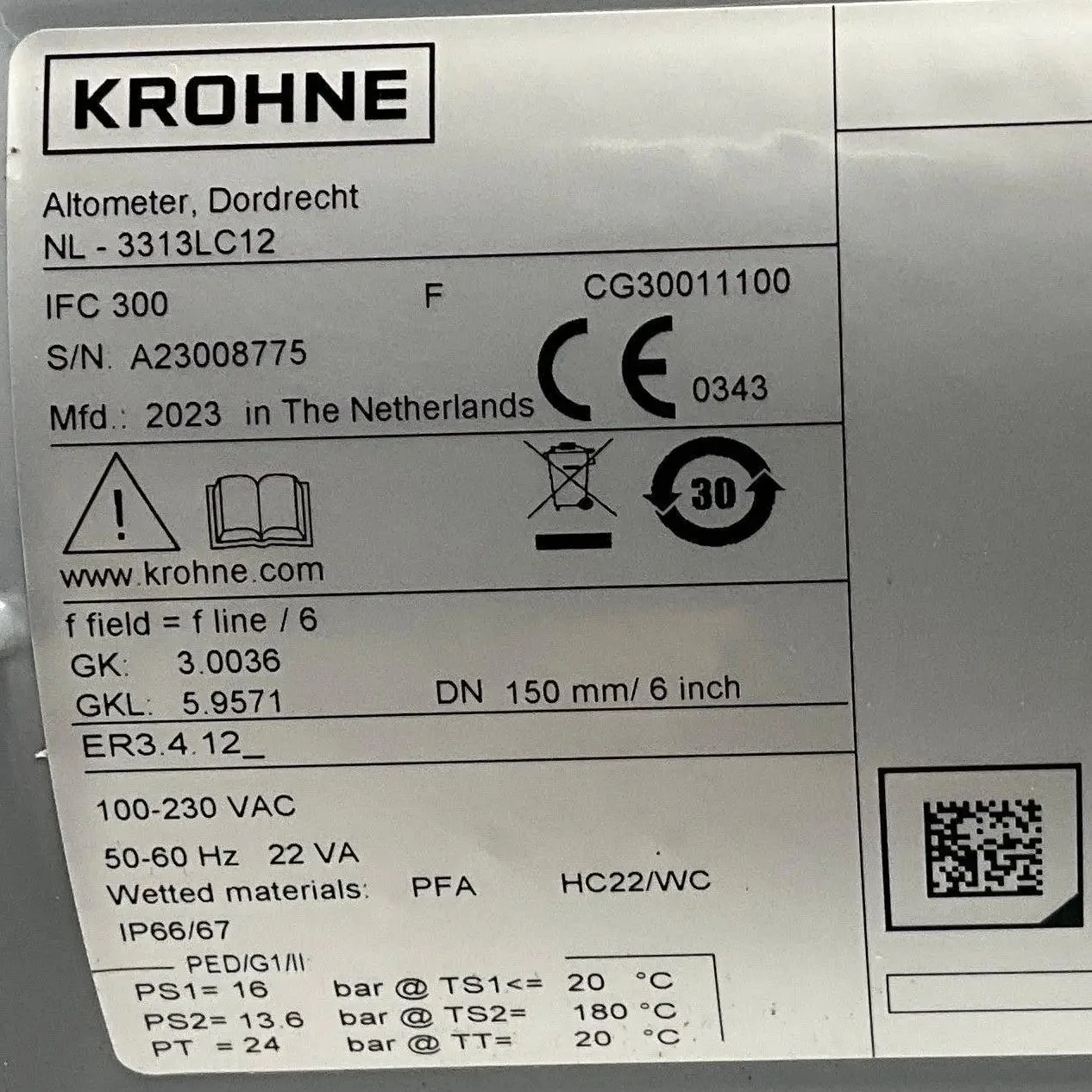

Part number: CG30011100
- Material: Polycarbonate for field mounting durability
- Configuration: 4-wire signal converter for remote/field installation
- Voltage: 100-230 VAC (50/60 Hz)
- Power Consumption: ≤15 W
- Inputs: Compatible with electromagnetic flow sensors -  OPTIFLUX 2300/4300/5300/6300, WATERFLUX 3300
- Outputs: 3 x 4-20 mA - HART; Modbus RTU; Profibus DP/PA; Foundation Fieldbus; Profinet
- Accuracy: ±0.2% of rate
- Flow Range: Dependent on sensor size
- Medium: Electrically conductive liquids (≥5 µS/cm conductivity)
- Filtration: Sensor-dependent
- Operating Temperature Range: -40°C to +60°C
- Protection Rating: IP66/IP67
- Standards: IEC/EN 60529; CE marked; EMC compliant (Class B)
- Certification: CE; SIL 2/3; RoHS compliant; NACE MR0175
- Features: HART/Profibus communication; diagnostics (empty pipe, electrode coating, low flow); totalizer (sum/batch counters); self-diagnostics; multilingual display; web server for remote access

Dimensions: 277 x 202 x 137 mm

Weight: 15 kg

Country of Origin: Netherlands

HS Code: 9026.10
