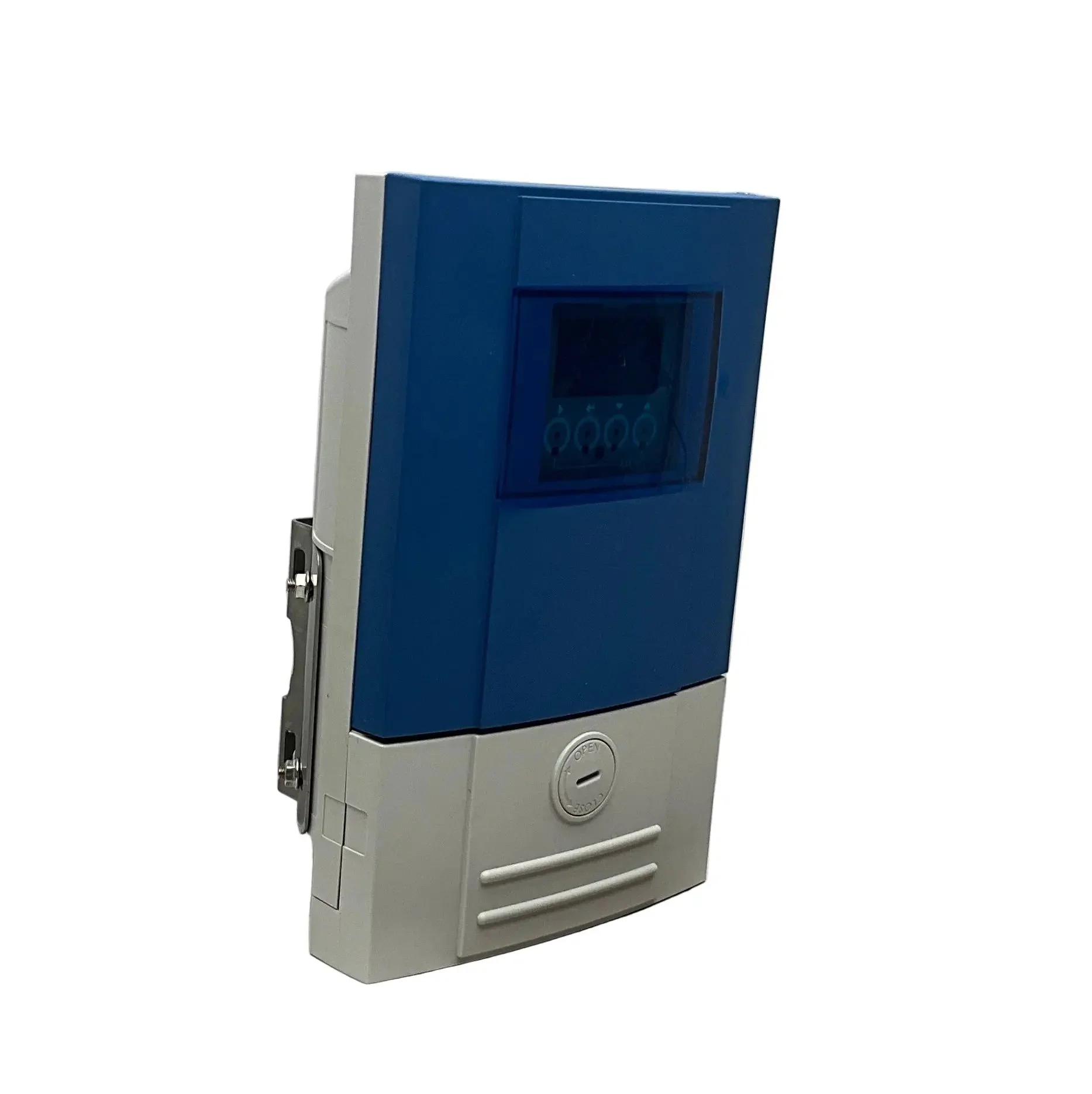

Krohne IFC 300 W Electromagnetic Flow Signal Converter

Brand: Krohne
Model: IFC 300 W
Type: Electromagnetic Flow Signal Converter
Part Number: CG30011100

Technical Specs:
Measuring Principle: Electromagnetic
Input: Compatible with OPTIFLUX, WATERFLUX, and other Krohne electromagnetic flow sensors
Output Signal: 4-20 mA (passive or active), pulse output, status output, HART protocol (optional)
Supply Voltage: 100-230 V AC, 50/60 Hz
Power Consumption: 22 VA
Input/Output: Pulse out / status out (Imax = 100 mA @ <10 Hz; 20 mA @ ≤12 kHz; Vo = 1.5 V @ 10 mA; Umax = 32 V DC for status out)
Operating Temperature Range: -40°C to +60°C
Certifications: CE, ATEX (Ex d IIC T6), PED (Category III), OIML, MID, SIL2/3, WHG (overfill prevention)

Dimensions: 410 x 320 x 310 mm

Weight: 3 kg

Country of Origin: Netherlands

HS Code: 9026.10
