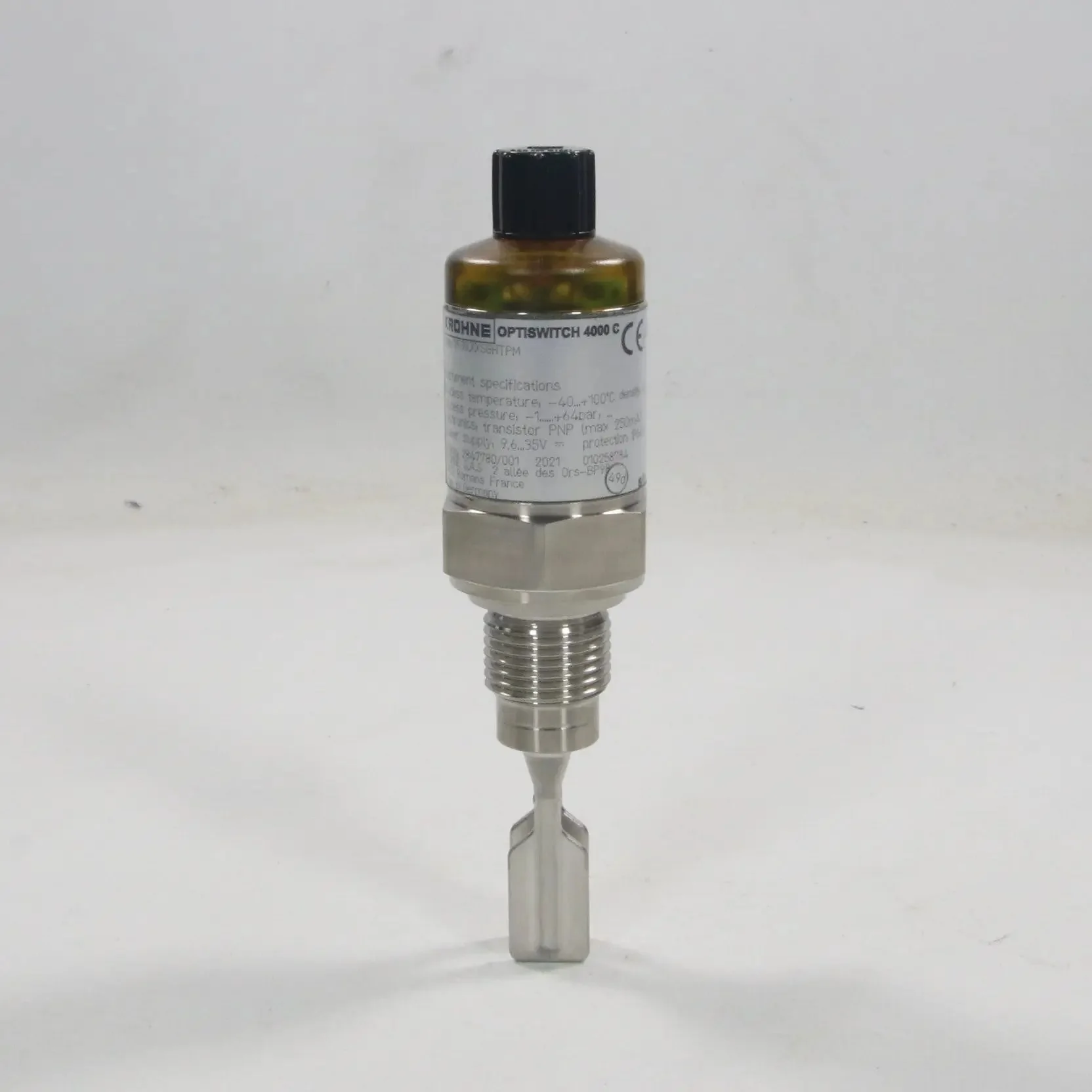

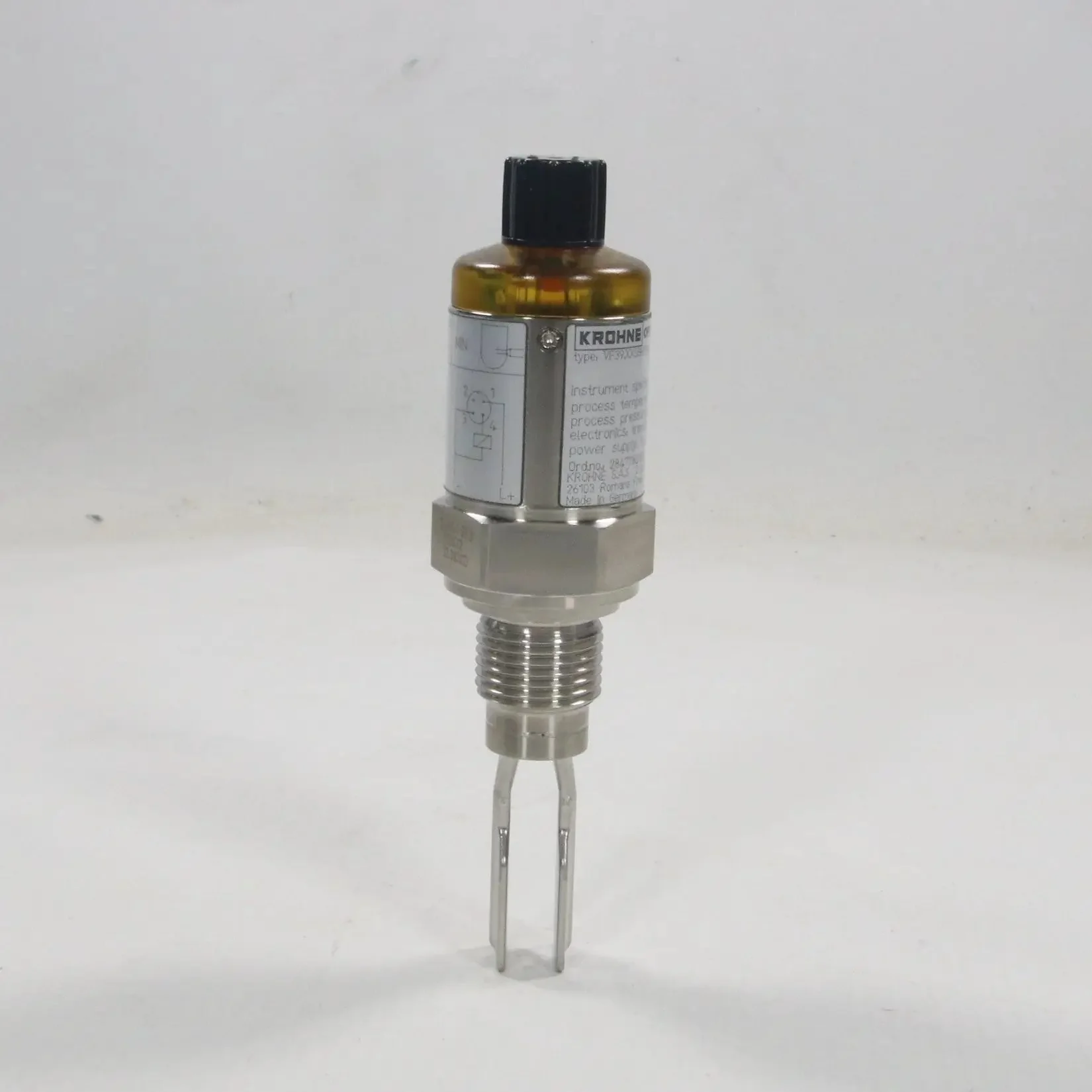

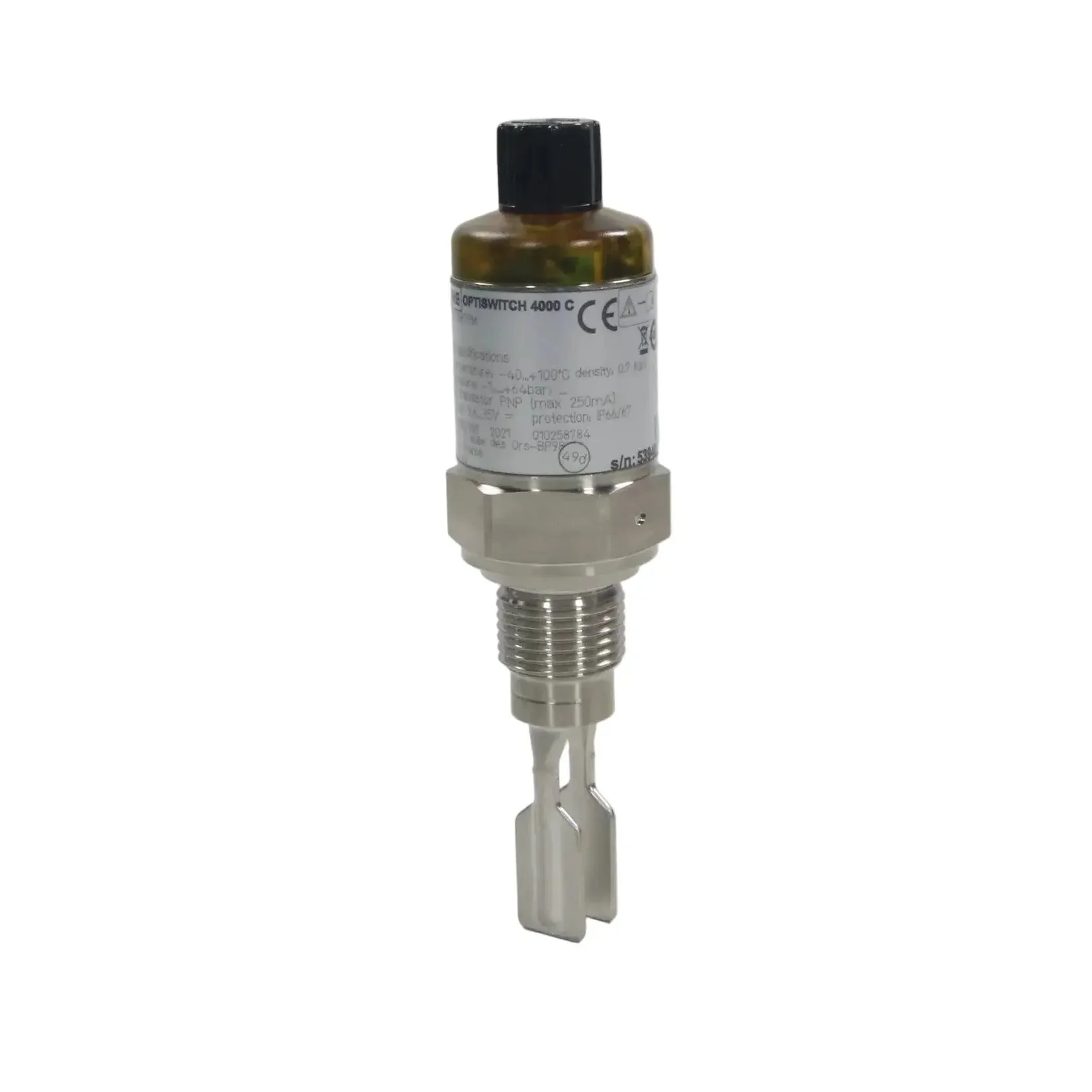

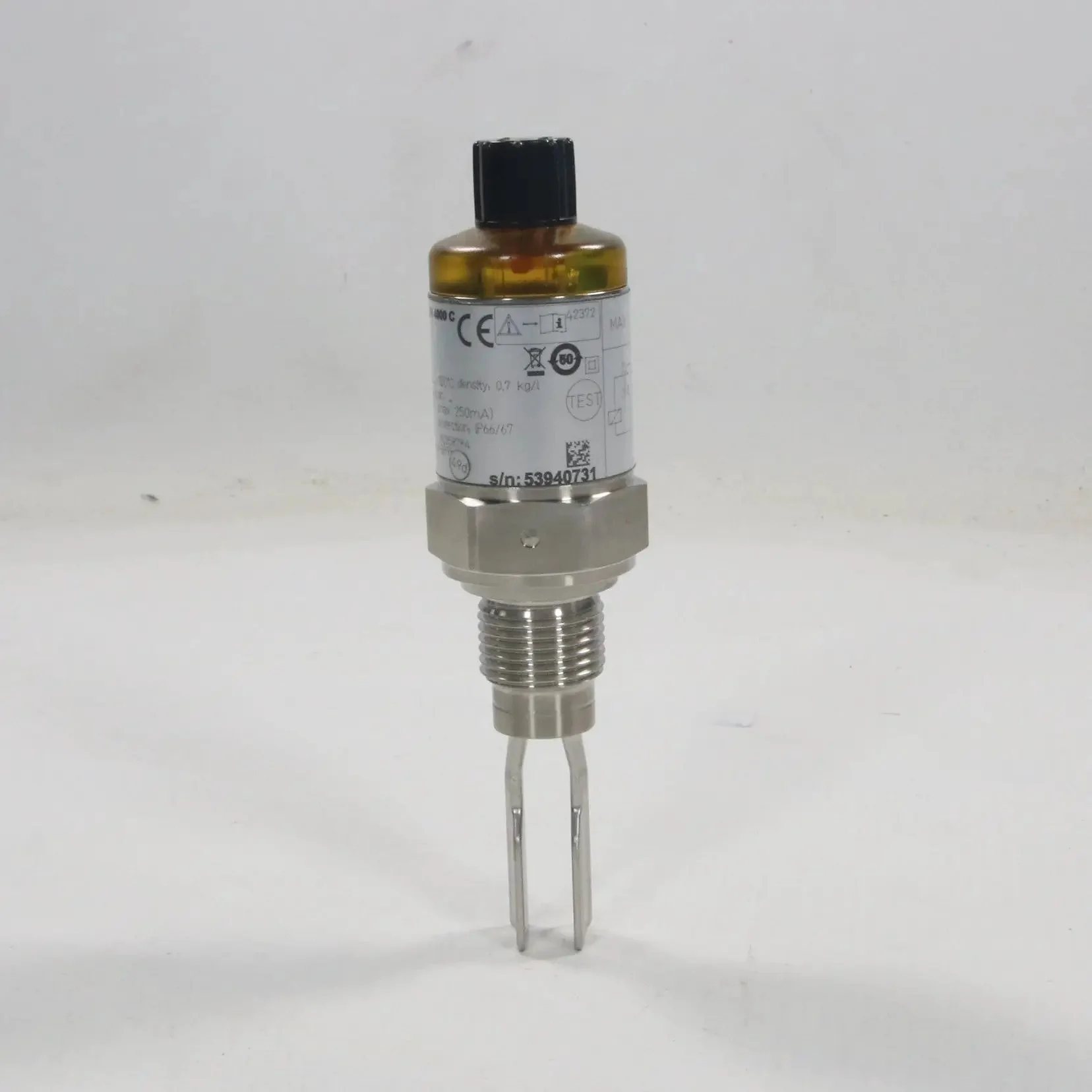

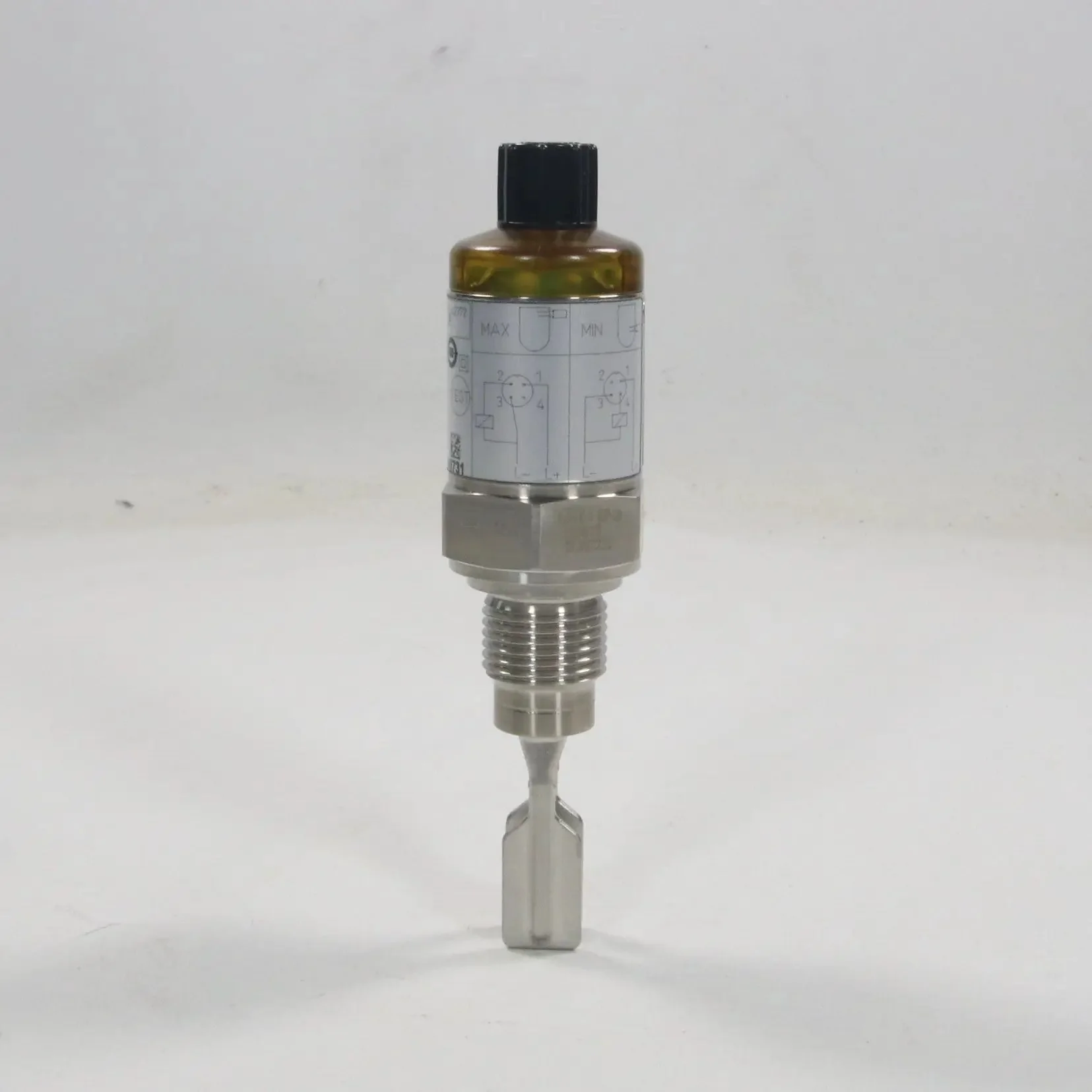

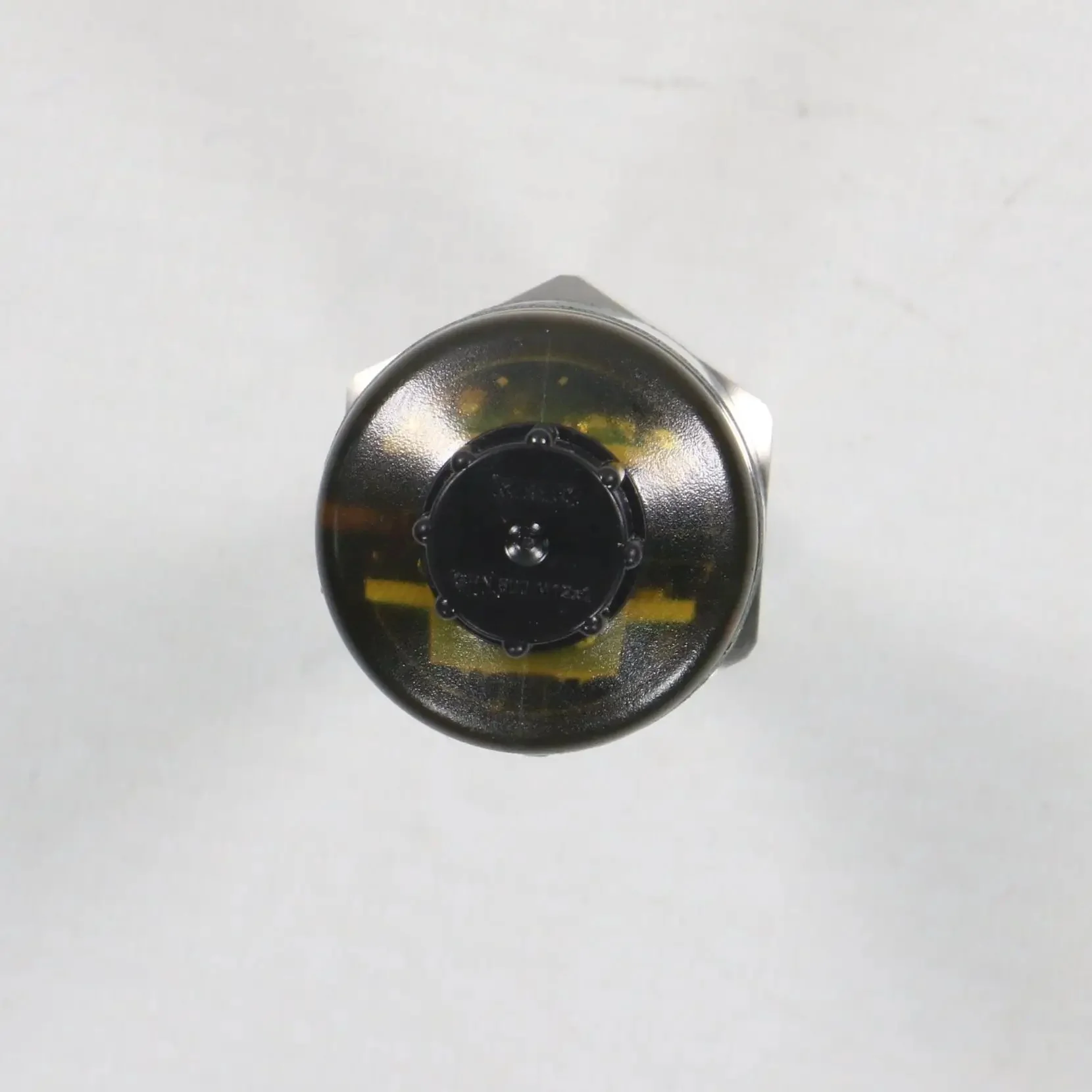

Krohne Optiswitch 4000C Vibration Level Switch - VF39.XXSGHTPM

- Brand: KROHNE

- Model: Optiswitch 4000C

- Type: Vibration Level Switch

- Part number: VF39.XXSGHTPM

- Technical specifications:
- Measuring principle: Vibration
- Output: PNP/NPN transistor output
- Supply voltage: 9.6–35 V DC - M12 4 pin
- Switching capacity: Max. 250 mA
- Process connection: Hygienic thread - G1"
- Fork material: Stainless steel 1.4404 / 316L
- Process temperature: -50°C to +100°C
- Process pressure: Vacuum to 64 bar
- Density range: 0.7 kg/l
- Electronics: Transistor PNP
- Protection class: IP66/IP67
- Housing: Stainless steel
- Additional features: Self-monitoring (detects fork blockage, loss of vibration, or cable break); no calibration required; insensitive to foam, turbulence, bubbles, or product build-up; fast response (<1 s); hygienic approvals (EHEDG, 3-A, FDA-compliant materials); suitable for CIP/SIP processes
- Standards: Compliant with IEC/EN 61010, 61326; CE marked; hygienic approvals (EHEDG, 3-A, FDA)

Weight: 200 g

Dimensions: 240 x 45 x 45 mm (box)

Country of origin: Germany

HS code: 9031.80
