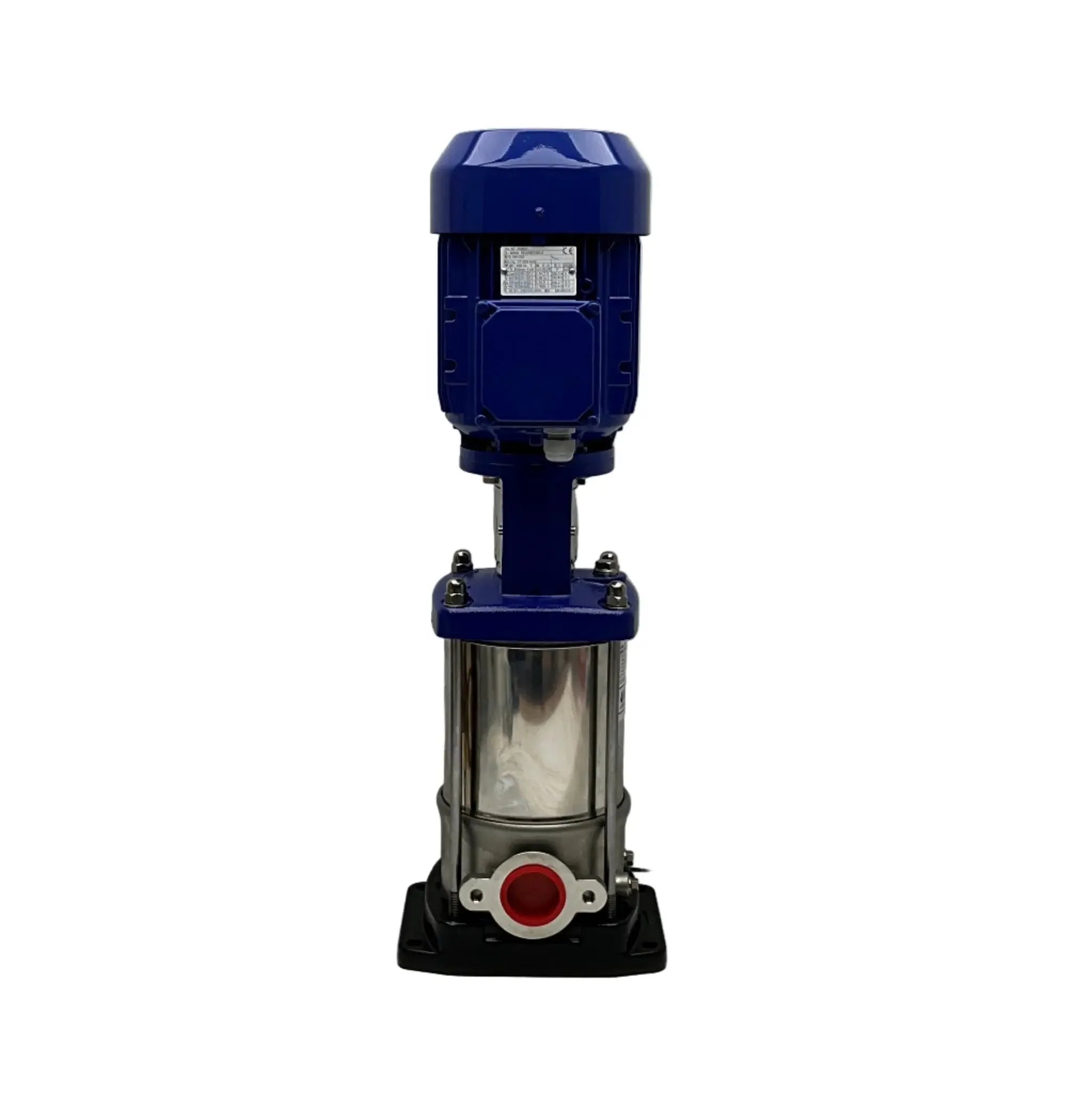

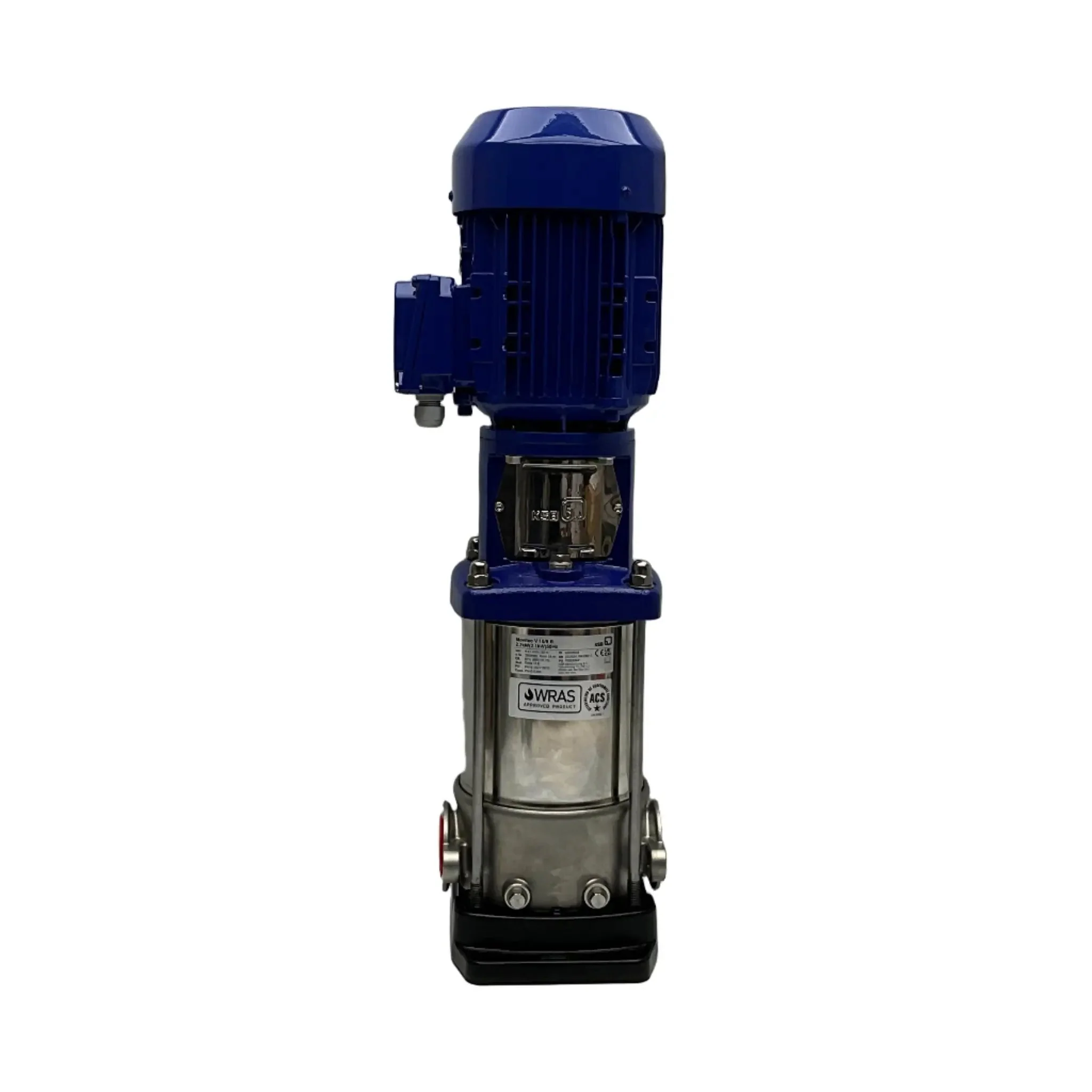

KSB Movitec V 10/6 B High-Pressure Inline Centrifugal Pump
- Brand: KSB
- Model: Movitec V 10/6 B
- Type: High-Pressure Inline Centrifugal Pump (Multistage Vertical)
- Model Range: Easy Access 13
- Part Number: 48228034
- Stages: 6
- Nominal Flow Rate (Q): 9.41 m³/h
- Head (H): 52 m

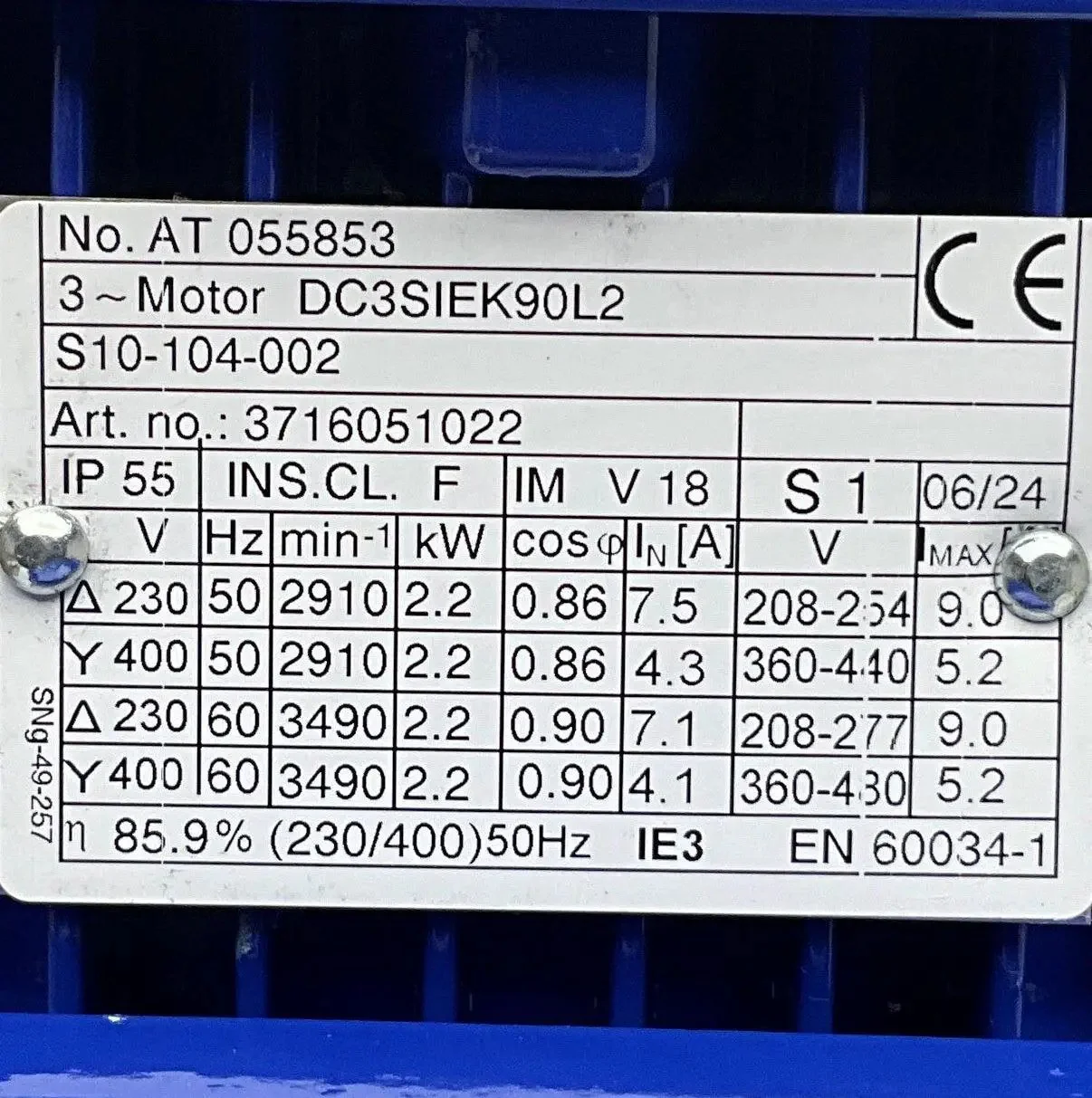

- Motor Power: 2.2 kW
- Voltage: 230 / 400 V @ 50 Hz 2P
- Speed: 2900 rpm
- Connection: Oval flange DN 40 - G 6/4"
- Max Operating Pressure: 16 bar
- Fluid Temperature: -20°C to +100°C (standard seals)
- Material: Stainless steel 1.4301 (AISI 304) pump casing and impellers
- Shaft Seal: Mechanical seal (SiC/SiC/Viton)
- Features: Compact inline design, cartridge mechanical seal for easy maintenance, variable installation position, low NPSH
- Dimensions: 810 x 340 x 280 mm
- Weight: 45 kg
- Country of Origin: Germany
- HS Code: 841370
Original: $4,319.58
-70%$4,319.58
$1,295.87
Description
- Brand: KSB
- Model: Movitec V 10/6 B
- Type: High-Pressure Inline Centrifugal Pump (Multistage Vertical)
- Model Range: Easy Access 13
- Part Number: 48228034
- Stages: 6
- Nominal Flow Rate (Q): 9.41 m³/h
- Head (H): 52 m
- Motor Power: 2.2 kW
- Voltage: 230 / 400 V @ 50 Hz 2P
- Speed: 2900 rpm
- Connection: Oval flange DN 40 - G 6/4"
- Max Operating Pressure: 16 bar
- Fluid Temperature: -20°C to +100°C (standard seals)
- Material: Stainless steel 1.4301 (AISI 304) pump casing and impellers
- Shaft Seal: Mechanical seal (SiC/SiC/Viton)
- Features: Compact inline design, cartridge mechanical seal for easy maintenance, variable installation position, low NPSH
- Dimensions: 810 x 340 x 280 mm
- Weight: 45 kg
- Country of Origin: Germany
- HS Code: 841370
