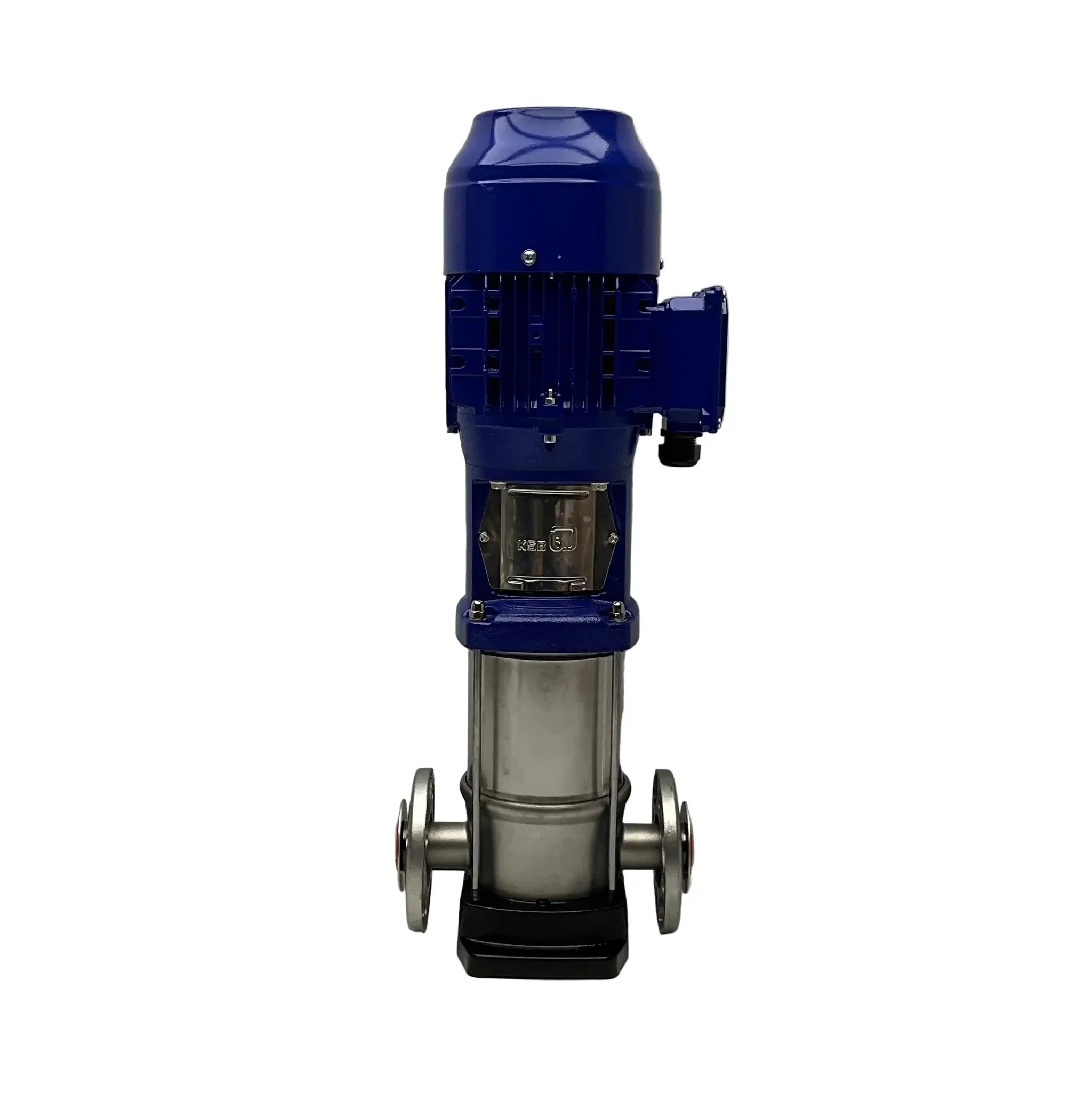

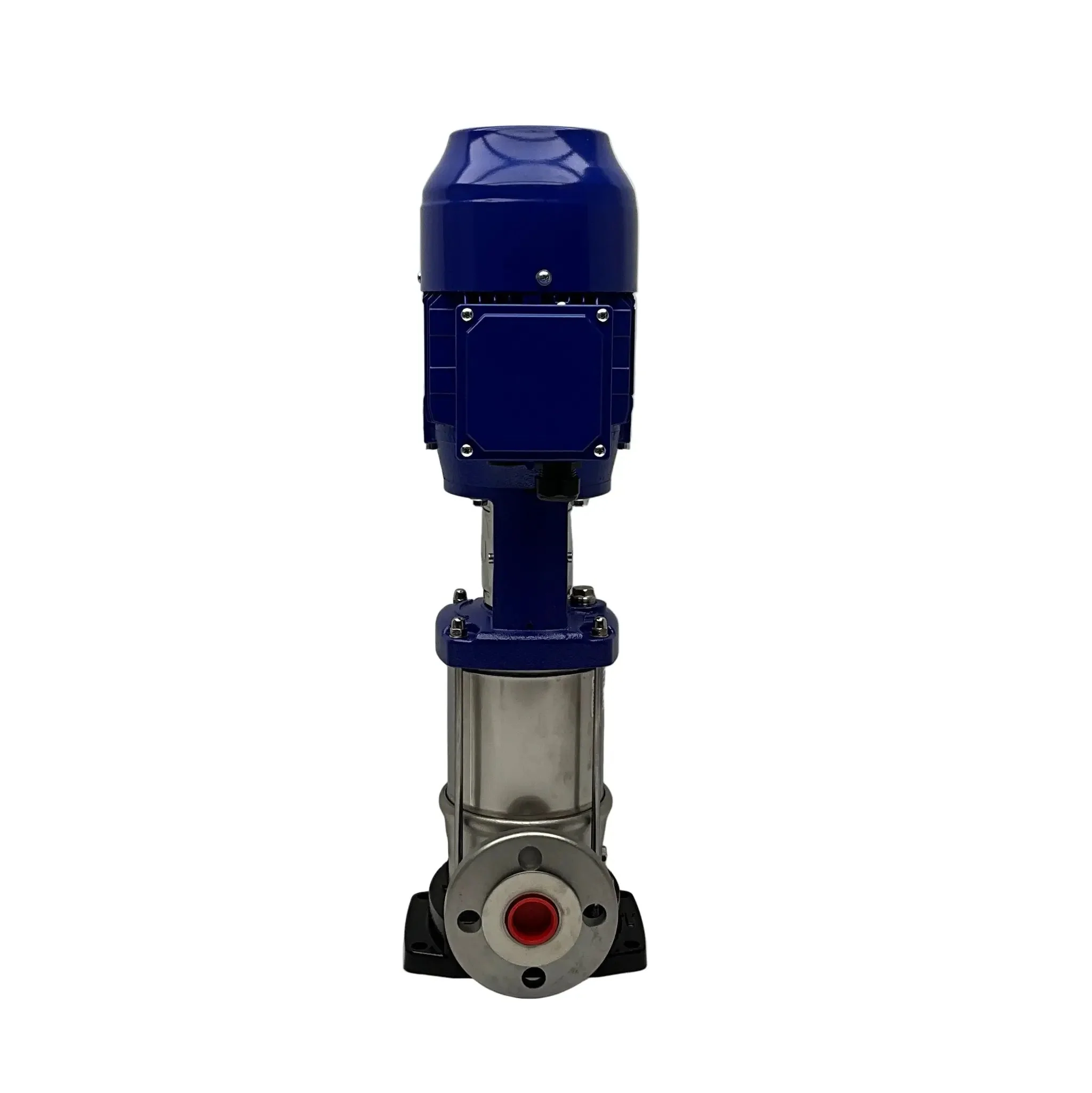

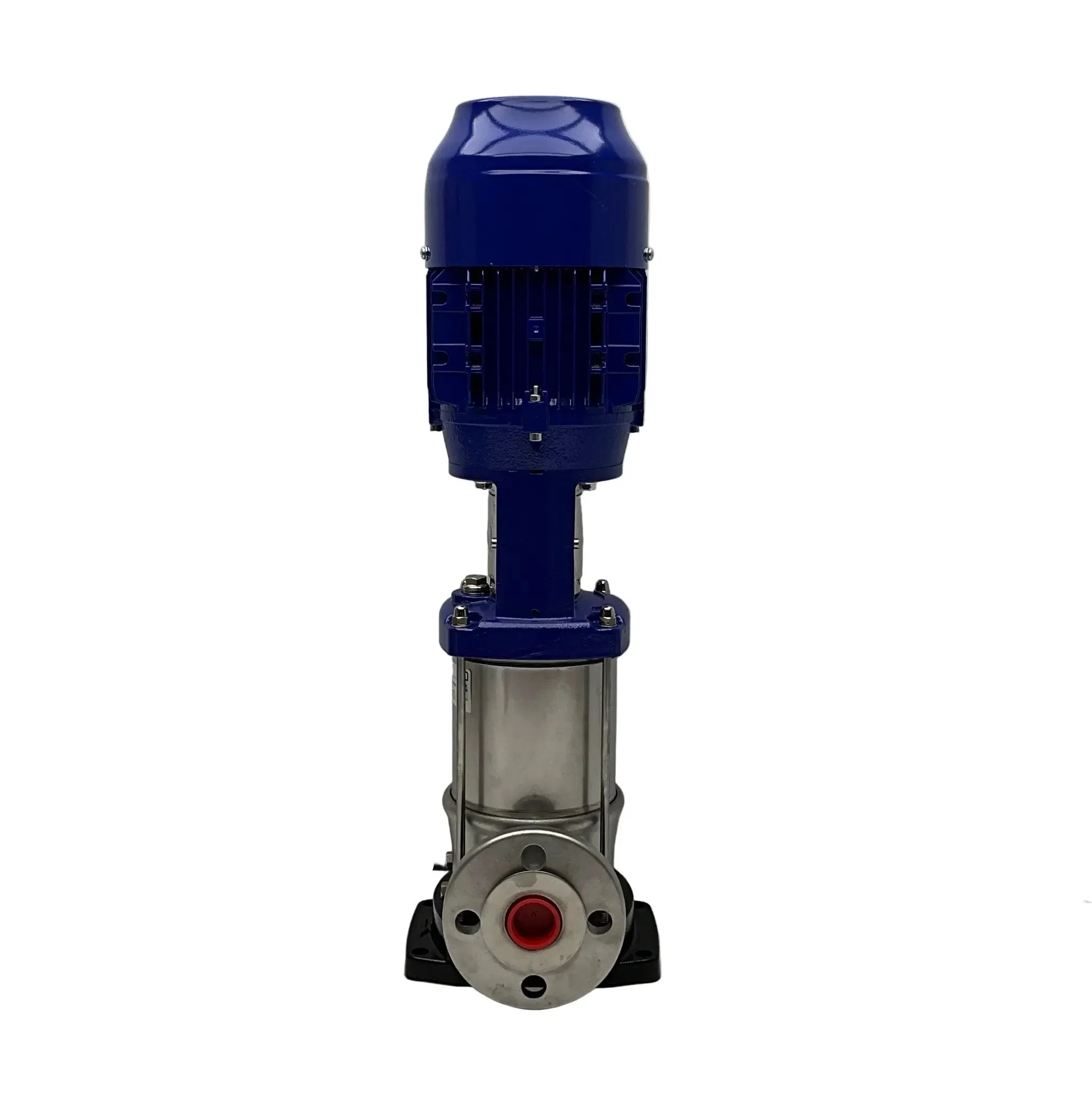

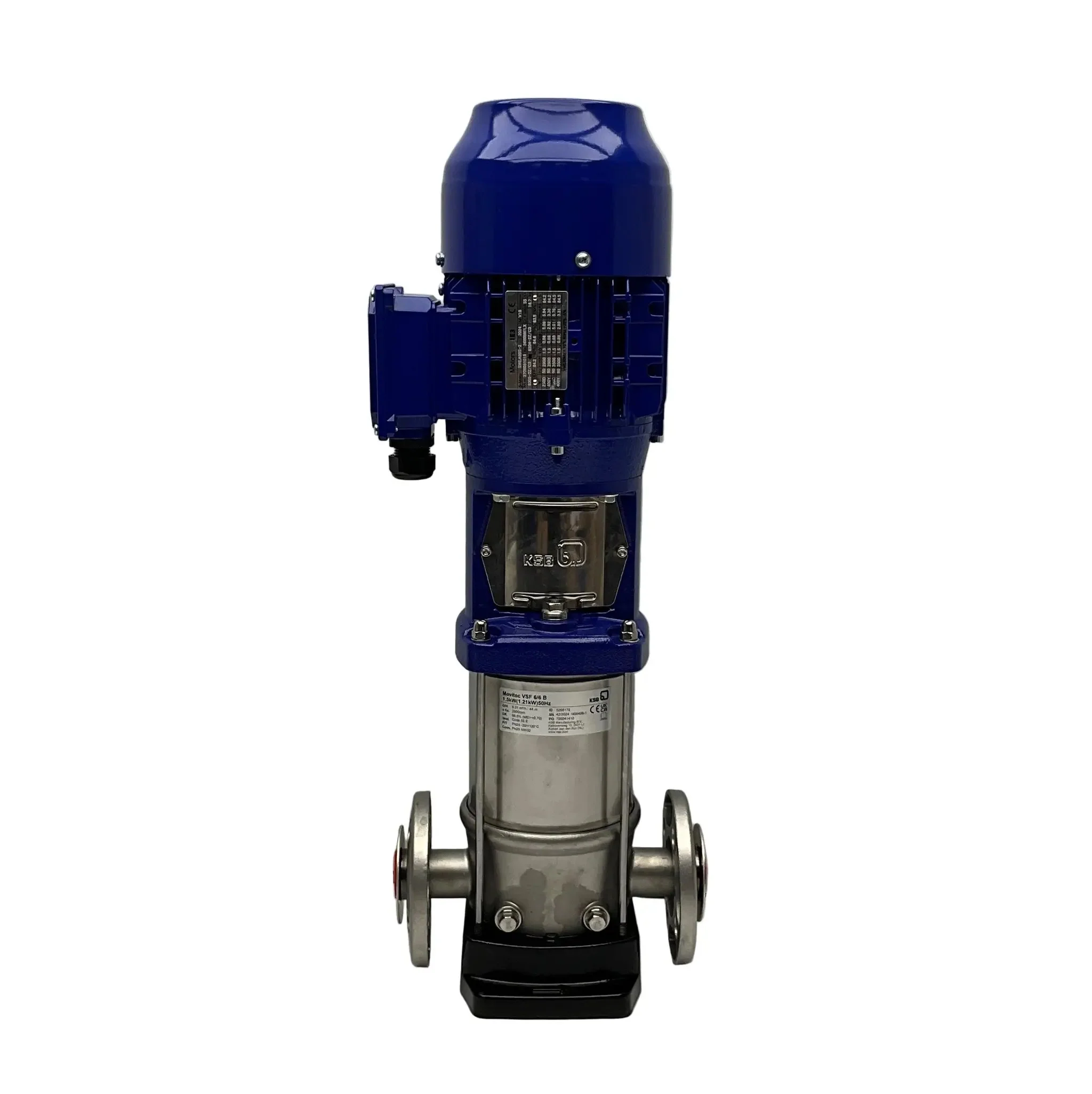

KSB Movitec VSF 6/6 B High-Pressure Inline Centrifugal Pump

- Brand: KSB
- Model: Movitec VSF 6/6 B
- Type: High-Pressure Inline Centrifugal Pump (Multistage Vertical)
- Range: Easy Access 55
  - Part Number: 5268172
  - Stages: 6
  - Nominal Flow Rate (Q): 6.31 m³/h
  - Head (H): 44 m

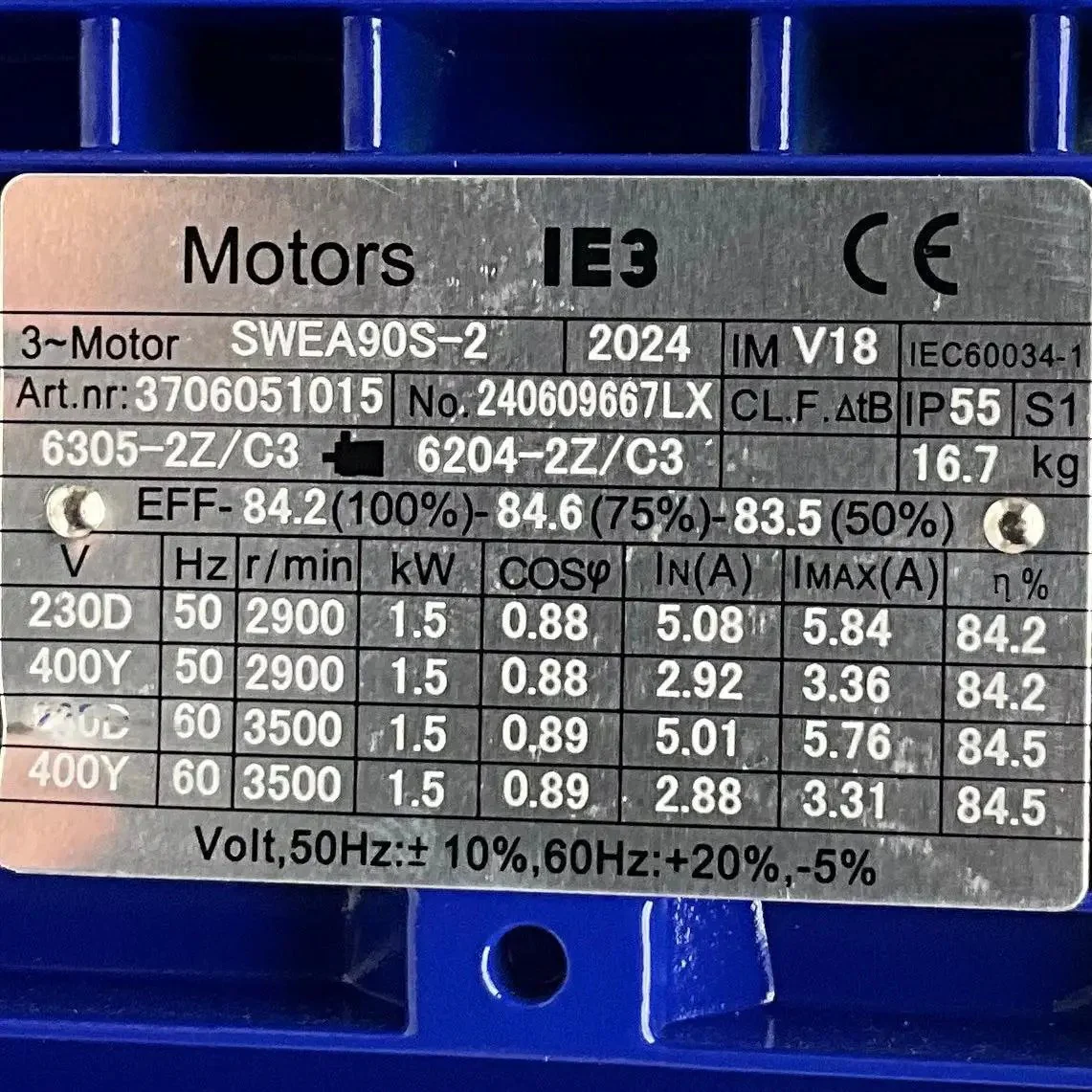

  - Motor Power: 1.5 kW
  - Voltage: 230 / 400 V @ 50 Hz 2P
  - Speed: 2900 rpm
  - Connection: NW 32 / PN 25
  - Max Operating Pressure: 25 bar
  - Fluid Temperature: -20°C to +120°C
  - Material: Stainless steel 1.4301 (AISI 304) casing, impellers, and shaft
  - Shaft Seal: Cartridge mechanical seal (SiC/SiC/Viton)
  - Features: Cartridge seal for fast maintenance, low NPSH

- Dimensions: 810 x 310 x 280 mm
- Weight: Approx. 35 kg
- Country of Origin: Germany
- HS Code: 841370
